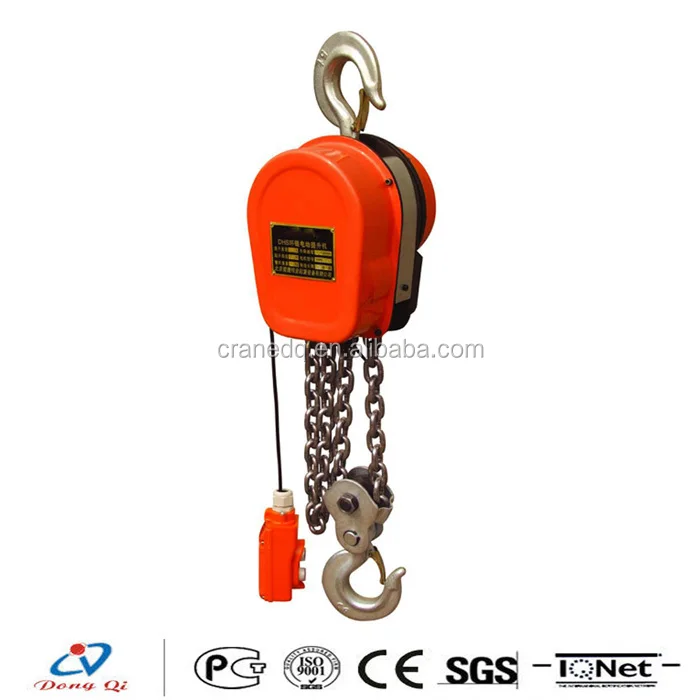

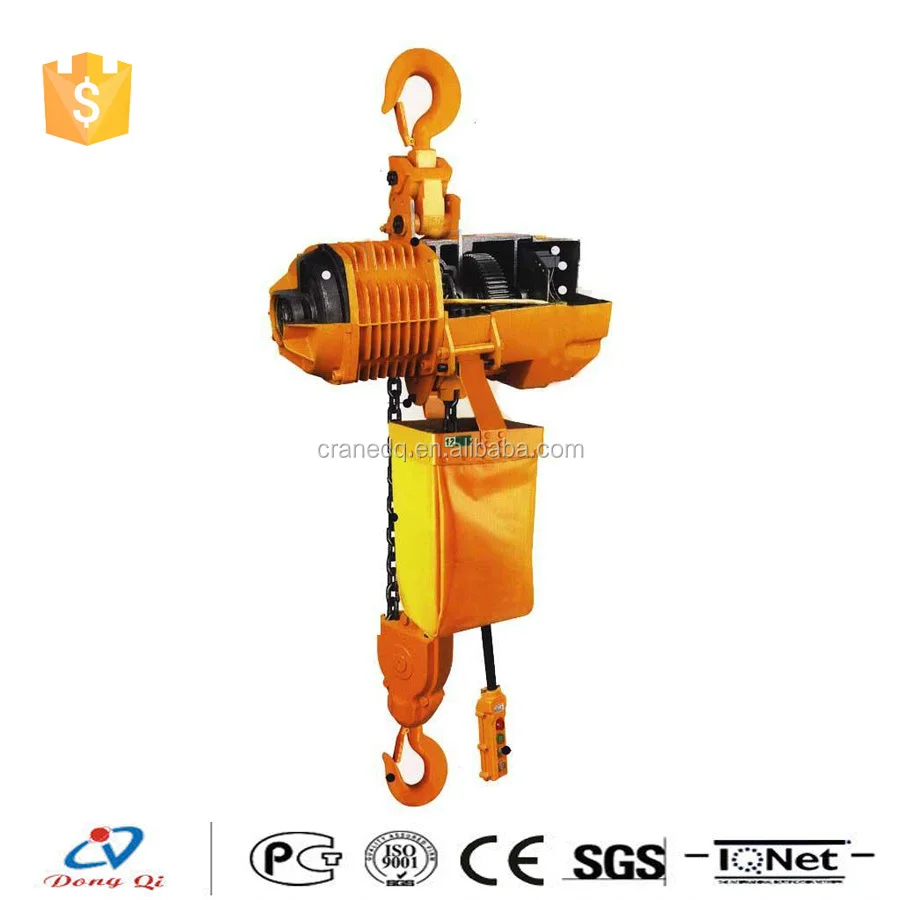

Electric Hoist Chain Pulley Block/Low Price WBH load 1 Ton Electric Chain Hoist

Product Overview

Description

Electric Hoist Chain Pulley Block/Low Price WBH load 1 Ton Electric Chain Hoistt

♣Advanced technique and complete quality supervision system LD type electric chain hoist 2 ton

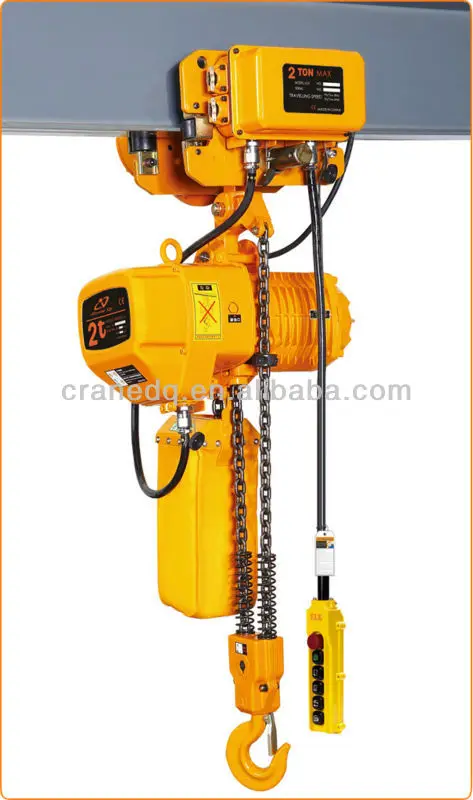

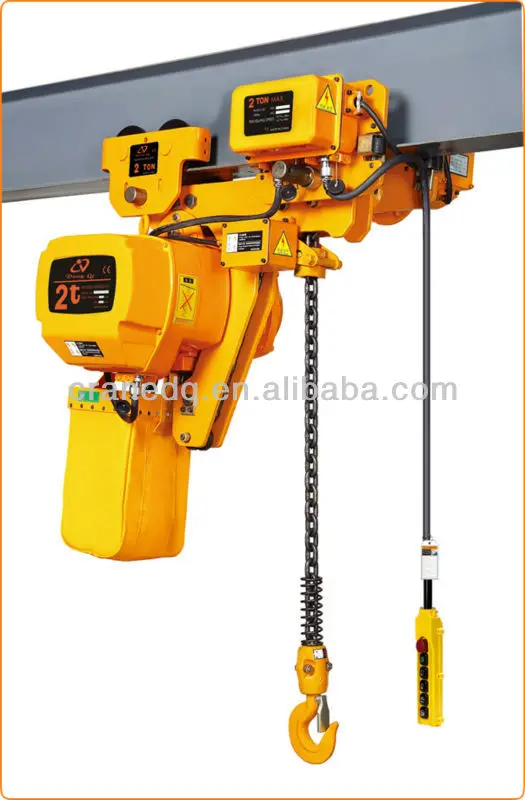

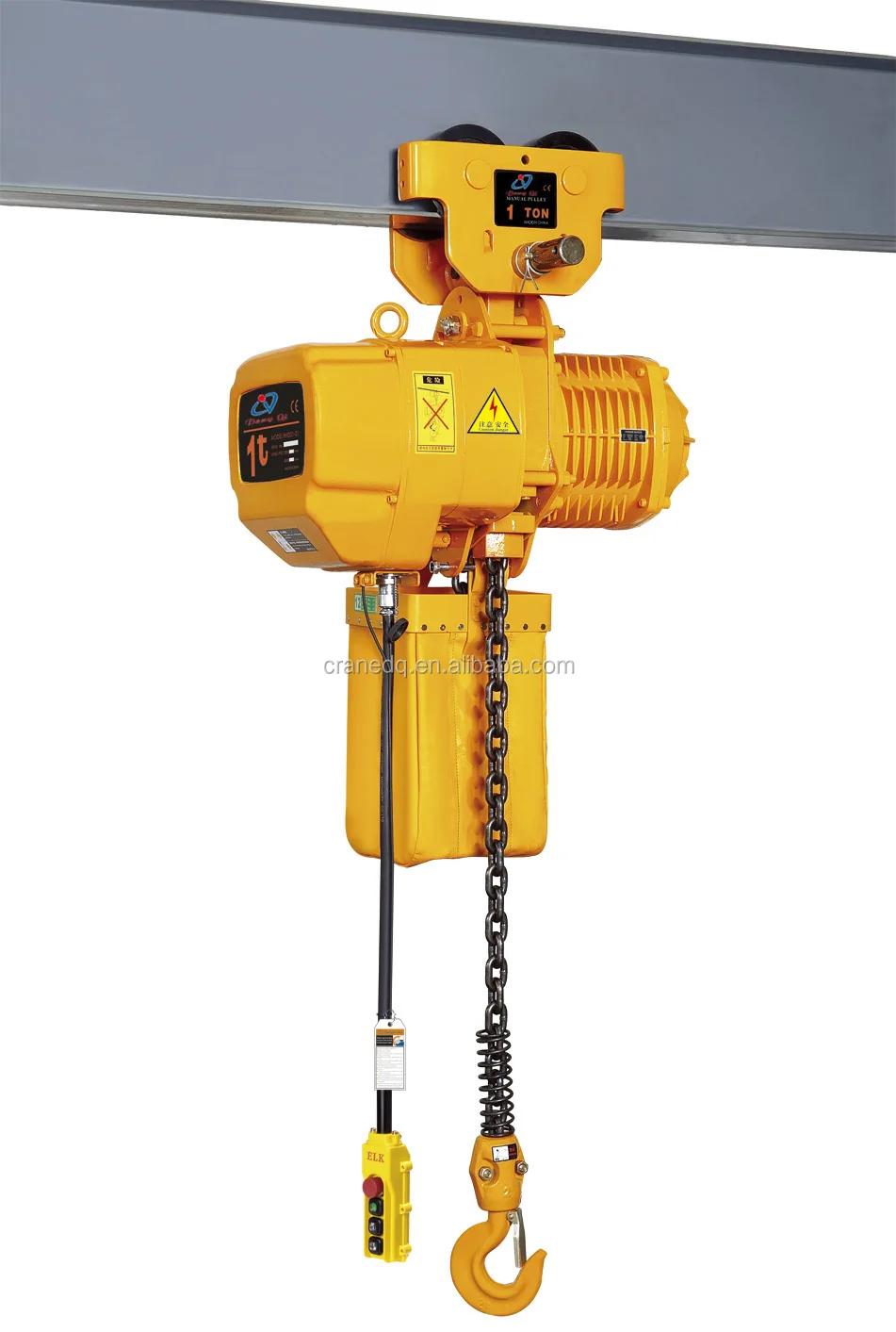

Chain Hoist With Trolley   product details



Electric chain hoist is a light and small lifitng equipment. Consisted with motor, transmission mechanism and chain wheel. Beatifull outlooking, Solid Durable. Inside gears are hot-quenched then increase the wear resistance of the gear and toughness. Adopt international advanced technology, fine workmanship, gear wheel tight fit.





in general of  Chain Hoist With Trolley



1 Widely used in factory, storage, wind-power station, logistics, port and construction field.

2 Usd for lifting or loading. Or lifting heavy objects for working or repairation.

3 It can be controlled by handle on ground or wire(no-wire) remote controll.

4 It can be suspended and fixed for using, or matched with monorail electric trolley

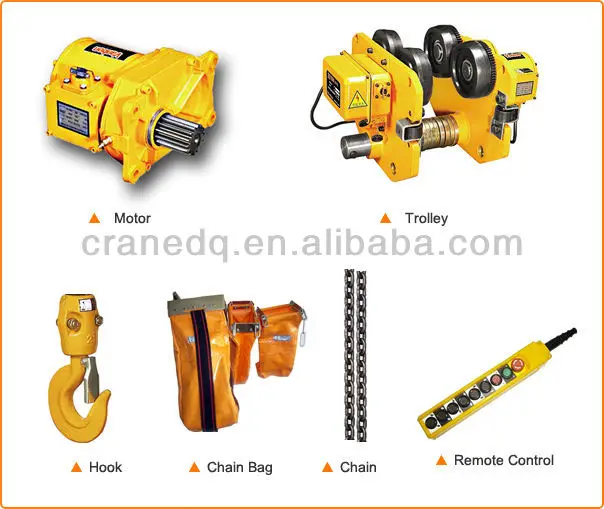

mechnical featrue of  Chain Hoist With Trolley



1. lifting motor

Using high performance lifting motor which can last to work 30 minutes with full loading, and has Grade B insulation

2.lifting chain

 Lifting chain hardened surface can prevent the damage of the core materials and products to soften, thus make lifting chain keep for a long time high performance.

The chain can also according to the request of customer order extended, allows you to use more convenient save worry.

3.double brake system  , it includes electromagnetic brake and mechaical system .



 safety protectioin of  Chain Hoist With Trolley



Lifting limitor:broken fire limit device during up and down travelling



Overloading protection: overload limitor, according to the working conditions on site to  preinstall related parameters



Top-clashing proof device: heavy punch limitor,sensitive reaction,compact appearance





parameters of  Chain Hoist With Trolley





Model	DHT	DHT	DHT	DHT	DHT	DHT	DHT
lift capacity T	1	1.5	2	3	5	10	20
Testing loading T	1.5Gn	1.5Gn	1.5Gn	1.5Gn	1.25Gn	1.25Gn	1.25Gn
Motor power kw	0.3	0.3	0.3	0.3	0.75	0.75	0.75
Switch	The rain proof type straight control switch
Power voltage	380V  50HZ
Lift speed m/min	0.46	0.46	0.46	0.46	0.46	0.46	0.46
Min. Distance between hooks H  mm	270	350	380	470	600	700	1000
Lift chain quantity	1	1	2	2	2	4	8
Lift height m	2.5	2.5	2.5	3	3	3	3
Lift chain diameter mm	6	8	6	8	10	10	10
Net weight kg	26	32	30	37	54	88	195
Gross weight kg	28	34	32	42	66	102	235
Packing size cm	33×34×34	33×34×34	33×34×34	33×34×34	43×36×43	50×50×43	72×72×85
lift 1 more meter increase weight kg	0.835	1.46	1.67	2.92	4.52	9.04	18.08













































Notice:







electric chain hoist 10 ton for sale help the work much easier .



 please confirm following information when you send inquiry.

1. lifting capacity.

2 lifting height.(hook center to ground)

3 Power supply: Voltage.

Come to us! The best installation team is ready for you!
