4mm instrument cables flexible test leads probe leads guangdong

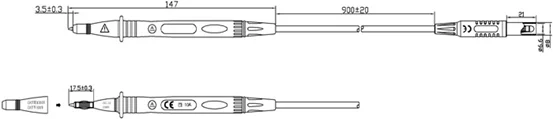

Drawing for reference:
Bullet Points:
*Apply to test instrument such as Multi-Meter, voltage tester...
*Use high quality UL1803 18 AWG PVC double insulated wire.
*2mm straight brass test probe with removable tip sheath.
*4mm straight angle Copper plug on the other end, without safety cap.
*Double injection process wined maximum safety and durability.
*Highly flexible leads could meet different size requirement
*Complying with IEC:61010,EN:61010.
Rated Voltage: CAT III 1000V/CAT IV 600V
Rated Current: 10A
Standard Lead: 900MM, PVC, UL1803 18AWG DOUBLE INSULATED WIRE

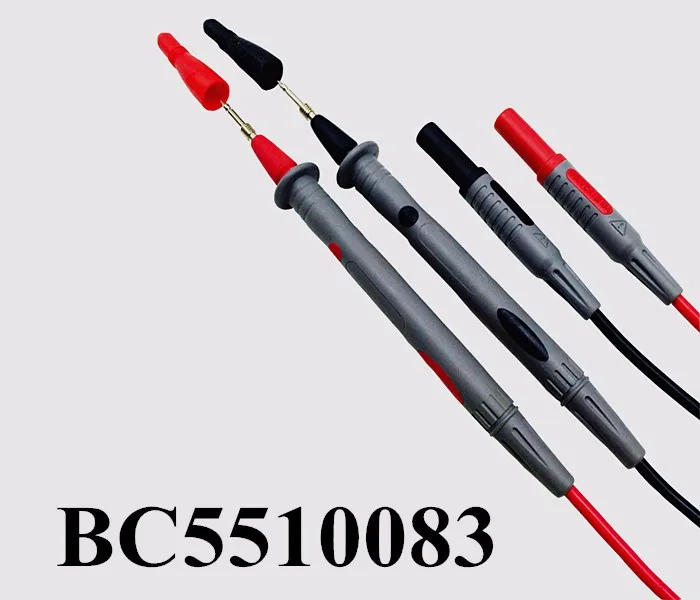

Model Number: BC5510083
Available color : Black/Red/Customer’s color
Our Services
1. Free samples
2. Quick responce
3. Problem solving timely
Company Information
Dongguan BoChao Electronic Co., Ltd was established in 2010, Mainly focus on designing ,developing and manufacturing the accessories of Electorinc test and measuring instrument , Our factory is located in DongGuan, China with more than 3000 square meters .
About our company: 1. Speciallized in providing a comprehensive range of Test accessories including: Test Leads, Crocodile clamp, Test Probe, Banana plug, Connecting lead, BNC Lead, Connectors , Power Cord etc. 2. With skilled workers & professional test equipment such as High Voltage & High Current Teters, Continuity testers, Mechanical tension machine etc. 3. CE/Rohs Certified, part of products are UL approval. 4. Competitive price, high quality, and good service are our factory key principle. 5. Have rich experience cooperated with big retialer in U.S. , European , Japan market etc, well known international quality requirement .
