5) Color : Black , white , red , blue , or as required.
6) Optional surface : Textued(one or two side) or smooth surface.
7) The biggest geomembrane liner manufacturer/factory in China for many years .
HDPE Geomembrane Features
Good mechanical properties, high tear strength, deformation and adaptable, puncture resistance, anti-aging, anti-ultraviolet-resistant, Anti oil and salt, pH, anti-corrosion, high temperature-resistant, non-toxic, long service life. water, drainage, seepage, the good effect of moisture, width, thickness of the full range of specifications and low cost, simple construction.

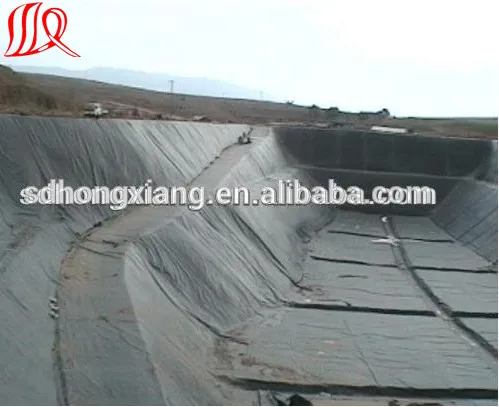

HDPE Geomembrane Applications
Flexible membranes are used in a variety of applications, such as:

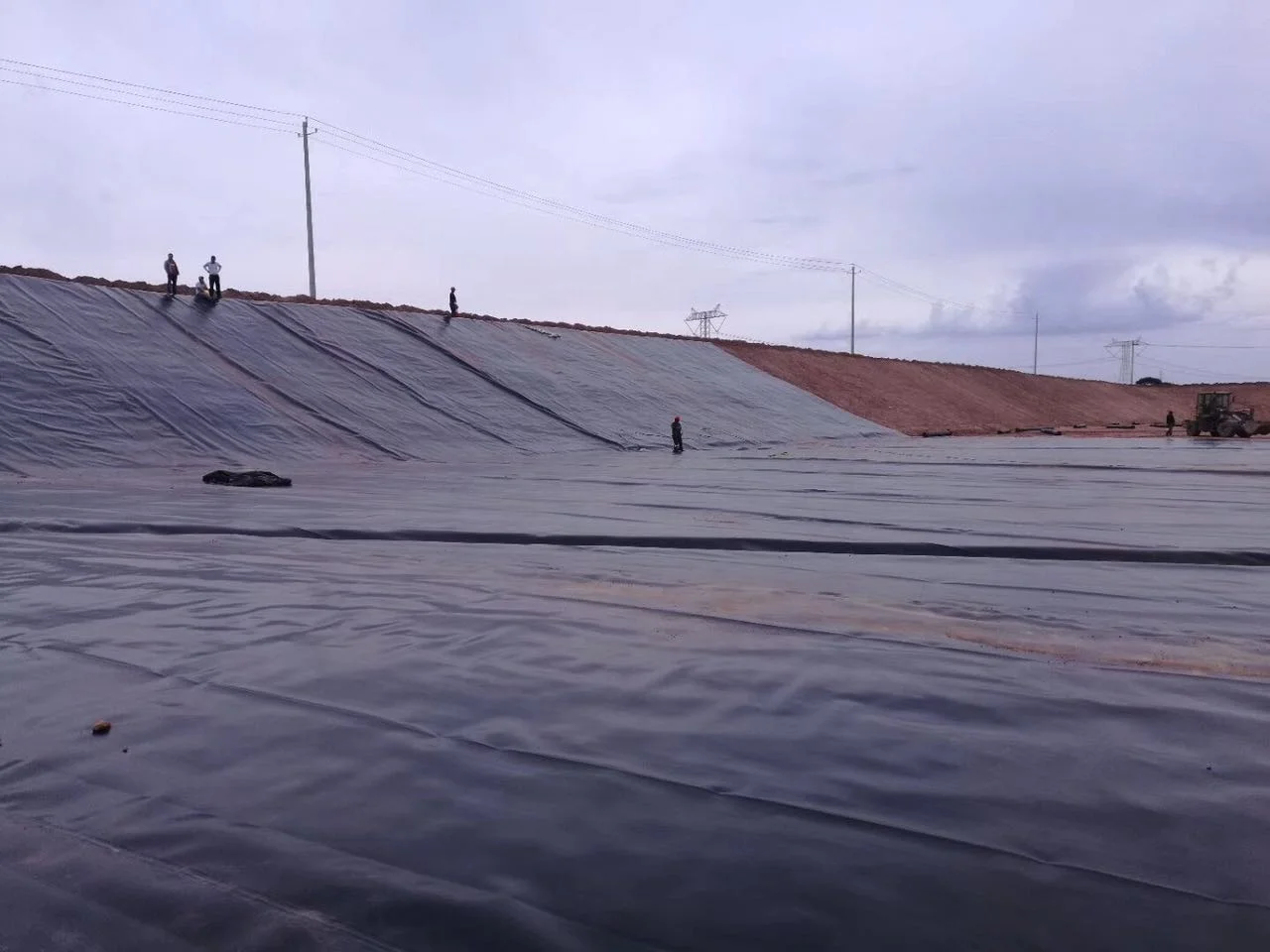

Landfill lining to protect the ground water from contamination.
Landfills capping to prevent fluid flow in the landfill, to trap and properly vent the gases generated during decomposition of organic waste and to permit efficient revegetation and restoration of the area.
Water reservoirs for collecting rain-water before it reaches the sea.
Reservoirs for waste-water to protect the groundwater sources or streams.

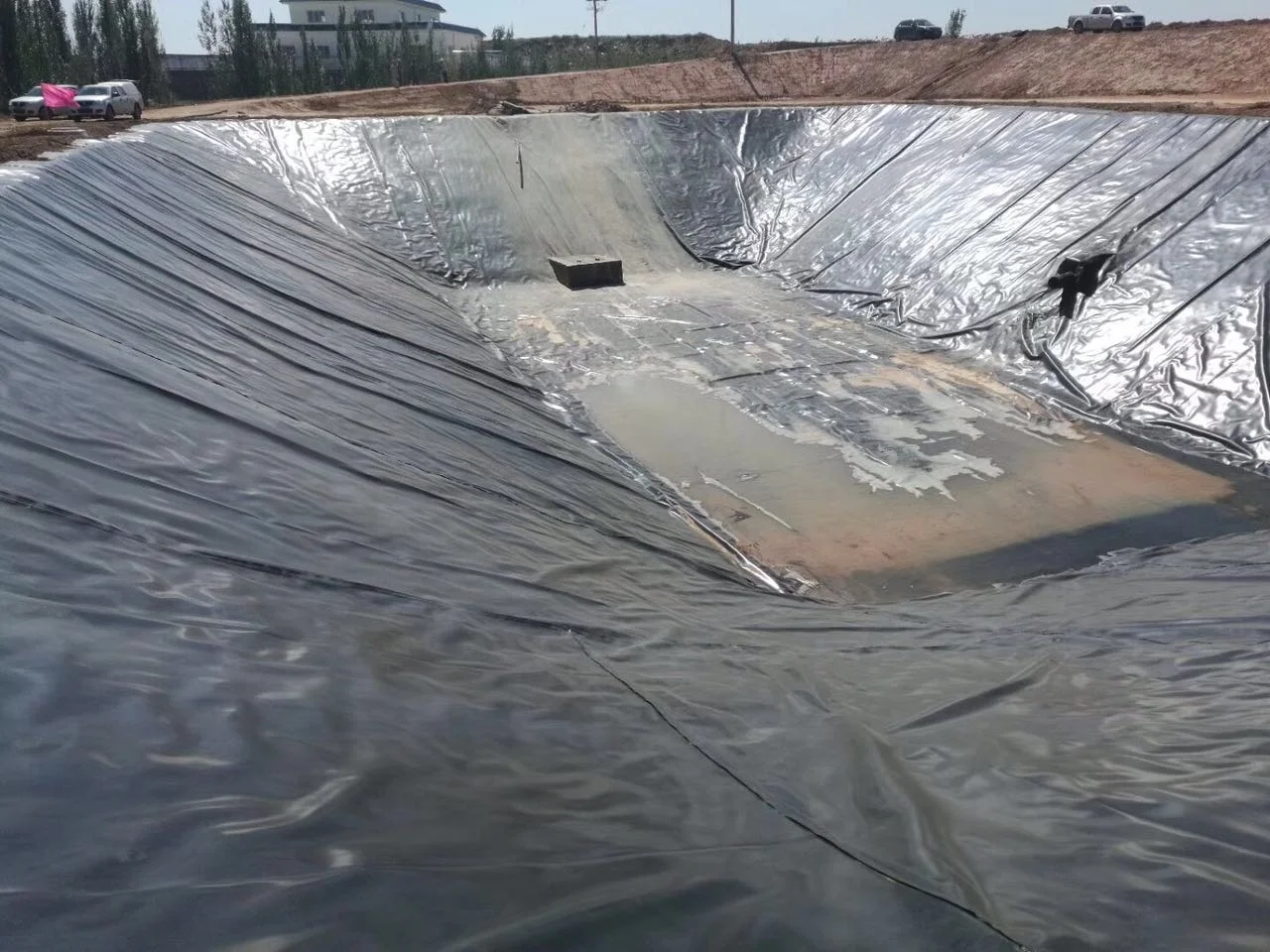

Pond-lining for artificial lakes and irrigation of farms.
Irrigation canals an economic alternative to concrete and compacted earth for transporting water and irrigating large areas. Also used to reduce seepage from existing deteriorated concrete linings.
Protection of lake banks for soil stabilization.
Tunnels protecting the structure against humidity and water pressure.
Earth dams for soil stabilization.
Underground insulation of chemical plants, petrol stations & roads to prevent chemicals, oil etc. from polluting the underground water in case of a leakage.
Mining for preventing contamination of the soil and underground water and permitting extraction of precious metals by heap leaching, using chemical solutions.
Tanks secondary lining for preventing pollution in case of leakage or chemical spill.
Insulation of buildings & construction projects
Evaporation basins
Aquaculture Water reservoirs for fish breeding.
HDPE geomembrane Technical Index
No.
Item
Test Value
0.75mm
1.0 mm
1.25 mm
1.5 mm
2.0 mm
2.5 mm
3.0mm
1
Minimum Density(g/cm³)
0.939
2
Tensile Property
Strength at yield,N/mm
11
15
18
22
29
37
44
Strength at break ,N/mm
20
27
33
40
53
67
80
Elongation at yield,%
12
Elongation at break,%
700
3
Tear Resistance N
93
125
156
187
249
311
374
4
Puncture Resistance N
240
320
400
480
640
800
960
5
Stress Crack Resistance, hrs
300
6
Carbon Black Content, %
2.0-3.0
Carbon Black Dispersion
1 or 2
7
Standard OTI Min
100
High Pressure OTI Min
400
8
Impact Cold Crack at -70°C
Pass
9
Water vapor permeability
(g.cm/cm2 .s.Pa)
≤1.0×10-13
10
Dimensional Stability (%)
±2

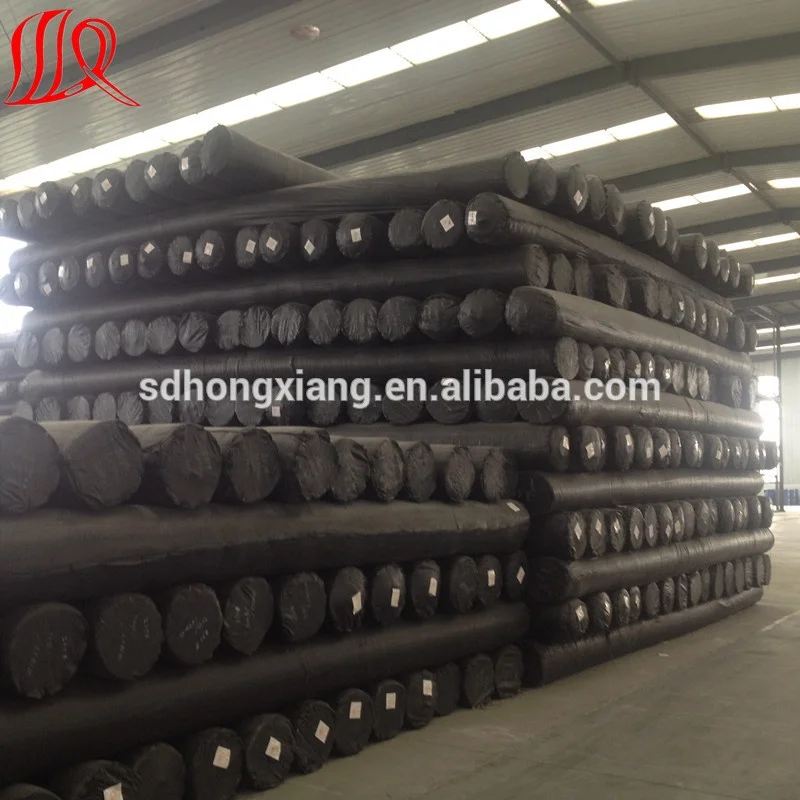

Packaging & Shipping

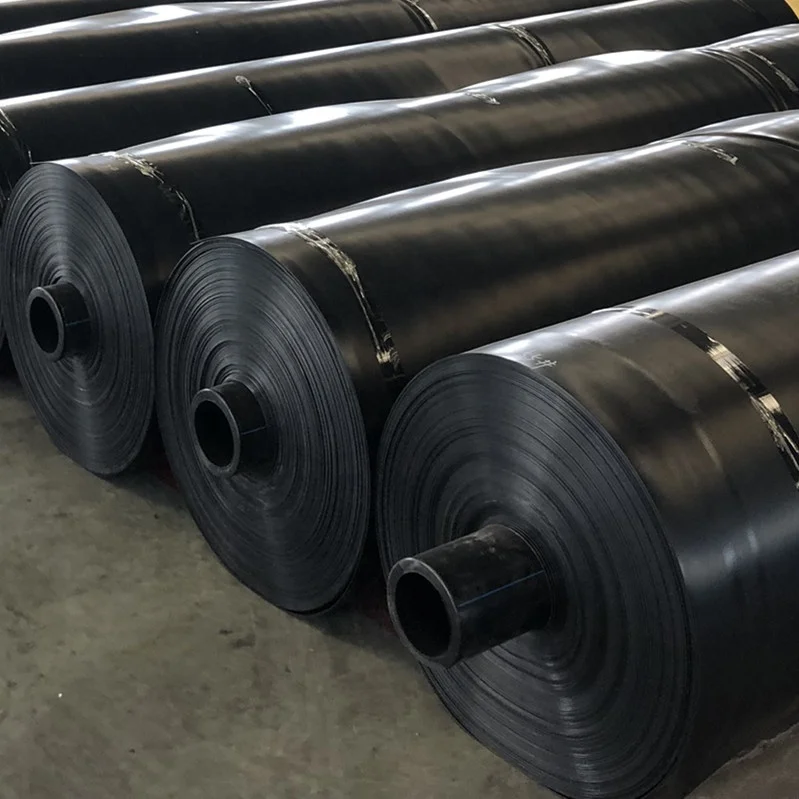

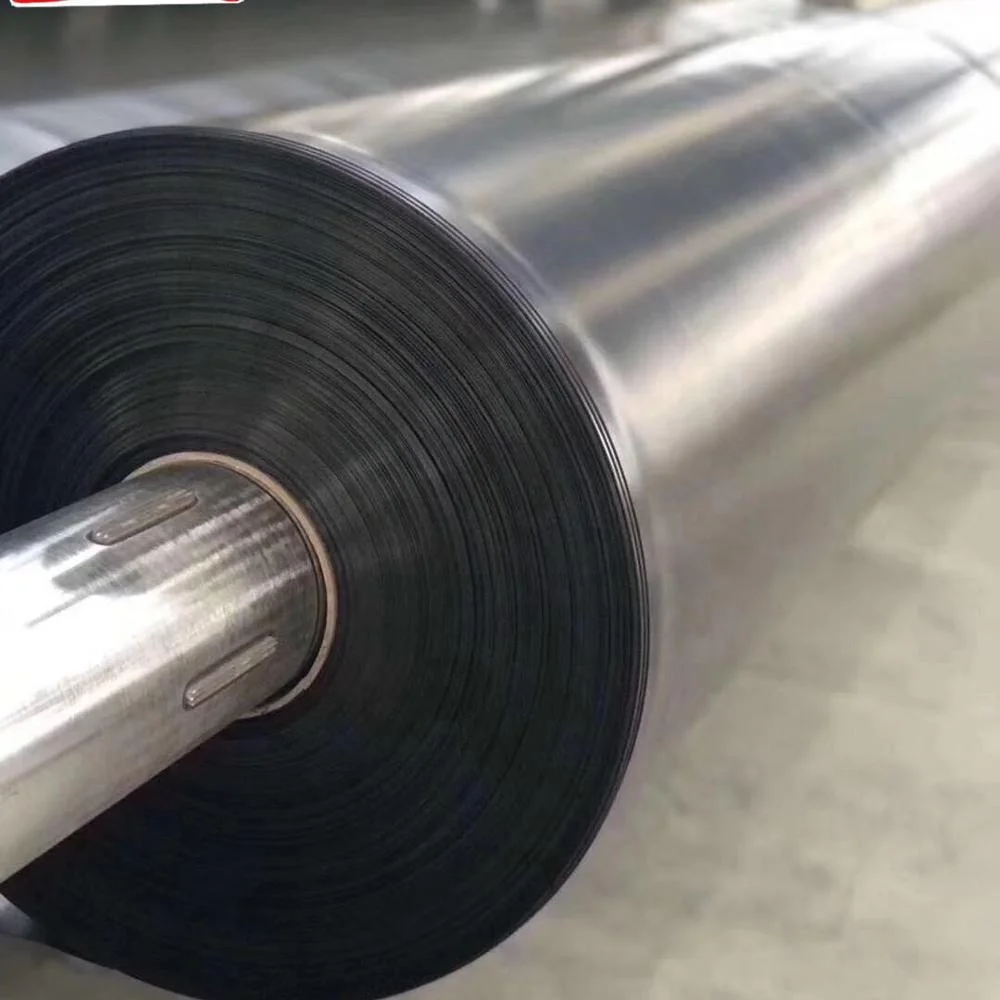

1. Roll size: 5.8m*50/100m for 20'GP, 8m*50*/100m for40'HC
2. The outer package: black or white woven geotextile.
3. Different thickness/ roll size for different qty in the same containers. so if you have any questions, please contact us.
Our Services
Quality, delivery time and the price is our biggest advantage.
Quality: Advanced equipment and the strong professional and technical department and strict quality control system can ensure the quality.
We have different quality products for viarious projects.
we also can manufacture it as your specification.
Hongxiang engineers will try their best to answer all your queries and address all your doubts.

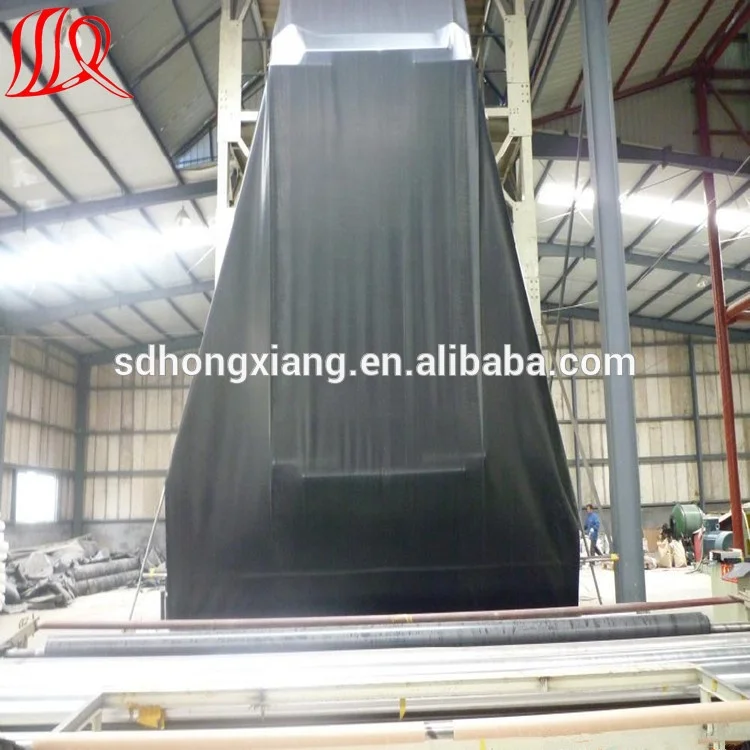

Delivery time: 56 production lines can meet the big orders need and short the delivery time.
Price: Purchase the big quantity raw material with cash, some of raw material made by ourselves (such as PP short fiber used for PP non woven geotextile) can low down the cost.
Our product can meet all kinds quality request, high,middle, and lower with different price.
Company Information
Hongxiang New Geo-Material Co.,Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June,1987 and become a provincial enterprise in Oct.1997. It occupies a land of 300,000 square meters, with total asset RMB320,000,000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.
Our annual productivity is as below: 50 million square meters of needle-punched geotextile; 55 million square meters of compound geomembrane; 9,000 metric tons of PE geomembrane; 36 million square meters of macromolecule waterproof materials; 8 million square meters of geosynthetic clay liners (GCL); 5 million square meters of single direction geogrid; 8 million square meters of double-direction geogrid; 1 million square meters of geocell; 4 million square meters of geonet; 3 million square meters of tri-dimensional geomat; 10 million square meters of woven geotextile; 9,000 metric tons of geomembrane; 300 metric tons of PP long fiber; 4,000 metric tons of PP long fiber; 6 million plastic woven bags.
At present, we are one of the largest manufacturers of geosynthetic in China. Our trademark is "Hongxiang", registered in 2000. We passed the evaluation of ISO9001 in 2001 as well as ISO14001 certification. Our products were appraised as qualified products during the National Product Quality Selective Examination in 2004. We participated in the drafting of the National Standard of Geosynthetics of the People's Republic of China in 1998. We are also a participator to draft two national standards of short fiber needle-punched geotextile and non-woven compound geomembrane.
FAQ
1.How about the delivery time?
Honestly, it depends on the order quantity, our normal delivery time is around 7-14 days after we received the deposit. 2. What kind of payment terms do you accpet ?
T/T, L/C at sight, Cash are accepted.
3. How about the MOQ?
The MOQ is different for different products, for our first cooperation we can accept your first trial order. 4. Do you charge for the samples?
Accordeing to our company policy, the samples are free, but you should pay for the freight.
5. Can you produce according to customers' design?
Sure, we are professional manufacturer, we welcome customized design.
6. Can you tell me your main customers?
That's our customers' privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
