Заводская поставка, испытательный стенд для стартера генератора для небольших автомобилей

Product Overview

Description

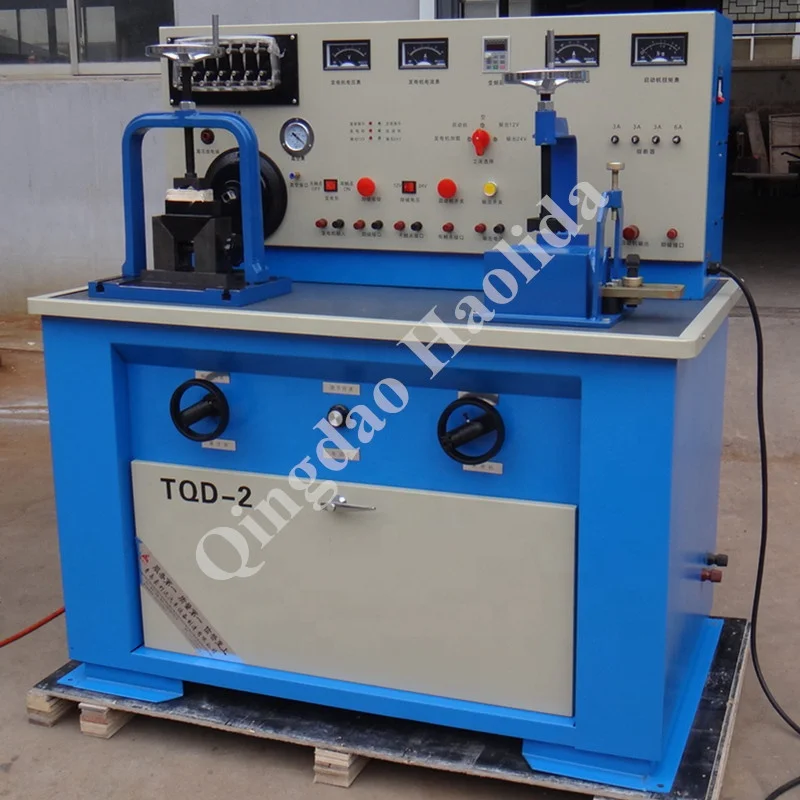

                      TQD-2 Model Auto Electrical Test Equipment With CE

General introduction

This test bench uses variable frequency speed regulation ,pointer instrument display.

It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn, ignition coil, etc.

Advantages:

1.It uses variable frequency speed regulation

2.It displays result by pointer instrument .

3.It is easy to learn and operate.

4.It is with fuse protection.

5.It is with indicator lamp following each step and warn you the problems.

6.It possesses high control sensitivity and strong controllability.

7.It is with charge fuction



Test items:

Test Starter:  5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M

Test Alternator & Generator:  1.5 KW, (12V 24V 48V), 5000RPM

Test generator: no load and load ,speed, voltage,current;

Test starter: no load, load, braking torque;

Test electronic regulator: regulate voltage and current, limit current;

Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;

Test battery: voltage; test electric horn: sound;

Test electric wiper: action;

Test ignition coil



Technical parameter:

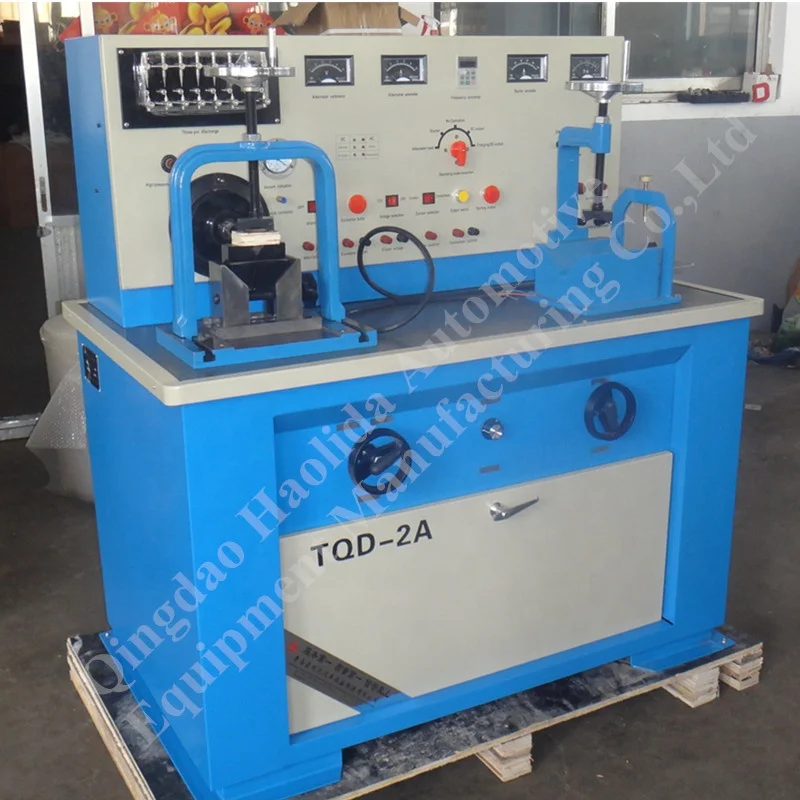

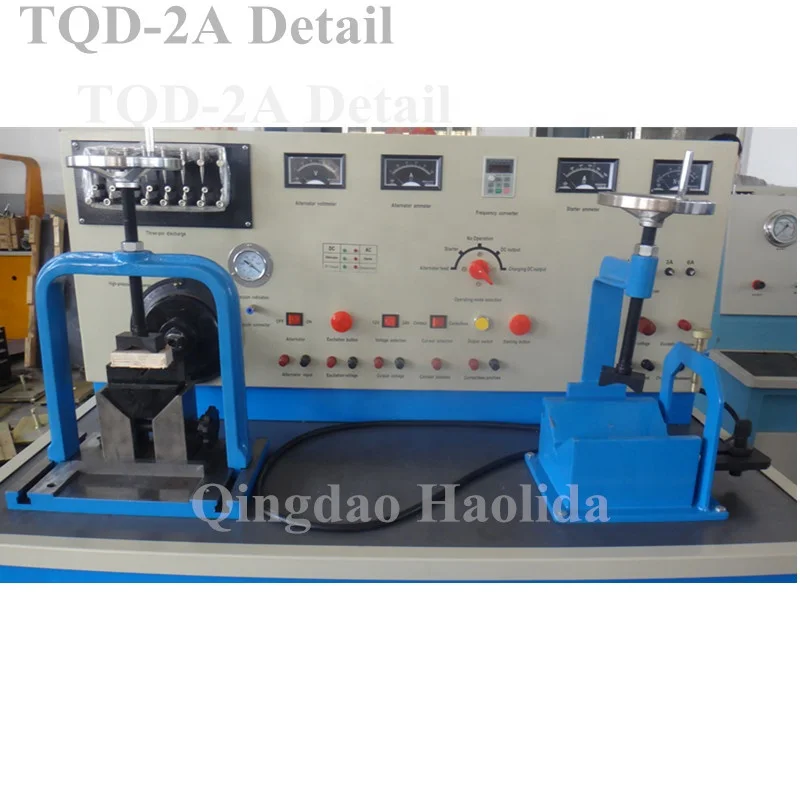

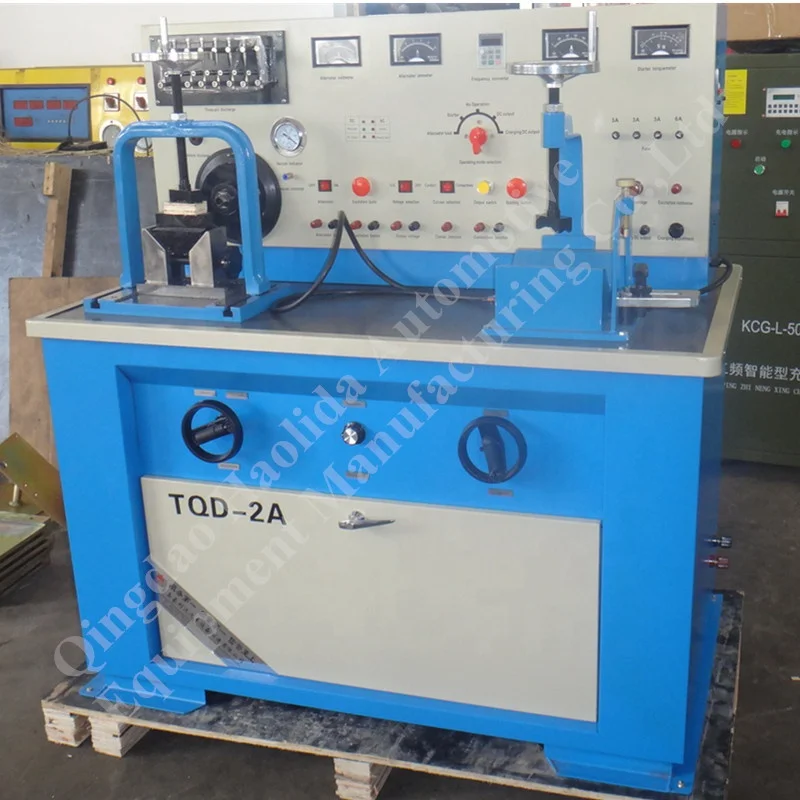

Model no	TQD-2A
Language	English/Spanish, etc
Material	Metal plate
Painting	Powder painting, durable and beautiful
Color	Blue
Voltage	220V 50 Hz  (other voltage acceptable)
Motor power	2.2KW
Regulating speed of frequency converter	0-5000Rpm
Frequency converter power	7.5KW
External battery	Prepare one self for starter testing
Turning direction	Positive and negative
Adjusting mode	Rotary
Three-pin discharge	8 groups in parallel
ignition angle index plate	360°division
range of adjusting clearance	0—15mm
Testing starter max braking current	1000A
Test starter max braking torque	100N.m
Charge function	Yes
Accessories:
Accessory wires, blank plates for starters, fuses, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery  (negotiable)
Delivery time	15 days after receiving downpayment
HS code	90312000.90
Packing sizes	1440*900*1580mm=2.05CBM
Weight	N.W: 250kgs  G.W: 280kgs

Similar Products:

Packing&Shipping:



Why Choose us:

32 years’ design,development and produce experience

Professional R&D team

Strict QC

A good pre-sale and after-sale service

Can design and make according to customer’s requests
