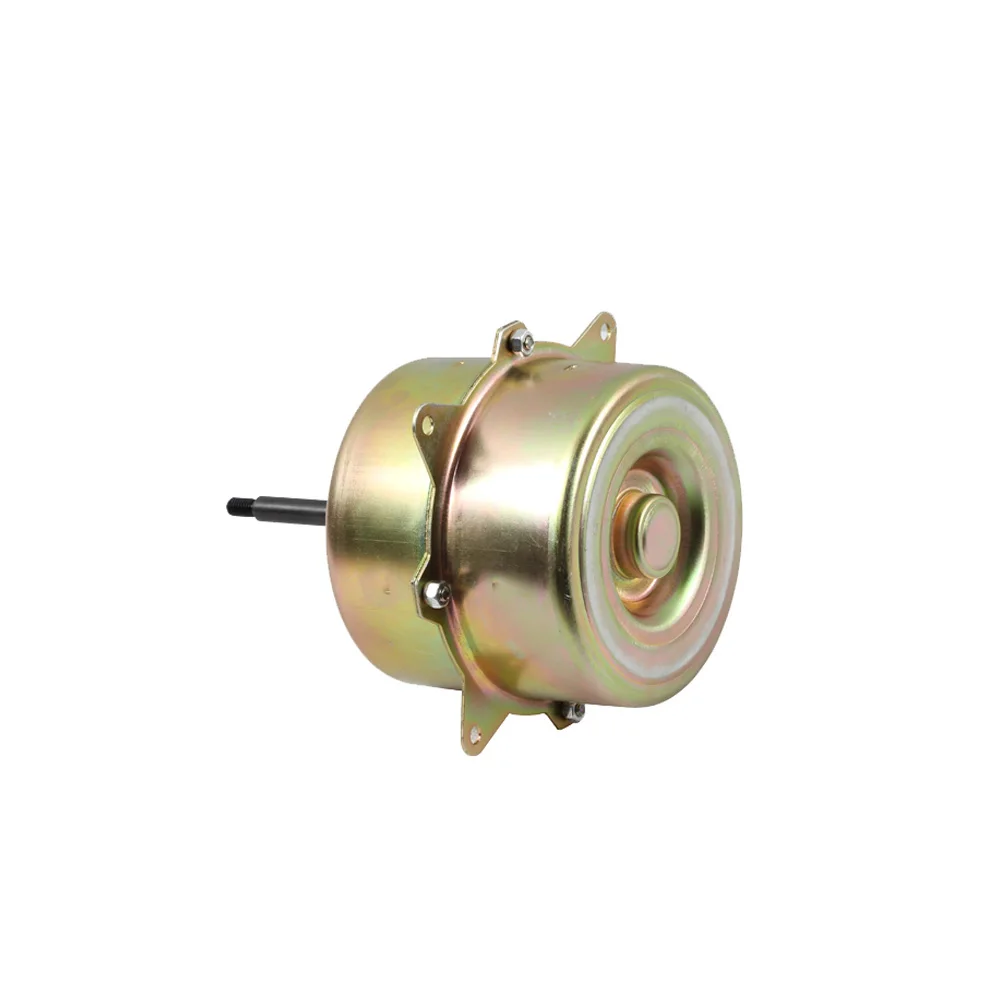

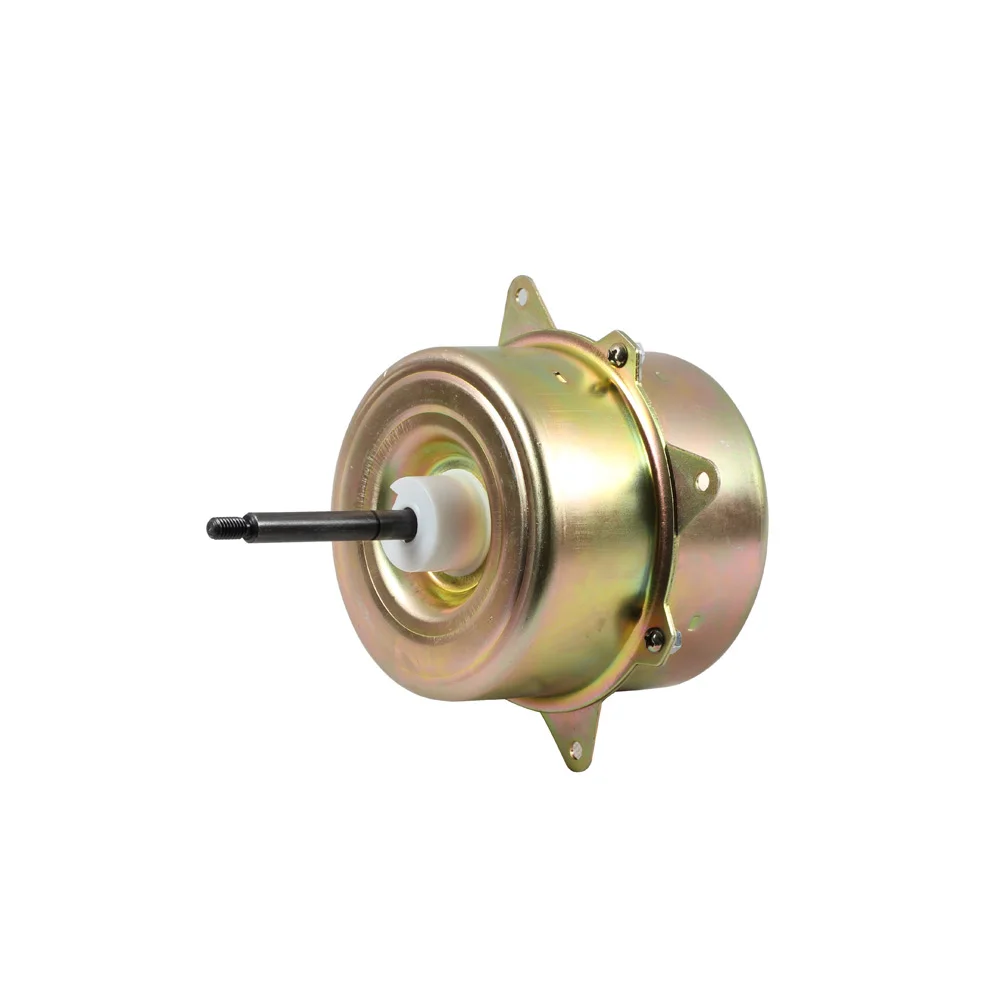

Single phase AC fan Motors for air conditioner
- Category: >>>
- Supplier: Zhongshan Powerstar Motor Manufacturing Co. Ltd.
Share on (60507185175):
Product Overview
Description
single phase ac fan motors for air conditioners
Product Description
parameter
| Powerstar: | Powerstar |
| Model Number: | YDK-35-6 |
| Type: | Asynchronous Moter |
| Rated Voltage | 115V/208-230V |
| Frequency: | 50/60hz |
| Output Power: | 20-70W |
| Pole: | 6 |
| Efficiency: | IE3 |
| Protect Feature: | enclosed |
| Speed: | 700-900 rpm |
| rotation | CW/CCW |
| Phase: | Single-phase |
| Bearing: | Ball bearing |
| Place of Origin: | Guangdong China (Mainland) |
| Certification: | ROHS,CE |
| Features: | • Reversible plug for easy rotation • Rated Frequency:50/60Hz • Number of Pole:4/6Pole |
A.smooth running, |
| Air Conditioner Motors | ||||||||||||
| Part No. | Model | Power(W) | Voltage(V) | Frequency(Hz) | Pole | Speed(RPM) | Rotation | Shaft(mm) | Bearing | DIA(mm) | Protect Feature | Insulation Class |
| 1 | YDK-20-6 | 20 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 2 | YDK-25-6 | 25 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 3 | YDK-30-6 | 30 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 4 | YDK-35-6 | 35 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 5 | YDK-40-6 | 40 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 6 | YDK-45-6 | 45 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 7 | YDK-50-6 | 50 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 8 | YDK-55-6 | 55 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 9 | YDK-60-6 | 60 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 10 | YDK-65-6 | 65 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 11 | YDK-70-6 | 70 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
| 12 | YDK-250-6 | 250 | 115/208-230V | 50/60 | 6 | 700-900 | CW/CCW | 8 | ball | Steel cover 96 | enclosed | F |
advantage
Contact us
hot
Company Information
Zhongshan Powerstar Motor Manufacturing Co.,Ltd. is a professional motor;manufacturer with 15 years’
experience of designing and producing.
The main products are AC Induction gear motor, Fan Motor, Air conditioner motor, Household appliance 3.3 inches motor, Air mover motor, Air cooler motor, Pump Motor, Road barrier motor, Air inflatable blower motor.
We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Europe, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.
