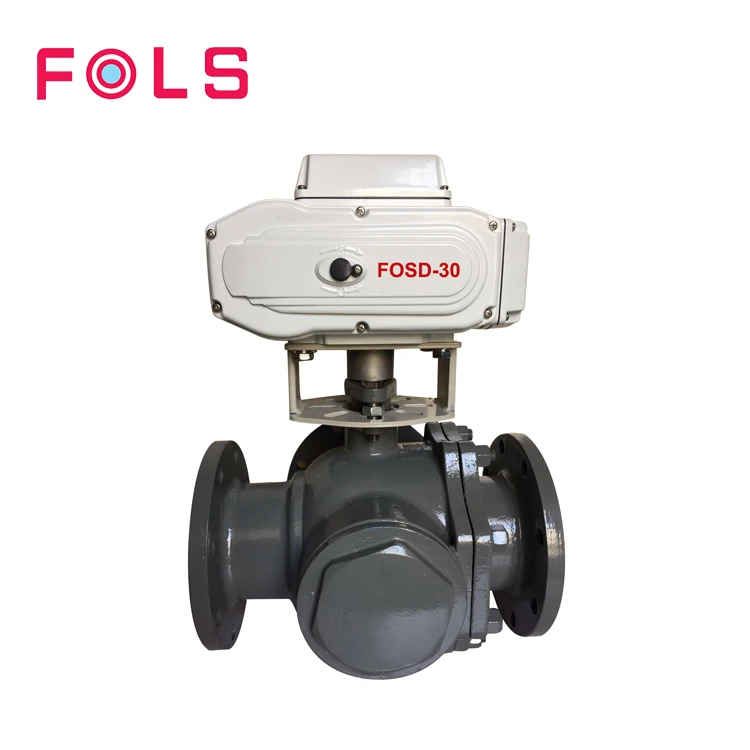

electric control 50mm 2 inch pvc 3 way ball valve



Product Description







 Product introduction

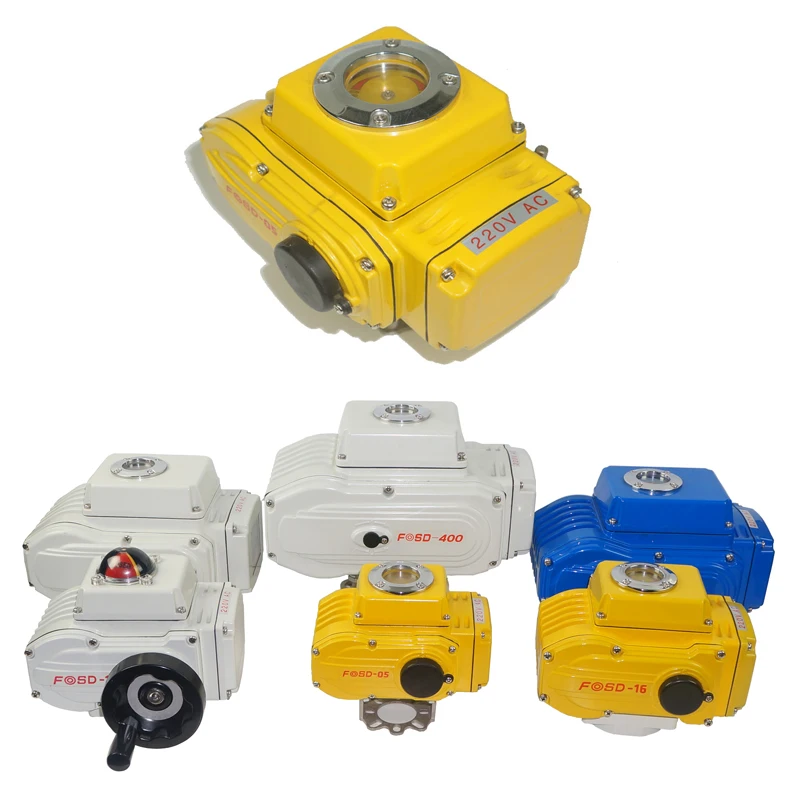

50mm 2 inch pvc 3 way ball valve is equipped with FOSE series electric actuator, it needn’t extra servo amplifier,  accept 4-20mA or 1-5 V DC input signal to regulating or open and shut medium. The standard balls of 3 way ball valve is L port type with two holes,  and change the angle between hole and pipe to alternate. The T port ball with 3 holes, connection to the port in the center from either side post is possible with L-port, or alternatively it can disconnect all ports. however, connecting together to the side ports is not possible.  The electric 3 piece ball valve is widely used in paper making, sugar industry, petroleum, chemistry, metallurgy,  air-condition, fire protection, water supply and industrial automation and so on.

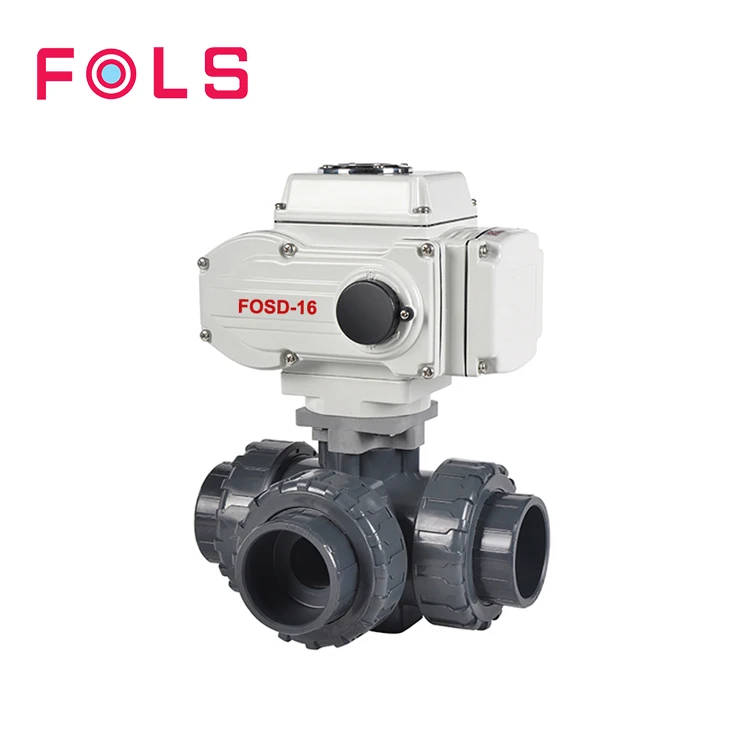

 Electric ball (18)




Standard technical parameters
Body
Nominal size: DN15-DN50mm
Body material: 304, 316,316L
Connection type: Inner thread
Pressure class: PN16-PN6.3MPa
Structure type: Floating ball core 3 way L-type, 3 way T-type



Electric actuator
On-off type: feedback signal: Passive contact signal/4-20mA/ resistance signals.
Regulation type: Input signal 4-20mA/0-10V/1-5V;
Feedback signal: 4-20mA/0-10V/1-5V
Voltage: AC220V\\380V\\110V\\24V,DC12V\\24V etc; Special voltage can be customized.
Explosion-proof class: Can be choose explosion-proof type EX d IIBT4



























Type



Control type



Function



Electric actuator



ON-OFF type



Feedback: the active signal, passive contact signal, resistance, 4-20mA



Regulation type



Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus



Filed operation



The field, remote control switch regulation and MODBUS, PROFIBUS field bus














Main size








 Electric ball (15)







Why Choose Us


2-1








Company Information











Production Process







Production Process


Professional screwed ends 1/2 inch ss316 gate valveProfessional screwed ends 1/2 inch ss316 gate valve









FAQ


Q: Are you trading company or manufacturer ?
A: We are a manufacturer and have our own factory.





Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.





Q: Can I have a sample order?
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.





Q: Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.





Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.





Q. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
