Product Overview

Description

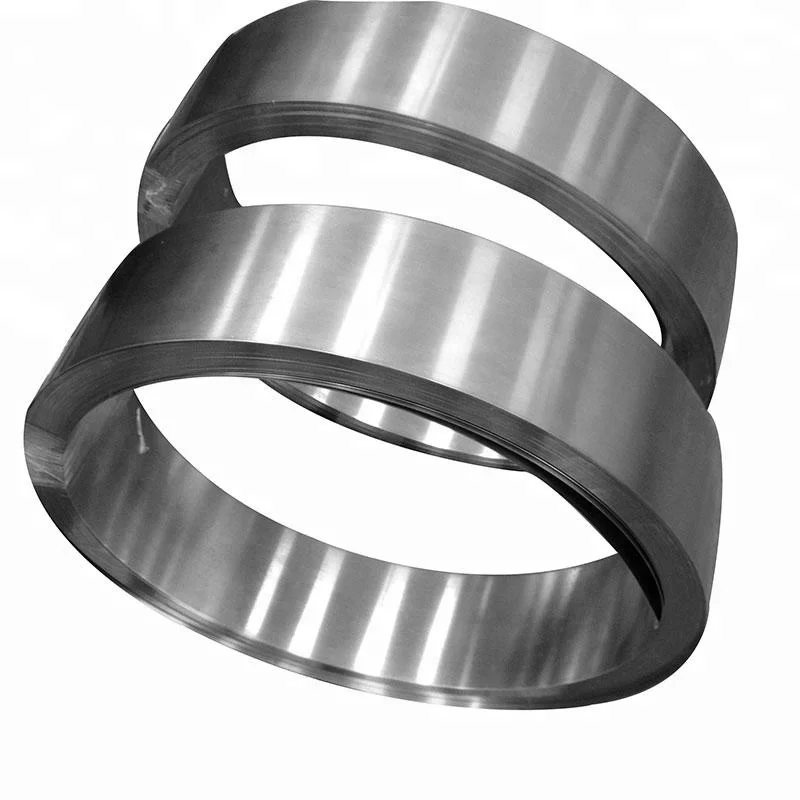

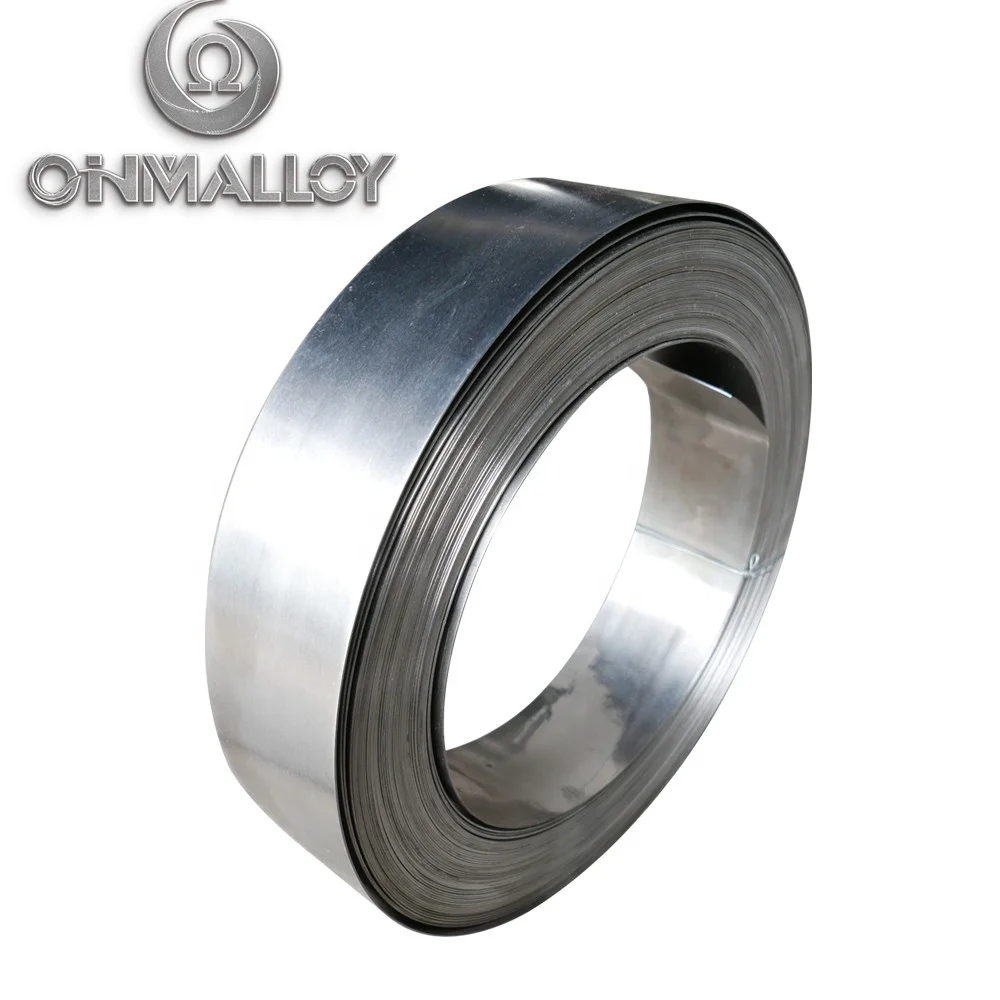

Nickel Silver Alloy Strip C7521 0.6mm Nickel Copper Alloy





Parameter for Nickel Silver Strips/Copper Nickel Zinc Strips:



Alloy No.	Chemical Composition
	Cu	Mn	Ni	Zn
C7521	62.0-66	0-0.5	16.5-19.5	Remainder
C7541	60.0-64	0-0.5	12.5-15.5	Remainder
C7701	54.0-58	0-0.5	16.5-19.5	Remainder

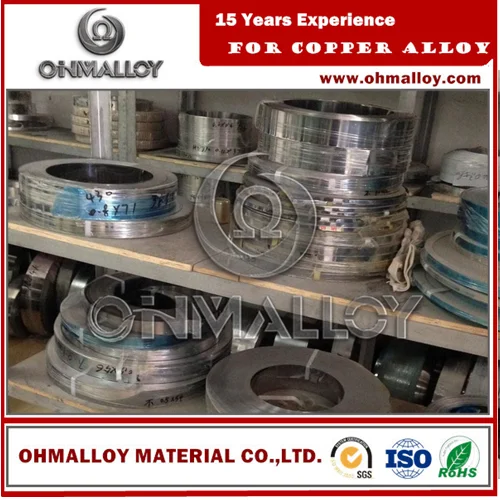

nickel silver alloy Copper Alloy Copper Alloy Product Name C7521, CuNi18Zn20

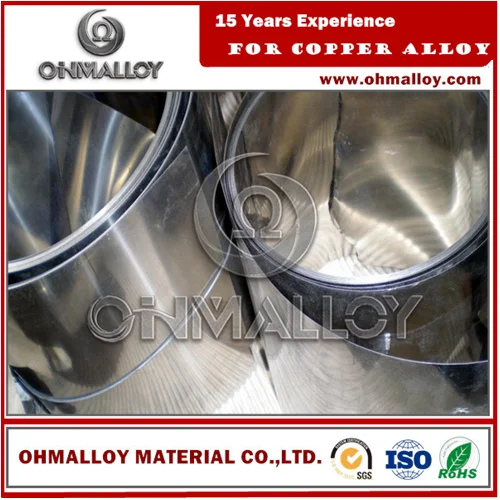

strip c7521 0.6mm Copper Alloy Copper Alloy Common Name Germany Silver

Features for Nickel Silver Strips/Copper Nickel Zinc Strips:
1) Good color
2) High toughness
3) High strength
4) High stability
5) Excellent elasticity with fine silver gloss
6) Good fatigue
7) Rust and corrosion resistance properties
8) C7521 and C7541 have very good deep-drawing performance



Alloy No.	Quality Grade	Ohmalloy Properties
		Tensile	Elongation	Hardness Test
		Strength
		(Kgf/mm 2 )		JIS	OHMALLOY
				Standards
C7521	O	≥ 38	≥ 20	—	≥ 110
	1/4H	38~46	≥ 10	—	110~140
	1/2H	44~52	≥ 5	120~180	130~160
	3/4H	—	—	—	—
	H	52~60	≥ 3	> 150	150~180
	EH	≥ 58	—	—	≥ 180
	SH	—	—	—	—
C7541	O	≥ 36	≥ 20	—	≥ 110
	1/4H	—	—	—	—
	1/2H	42~55	≥ 5	110~170	110~150
	3/4H	—	—	—	—
	H	≥ 50	≥ 3	> 135	≥135
	EH	—	—	—	—
	SH	—	—	—	—
C7701	O	—	—	—	—
	1/4H	—	—	—	—
	1/2H	55~67	≥ 8	150~210	140~200
	3/4H	—	—	—	—
	H	64~75	≥ 4	180~240	175~220
	EH	72~82	—	210~260	195~240
	SH	78~88	—	230~270	210~250

Applications for Nickel Silver Strips/Copper Nickel Zinc Strips:
1) Shielding material for communication electronics
2) Antenna material
3) EMI-shielding material
4) Spring contact
5) Flexible terminal
6) Environmentally-friendly plating-free electronic parts and components
7) Quartz oscillator
8) High-level material
9) Electric material

nickel silver alloy Copper Alloy Copper Alloy MOQ 50kg
