IR Leveler Machine for UV coating Production line With Coating Width 1320mm

Product Application

This machine is used for the levelling and defoaming after curtain coating, which makes the surface more smooth, and it is also can be used for the drying of water based paint.

Main Features

1) Using the infrared heating principle, accelerate the volatilization of paint thinner and paint chemical reaction, reduce the time of paint drying.

2) Make the paint film fully levelling, get more fullness and smoothness after drying.

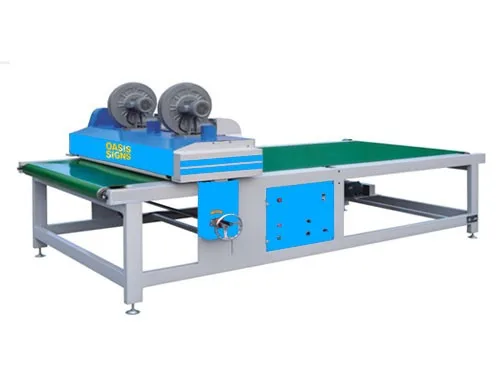

Dust Collector Machine

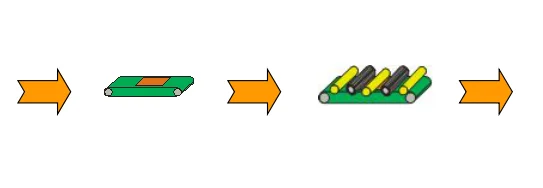

Step: 1: Conveyor

Transportation Materials

Step 2: Dust Collecting Machine

Automatic remvoal of dust due to sanding of board, Impove the quality of coating.

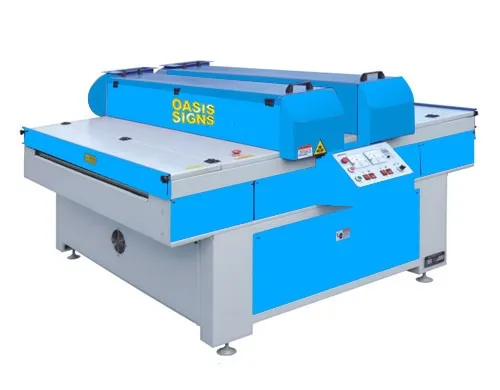

Step: 3 Single Roller Coating Machine (primer, double roller coating machine is optional)

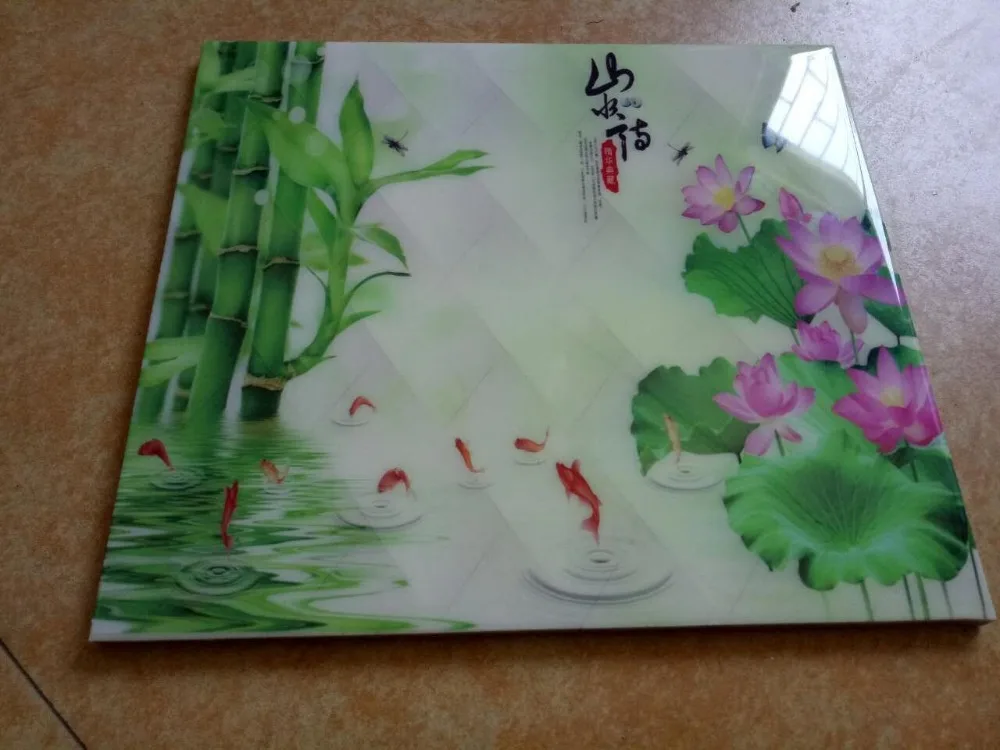

high gloss paint coating for furniture, solid wood floor, cabinet, decorative boards, ceramic tile, marble, shutter and profiles, etc

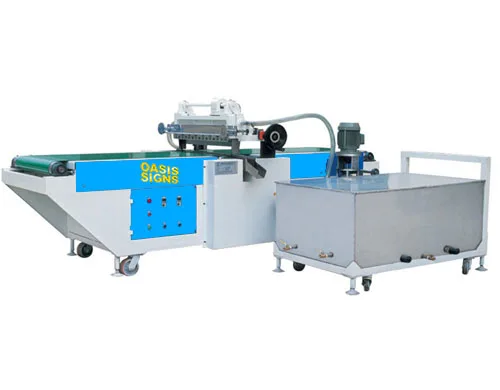

Step 4: Curtain Painting Machine

Automatic Spraying colored PU, UV primer and surface
paint on all kind of materials like wood, plastic, metal, glass magnesium board and other type of new materials

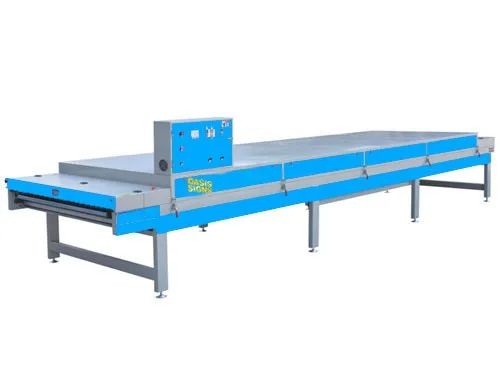

IR Leveler Machine

Levelling and defoaming after curtain coating to make the paint film fully levelling, get more fullness and smoothness after drying.

UV Dryer Machine

Step: 6

For the instantaneous drying after UV paint spray coating.
