Wholesale Wind Inverter 150 Kw on Grid Tiein
$265.00-515.00
Focus on off grid inverter processing wholesale 3KW Inverter Wind Turbine On Grid For Wind Use
- Category: >>>
- Supplier: Jinan Deming Power Equipment Co. Ltd.
Share on (60507473347):
Product Overview
Description

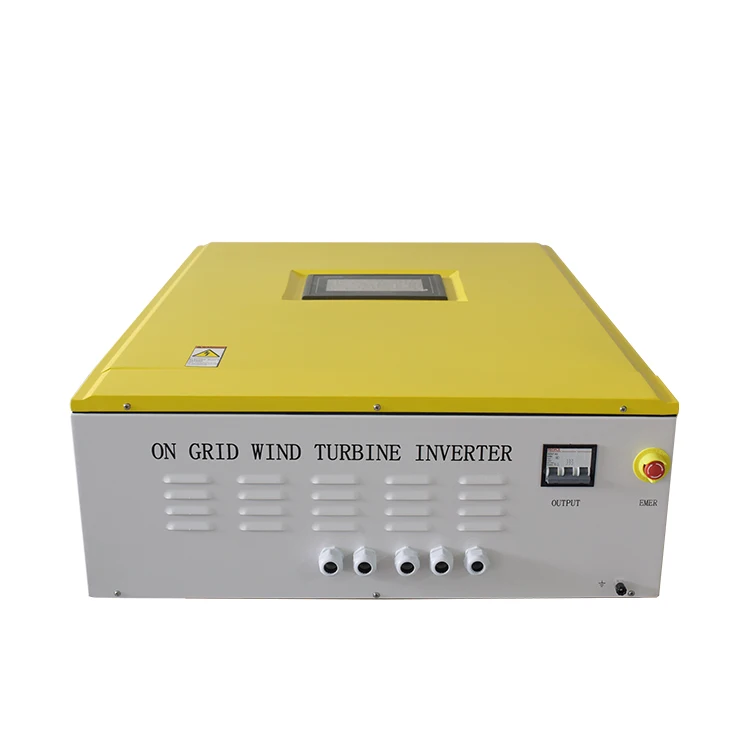

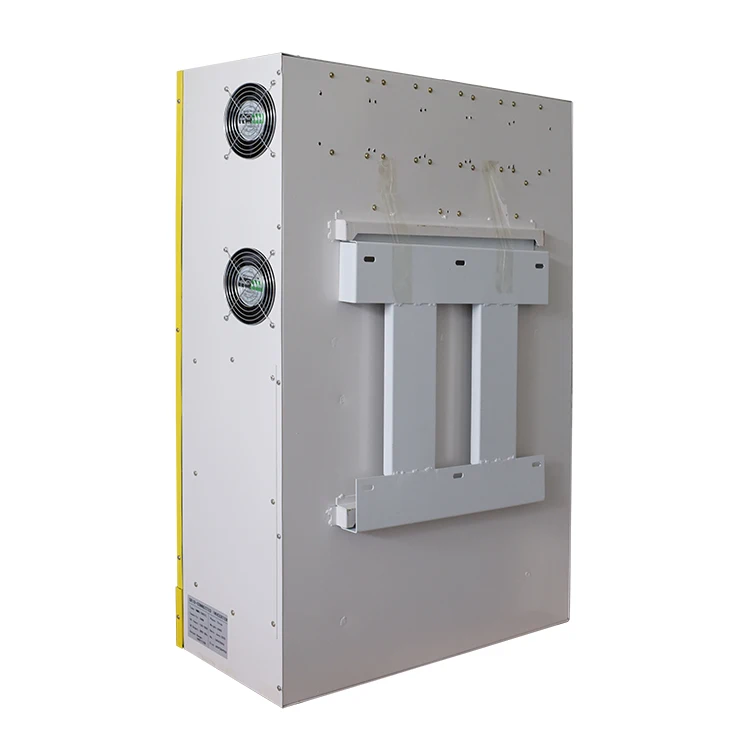

Focus on off grid inverter processing wholesale 3KW Inverter Wind Turbine On Grid For Wind Use
Product introduction
Performance characteristics of on grid wind turbine controller
1 This product is produced according to the industry standard JB/T6939.1-2004 and the national standard GB/T19115.1-2003. It can also be produced according to the technical requirements of users.
2 Color touch screen display. Visually display the working status of the controller. Rich data display: real-time wind
turbine voltage and current, solar panel voltage and current, DC output voltage and current, and cumulative power generation
3 The technical parameters of the controller can be adjusted through the touch screen. The control parameters can be adjusted for different wind turbines. 4. Two sets of control systems are adopted, PWM constant voltage and constant current system +three-phase braking system.
5 Current control, wind speed control and wind turbine speed control can be added, and the control parameters can
be set.
be set.
6 In the case of strong winds, the constant voltage and constant current output of the controller provides DC constant
voltage power to ensure the normal operation of the inverter.
voltage power to ensure the normal operation of the inverter.
7 When the on grid inverter is offline, the controller outputs aconstant voltage and waits for the inverter to return to work.
8 When the grid is cut off, the controller will automatically control wind turbine brake and the inverter will stop output to grid. When the grid resuming, the controller stops brake wind turbine and the inverter will resume power supply.
9 The inside of the controller is equipped with surge protector. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On another way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.

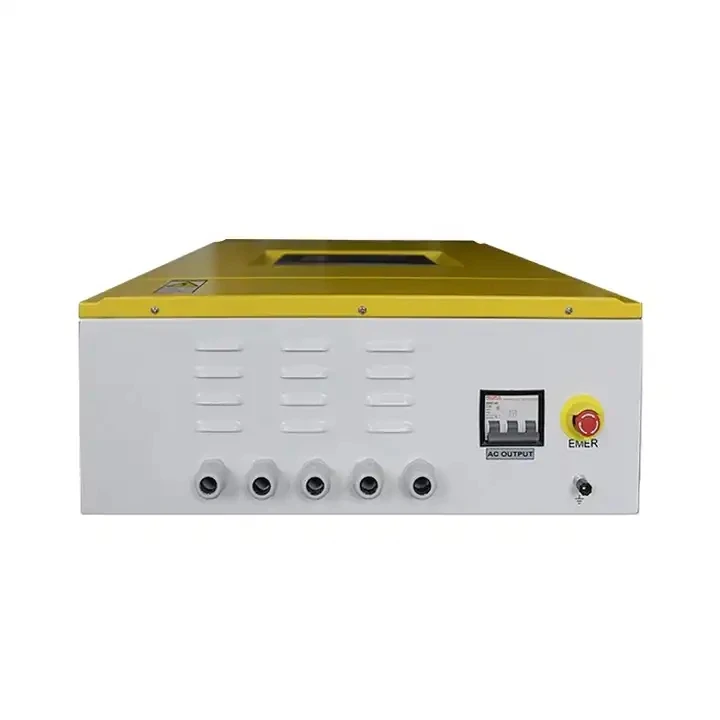

10 Controller has an emergency stop switch, in case of emergency, when the button is pressed the front panel, cut off all power supply of the controller and the wind turbine will
immediately brake.
immediately brake.
11 The controller has a manual brake switch. To using this switch, the wind turbine will brake. 、
12 Using Modbuscommunication protocol. Convenient for customers to conduct secondary development.
13 Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status of the on grid wind power generation system in real time through the PC or mobile phone , and you can also query the historical working status. The mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.
14 The solar panel control system can be added according to customer
needs.
needs.
15 The controller can add various control functions such as yaw control, pitch control, mechanical folding tail control,
mechanical brake, hydraulic brake, electromagnetic brake, etc. according to the type of wind turbine.
mechanical brake, hydraulic brake, electromagnetic brake, etc. according to the type of wind turbine.
On Grid Wind Turbine Inverter Performance Characteristics
1.The main circuit uses the DSP chip produced by the American Tl company, German Infineon IGBT module, drive protection is the
Japanese Mitsubishi movement, and the on grid output part use isolation transformer, which is safe and reliable.
2.Using SPWM pulse width modulation technology, pure sine wave output, automatic synchronous tracking with the grid, power factor
close to 1, low current harmonic content, no pollution to the grid, no impact.
3.Wind turbine input maximum power tracking technology (MPPT).
4.The power curve of the wind turbine can be set, the default is 20 points, and the
internal expansion is 50.

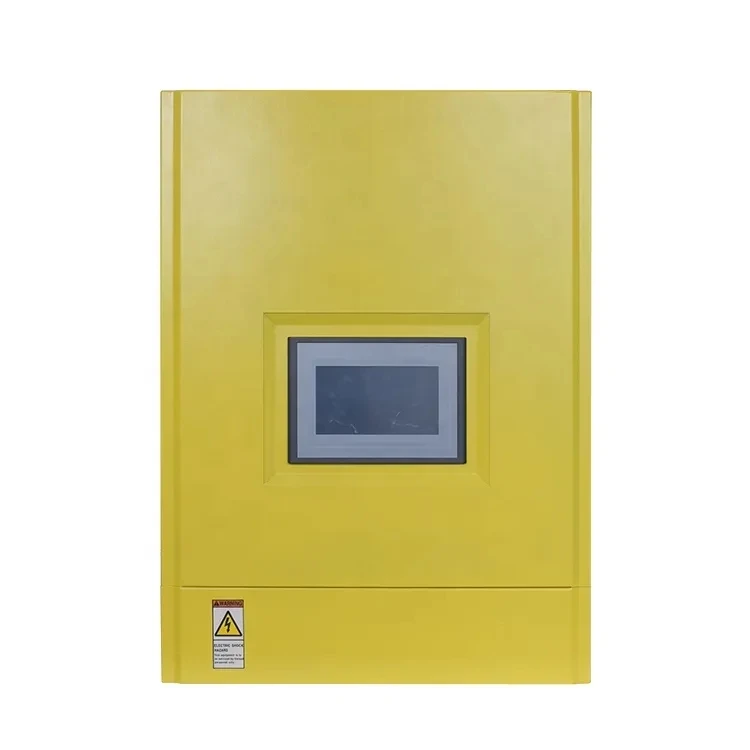

5.7-inch color touch screen display, system operation data and fault information at a glance, and
convenient parameter setting.
6.On grid inverter current closed-loop control, controllable and adjustable.
7.The input DC voltage range is wide, adapt to the needs of different occasions.
8.Frequency disturbance detection technology to realize anti-island control.
9.The comprehensive power protection scheme and perfect self-detection and protection functions will stop the on grid inverter
when a system failure occurs.
10.Circuit structure is compact, the maximum efficiency 98%.
11.Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status of the on grid wind
power generation system in real time through the PC or mobile phone, and you can also query the historical working status. The
mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.
1.The main circuit uses the DSP chip produced by the American Tl company, German Infineon IGBT module, drive protection is the
Japanese Mitsubishi movement, and the on grid output part use isolation transformer, which is safe and reliable.
2.Using SPWM pulse width modulation technology, pure sine wave output, automatic synchronous tracking with the grid, power factor
close to 1, low current harmonic content, no pollution to the grid, no impact.
3.Wind turbine input maximum power tracking technology (MPPT).
4.The power curve of the wind turbine can be set, the default is 20 points, and the
internal expansion is 50.
5.7-inch color touch screen display, system operation data and fault information at a glance, and
convenient parameter setting.
6.On grid inverter current closed-loop control, controllable and adjustable.
7.The input DC voltage range is wide, adapt to the needs of different occasions.
8.Frequency disturbance detection technology to realize anti-island control.
9.The comprehensive power protection scheme and perfect self-detection and protection functions will stop the on grid inverter
when a system failure occurs.
10.Circuit structure is compact, the maximum efficiency 98%.
11.Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status of the on grid wind
power generation system in real time through the PC or mobile phone, and you can also query the historical working status. The
mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.

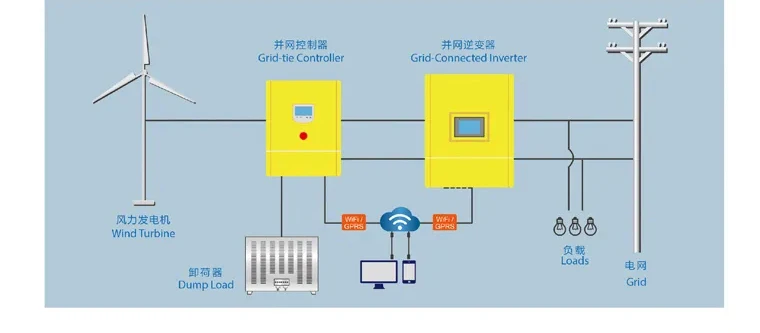

The On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, and then converted into DC electrical energy by the on grid controller, and then DC electrical energy is converted into AC electrical energy of the same frequency and phase as the grid by the on grid inverter, and part of the power is supplied to the local load. Surplus power is fed into the grid.
Products Description

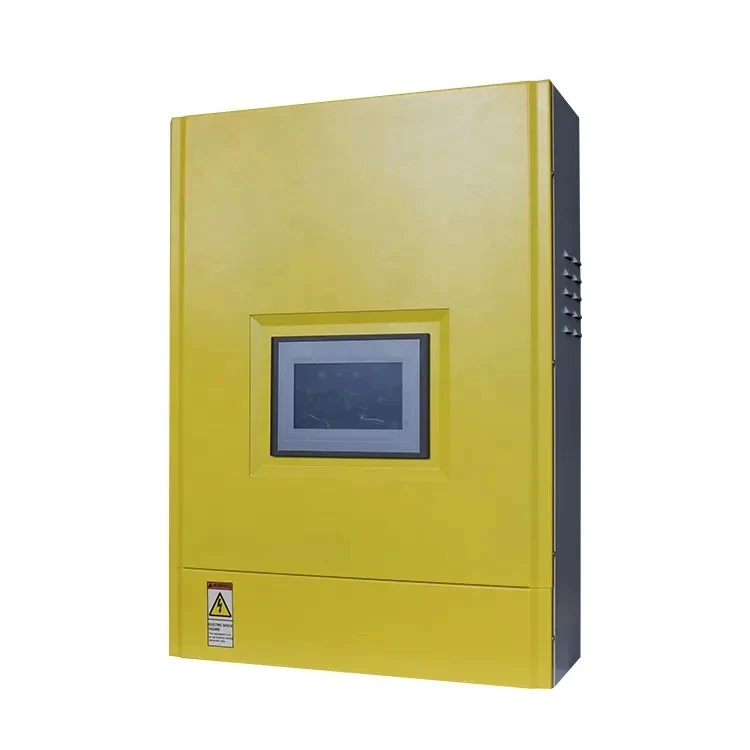

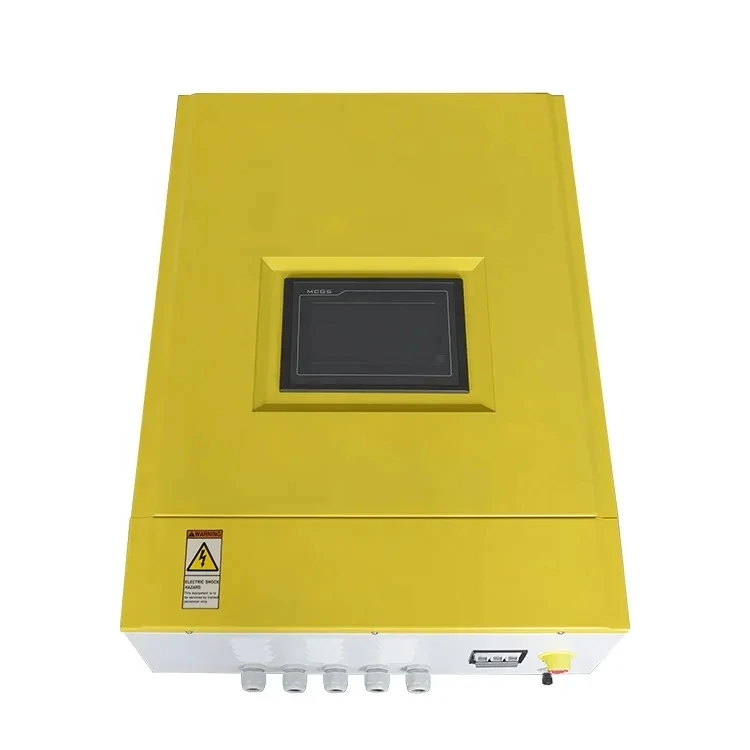

Technical Parameters of the On Grid Wind Turbine Inverter 3KW
Type | DMWG-3KDTL |
Nominal capacity | 3KW |
Rated AC output power | 3KW |
Max. AC output power | 3.3KW |
Wind Turbine Voltage | AC120V |
Max. dc open circuit voltage | 250Vdc |
MPPT range | 60～220Vdc |
MPPT power curve | Can be set |
Display | Touch screen |
Rated DC Input Current | 17.7A |
Max. DC Input current | 19.4A |
THD of AC current | <3% （nominal power） |
Power factor | >0.99 |
Max. Efficiency | 98% |
Allow the grid voltage range | 120Vac±20% ( single phase) |
Nominal AC frequency | 50Hz/60Hz±5% |
Automatically put into operation | When the DC input and power grids meet to the requirements, the inverters automated operation |
Auto restart time after cut off | 5min(time adjustment) |
Protection | Input short voltage, over voltage, connecting contrary, output over current, short circuit, over heat etc. |
Communication interface | RS485/RS232/GPRS/WIFI/Ethernet (optional) |
Work environment temperature | -10℃～+55℃ |
Relative humidity | 0~95% no condensing |
Applicable altitude | ≤2000 m Higher than 2000m rated power should be reduced |
Cooling method | Controlled forced-air cool |
Noise (1m) | ≤60dB |
Degree of protection | IP20 |
Size(W*L*H) mm | 450*275*770 |
Weight(kg) | 45 |

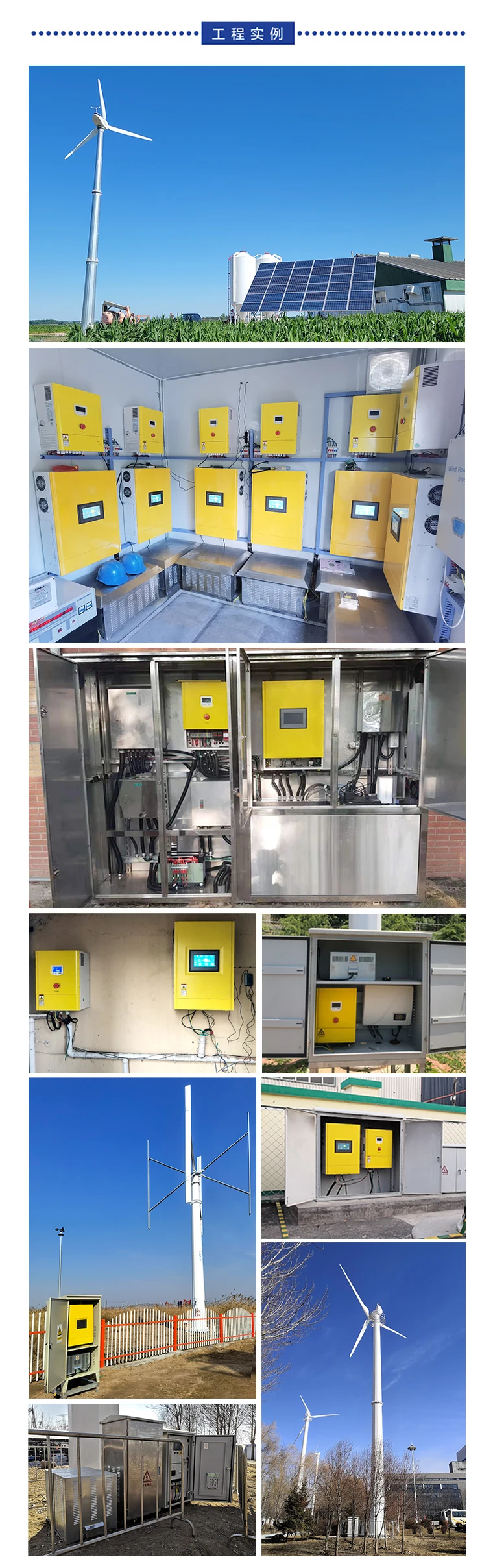

Product application scenario
