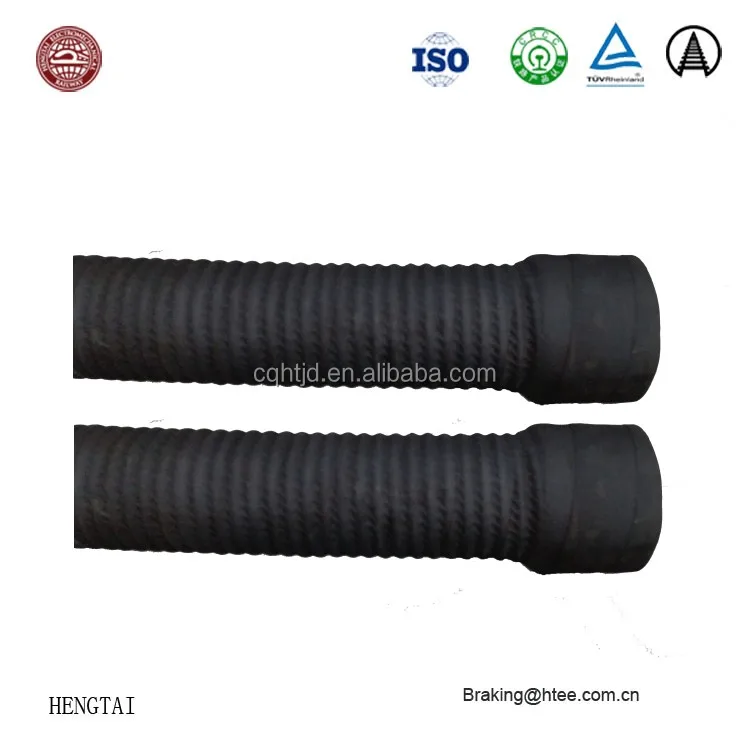

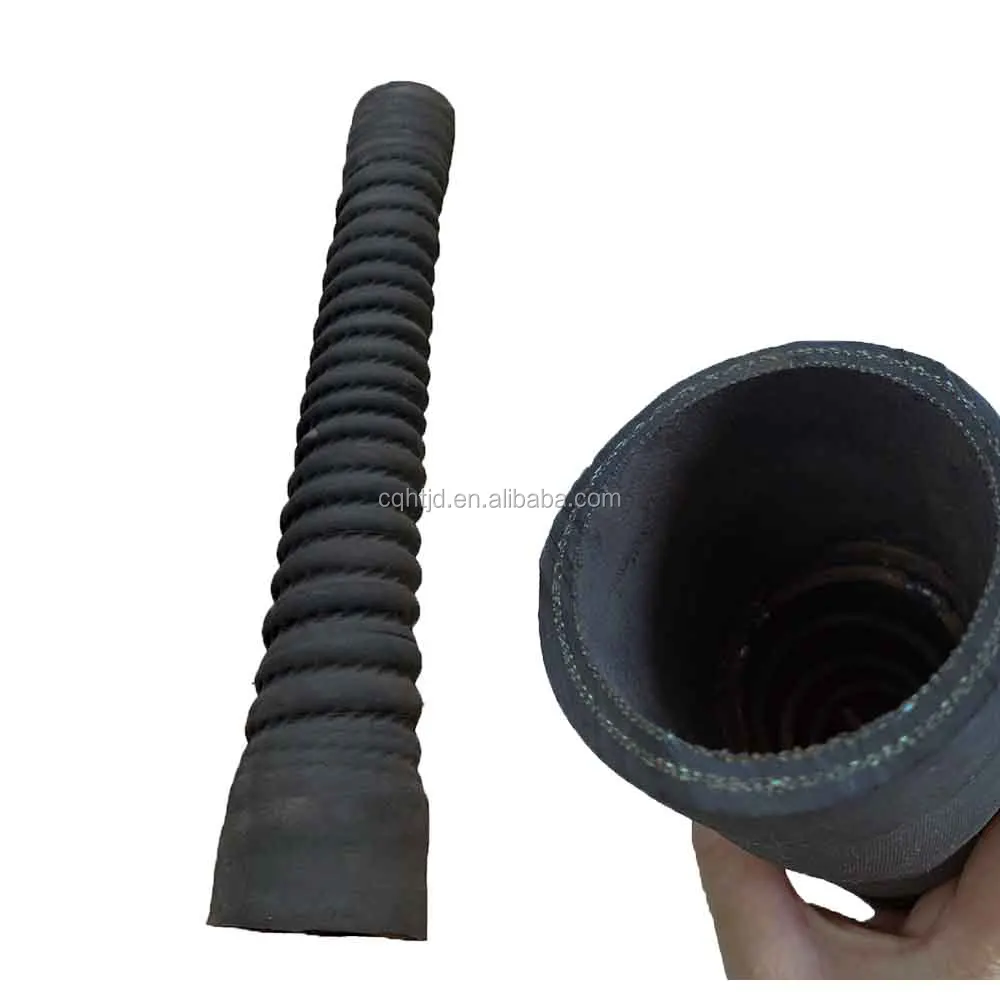

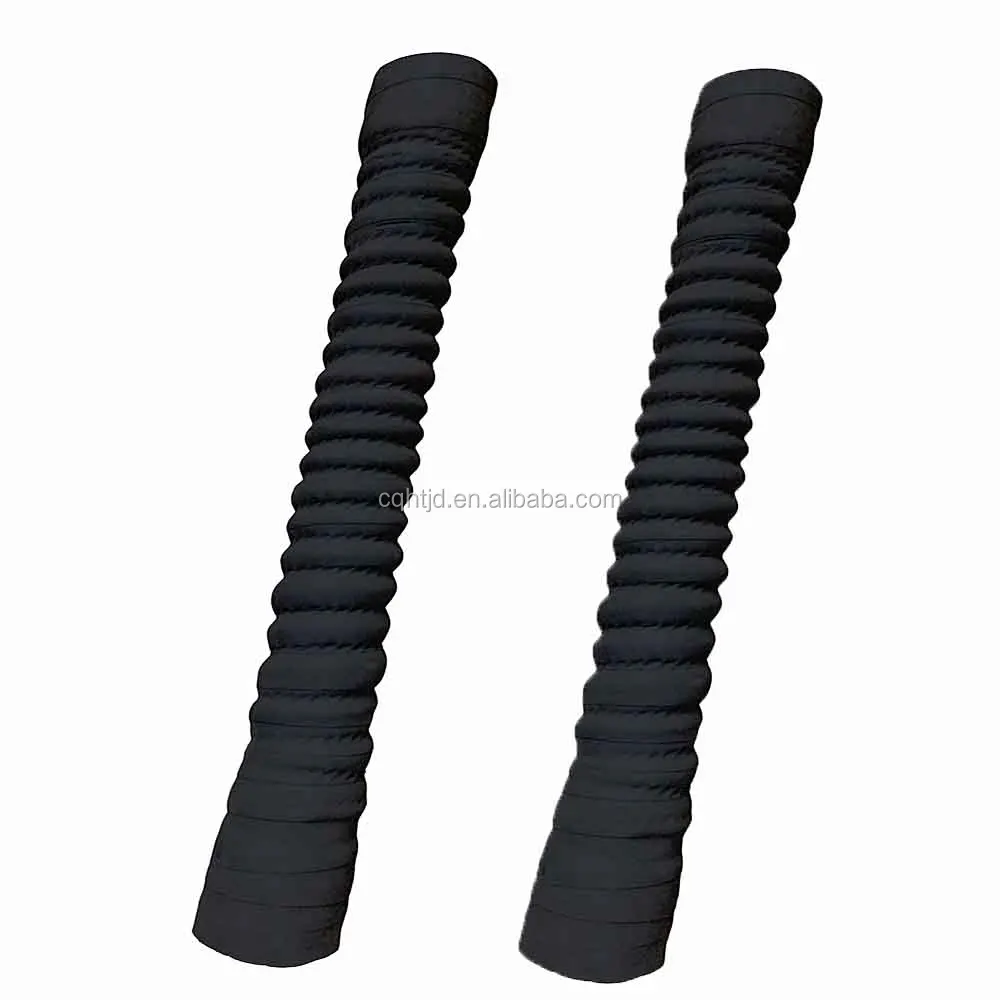

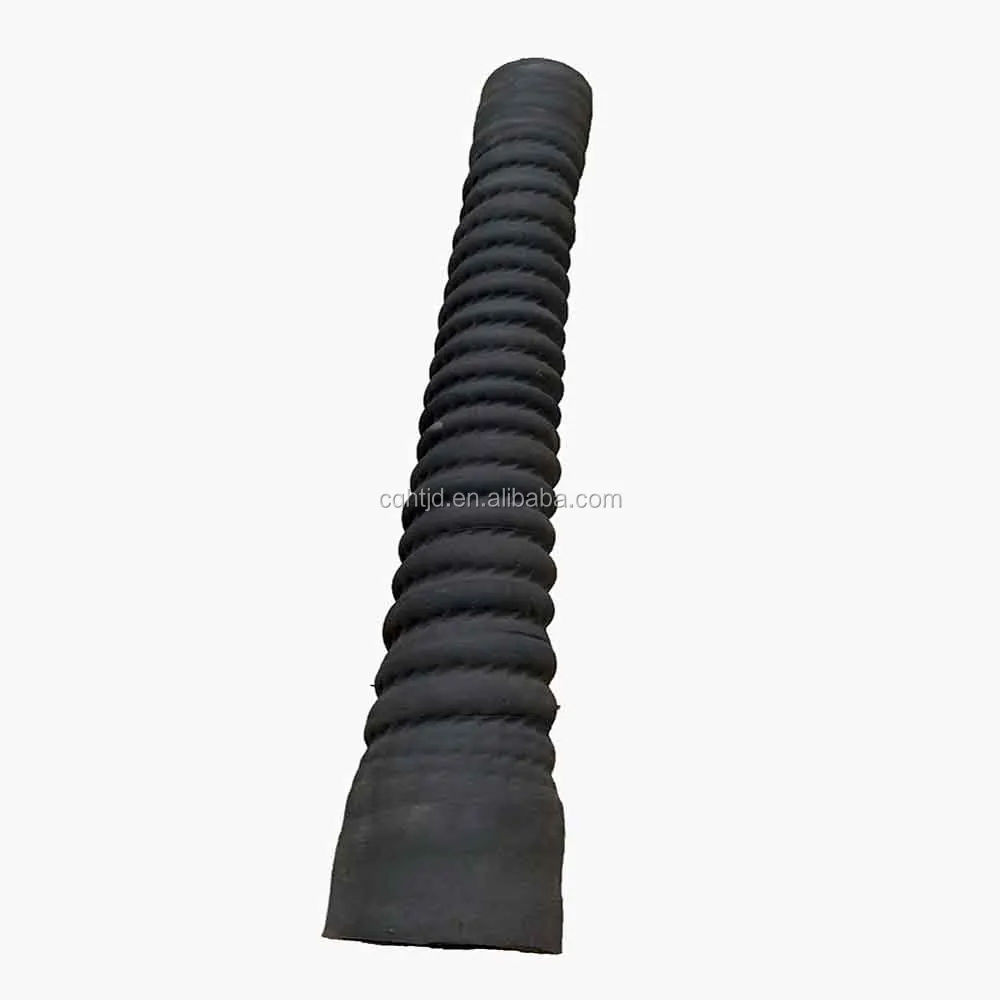

Railway Wagons Brake Vacuum Hose used for Africa
Product Description
Railway Vacuum Brake Hose is used in vacuum breaking systems operated at a vacuum up to 990 mbar1 and within the temperature range -25 ℃ to 65 ℃
Structure:
a) Inner spiral wire spiral
b)Inner ply of fabric
c)Rubber liner
d)Ply of impregnated
e)Fabric reinforcement
f)Fabric cover
Main Material:
1.Wire:Galvanized steel wire
2.Rubber:Natural or synthetic rubber
3. Fabric :plain weave
Dimension for Hose:
Designation of hose (mm) | Min. Bore of internal spiral(mm) | Bore of soft end (mm) | Distance of wire from end Min.(mm) | Diameter wire(mm) | Number of coil per meter(mm) |
12.5 | 12.5 | 21 | 51 | 2 | 110-115 |
19 | 19 | 27 | 51 | 2 | 110-115 |
25 | 25 | 33.5 | 51 | 2 | 95-102 |
32 | 32 | 41 | 51 | 2.65 | 75-82 |
38 | 38 | 48 | 51 | 2.65 | 75-82 |
51 | 51 | 59 | 51 | 3.35 | 75-82 |
63.5 | 63.5 | 76 | 57 | 3.35 | 75-82 |
76 | 76 | 89 | 63.5 | 3.35 | 75-82 |
Property Requirement:
1.Tensile Strength
Tensile strength ≥14MN/m², breaking elongation ≥500%
2.Adhesion:
with a force of 67N shall not separate at rate of more than 25 mm/ min.
3. Aging Resistance
Shall be aged for 168 H at t 70 ℃,change rate <20%
4.Vacuum Retention
The vacuum shall not fall off more than 170 mbar6 in 1 hour and the hose shall not shorten ≤by more than 5%
5.Non-kinking
When do strength and flexibility testing,the hose should be parallel,without permanently distorting or displacing the wire.

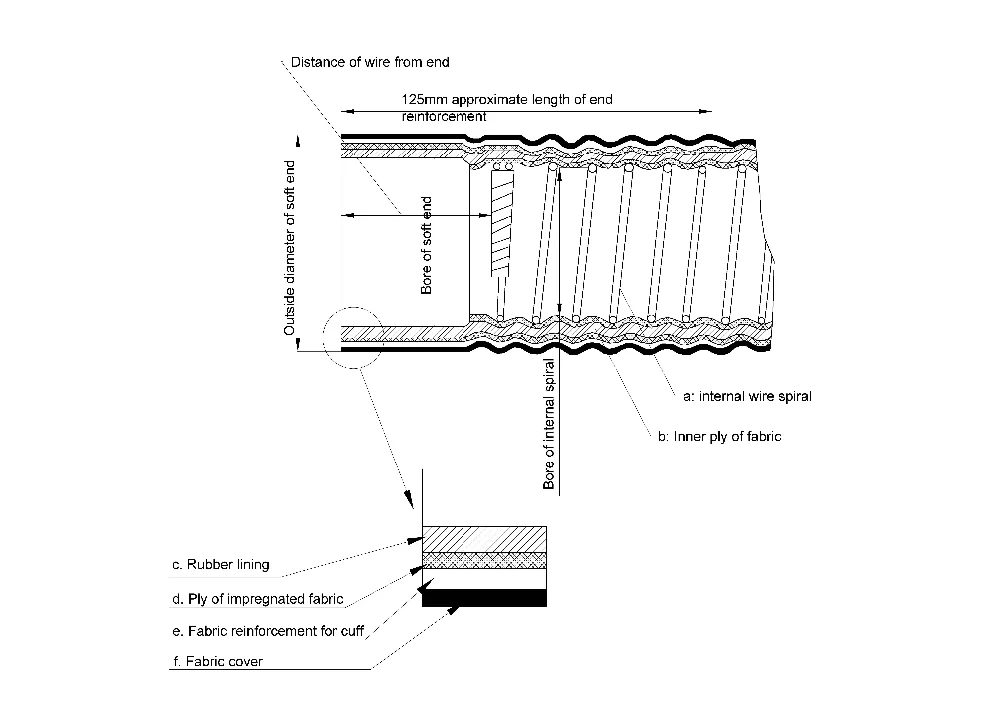

Drawing:
Packaging & Shipping
Packaging & Shipping

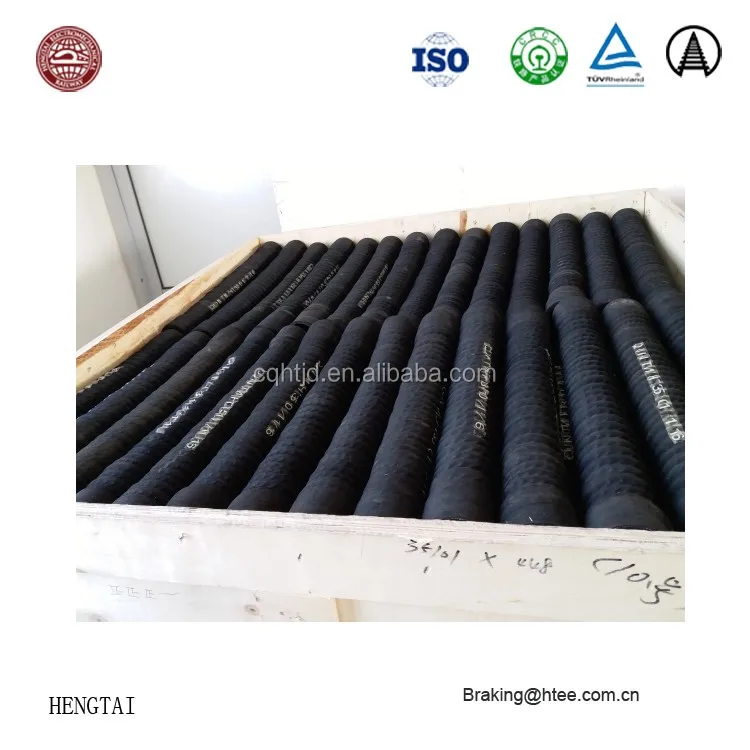

Packaging
Shipping
