Exhaust Fan 60*60*20mm 60mm Fan 12volt Cooling Fan

Share on (60507600432):


Price:

Quantity:


Product Overview

Description



Product Description

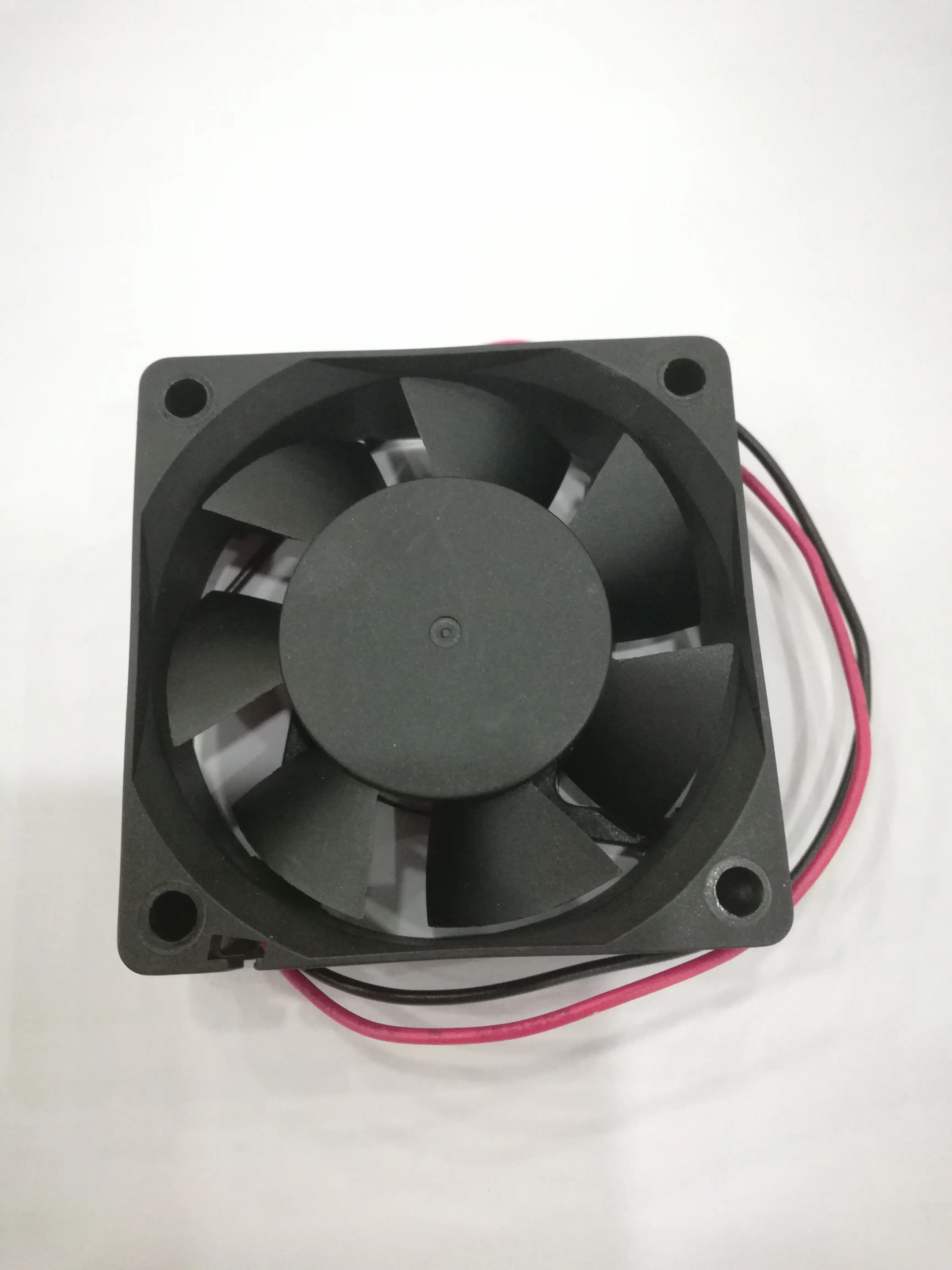

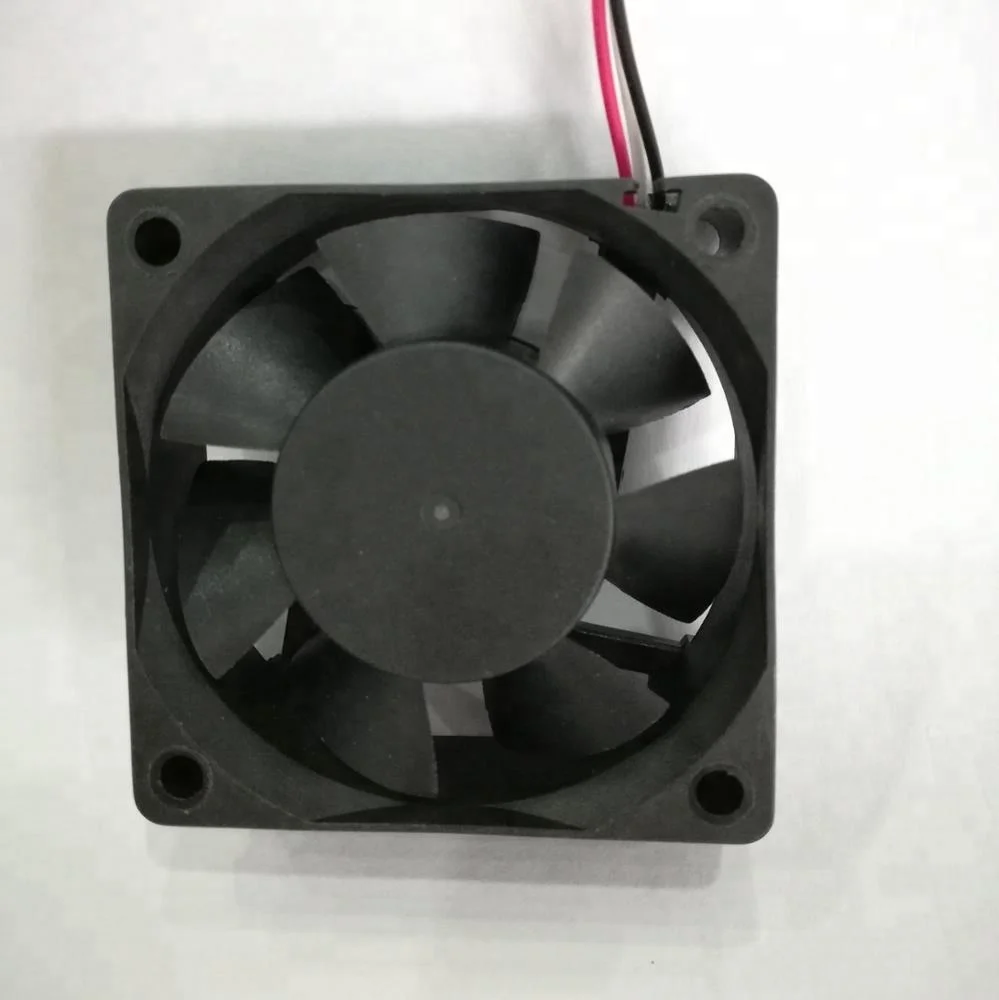

Exhaust fan 60*60*20mm 60mm fan 12volt cooling fan

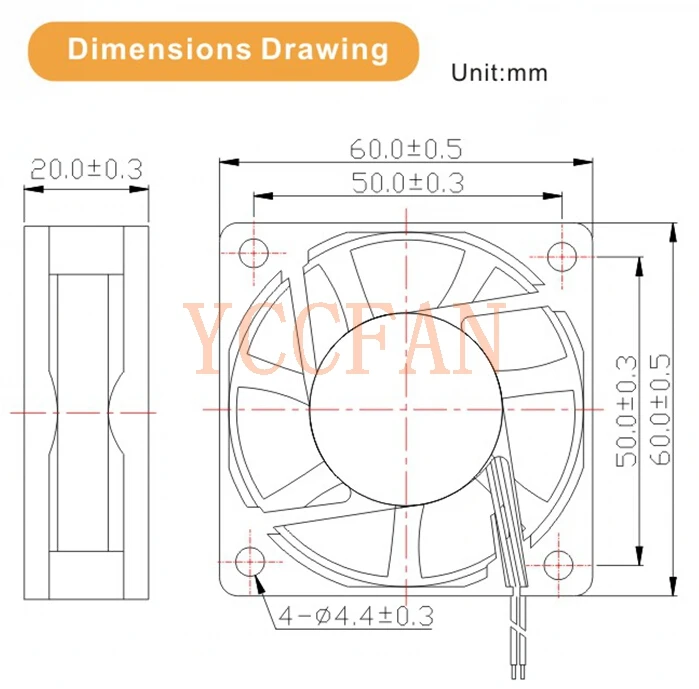

Size 60*60*20mm Cooling Fan (Length* Width *Thickness)
Rated Voltage

DC FAN (  5V  9V  12V  24V   36V  )

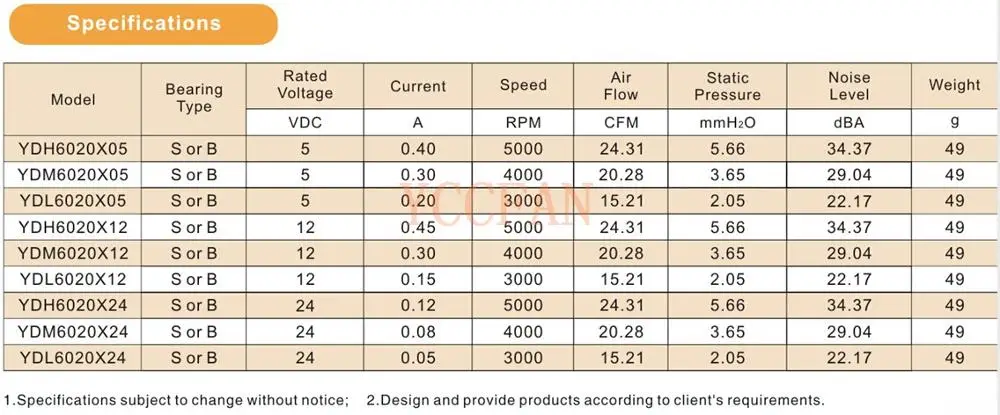

Main Parameter

Rated Speed:     3000 RPM      (At rated Voltage,Measured after 3Mins.)



Air Flow:     15.21  CFM       (Maximum In Free Air)



Air Pressure:     2.05 mmAq    (Maximum When Air Flow = 0)



Noise Level:     22.17  dBA        (At Rated Speed)



Operating Temperature





& Life expantacy



Ball bearing:  -30°C to +75°C      @ 50000hours at 40°C


Cycle Seal Bearing:  -10°C to +70°C     @ 40000hours at 40°C


Sleeve bearing: -10°C to +70°C       @ 30000hours at 25°C


Optional Function PWM Control / FG Tacho / RD Alarm / Auto-restart / Polarity Protection
Dustproof & Waterproof

Below IP44:  Motor or PCBa Coating by Insulating Paint





IP55:  Motor NT Vacuum Coating or PCBa Coating by Waterproof Glue



Above IP56:  Motor Coating by Epoxy Waterproof Glue or Injection by Mould


Wire & Connector & Tube

Wire length & Connector model ( as required )


Fan Frame&Blade

BLACK PBT (UL94V-0)     Glass Fiber Reinforced


Product is in compliance with RoHS 2014/35/EU requirement;
















Related Fan


related fan.png





 Exhaust fan 60*60*20mm 60mm fan 12volt cooling fan









Our Services





1 : Customized Fan


YCCFAN provide cooling solution for cusomter's special product and requirement.


Customized fan_.png





Application industry :





Thanks for all customers support,we will do better.


Panasonic , Sony , Mitsubishi , Fuji , Midea, HYUNDRI,SENSICA, PLANTOWER, KSTAR , INVT ,INFY POWER etc.





Fan's pplication_.png








2 : Quality Assurance





a : 100 %  testing before the fan leave our factory


b. Good after services to every customer





c. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.


d.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan





Control process 1.jpg





3 : Good Reputation & After-sales Service





Focus on customer , Grow together, YCCFAN always do the best.





If any requirement, pls mail Teresa directly via oversea02 at yccfan.com


Skype: teresa3573   Wechat : T1036693615


Tel : 86-13631613620













 Exhaust fan 60*60*20mm 60mm fan 12volt cooling fan

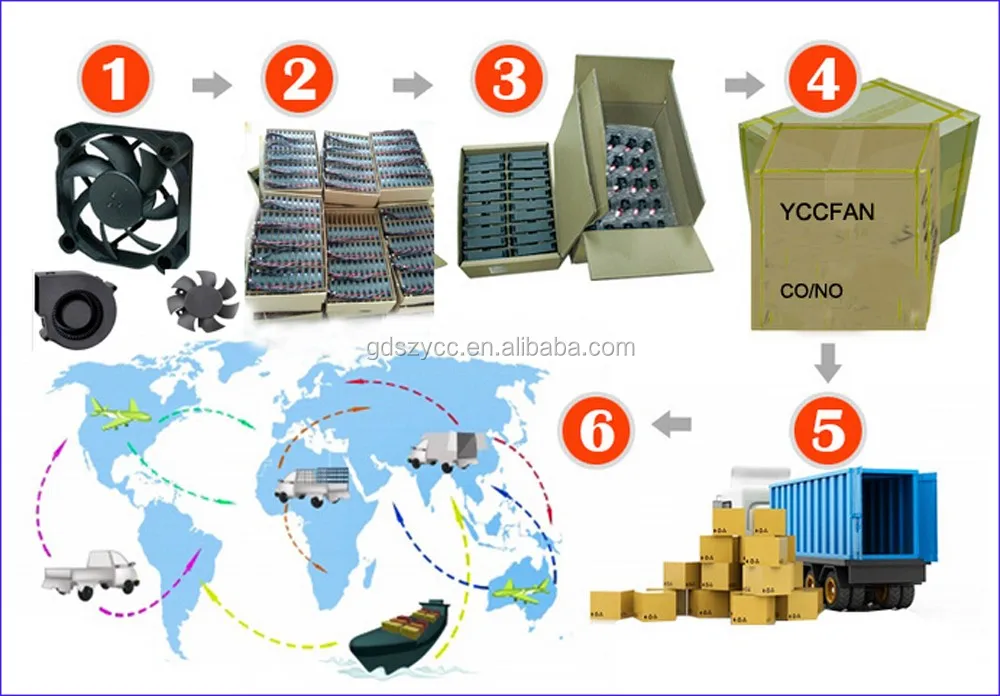

Packaging & Shipping








Packing & Shipping of 6020 12 volt dc fan:  carton box or as customer's requirements





1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT )  for under 100 kg, our  shipping agnet  have perfect discount with these express company.





2. Large Measure are shipped by ship or by air as customer's requirements.





3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.










 packing-1000








Exhaust fan 60*60*20mm 60mm fan 12volt cooling fan









Company Information


Factory View





Founded in 2011,YCCFAN located in Shenzhen of China .


7000M2 plant , 300+ staff   , 50000pcs daily capacity.





R&D equipment





R&D equipment_.png


Work shop


work shop_.png


Prodution equipment


production equipment_.png





Since 2017,YCCFAN investes own injection factory.


mold injuction_.png


Certificate:





Corporate certificates:   ISO9001:2008     ,   ISO14001:2004         , IATF16949:2016





Product certificated: UL/CUL,CE,RoHS, SGS



Patents:  CycleSeal bearing system





Client Recognition:   Panasonic,Mitsubishi, Sony GP

















FAQ




Q1: How to choose a DC fan ?
A1: Consider main point:size,voltage,speed/airflow,lifespan

B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.


Q2: Can you tell me the normal DC fan Model?

A2: 20*20*6mm 20*20*10mm  25*25*10mm 30*30*7mm

30*30*10mm 40*40*10mm  40*40*20mm 40*40*28mm

50*50*10mm  50*50*15mm 50*50*20mm

60*60*15mm  60*60*25mm  60*60*38mm  70*70*15mm

80*80*15mm 80*80*25mm  80*80*38mm  92*92*25mm  92*92*38mm

120*120*25mm  120*120*38mm

150*150*51mm  172*150*51mm  172*51mm

We have more model,just e-mail me to get details...


Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.


Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
Now,contact Teresa Yu to get more information.
