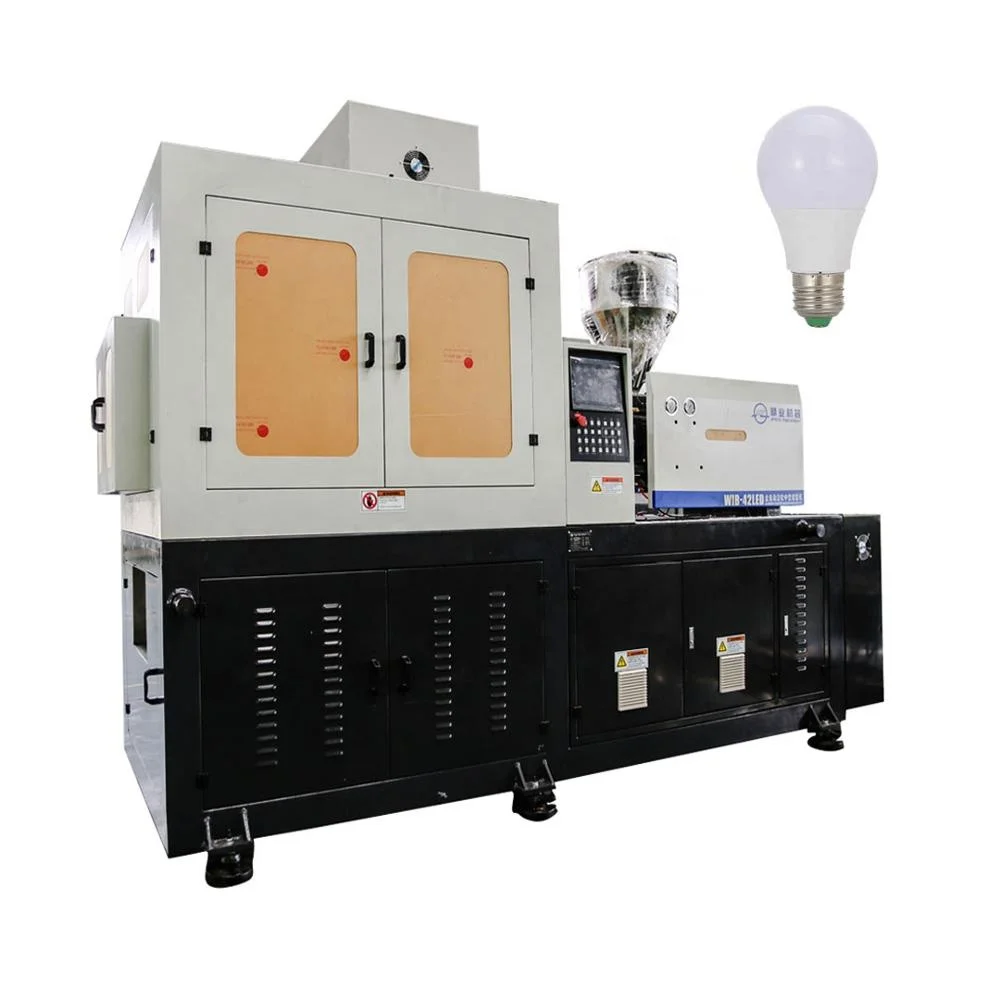

One Step LED Bulb Making Machine
- Category: >>>
- Supplier: Liuzhou Jingye Machinery Co. Ltd.
Share on (60507615003):
Product Overview
Description
Product Overview
Mold Cavity Number
Mold Cavity Number
| Cavity Number | 1 | 2 | 4 | 6 | 8 |
| Neck Diameter(mm) | 140 | 105 | 71 | 60 | 40 |
| Body Diameter(mm) | 140 | 110 | 100 | 60 | 55 |
| Height(mm) | 140 | 140 | 120 | 100 | 60 |
| Weight(g) | 139.5 | 65 | 33 | 23 | 17 |
| Key Parts Name | Brand |
| PLC | OMRON |
| Display Screen | OMRON |
| Photoelectric Senors | OMRON |
| Rotation Table Servo Motor | YASKAWA |
| Servo Pump | SUMITOMO |
| All Directional Valves | YUKEN |
| Air Cylinder / Air Valve | AIRTAC/SMC |
| Low- voltage Electrical Components | SCHNEIDER |
| Reducer | SHIMPO |
Technical Data Sheet
Technical Data Sheet
| Item | Unit | Data |

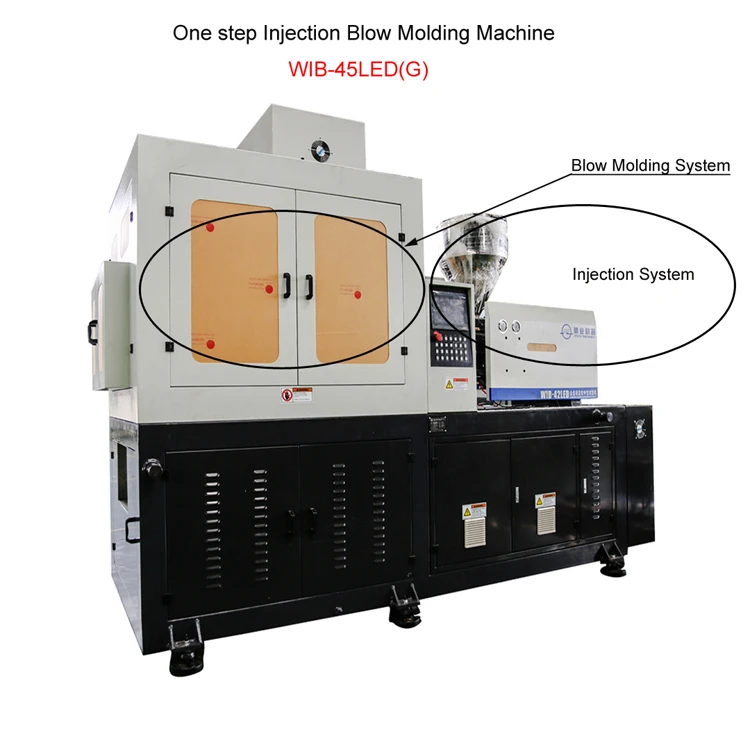

| Model Number | WIB-45LED(G) | |
| Screw Diameter | mm | 42 |
|
Theoretical Injection Capacity |
cm3 | 193.8 |
| Injection Clamping Force | KN | 1086 |
| Blow Clamping Force | KN | 123.1 |
| Motor Power | KW | 20+20 |
| Heating Power | KW | 15 |
| Operating Air Pressure | MPa | 1.0 - 2.0 |
| Cooling Water Pressure | Mpa | 0.2 - 0.3 |
| Machine weight | Kg | 7000 |
|
Dimension Of Machine ( L * W * H ) |
m | 3.7*1.6*2.75 |

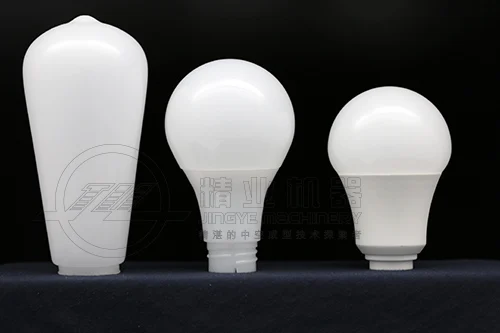

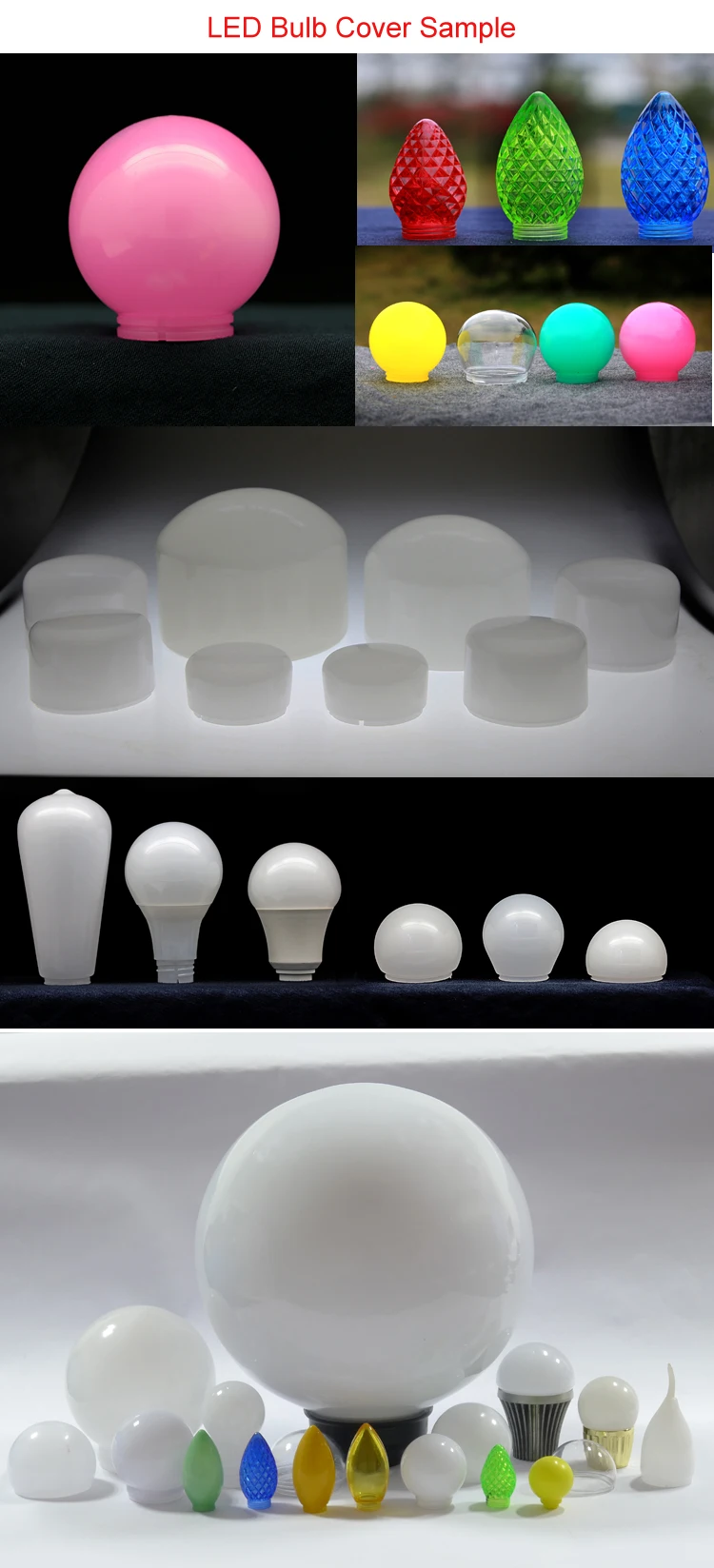

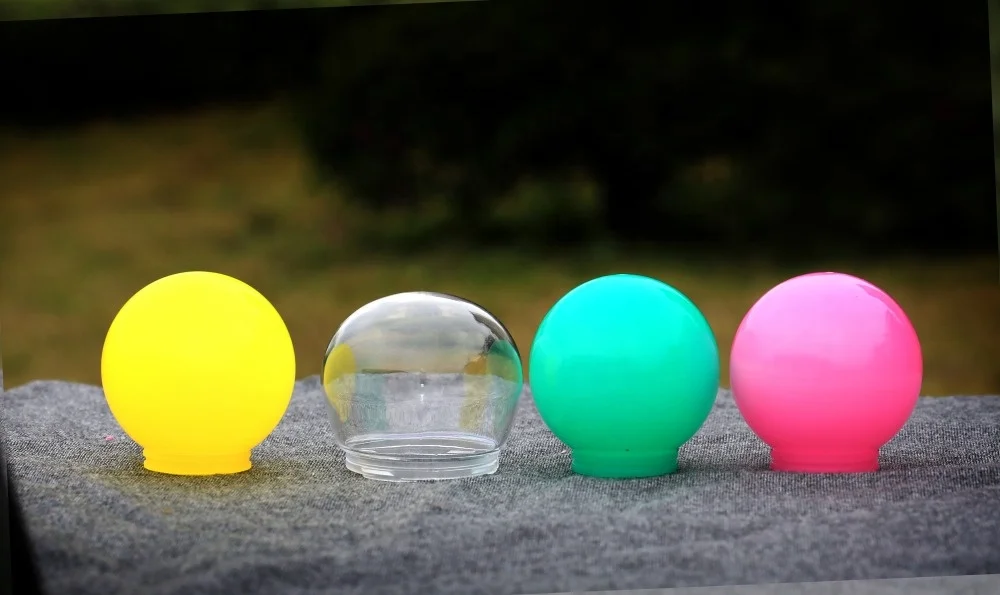

Samples
Packaging & Shipping
Our Services

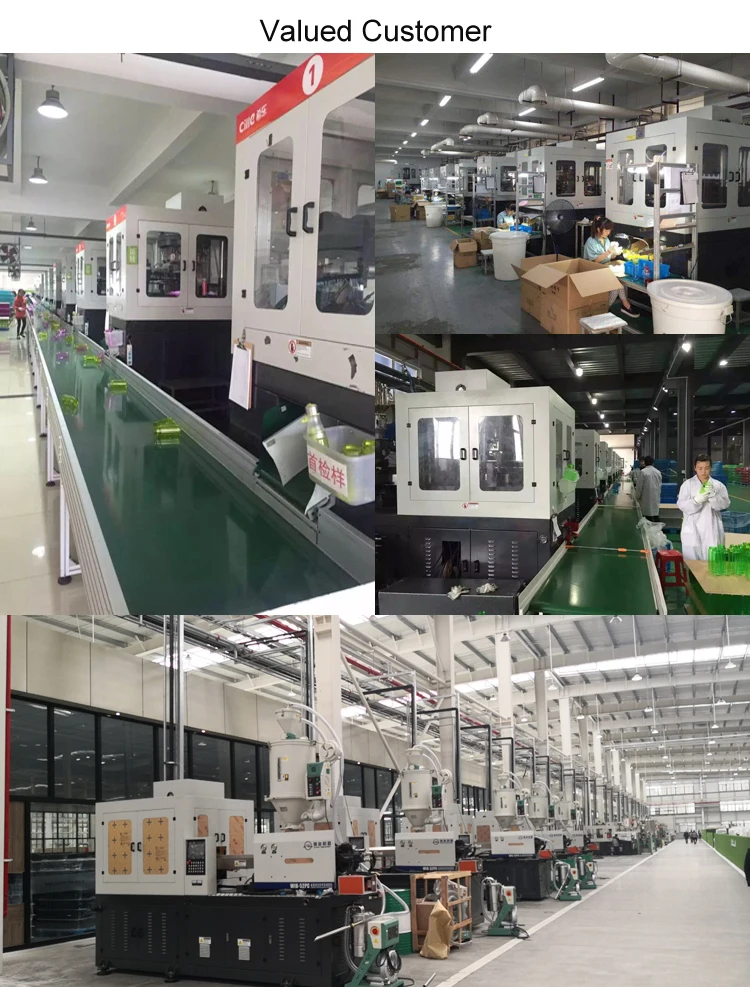

Valued Customer
