101 102 103 501 502 503 1M ohms multi turn Potentiometer 3296W

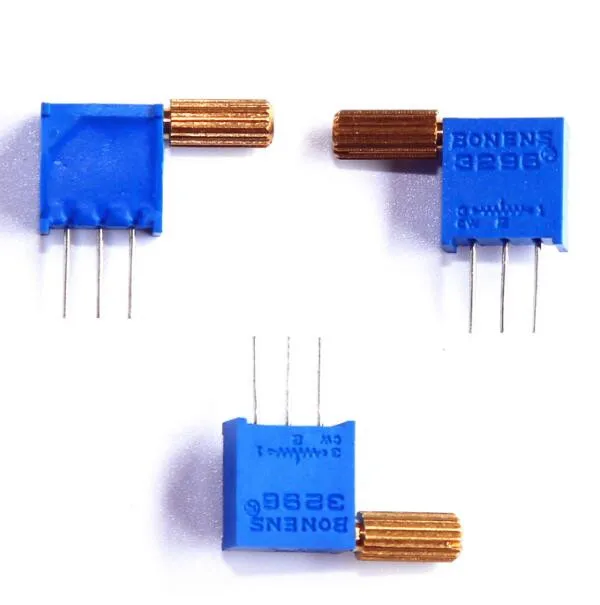

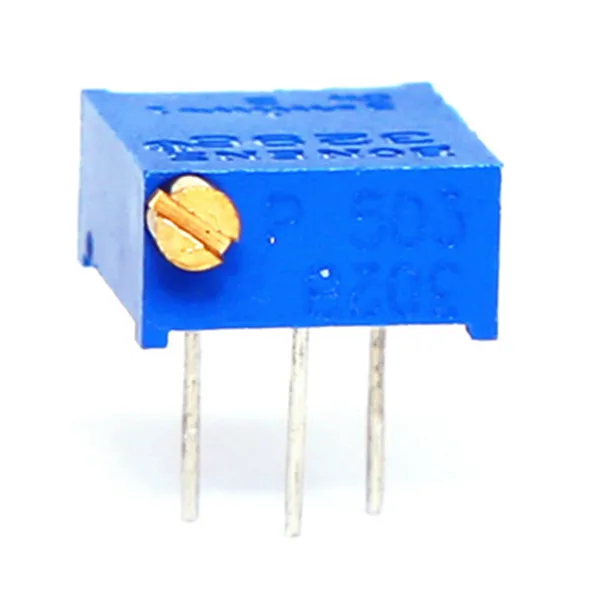

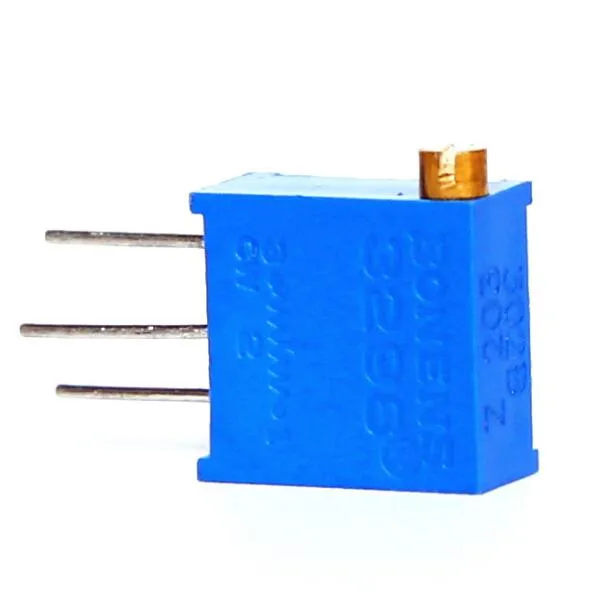

multi turn 1M 2M trimming Potentiometer 3296W with bent pins legs

Appliances:

Instruments and meters, post telecommunications, railway signals, intelligent industrial control power supply



Multi turn potentiometer 3296 Variable Resistor Multi Turn Top Potentiometer







3296W Trimming Potentiometer drawing








3296W Trimming Potentiometer Specifications



Electrical   Characteristics			Range of nominal resistance			10Ω~5MΩ
			Resistance tolerance			±10%
			Terminal resistance			≤±1%R or 2Ω
			Contact resistance variation (CRV)			≤±1%R or 3Ω
			Insulation resistance			≥ 1GΩ (100V AC)
			Withstand voltage			640V (DC or AC peak value)
			Effective electrical travel			≥70% of  mechanical travel
Environment  Characteristics			Rated power			0.5W ( 70°C)
			Temperature range			-55°C~+125°C
			TCR			±250×10-6/°C
			Collision (390m/S2, 4000 times)			ΔR≤±1%R
			Vibration (10-500HZ, 0.75mm, 6h)			ΔR≤±1%R, ΔUab/Uac≤±2%R,
						Electrical break≤100μS
			Temperature variation (-55°C/30min,			ΔR≤±2%R,
			+125°C/30min, 5 cycles)			ΔUab/Uac≤±2%R
			Climate category (IEC68-2-2)			ΔR≤± (5%R+0.1Ω),
						nsulation Resistance≥100MΩ
			Electrical endurance (0.5W, 1000h)			ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
			Mechanical endurance (200 cycles)			ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
			Steady damp heat (IEC68-2-3, Ca, 96h)			ΔR≤± (5%R+0.1Ω),
						Insulation Resistance≥100MΩ
Physical  Characteristics			Total mechanical travel			28±2 lap
			Starting torque			≤35mN.m
			Standard package			50 pcs /tube(3296W,3296Y)
						40 pcs /tube(3296X,3296Z,3296P)
