Машина для очистки стальных пластин H beam/стальная линия предварительной очистки пластин/машина для очистки туннелей

Product Overview

Description

H beam steel plate shot blast cleaning machine/steel plate pretreatment line/tunnel cleaning machine



Product description

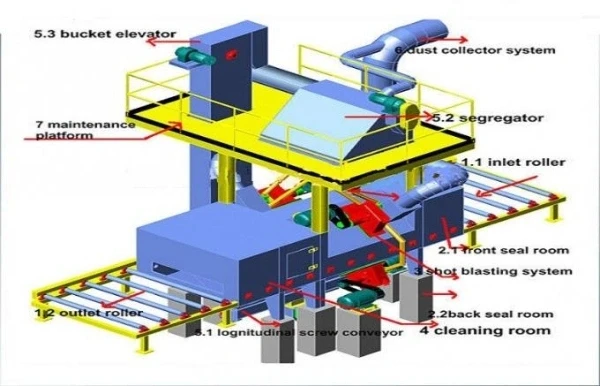

1.steel shot production line is mainly composed of feeding roller, shot blasting derusting system, dust removal system, transition check table, steel plate cutting roller and electric control system, etc.Its function is to steel (steel, steel plate) clear surface derusting, the steel clean bright surface with certain roughness.

2.By steel roller conveyor system, to the closed chamber the shotblast cleaning, the high-speed rotating impeller with a blasting device accelerates a projectile hit to the surface of workpiece, to shock, scraping the surface to remove surface rust and dirt, and then by making use of the rolling brush and high-pressure blower product pill on the surface of the workpiece and dust swept clean, after cleaning of steel through the output roller sent out quickly, into the next procedure.After derusting precoating shop primer, ensure no secondary pollution in the manufacturing process of steel in the workshop of rust, keep steel finally surfacc preparation for a clean surface of no corrosion, no pollution.

Technical parameter

model	Q6910	Q6920	Q6925	Q6930	Q6940	Q6950
Clean up size	12000(L)*1000(W) Thickness of Steel plate:6-60 Hight:500	12000(L)*2000(W) Thickness of Steel plate:6-60 Hight:400	12000(L)*2500(W) Thickness of Steel plate:6-25 Hight:400	12000(L)*3000(W) Thickness of Steel plate:6-60 Hight:400	12000(L)*4000(W) Thickness of Steel plate:6-60 Hight:400	12000(L)*5000(W) Thickness of Steel plate:6-60 Hight:400
Roller speed(m/min)	1-5	1-5	1-5	1-5	1-5	1-5
Length of the feeding roller	12000mm	12000mm	12000mm	12000mm	12000mm	12000mm
Effective working width	1300	2300	2800	3300	4300	5300
Length of discharge roller	12000mm	12000mm	12000mm	12000mm	12000mm	12000mm
Dust removal fan power	15kw	18.5kw	22kw	37kw	45kw	55kw
Number of blast wheel	4	6	6	8	10	10
Power of blast wheel	11kw	15kw	18.5kw	22kw	22kw	30kw
Capacity of blasting	250	270	290	340	340	400
Capacity of lifting	60t/h	90t/h	144t/h	120t/h	170t/h	170t/h
Power of segregator	3kw	4kw	5.5kw	5.5kw	7.5kw	11kw
Capacity of Separation	60t/h	90t/h	144t/h	120t/h	170t/h	170t/h
Total power	86	153	189	280	350	454

 Product show

Packing and delivery

Our clients

Our workshop and office



Our service

1.Reply your inquiry in time.

2. Experienced staffs answer all your questions in time.

3. Customized design is available.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

If you are interested in this equipment, please don't hesitate to contact us!

 If the machine is not suitable for your workpiece, please tell us the following infromation:



1)     What kind of workpiece will you clean?

2)    The size of workpieces(length, width and height of maximum  workpiece,Length, width and  height of minimum workpiece?)

 3)     How many  the weight of maximum and minimum workpiece?

 4)     Please tell us your requirement cleaning efficiency?

According to your infomation, the most suitable machines will be designed for your workpieces.

Related products

Accessories

Certification

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-30 days if the goods are not in stock, it is according to clients' requirements.
Q: Do you have warranty period ?
A: Yes, we could offer 0.5-1 year warranty period.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
