Product Overview

Description





Company Information







Yudian is a professional provider of intelligent equipment products and automatic integrated solutions. After decades of development, Yudian has continually forging ahead in the photovoltaic manufacturing equipment field, and gradually forms an integrated service system which combines R&D, production, sales and professional technical consult, is recognized as a national high-tech enterprise.

We provide PV module automatic production line. Key products contain full-automatic high speed stringer, cell string layup machine, automatic bussing machine, template placing machine and so on.











Product Description

Product Description




Product Application

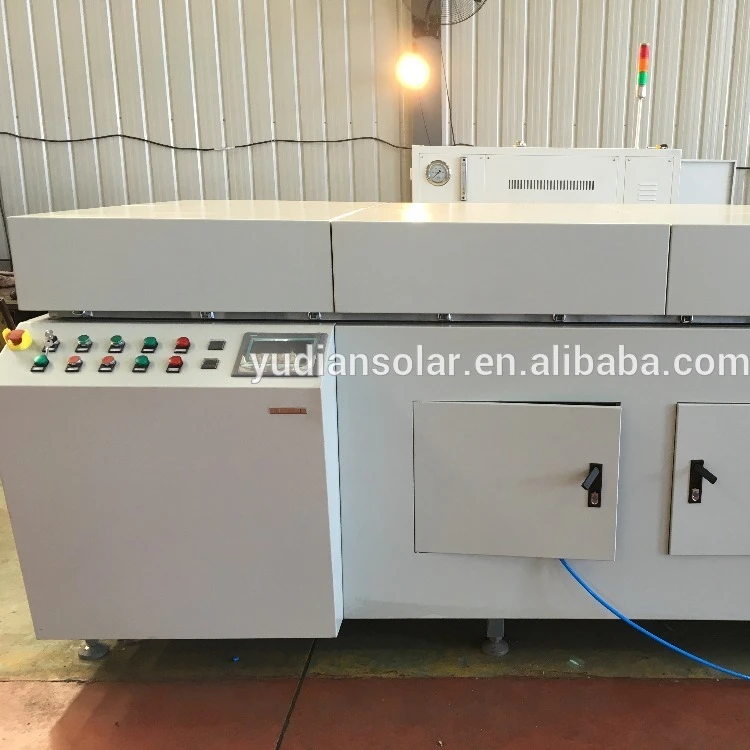

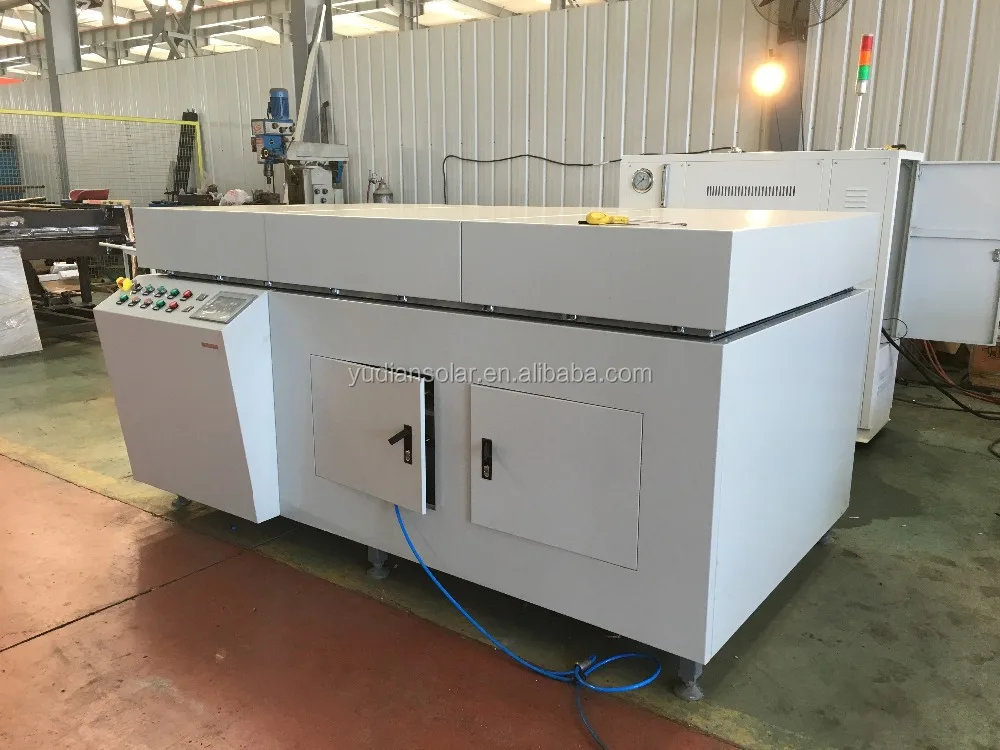

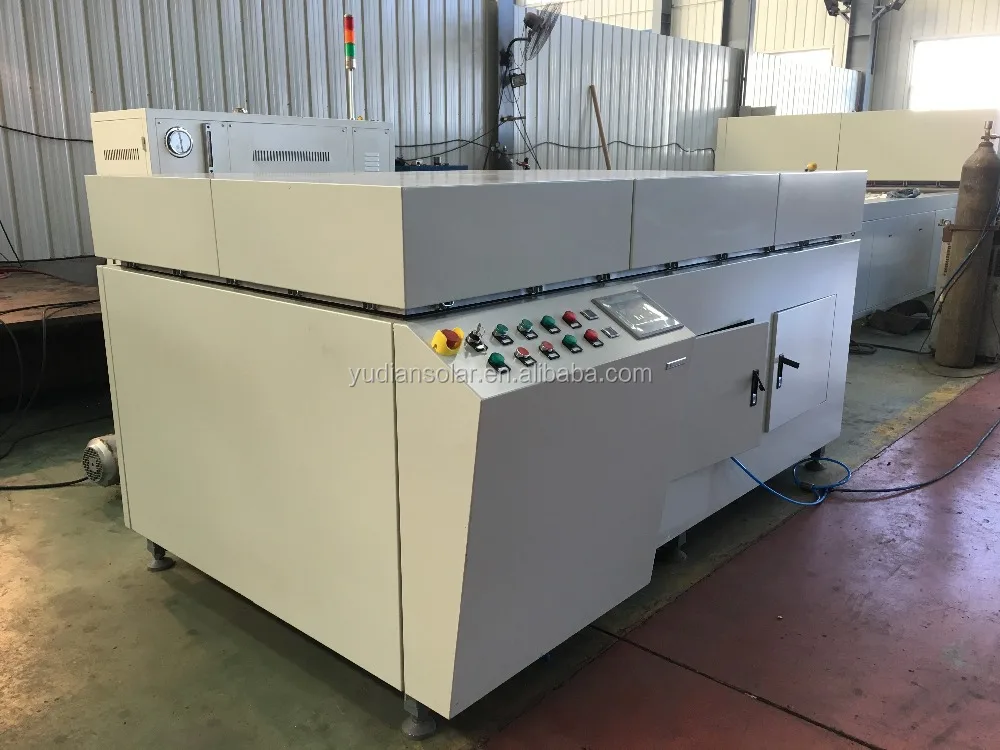

Solar panel laminator(here is also called solar module laminator,solar panel laminating machine) is produce solar panel which combined by solar cell,solar glass,EVA,backsheet,heated by oil and Radiant solar panel laminator comes with one set of oil heating station,vacuum pump.





























































































SPECIFICATIONS



Model


YDB-2222


Laminate Length * Width


2200mm x 2200mm


Dimension(mm)


2900×2500×1200


Weight(Kg)


5000kg


Power supply


380V 3 phase /  4wire


Peak power


47 Kw


Pumping speed


70L/S


Work power


22 Kw


Control mode


Automatic/ Manual


Ultimate vacuum


20-80 Pa


Heating mode


SD320 Heat by oil


Temperature control mode


PID Control


Maximum temperature


180


Temperature uniformity


±1.5 Multi-point temperature control


Work temperature


100-160


Controllable temperature precise


≤±0.8
(at the regulated set temperature value


Unevenness of the worktable


Unevenness≤200μm/m


Air discharge speed


Can adjust continuously within 0~50L/S


Press of compressed air


0.5-0.8MPa


Flow volume of compressed air


420-800L/S


Pumping time


5-7min


Laminate time


about 20min


Work vacuum degree


80~20Pa


Max. Laminate Thickness


28mm


Cylinder Stroke length


400mm


Ambient temperature


0-50



























Main Features




1) Automatic & manual normal state, it can work automatically with high efficiency and stability; In installation or other condition, it can work manually. Both modes are convenient to operate and control.


2) The control program is easy to learn and convenient to operate. Every running parameter can be set easily with high precision.


3) Modern shape with design patent.


4) Extends the service life of rubber sheet by one time above. It improves lamination flatness and reduces cell panels wrinkle.


5) The combination of vacuum technology, pneumatic transmission technology, PID auto-tuning technology, programmable control technology, electric relay control technology realizes digital control for vacuum system, heating system and the whole process.


6) Uses imported Siemens PLC & Taiwan touch screen with table, reliable and high precision performance.It meets the standards of industrial automation control.

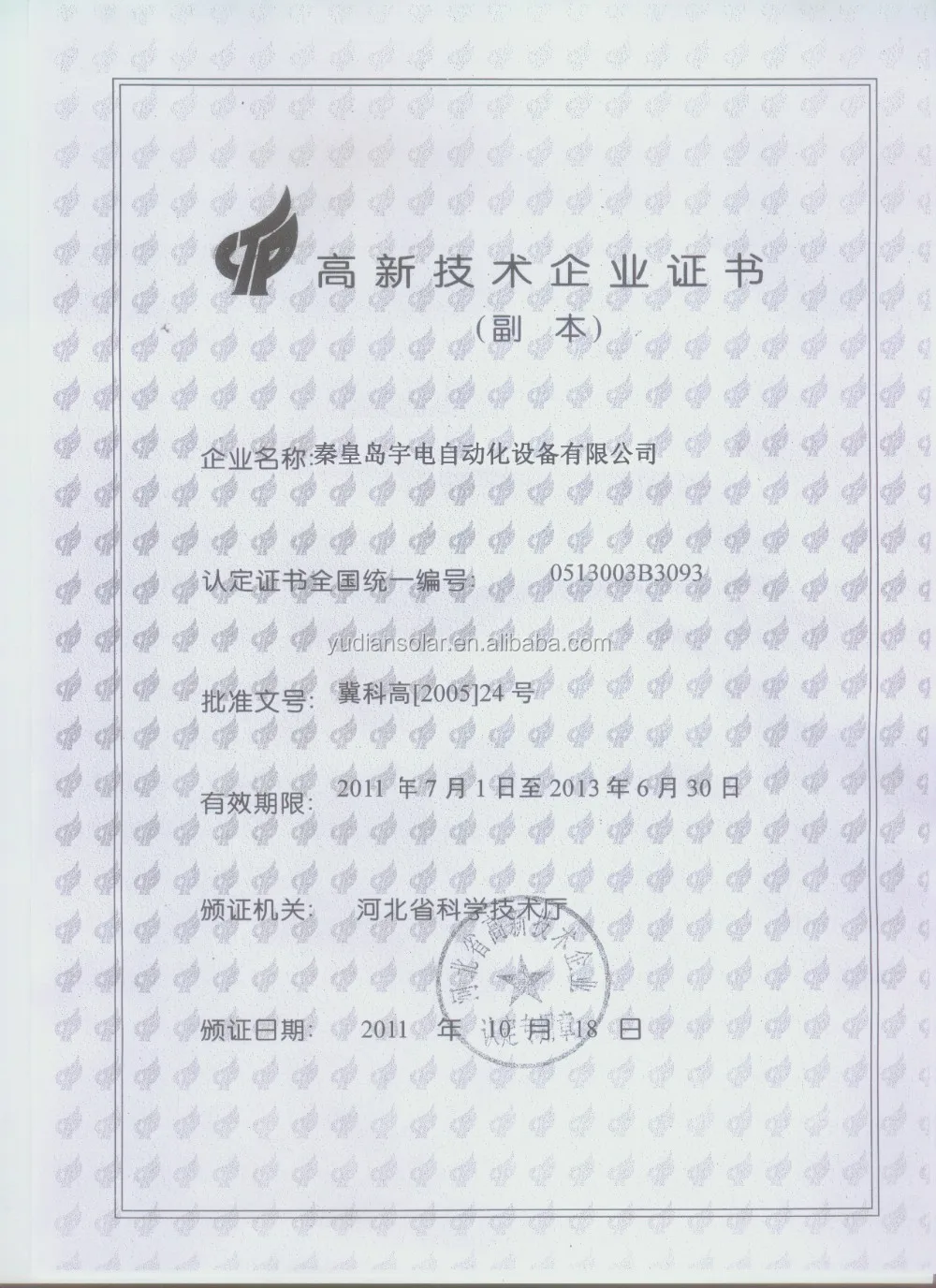

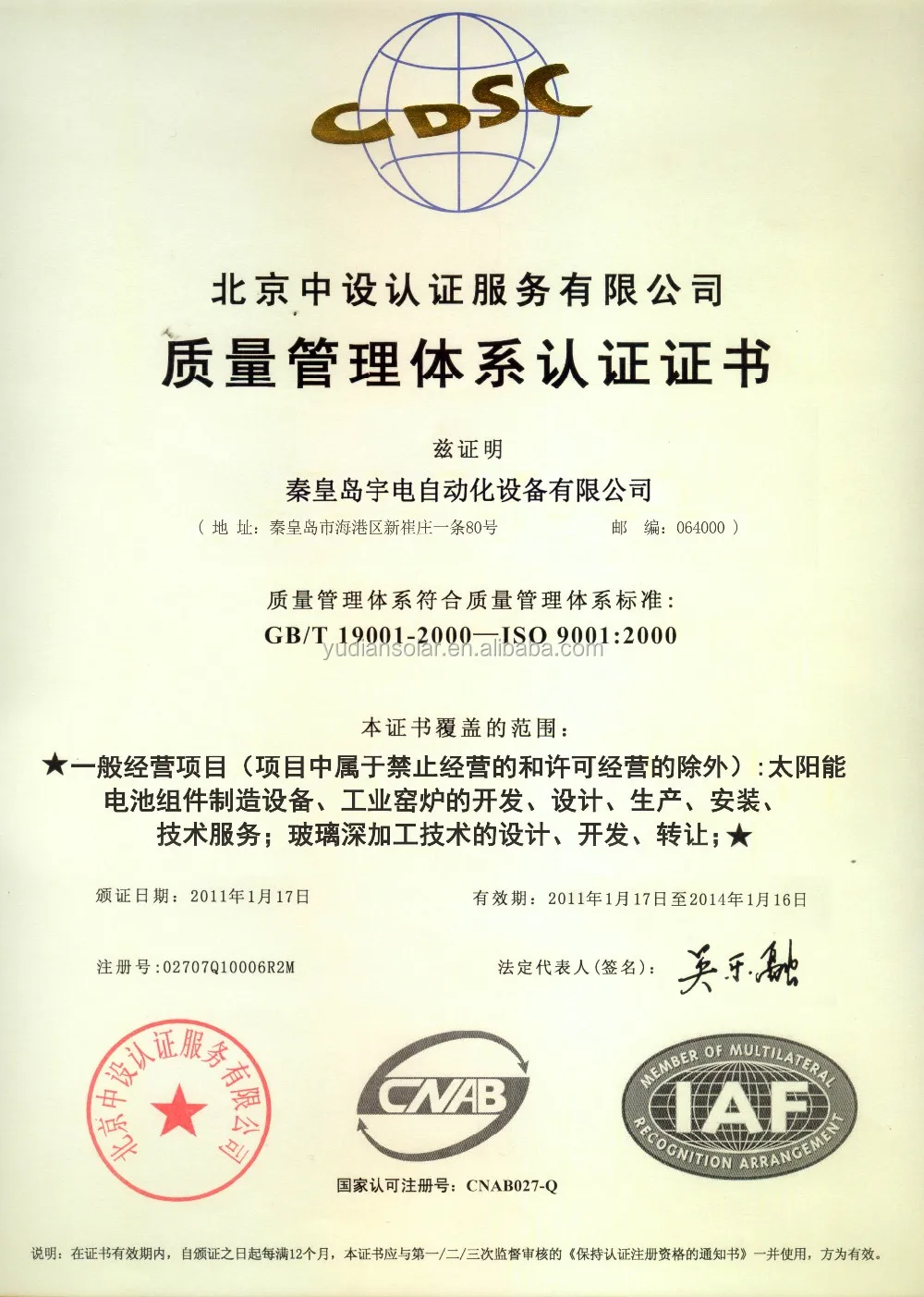

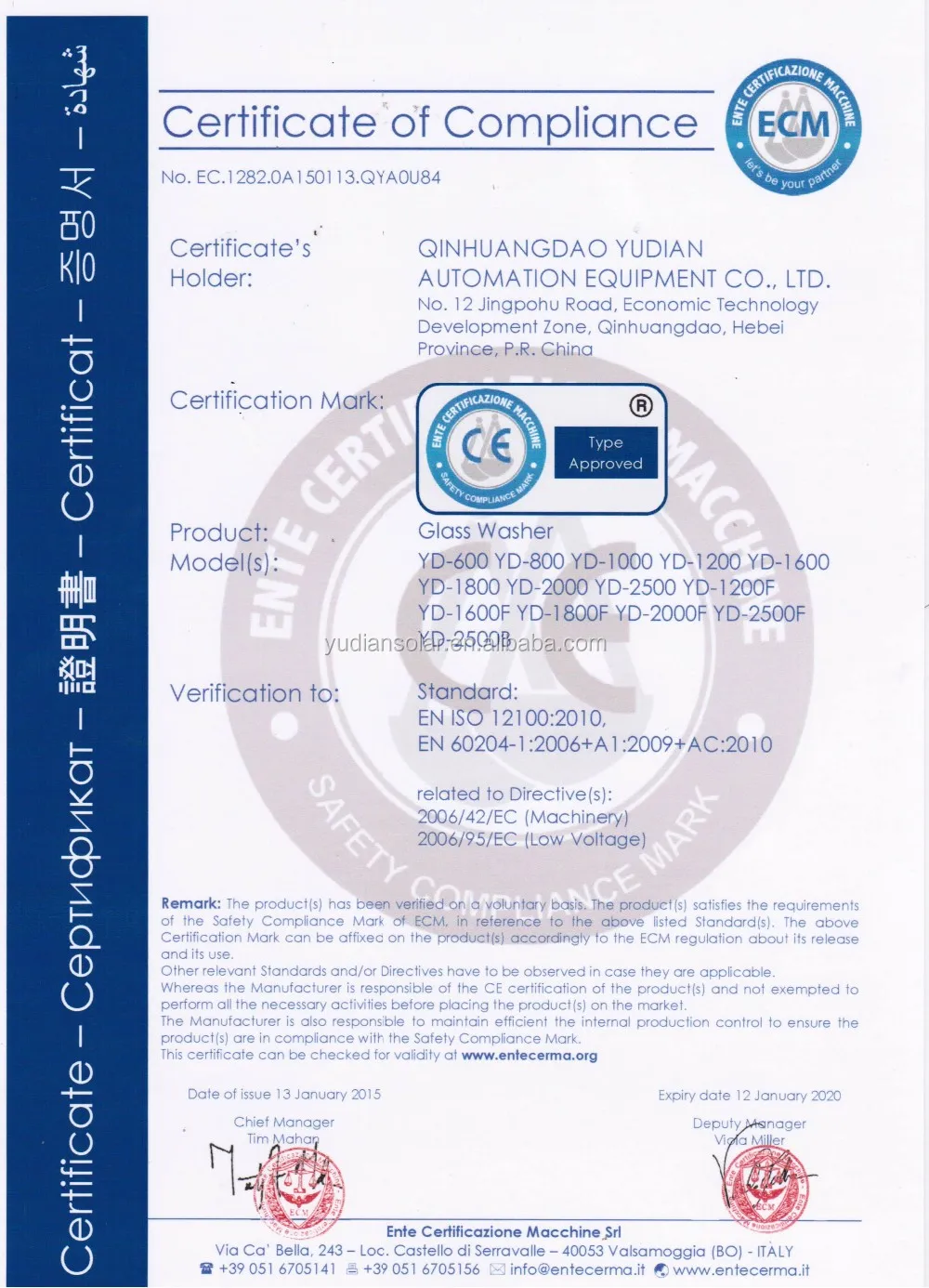

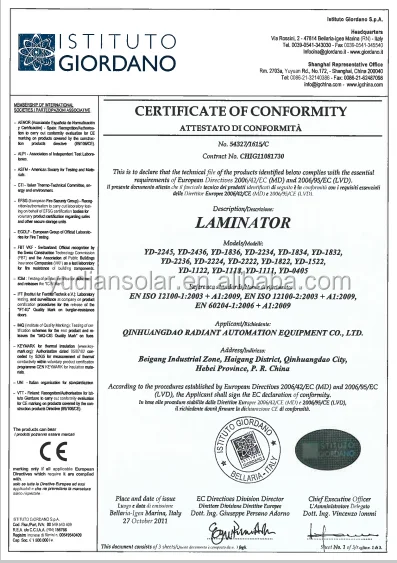

Certifications

Certifications























Machine Parts

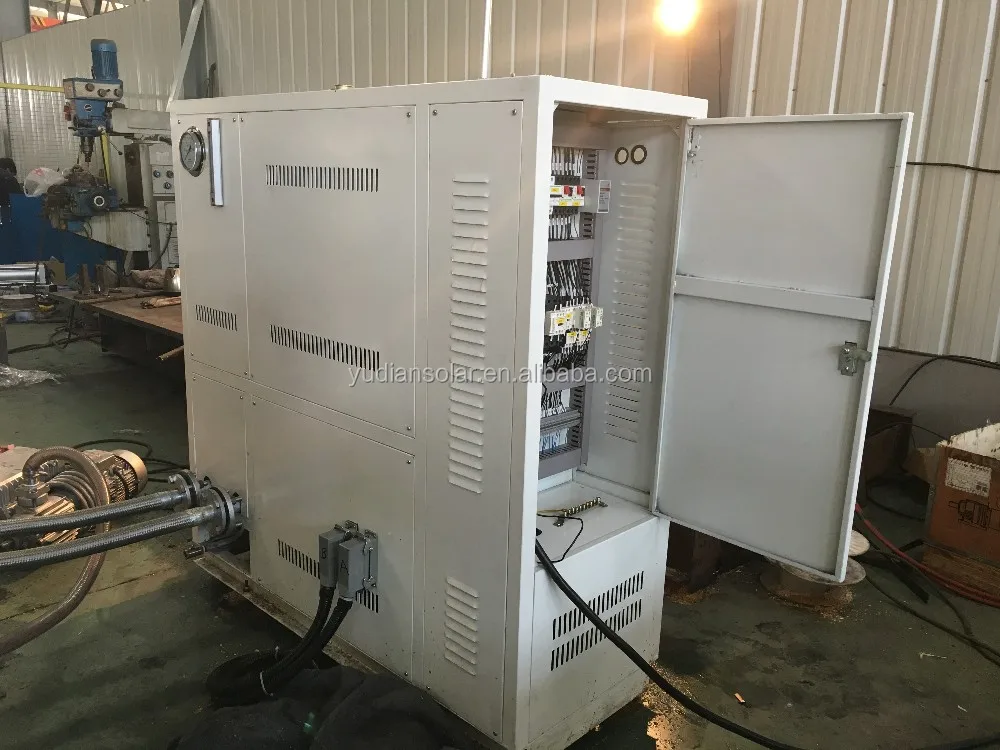

Name: Oil heating station


Brand: Radiant


Original: China


Professional oil heating station with certificate,more safty and all electrical components are from Schneider,very best quality.








Main Features

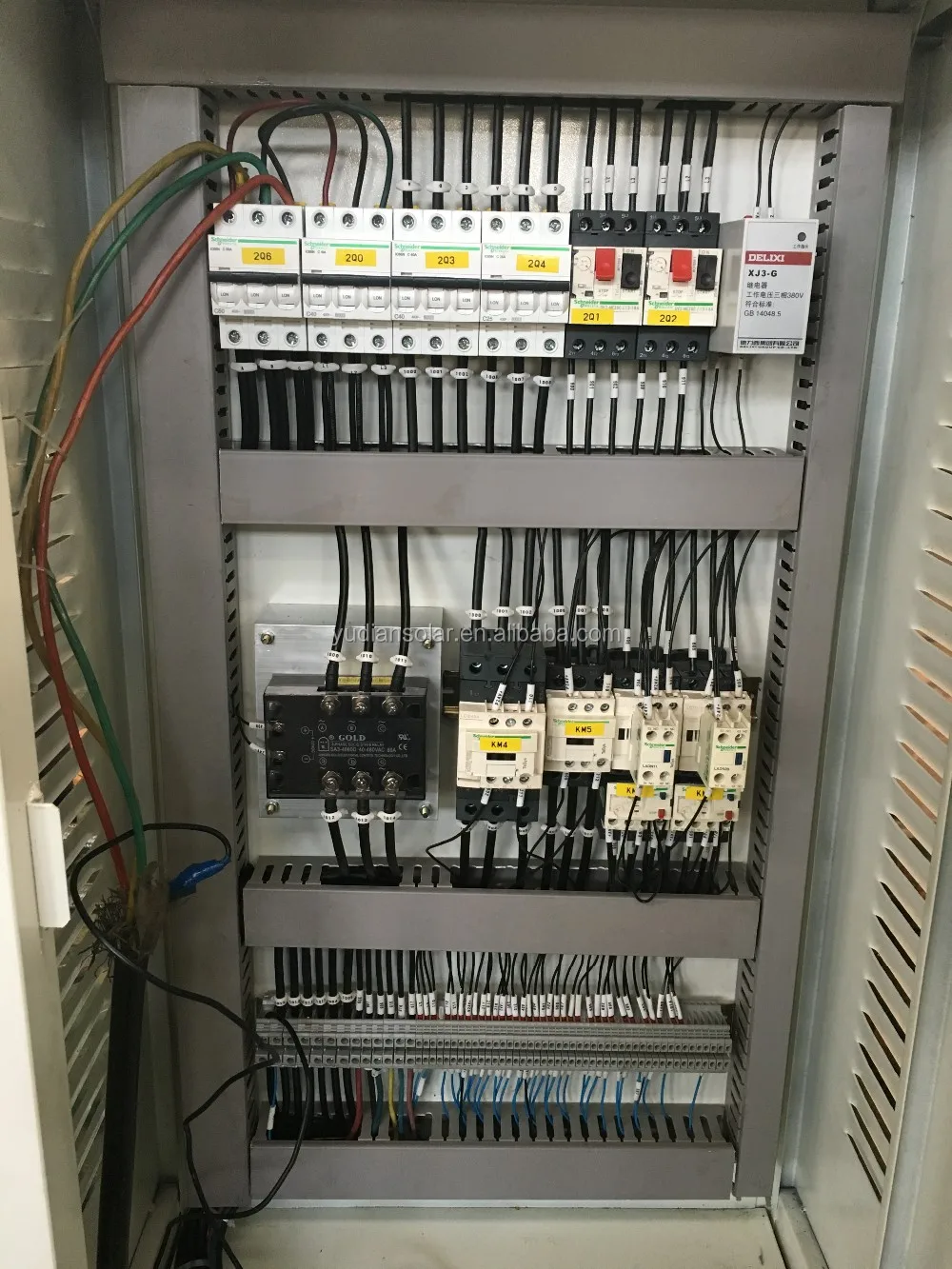

Name: Cabinet
Brand: Radiant
Original: China

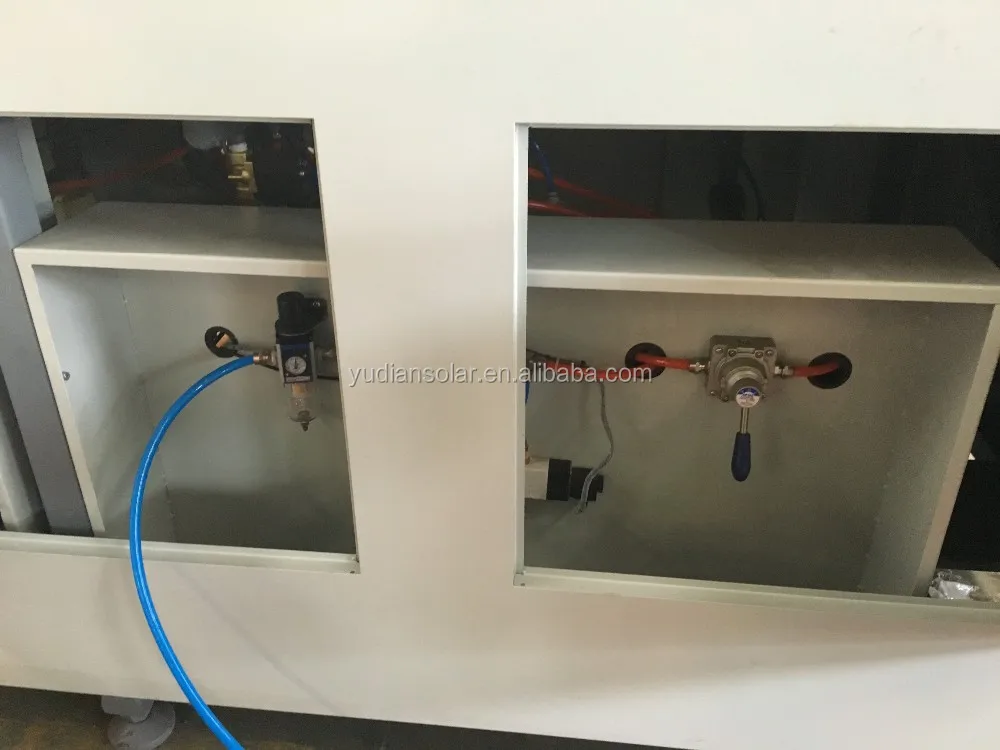

All valves are from Taiwan,manual screw is for upper chamber closing when power is off.














Machine Parts

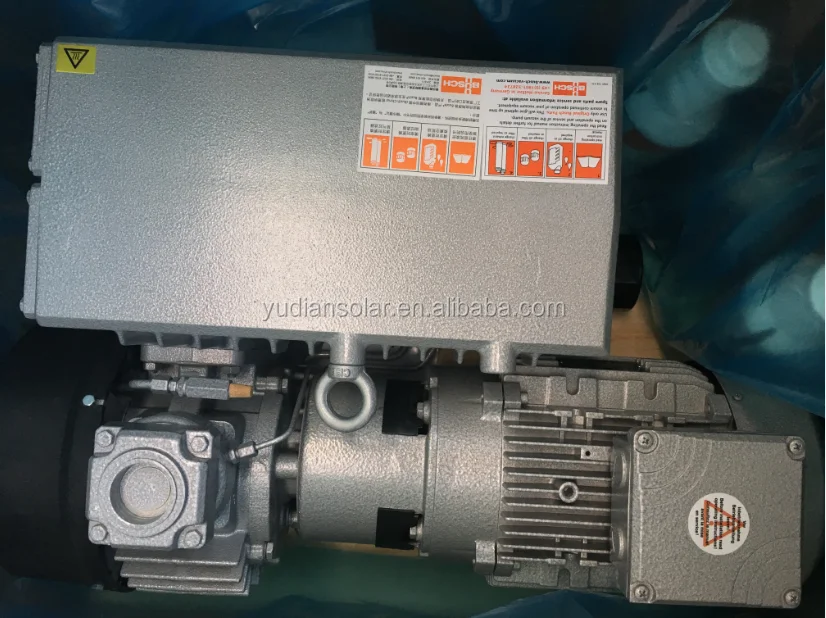

Name: Vacuum pump
Brand: Busch
Original: Germany
Busch vacuum pump,air cooling and no need water cooling,longer lifetime and convenient local Busch service








Main Features




Name: Touch screen
Brand: Siemens
Original: Germany

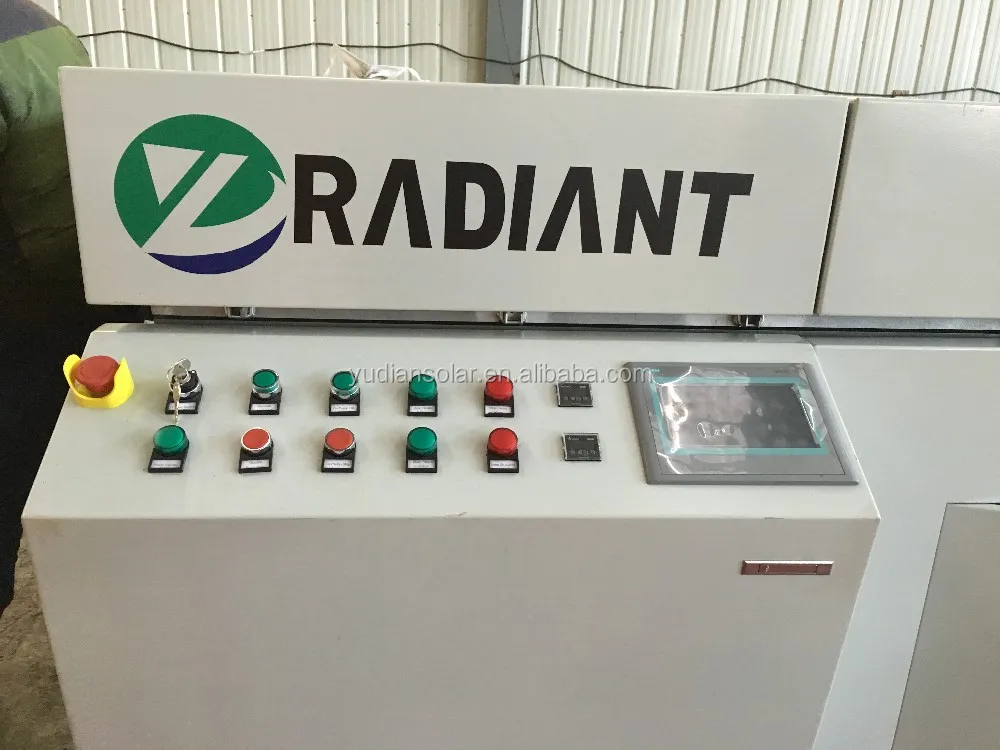

Touch screen and PLC are from Siemens,clear display and more stable machine running.









Packing & Delivery

Packing & Delivery

























Packaging



Size



2750*2450*1230mm



Weight



4T



W





Packaging Details

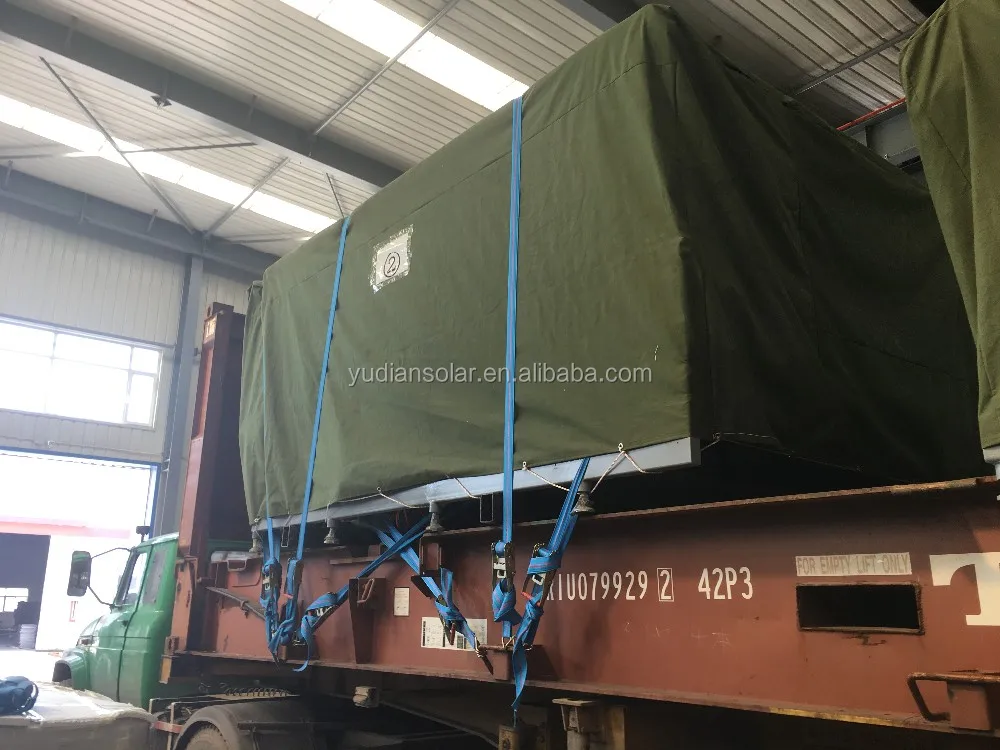

We will use tarpaulin which will be waterproof to pack main machine.




























Packaging



Size



12000*2300*2600mm



Weight



4 T

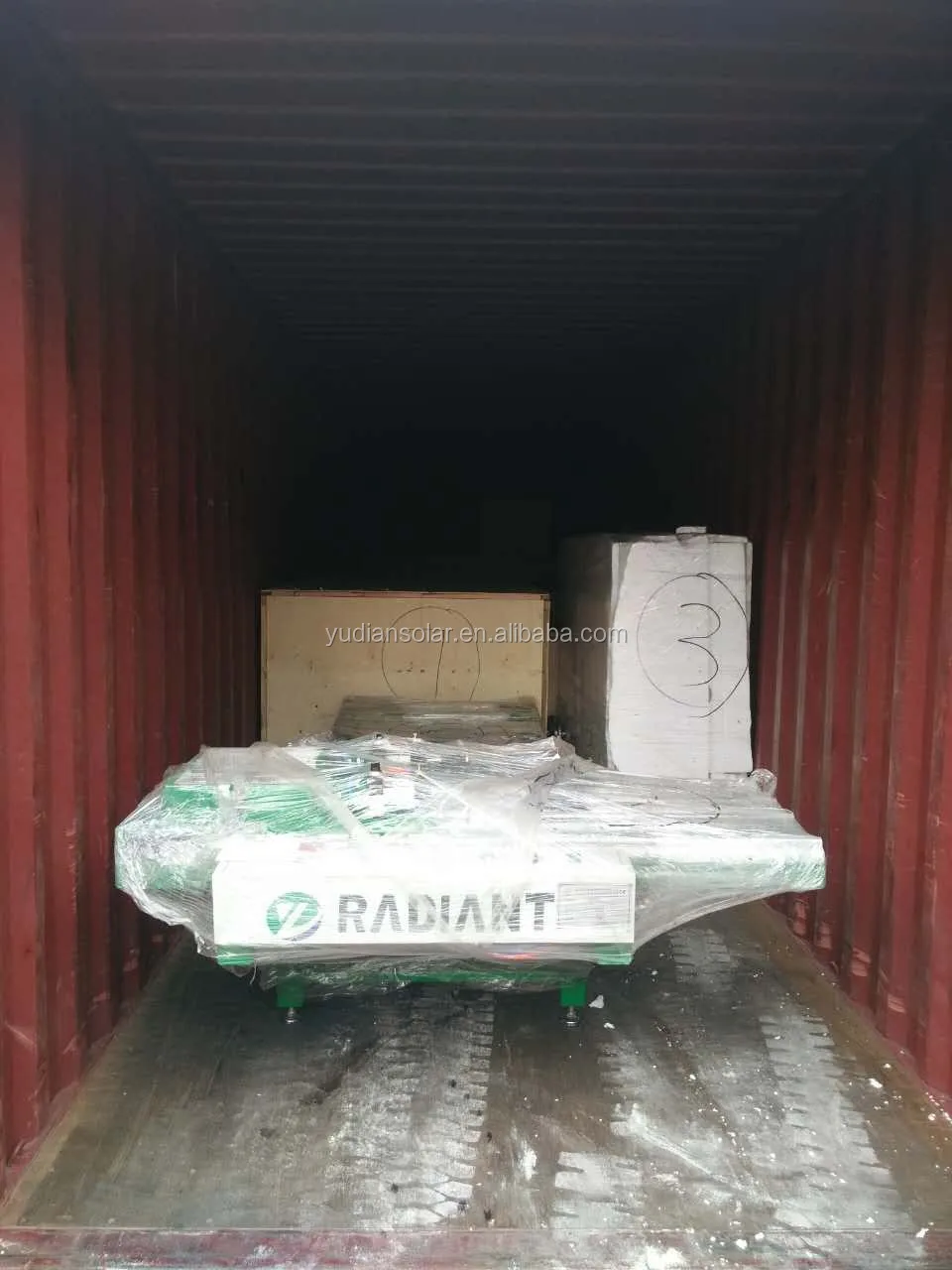

Packaging Details



The normal package is wooden box(Size: L*W*H). All the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
