Aluminum windows and doors machine Cutting saw machine
- Category: >>>
- Supplier: Jinan Sunny Machinery Factory Co. Ltd.
Share on (60508067504):
Product Overview
Description

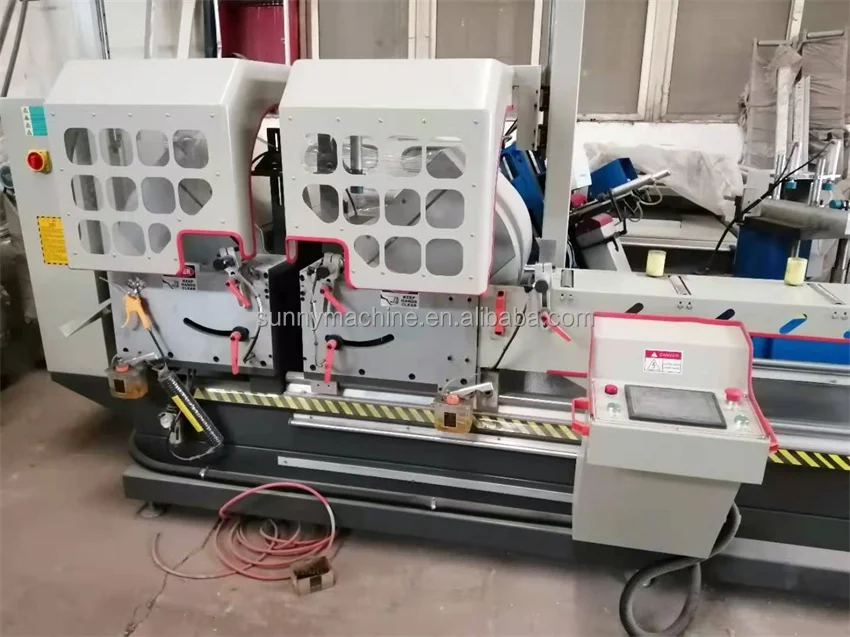

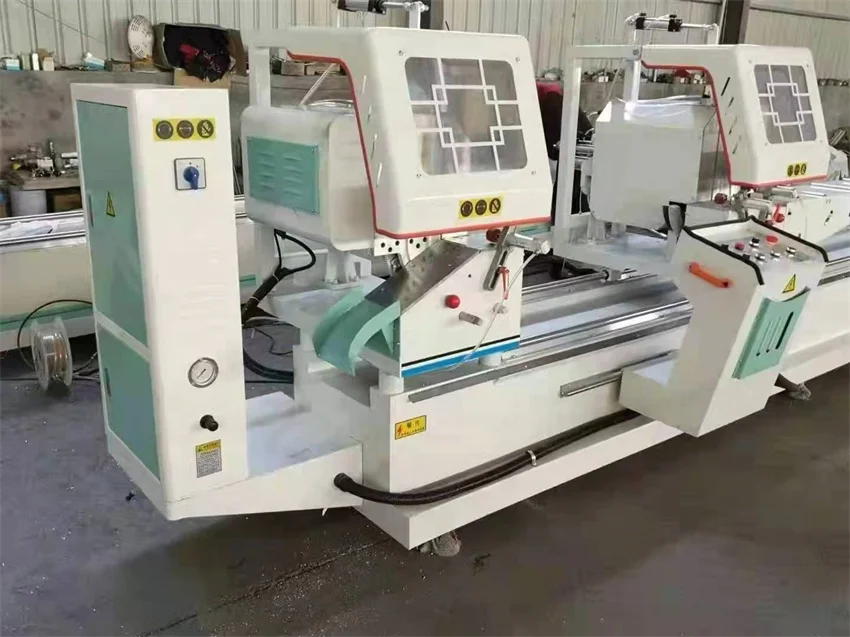

Aluminum windows and doors machine cutting saw machine
1.The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 4200mm. The cutting angle is 90, 45 and 22.5. The cutting length and other parameters are digital display.
Power Supply | According to customer request |
Input Power | 4.4KW |
Working Air Pressure | 0.5-0.8MPa |
Blade Rotational Speed | 3100r/min |
Saw Blade Specification | D=500mm??d=30mm |
Cutting Length | 380-4200mm |
Cutting Angles | 90,45 22.5 |
Outside Dimension | 5685*1750*1990mm |
Weight(about) | 1800Kg |
Others some aluminum windows doors machines
More Aluminum windows machines specification, warmly welcome to contact me, thanks so much!
Contact person: Lucy
TEL or whatsapp: 0086 15169042082
wechat : LucyLi2010
