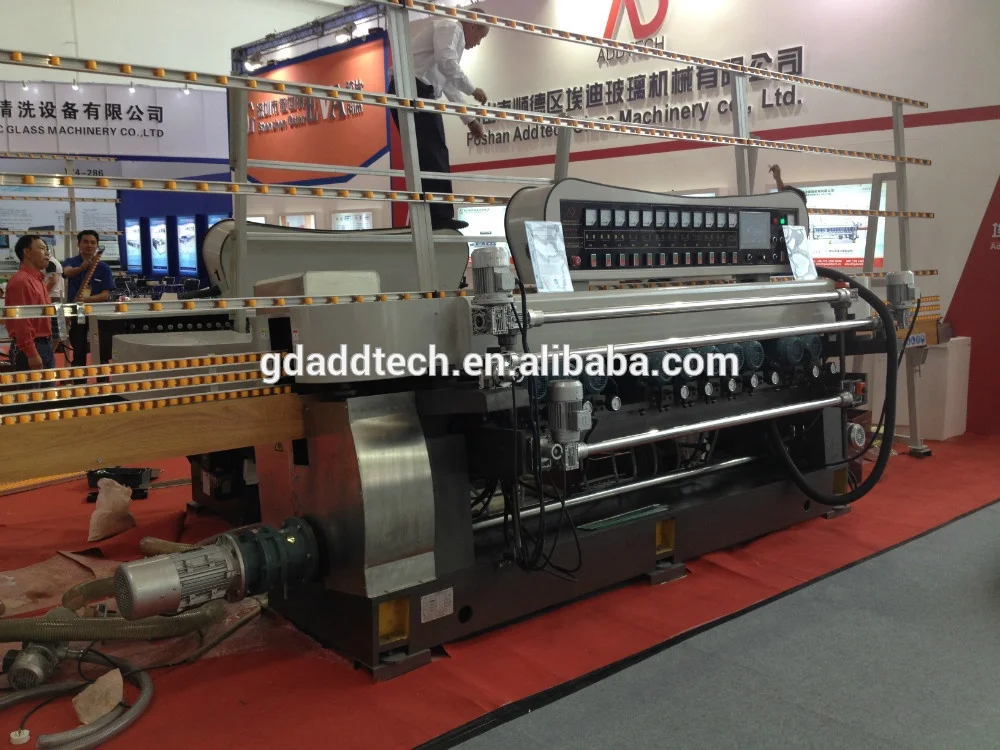

 11 Motors Lifting Beveling Machine

I. INTRODUCTION:

•  Suitable for beveling various sizes flat glass.
• The coarse grinding, fine grinding and polishing can be finished at one time

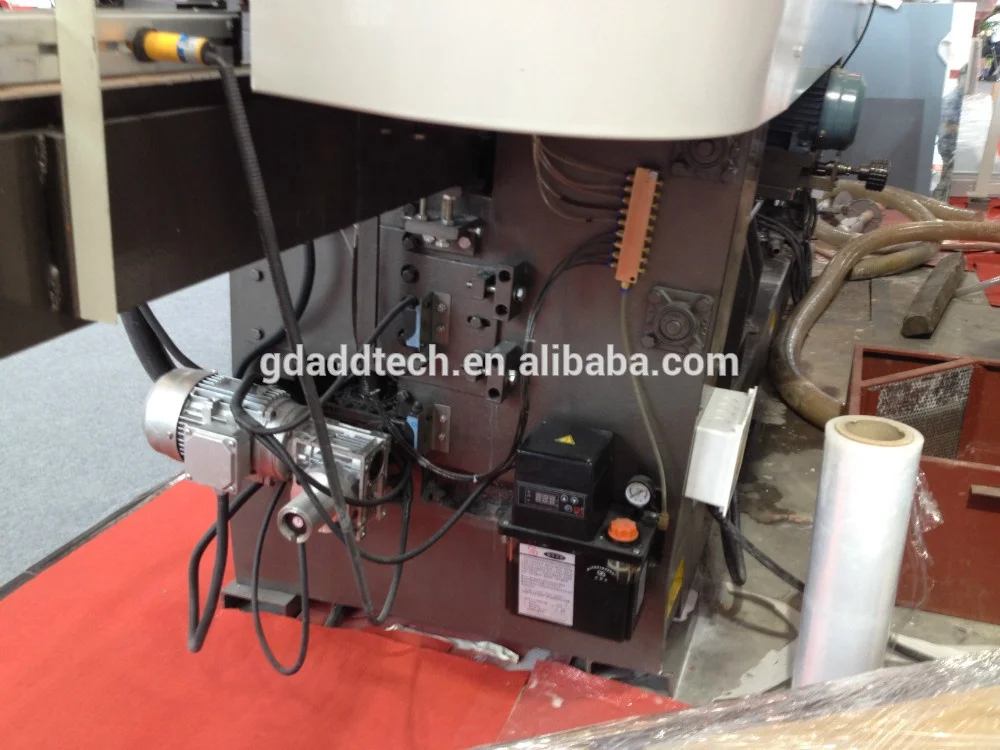

• The front pressing plate can be adjusted by lifting system according to glass size.
• The pressing plates are using with thicker steel plate, which make machine more stronger,
• transmit steadier and in higher working precision.
• Working speed can be adjusted at will by continuously variable mechanism transmisson,
• this make operation very easy.



 II. TECHNICAL SPECIFICATIONS:

voltage	Glass thickness	Power	Feeding speed	Overall size(LxWxH)
380v/50Hz	3-19mm	24.8kw	0.5-9m/min	7000x1300x2500mm

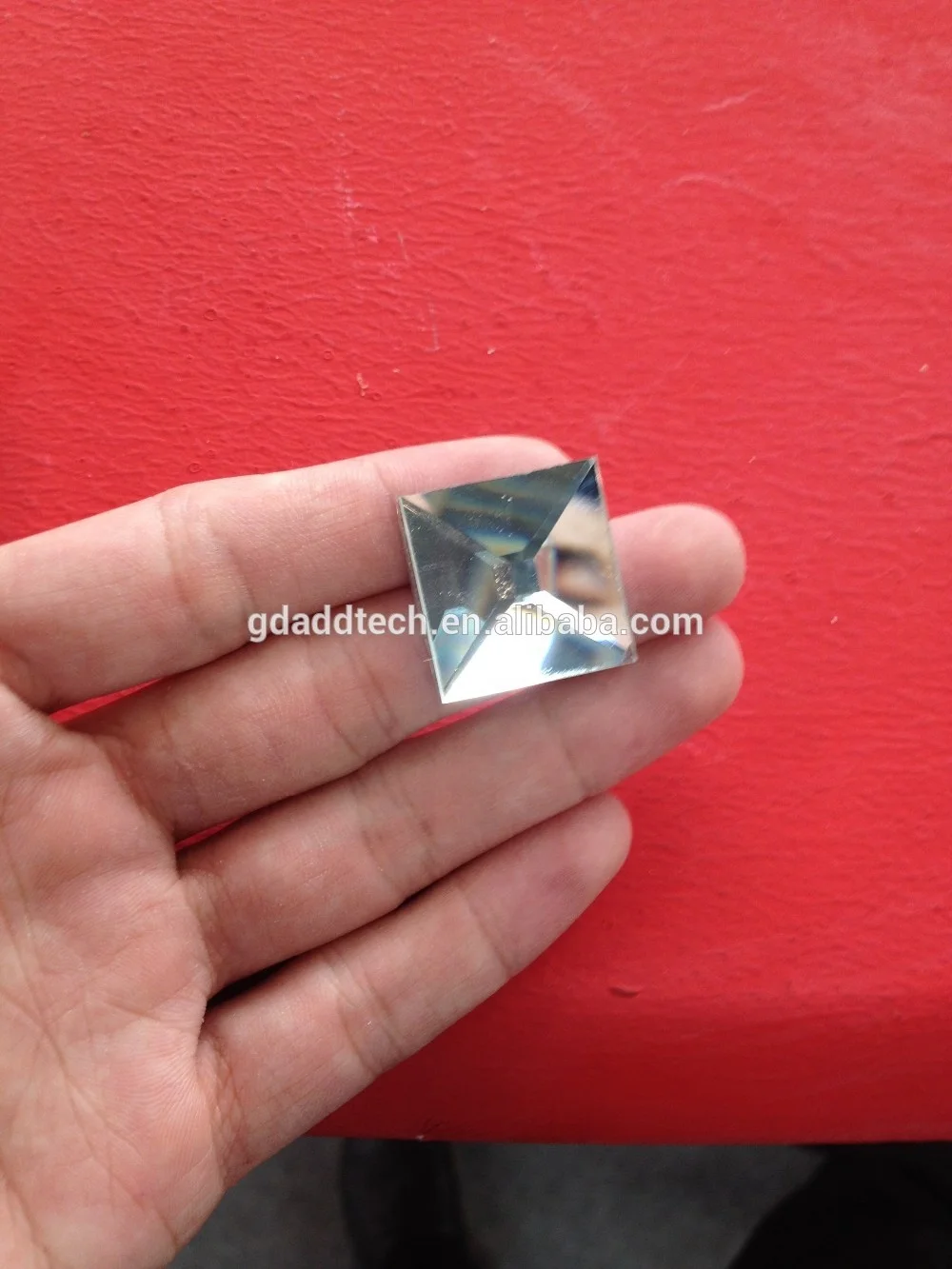

Bevel angle	Min size	Max bevel width	Weight of machine
0°-40°	18x18mm	55mm	5500kg





1).GRINDING WHEEL CONFIGURATION:

#s	Wheels	Function	Water Tank
#1	Diamond	Bevel coarse grinding	1200*500*300mm  cooling tank
#2	Diamond
#3	OG  Diamond	Arris grinding
#4	Diamond	Bevel coarse grinding
#5	Resin	Beveling fine grinding
#6	Resin
#7	Resin
#8	10S60	Polish
#9	Felt wheel		500*500*300mm  polishing tank
#10
#11

III. MACHINE DETAILS

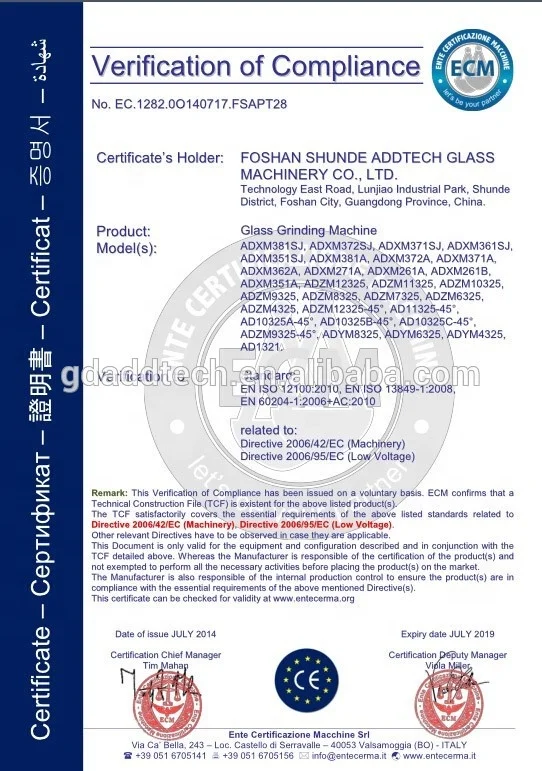

1. CE machine & CE certification

  PLC control system and digital displayer available;



2. Heavy duty foundation & beams: cast steel,annealing treatment;



3. Electric device: SIEMENS, Schneider or Delixi electrical optional;



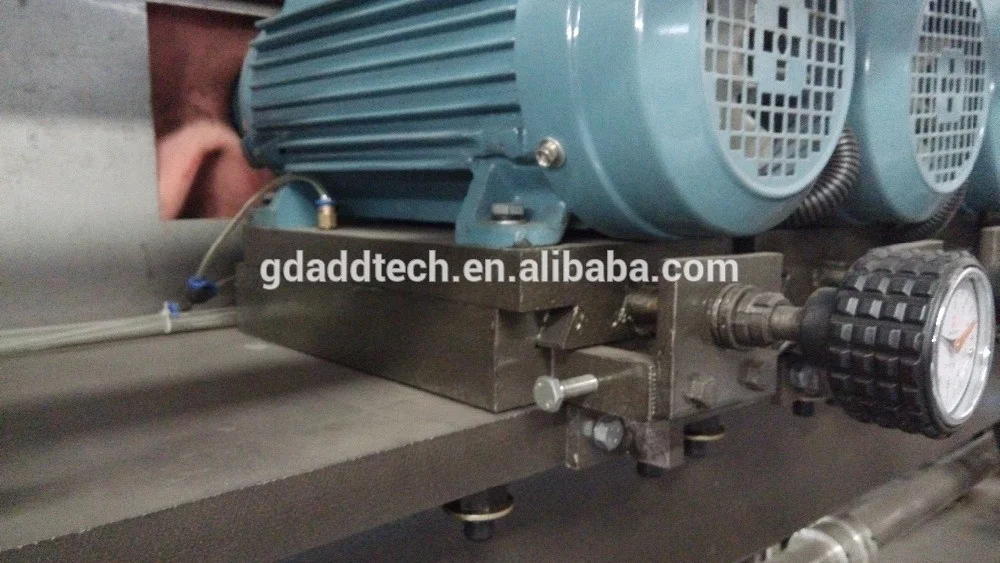

4. ABB, XINDONGYA, SNY motor optional.

380V/50Hz, 380V/60Hz, 220V/60Hz, 400V/50Hz, 415V/50Hz, optional;



5. Thicken chain transmission system, can loading 600kg big size thick glass;

  Beveling machine equipt synchronous belt PU chain transmission system



6.  Various high quality import grinding wheels.  Suit for grind mirror, mosica,  spell mirror,Low-e glass, float glass, laminated glass, tempered glass etc,.
