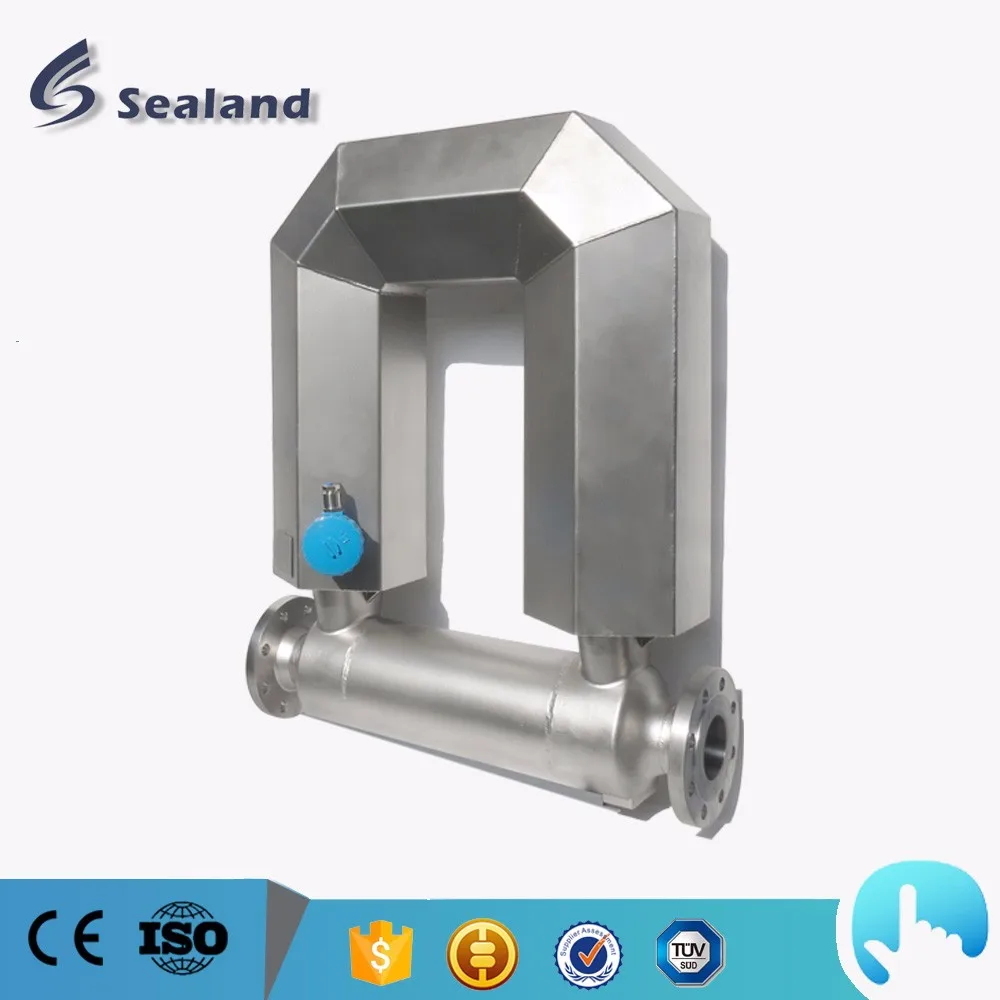

Coriolis mass flow meter / mass flowmeter with flow rate 3000kg/min
Specifications
Specifications of Coriolis mass flow meter
Specifications of Coriolis mass flow meter
Model No.
CG-80
Max. flow rate
3000kg/min
Nominal diameter
80mm( 3 inch)
Mass accuracy grade
0.2
Zero stability
0.115kg/min
Repeatability
0.02%
Warranty
2 years
Temperature accuracy
±1°C
Fluid temperature
-200~200°C
Wetted parts
Stainless steel 316L
Sensor housing
Stainless steel 304
Packing
1set/wooden case
Package size
1340*1300*1000mm
G.W.
125kgs
Specifications of Coriolis mass flow sensor
Specifications of Coriolis mass flow sensor
Gas accuracy
±0.5% for mini flow, ±0.1% for high flow
Liquid accuracy
±0.2% for mini flow, ±0.1% for high flow
Temp. accuracy
±1°C
Pressure drop
≤0.2MPa
MWP
4MPa
Temp. rating
-50°C~+200°C
End connection
Customizable
Ex-mark
Ex[ib]IIBT1~T6 Gb / Ex[ib]IICT1~T6 Gb

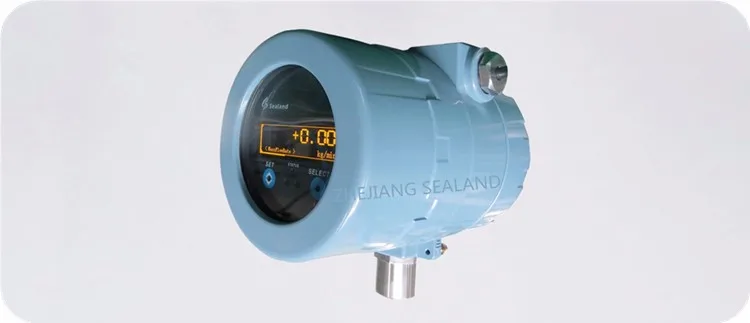

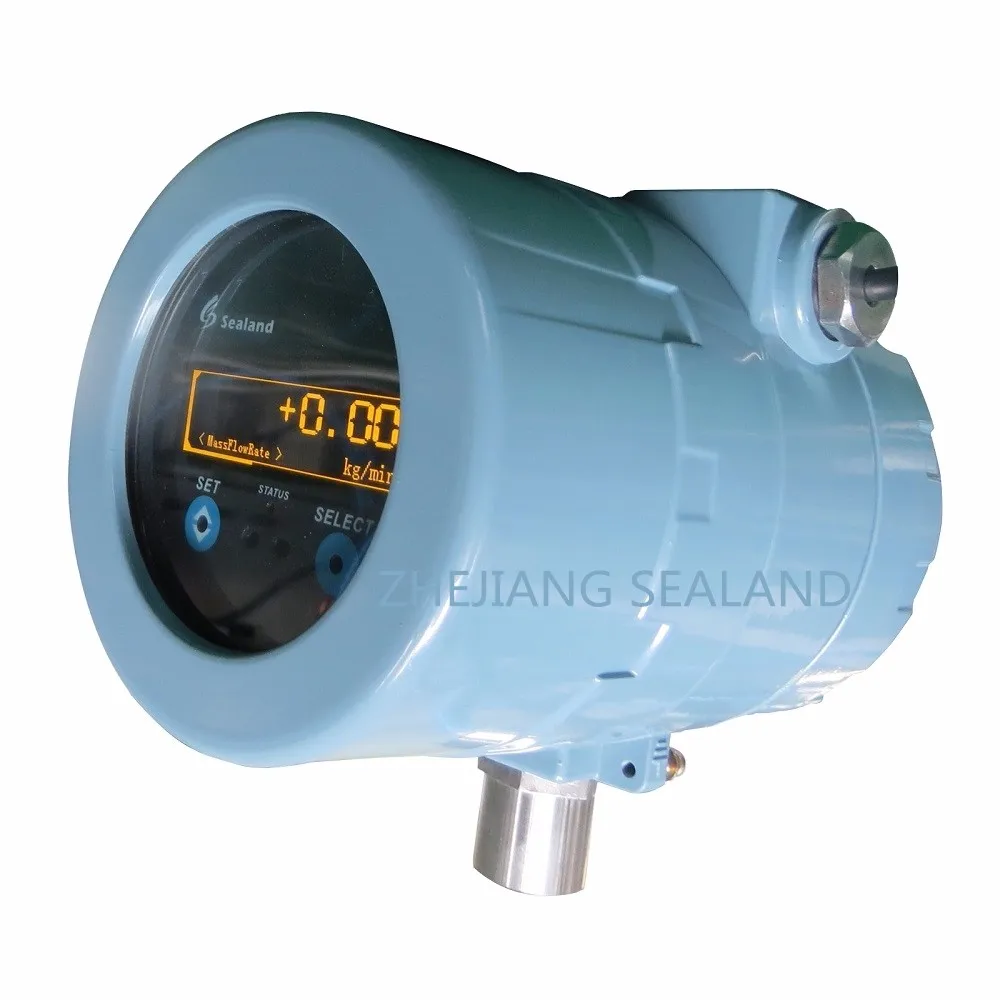

Specifications of Coriolis mass flow transmitter
Specifications of Coriolis mass flow transmitter
Temp. rating
-20°C~+50°C
RH
≤95%, non condensed
Atmospheric pressure
86~106KPa
Operating voltage
AC85~265V, DC12~28V
Communication port
RS485 Modbus RTU
Ex-proof grade
Exd[ib]IIBT4Gb

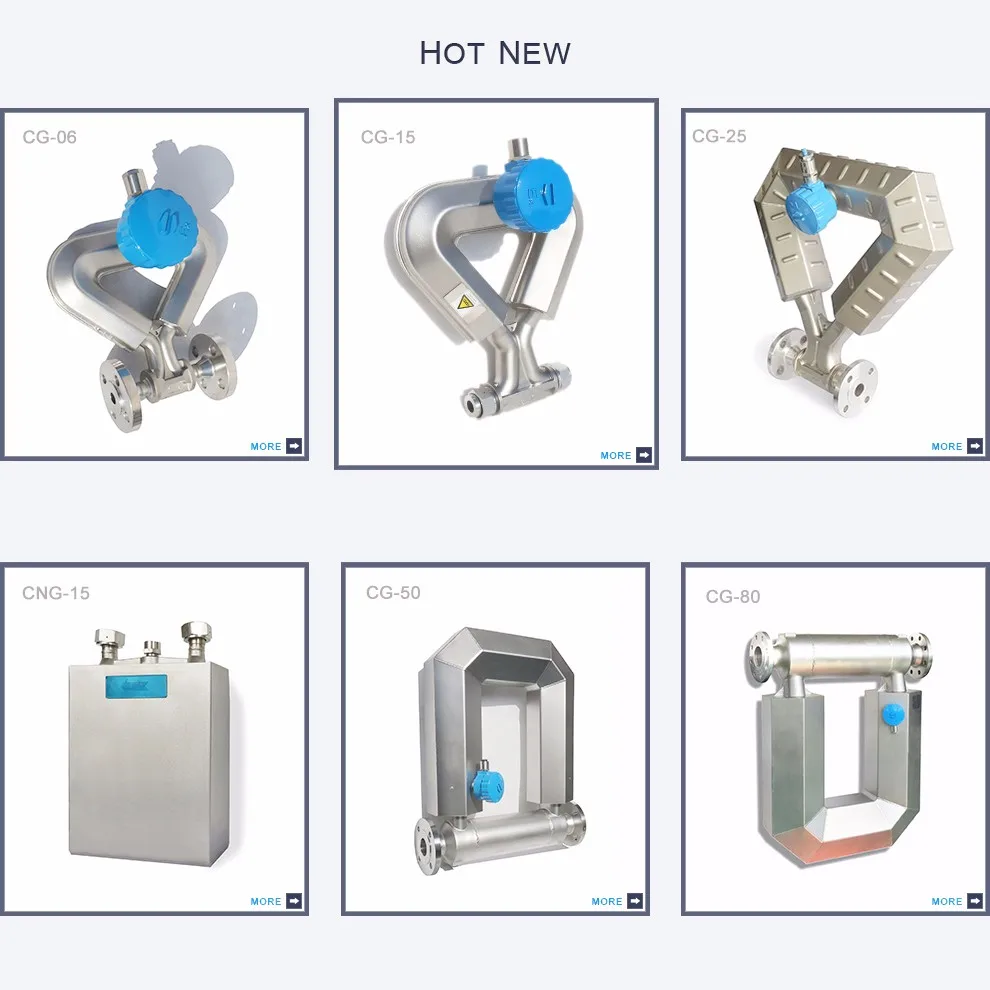

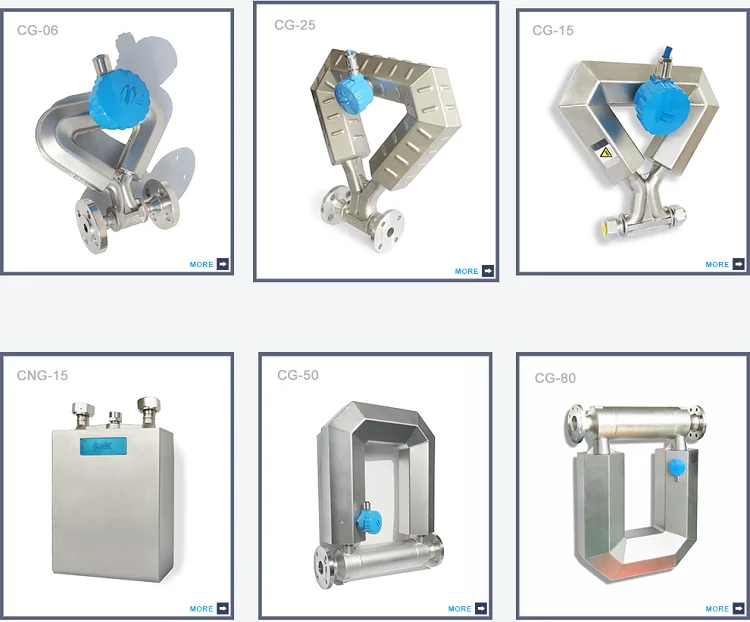

Related Products
Please click the following pictures for details of each model :)
Model No.
Diameter
(mm)
Max. flow rate
(kg/min)
MWP.
(MPa)
Accuracy grade
Zero stability
(kg/min)
CG-06
06
18
4
0.2
0.003
CNG-15/CG-15
15
70/50
25
0.2
0.009
CG-25
25
200
4
0.2
0.017
CG-50
50
1000
4
0.2
0.038
CG-80
80
3000
4
0.2
0.115
CG-100
100
5000
2.5
0.2
Under development
Introduction
Introduction of Coriolis mass flow meter
Mass flow meter consist of mass flow sensor and mass flow transmitter. It does not measure the volume per unit time (e.g., cubic meters per second) passing through the device, but measures the mass per unit time (e.g., kilograms per second) flowing through the device. The result of volumetric meter varies with temperature, pressure, composition, etc., but mass flow meter does not have such problem.
Operating principle of Coriolis mass flow meter
Mass flow meter is designed according to Coriolis Effect. The inlet arm and the outlet arm vibrate with the same frequency as the overall vibration, but when there is mass flow the two vibrations are out of sync: the inlet arm is behind, the outlet arm is ahead. The two vibrations are shifted in phase with respect to each other, and the degree of phase-shift is a measure for the amount of mass that is flowing through the tubes.
Feartures:
*Reduced filling time with higher flow rate capacity
*Compact design with no moving parts, no special mounting and no flow conditioning required
*Fast delivery and global support
Applications of Coriolis mass flow meter
Sealand Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.
Alternative Energy
Oil & Gas
Chemical
Food & Beverage
Industrial Energy
Life Sciences
Marine
Metals and Mining
Power
Pulp & Paper
Refining
Water & Wastewater
Others
Dimension of Coriolis mass flow meter
Advantages of Coriolis mass flow meter
1. High reliability
2. It requires low maintenance, because of no movable parts.
3. High accuracy: Generally, it is from 0.15%-0.3%.
4. It is not affected by the fluid, saving the design & installation cost.
5. It shows many parameter simultaneously, such as mass flow, temperature, density, etc.
6. Convenient installation: Generally, there is no specific requirement of choosing upstream or downstream pipe.
7. Wide application: Besides the common fluid, the mass flowmeter can measure other industrial media, such
as non-Newtonian fluid, all kinds of slurry, suspensions, etc.
Installation of Coriolis mass flow meter
It is highly recommended to install as follows, for different fluid.

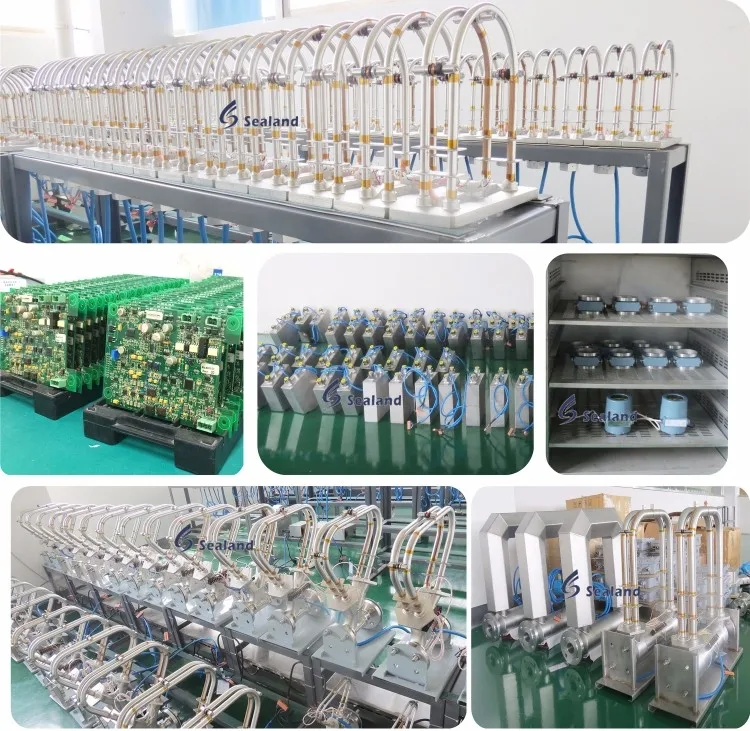

Production facility

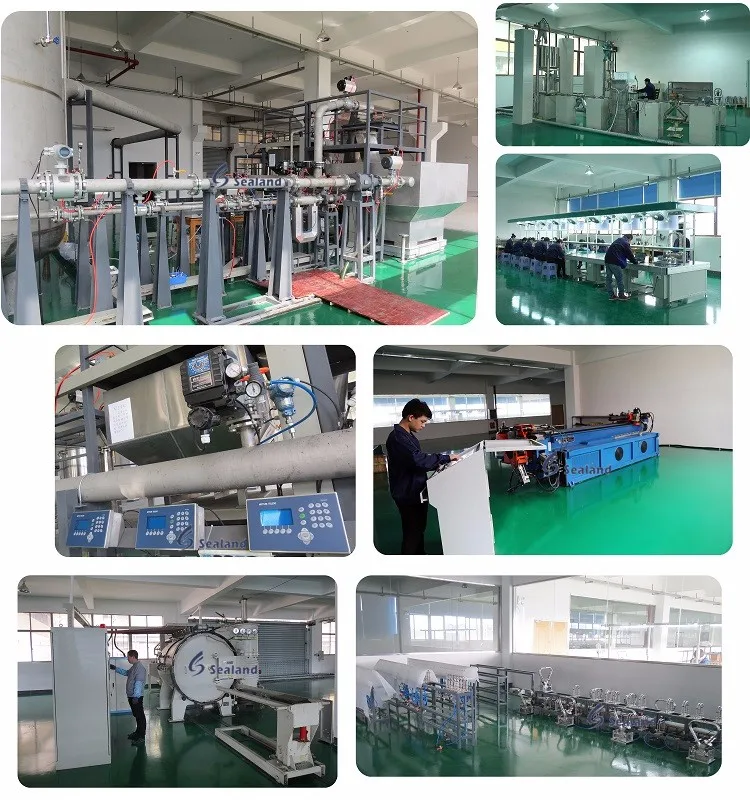

Production facility of Coriolis mass flow meter

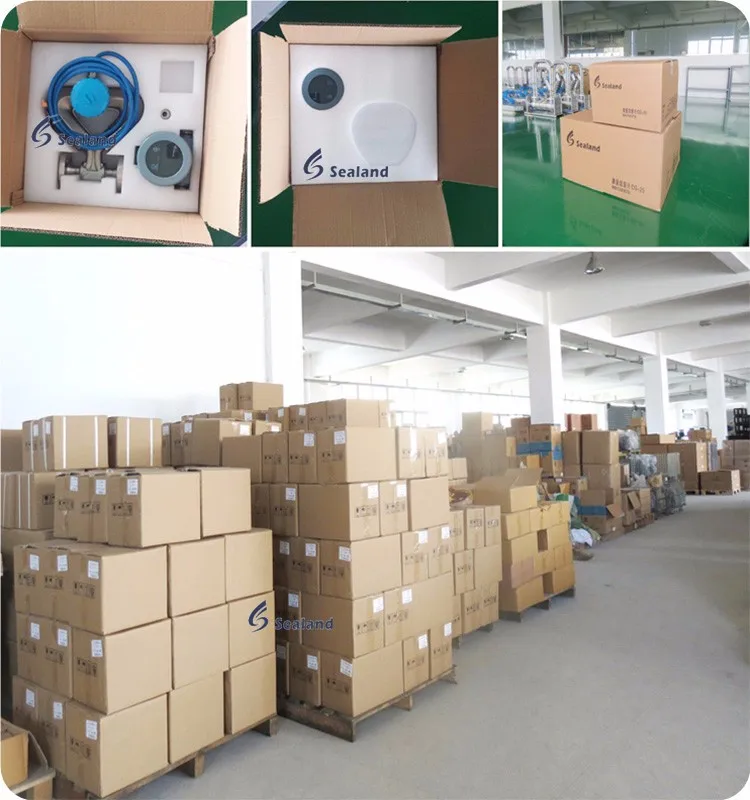

Packing of Coriolis mass flow meter

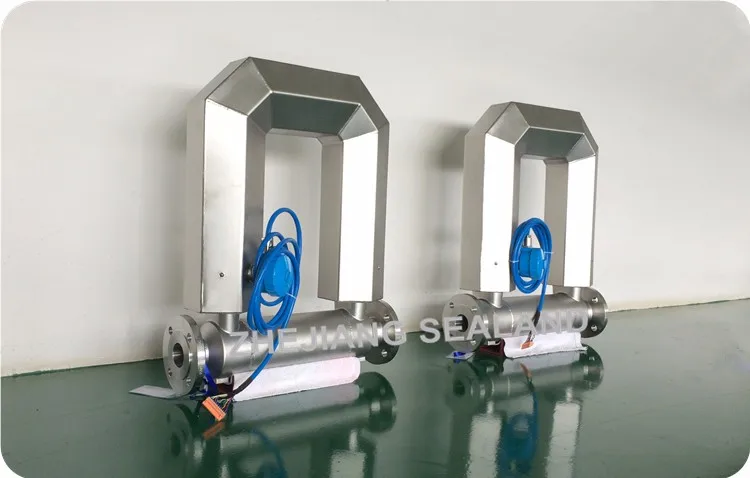

Mass production of Coriolis mass flow meter
Certificates
Certificates of Coriolis mass flow meter
About Sealand

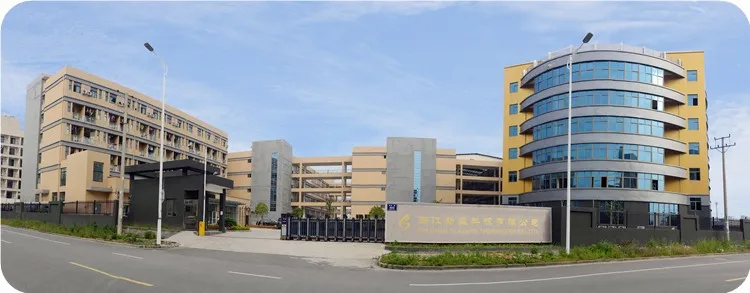

Sealand profile
Zhejiang Sealand Technology Co. Ltd. is a professional hi-tech enterprise, founded in 2009 with 45 million CNY registered capital. Located in Binhai ETDZ, Wenzhou, the factory covers an area of 4000m2, equipped with advanced production and test facilities. Sealand is a professional manufacturer of Coriolis mass flow meter, CNG mass flowmeter, mass flow meter, Coriolis mass flowmeter, Coriolis meter, Coriolis flow meter. Read more!
Why Sealand?
1. Sealand is professional, with senior engineers from the first research team in this field in China, and junior one from college, to keep improving.
2. Sealand is experienced. It started to research and develop in 1990. All employees are stable here; even the production-line workers have worked here for more than 5 years.
3. Sealand mass flowmeter can be used in many fields, with a flowrate from 0 to 5000kg/min, and the connection ends are customizable.
4. Sealand strictly controls the quality from raw material to finished products, and all products will be inspected and tested for 3 times before shipment.
5. Sealand cooperates with efficient logistics, to help cut down the shipping cost and time.
6. The warranty is 2 years, but technical support is always available. Read more!
FAQ.
1.Customer: May I put my own logo on the product?
Sealand: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.
2.Customer: How about the quality control? Sealand: All products will be tested for 3 times before packed.
3.Customer: May I release trial order, 1 pc for example? Sealand: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
4.Customer: Could you design according to my requirements? Sealand: Of course, our team will design for you, to make our mass flowmeter work perfectly at your end.
