Air Free Shipping Source Treatment Unit Pneumatic Lubricator 1/4 inch BSPP AL2000 02 smc type water oil air lubricator

Product Overview

Description

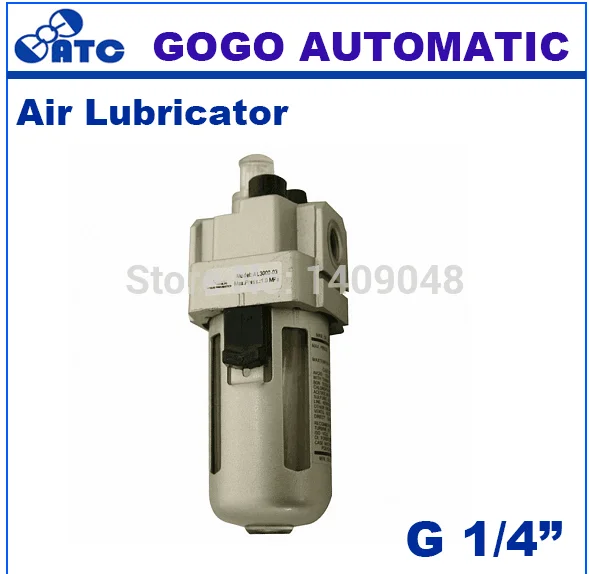

GOGO ATC Source Treatment Unit Pneumatic Lubricator

1/4 inch BSPP AL2000-02 smc type water oil air lubricator





* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * **



1.Specification



Model

AL1000

AL2000

AL3000

AL4000

AL4000-06

AL5000

Port size

M5×0.8

G1/8, G1/4

G1/4, G3/8

G3/8, G1/2

G3/4

G3/4, G1

Fluid

Air

Proof pressure

1.5 Mpa

Max. operating pressure

1.0 Mpa

Min operating flow (L/min)

4

15

G1/4:30   G3/8:40

G3/8:40 G1/2:50

50

190

Bowl capacity (cm3)

7

25

50

130

130

130

Recommended oil

Turbin oil class 1 (ISO VG32)

Ambient and fluid temperature

-5~60°C (Non-freezing)

Bowl material

Polycarbonate

Weight(kg)

0.07

0.22

0.28

0.52

0.58

1.08

Accessory (Standard equipment)

Bowl guard

-

-

*

*

*

*

Bracket assembly(1)

B140A

B240A

B340A

B440A

B540A

B640A

Note 1): conditions: Primary pressure=0.5 Mpa, Number of drop=5/min, turbine oil class 1(ISO VG32), Needle s

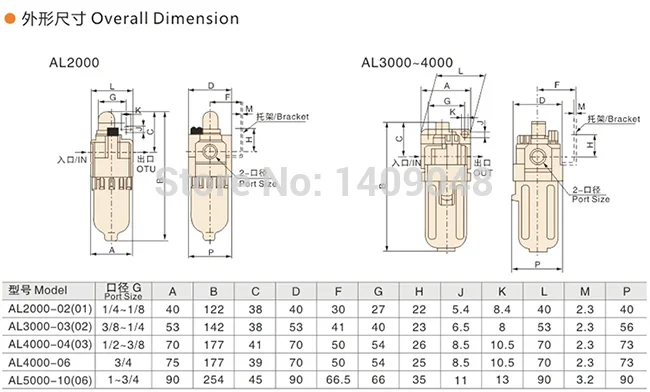

2.Dimensions

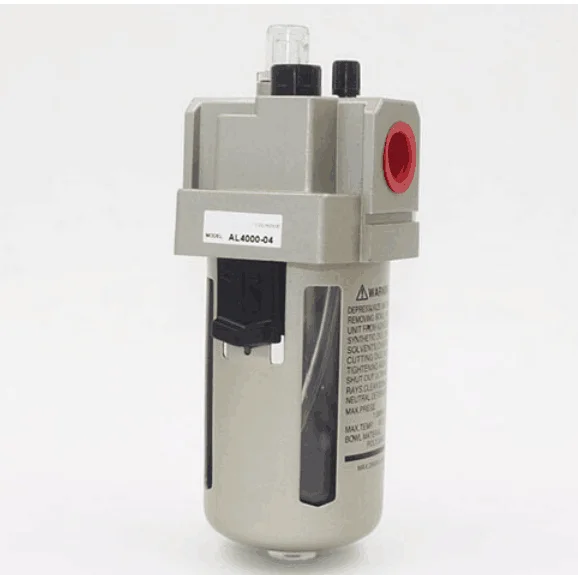

3. Picture
