BBQ Factory supplier sawdust briquette machine briquette press
- Category: >>>
- Supplier: Jining Tiannong Machine Co. Ltd.
Share on (60508701388):
Product Overview
Description
BBQ Briquette machine with wood
Product Description
Briquetting is the process of making waste materials into solid fuel. The objects are used for burning purposes. Biomass Briquette can be made from any type of agro-forestry waste: groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch barks/straws, rice husks, forestry wastes, wood chips and many other agro wastes.
TN BBQ Briquette machine with wood can make the biomass briquette bar (Ø50mm, Ø55mm, Ø60mm, Ø70mm, and Ø80mm) from any type of agro-forestry wastes under the thermoforming pressure. Compared with other domestic peers, we equip the force-feeder; electronic control devices used in all DELIXI electrical components with the integrated protection, overload protection, leakage protection; and the automatic cutter.

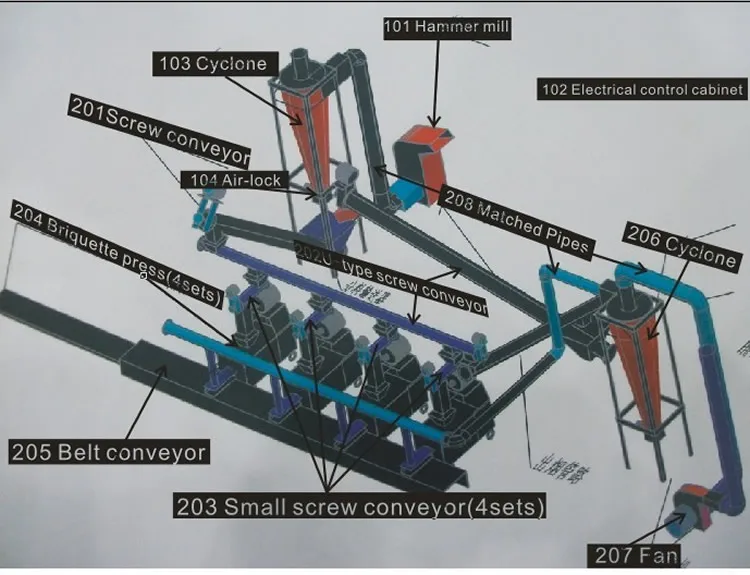

Flowchart

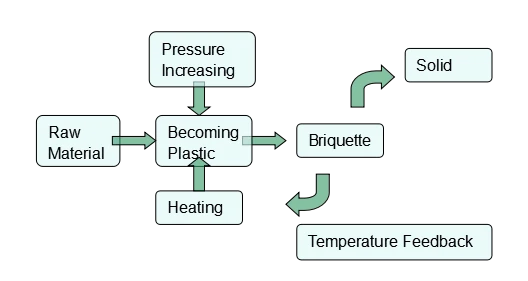

Working Theory
Specification
Model | ZBJ-10-50 | ZBJ-10-55 | ZBJ-10-60 | ZBJ-10-70 | ZBJ-10-80 | ZBJ-10-90 |
Output (kg/h) | 120-150 | 150-170 | 200-250 | 250-300 | 300-350 | 320-400 |
Motor Power (kw) | 11 | 13 | 15 | 18.5 | 22 | 30 |
Electric Heater (kw) | 3*1.5 | 3*1.5 | 3*1.5 | 3*2.0 | 3*2.0 | 6*1.5 |
Weight(kg) | 600 | 700 | 800 | 900 | 1000 | 1200 |
Overall Dimension(m) | 1.85*0.55*1.25 | 1.86*0.57*1.26 | 1.87*0.6*1.3 | 1.88*0.63*1.35 | 1.9*0.66*1.4 | 1.94*0.86*1.45 |
Size of Semi-Bar (Φ) | 50mm | 55mm | 60mm | 70mm | 80mm | 90mm |
Other | BBQ Briquette machine with wood | |||||
Feature
