4 Inch 112mm Printer DPU414 Battery Powered Directly Portable Receipt SII Original Thermal Printer DPU-414/DPU-414-50B-40B-30B-E

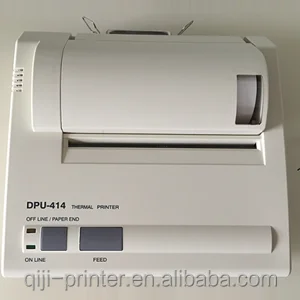

The DPU414/DPU-414/DPU-414-50B-40B-30B-E thermal printer ensures silent and high-quality printing. With compact size and built-in battery, the DPU414 is ideal for portable applications. It can print not only characters, but also high-density graphics.
4 Inch Battery Powered Directly Portable Receipt Thermal Printer DPU-414-50B-40B-E
Highlights
CRT display (640 dots max.) hardcopy
HEX dump (hexadecimal code) copy
Dual-power supply
Supports Centronics and serial data input
Built-in data buffer (approximately 28 kilobytes)
Prints 40 column-standard characters and 80 column-condensed characters
4 Inch 112mm Printer DPU414 Battery Powered Directly Portable Receipt SII Original Thermal Printer DPU-414/DPU-414-50B-40B-30B-E
Specification
4 Inch 112mm Printer DPU414 Battery Powered Directly Portable Receipt SII Original Thermal Printer DPU-414/DPU-414-50B-40B-30B-E
Model
DPU414/DPU-414-DPU-414-50B-40B-30B-E
Printing
Method
Thermal serial dot
Dots per line
9 x 320dots/line
Character matrix
9 dot high x 7 dot wide
Speed
Max. 52.5cps (normal), Max. 80cps (condensed)
Columns:
40 column (normal), 80 column (condensed)
Interface
Serial or Parallel
Width
89.6mm
Paper
Outer diameter
48mm
Width
112mm
Roll length
Appox.28m
Power Supply
Input
AC100 V to AC240 V
Output
DC7.0 V 2.5 A
Operating conditions
Temperature
0~40℃
Humidity
30~80℃
Life
Approx. 500, 000 lines
Dimensions
160 x 170 x 66.5 mm (WxDxH)
Mass
Appox.580g
4 Inch 112mm Printer DPU414 Battery Powered Directly Portable Receipt SII Original Thermal Printer DPU-414/DPU-414-50B-40B-30B-E
Applications
4 Inch 112mm Printer DPU414 Battery Powered Directly Portable Receipt SII Original Thermal Printer DPU-414/DPU-414-50B-40B-30B-E
4 Inch 112mm Printer DPU414 Battery Powered Directly Portable Receipt SII Original Thermal Printer DPU-414/DPU-414-50B-40B-30B-E
4 Inch 112mm Printer DPU414 Battery Powered Directly Portable Receipt SII Original Thermal Printer DPU-414/DPU-414-50B-40B-30B-E
This product is mainly used for measuring instrument, portable printer, and medical equipment, etc.
