S 500 24 Single output High efficiency power supply 24v 20a Switching Power Supply
- Category: Power Supplies >>>
- Supplier: Shenzhen Mingxinyu Electronic Technology Co. Ltd.
Share on (60508897844):
Product Overview
Description
Product Description

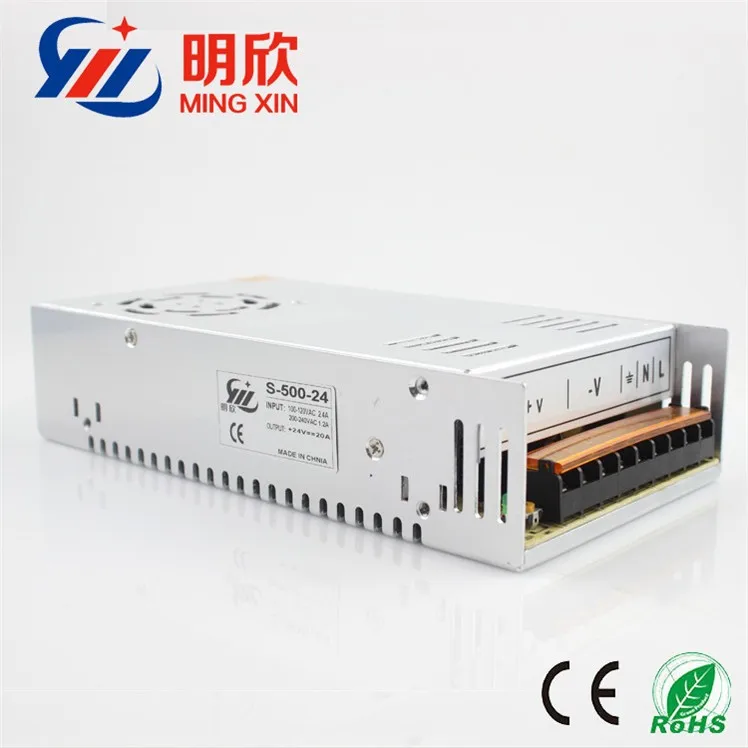

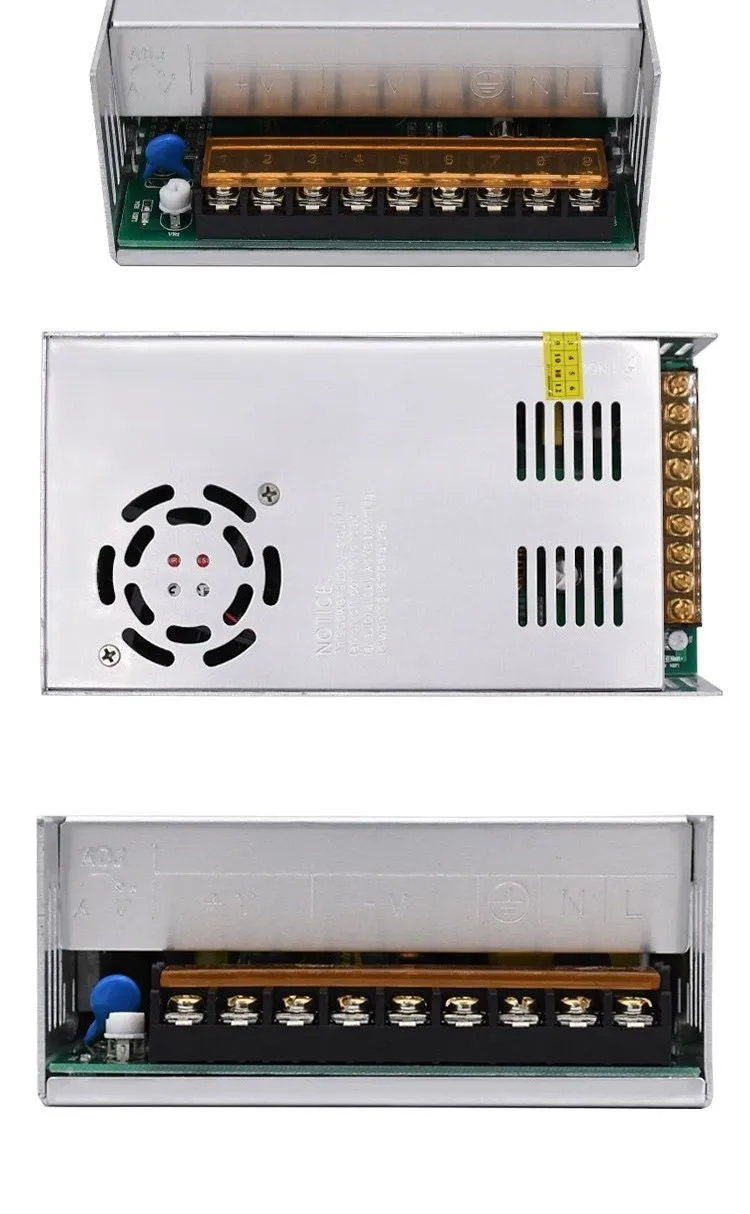

S-500-24 Single output High efficiency power supply 24v 20a Switching Power Supply
Features
1.International AC input range
2.High efficiency,low working temperature
3.CE and Rohs approval,2 years warranty
4.OEM and ODM is welcome
Output Power: 500w
Output Voltage: 24v
Output Current: 20A
Input Voltage: 100-265V
Output Type: single
size: 215*113*50mm
More products more specification and pics as follows:
| Model | S-500-24 |
| AC input voltage range | 110-265V AC |
| Input current | 0.5A/115V 0.25A/230v |
| AC impulse current | Cold- start current 13A /115V 26A/230V |
| DC output voltage | 24V |
| DC output power | 500W |
| Rated output current | 20A |
| Output voltage error | ±1% |
| Efficiency | 90% |
| Wave and noise | 100mVp-p |
| Inlet stability | ±0.5% |
| Load satability | ±0.5% |
| Leakage current | <0.5mA/240VAC |
| Overload production | 105%-150% rated power,automatically recovery |
| Vibration | 10500HZ ,2G 10min/1 cycle,Period for 60min,EACH axes |
| Cooling method | Natural cooling air convection |
| Working temperature and humidity | -20°∼60°c /20%∼90%RH (no frost) |
| Store temperature and humidity | -40°∼85°c /10%∼95%RH (no frost) |
| Safety standards | CE (EMC+LVD) ,ROHS |
| Product size | 215*113*50mm |
Packaging & Shipping
1pc/white box ,36pcs/ctn
Our Services
Our Advantage
8 years focus on the LED Power Supply Research and development, Production
Competitive price and best service
Timely reply to your enquiry
All the sample fee will be returned once the order confirmed, and we always have stock samples
OEM&ODM is ok for us
All inspection of the product
Company Information
Company located in Longhua New Dirstrict .
Have strong ability of research and development and sales team to service for you
FAQ
1. What is your minimum order quantity?
——the moq is 1 pc , for OEM &ODM is 500pcs
2.how long is your products warranty
——2 years
3.Can you accept OEM &ODM?
——yes , sure we can make label with your logo
4. How about your goods’ quality?
—— All our goods are certificated by CE, RoHS, also inspected by our QC team
