led truck advertising Mobile billboard truck mounted with LED screen
- Category: >>>
- Supplier: Leyard(Shanghai) Digital Technology Co. Ltd.
Share on (60508922717):
Product Overview
Description

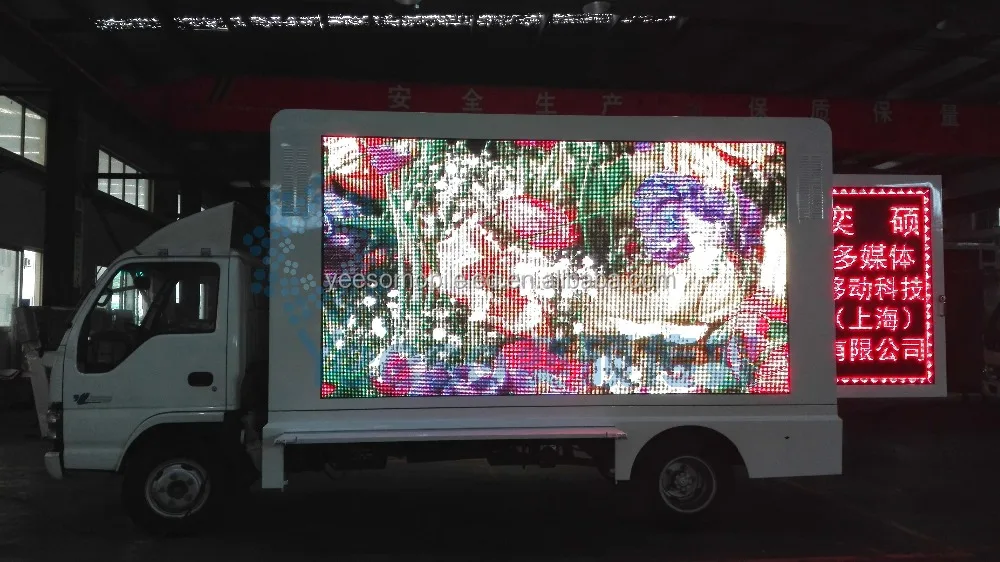

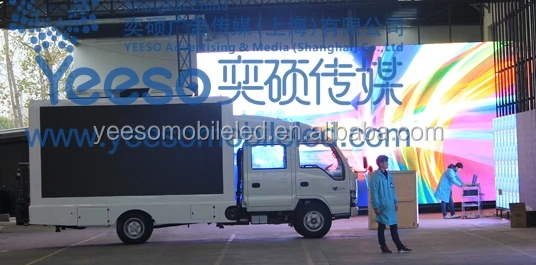

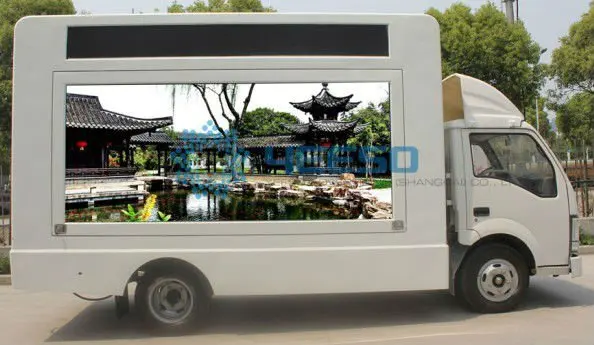

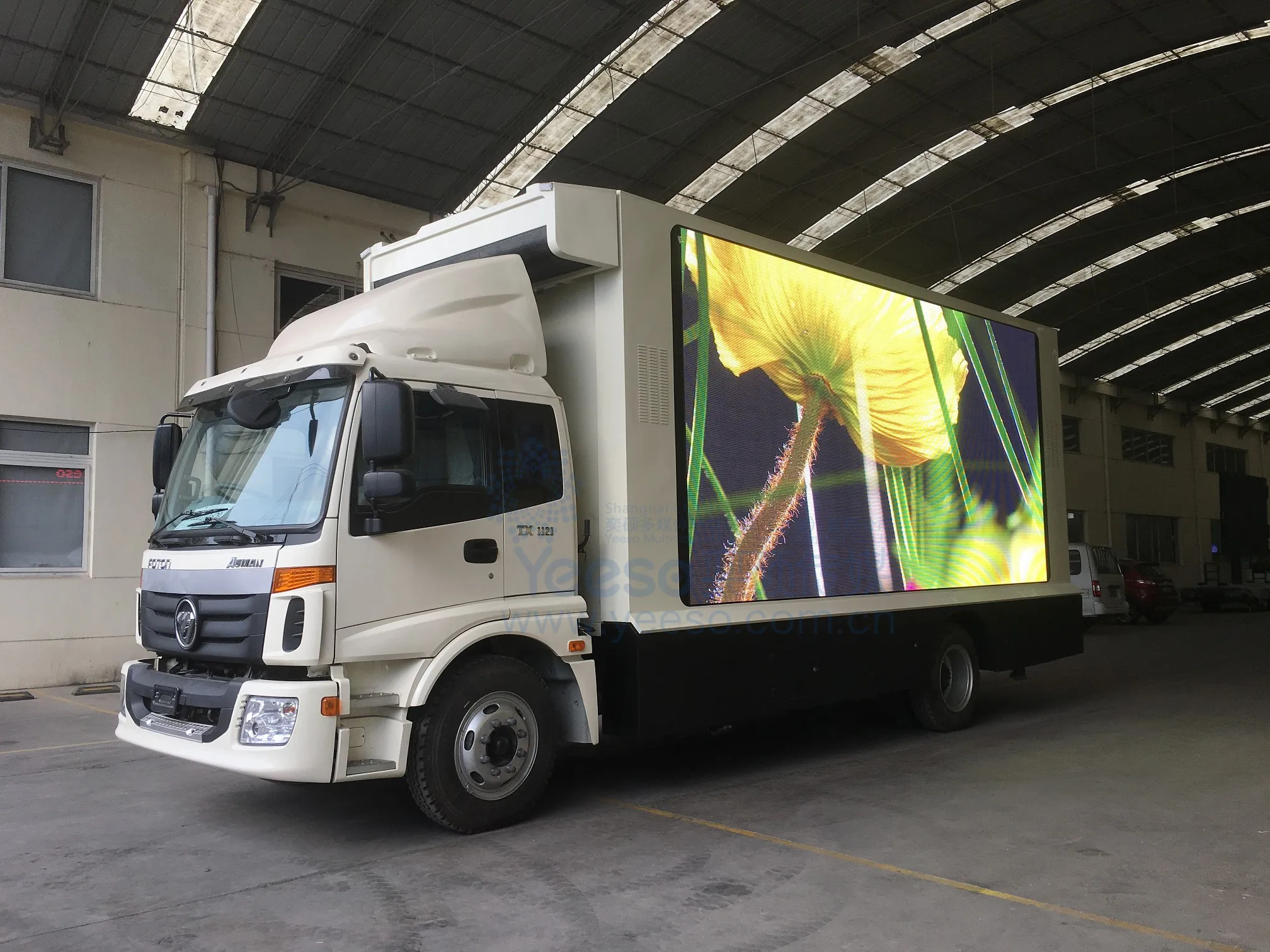

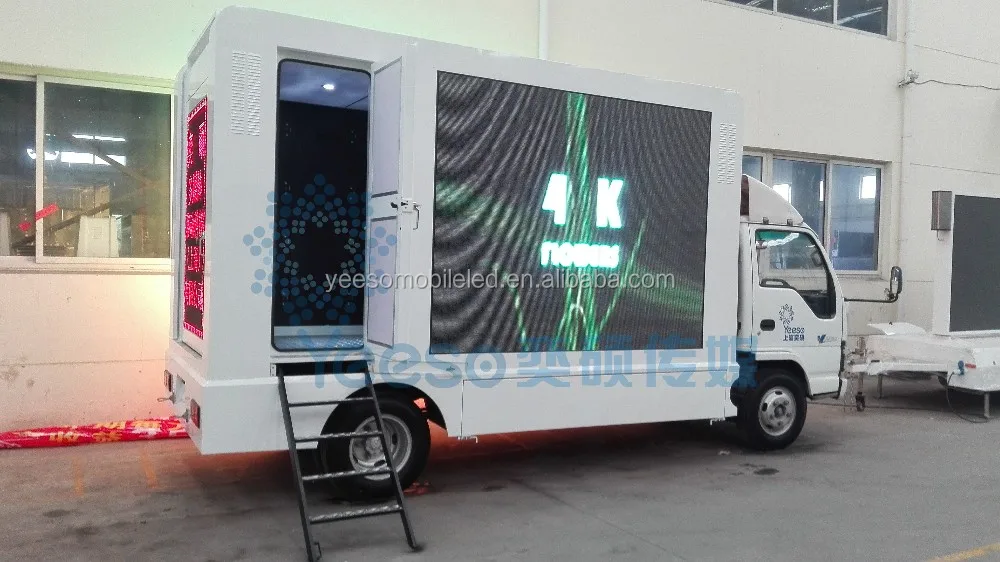

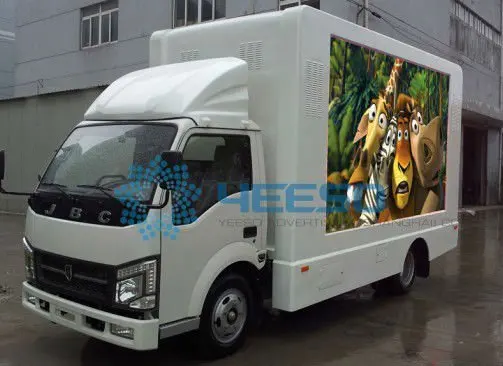

Mobile billboard truck with mounted LED screen: YES-V6
1. Japanese chassis ensures perfect mobility performance.
2. One side equipped with outdoor full color led display,Another side equipped with a LED strip screen and scrolling light box.
3. Built-in super quite generator and multi-media playing system
4. The mobile LED truck can be equipped with air-conditioner as your demand.
5. On-board panel control system, easy to operate and maintain.
Applications of Mobile billboard truck with mounted LED screen: YES-V6
1. Cruise show: Property market products cruise promotion, expos, fairs, large multi-stop cruises, company's annual cruise exhibition, etc.
2. Media: Fixed point outdoor advertising playing, public information transmission, and large mobile propaganda.
3. Activities: product promotion activities, client-side promotions, etiquette & public relations activities, brand promotion, talent show, product marketing show.
4. Live broadcast: large-scale sports events, domestic and overseas major events live broadcast/ retransmit vocal concert, concert, etc.
5. Ceremonies: house property opening, anniversary celebration, opening ceremony, festivals ceremony, ribbon-cutting ceremony, wedding, funeral, enterprise annual meetings, etc.
6. Exhibitions: large scale exhibitions, shows, etc.
Specifications of Mobile billboard truck with mounted LED screen: YES-V6
Model | YES-V6 |
| ||||||||
Chassis |
| |||||||||
Brand | Brilliance JINBEI | External dimension | 5995mm×2190mm×3300mm |
| ||||||
Power type | CA4DC2-10E4 | Curb weight | 1959KG |
| ||||||
Emission standard | Euro IV | Gross mass | 4495KG |
| ||||||
Maximum capacity | Three people | Wheel base | 3360mm |
| ||||||
Extreme super silent generator set |
| |||||||||
External dimension | 510mm×900mm×1060mm | Power | 7.5KW |
| ||||||
Power type | Kipor | Number of cylinders | Water-cooled inline 3-cylinder |
| ||||||
Air displacement | 1.995L | Bore x Stroke | 84mm x 90mm |
| ||||||
Full Color LED Display |
| |||||||||
LED Screen size (P10) | 3840mm×1920mm | Module Size | 160mm(W) ×160mm(H) |
| ||||||
Chip | R: GUANGLEI; G,B: SILAN | Pixel pitch | 10 mm |
| ||||||
Brightness | ≥7000cd/m² | Max power consumption | 1000 W/m² |
| ||||||
Average power consumption | 500W/ m² | Life span | 100,000 hours |
| ||||||
LED bar screen |
| |||||||||
External dimension | 3840mm×480mm | Pixel pitch | 10 mm |
| ||||||
Tube core | GUANGLEI(R) | Module resolution | 32pixel(W) ×16pixel(H) |
| ||||||
Scrolling Light box |
| |||||||||
Display size | 3250mm×1550mm | Roller diameter | 80 mm | |||||||
Motor power | ≥80W | Control mode | Intelligent remote control | |||||||
Power supply |
| |||||||||
Input voltage | three-phase five-wire 380V | Output voltage | 220V |
| ||||||
Electrical current | 50A | Power consumption | Average: 0.5wh/m² |
| ||||||
Multi-media control system |
| |||||||||
Industrial PC | Processor: dual core CPU; display card: 512; hard disk: 320G; CD-ROM: DVD; storage card: 2G |
| ||||||||
Monitor | 15-inch Industrial Display | Power amplifier | unilateral output power: 200W |
| ||||||
Speakers | Max power consumption:200W | Control system of LED screen | LINSN/ZHOGNQING |
| ||||||
Outer frame and inner decoration |
| |||||||||
Cold rolled metal plate of Outer box | 1.5mm | Surface car baking varnish | Polar White |
| ||||||
Inner decoration | Fire Retardant Board | Waterproof processing | Vehicle plastic irrigation processing |
| ||||||
Optional Configuration |
| |||||||||
LED screen | option: P7.62 LED full color screen | Air-condition | Option: Vehicle mounted air-conditioner |
| ||||||
Electric control system | option: Touch type wireless remote control | Video system center | Option: 1 set Video Processor |
| ||||||
