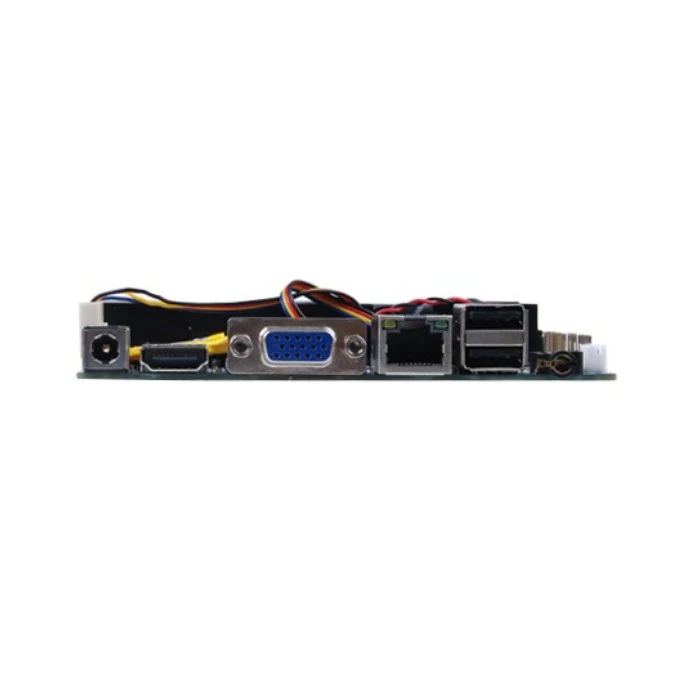

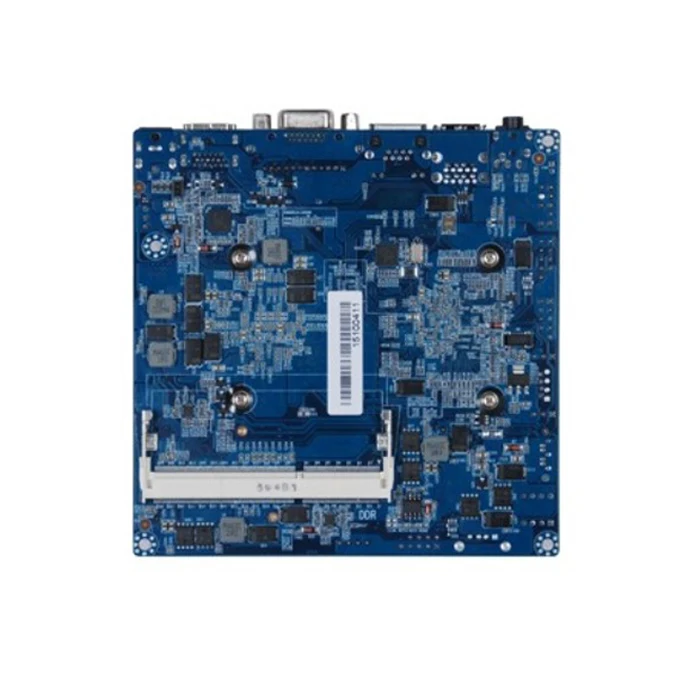

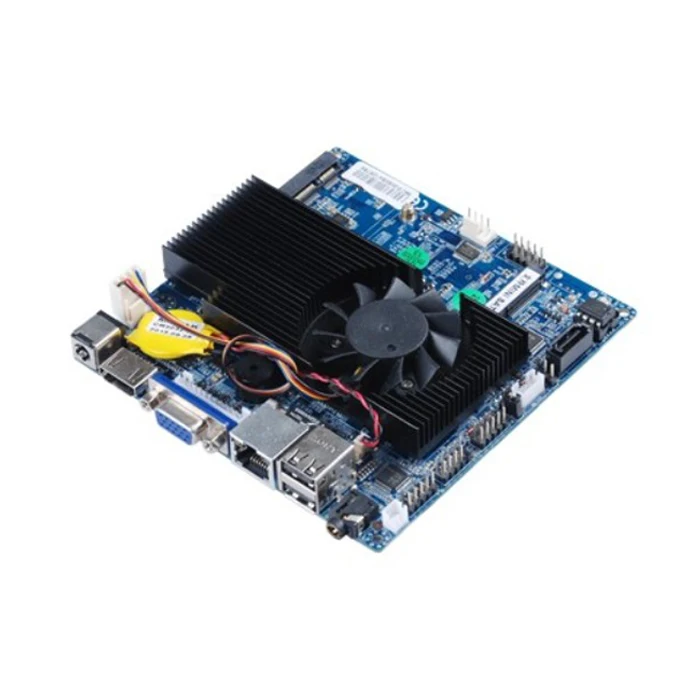

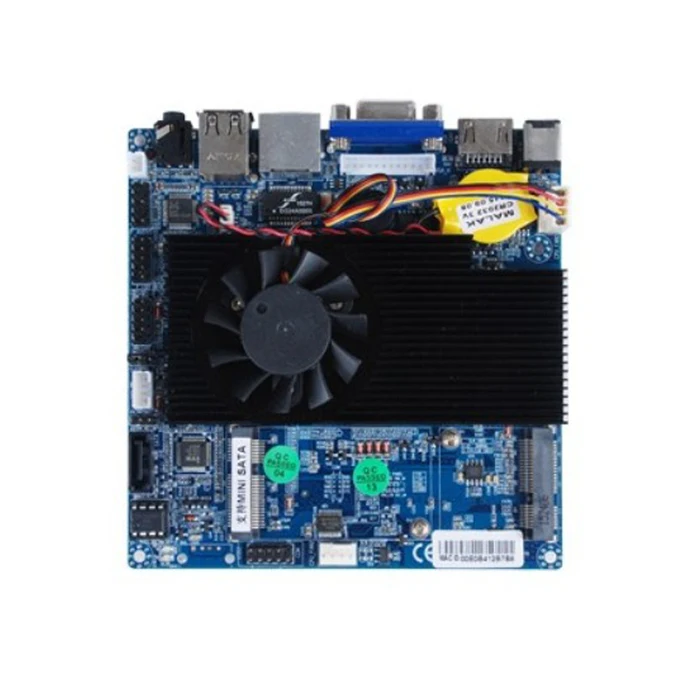

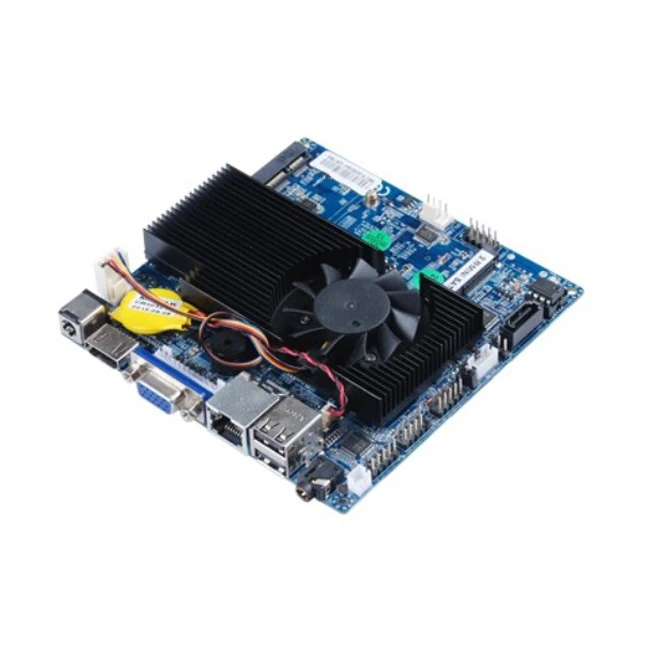

Nano ITX 12*12cm 1037u embedded X86 linux motherboard with DC 12v power 1VGA 1HD display

Processor

  CPU

support intel Celeron 1037u

  Frequency

Daul core 1.8GHZ

  Chipset

HM65

  TDP

17W

Memory

  Slot

1*SO-DIMM,DDR3 1600[3F6MHz Memory

  Capacity

MAX to 8GB

Storage

  Connector

1*SATA2.0

1*MSATA

1*MINI PCIE supprt WIFI

Display

  Chipset

cpu integrated HD-Graphics

  Output

VGA/HDMI/VGA Header

LAN

  chipset

Realtek 8111E 1000M

  Connectore

1*RJ 45

Audio

  Chipset

Realtek ALC 662 HD

  Connector

1*LINE OUT

I/O

  COM

1*com header

  LPT

  USB

2*USB2.0,1*USB2.0 header(expand to 2*USB2.0 connector )

  GPIO

  Header

1*USB 2.0

1*12PIN DEBUG

1*12 PIN VGA

1*MIC-IN

1*CLR-CMOS

1*SATA-PWR

1*SYS-FAN

1*F-PANEL

1*CIR

1*COM

Power

  power supply

DC IN 12V

OS

Win7/win8/xp/linux

BIOS

AMI BIOS

Working Environment

  working temp

-10~60 degree

  storage temp

-10-70 degree

  Relative    humidity

5%-95% non-condensing

Form factor

  Size

NANO-ITX 120*120mm
