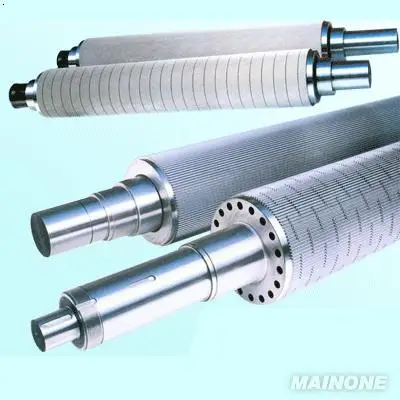

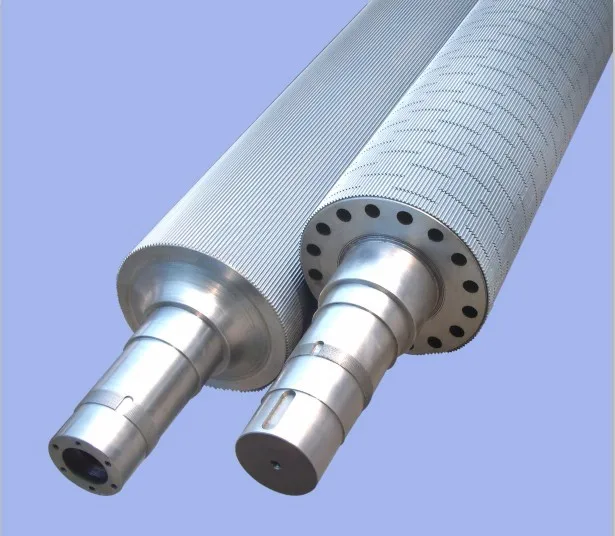

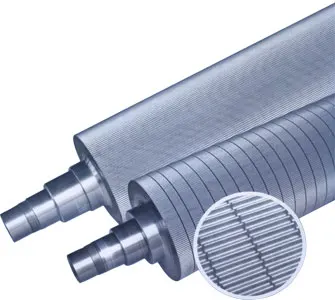

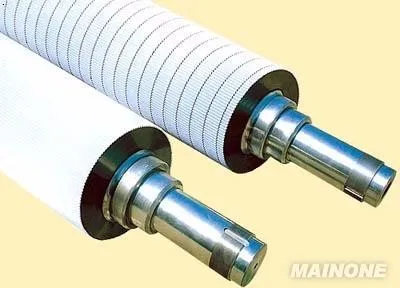

Fosber BHS cardboard corrugating roller with high quality

Product Overview

Description

Product Description:

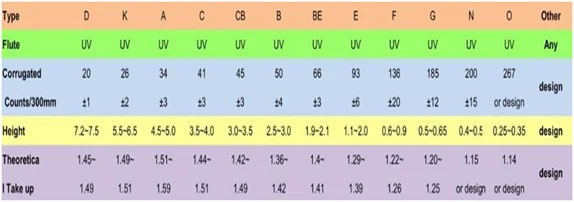

Table 1

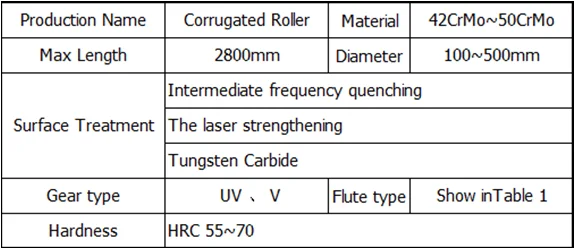

Technical Parameter:

I. Intermediate Frequency Corrugated Roll    1. Tooth shape: UV, V, alike V type    2.Tooth height: 0.9-5.5mm    3. Process length: Max. roller length 2800mm    4. Process diameter: Φ 100mm~Φ 500mm    5. Material: made in China, 42CrMo~50CrMo    6. Hardness: ≥ HRC55°

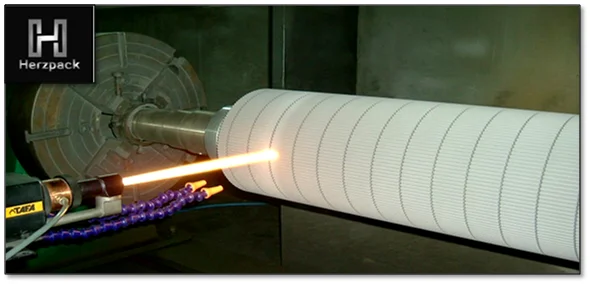

II. Laser Corrugated Roll    1.Surface hardness: above HRC60°    2.Character of laser quenching: For the same    material, the metallographic structure is more    refined. And it is more durable than the     traditionalquenching process.    3.It won’t enlarge the surface crack. It is the    bestprocess to repair the old roller.    4.The depth distribution of the quenching layer       is that the top of the tooth is thick and the side    of the tooth is thin. It can effectively solve the    problem that the main wearing part of the roller    is the top of the tooth.
III. Tungsten Carbide    1.Surface hardness: above HRC70°    2.The flute height is not easily wearing. So, you    needn’t change the rollers frequently. It uses the    specially designed flute type.    3.It can save the consumption of the corrugated    paper.



Production flow:

Adavantage:

   1.The corrugated roll is made of high quality alloy steel. The technology comesfrom war industry.
   2.It's made by high precision CNC corrugated roll grinding machine from the USA.It ensures the high

   accuracy of our product size.
   3.It is treated by special corrugated roll surface treated technology. The hardness is very high.
   4.High precision and high hardness products ensure high speed operation. The maximum working

   speed is 300m/min.
   5. Gear type:V,UV· Flute type: A, B, C, CB, D, E, F optional.
   6. Fingerless suction and inner suction are optional.
   7. We are engaging in design ,repair, manufacture all kinds of corrugating roll.



 Process Equipments:











Our exhibition



Packing&shipping



Our  Services:

   1 Year Guarantee

   100% Good Quality

   24 Hours online Service
