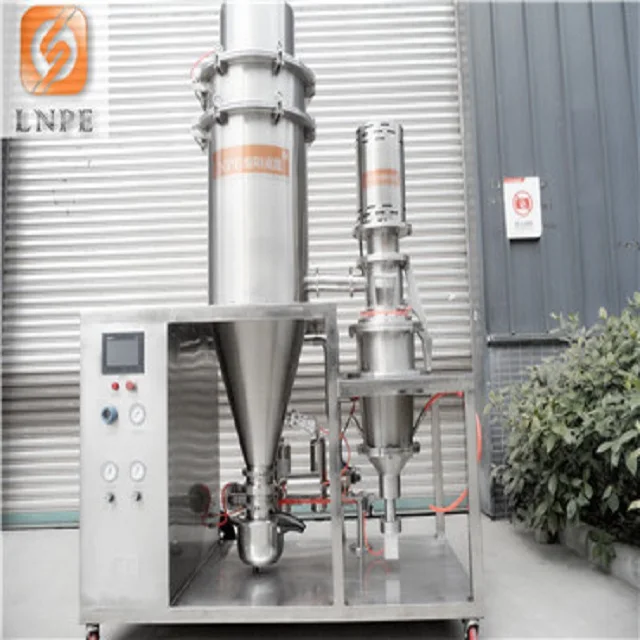

LNPE American Ginseng Grinding Equipment China Machine

Product Overview

Description

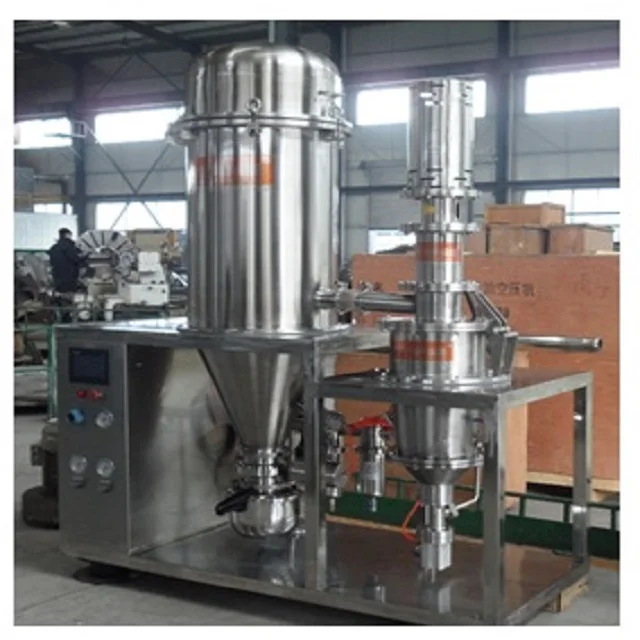

Pharmaceutical & Food Air Jet Mill

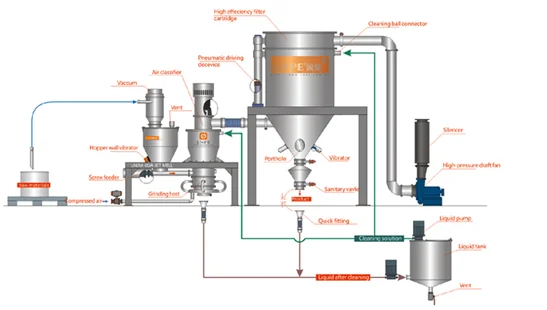

Working  Principles

After cooling, filtrating and drying, the compressed air will form supersonic airflow through nozzle and the airflow will rip into the crushing chamber. At the ground area, the materials will be brought by accelerated airflow and produce violent collision attrition, and shearing to be superfine-ground. The crushed materials will be transported to the classifying-sections by the updraft and the coarse particles and fine powders will be separated by centrifugal force of classifying wheels and draught of blower. The qualified fine powders will enter the bag collector and the cyclone for collection. The purified gas will be discharged from the fan.



Specifications

LNJM Series Pharmaceuticals & Food Dedicated Jet Mill is certificated.



1.The ultrasonic airflow makes the materials to collide and abrade each other, that ensures the purity without contamination.



2.Cooling flow keeps the temperature below 10 ℃( Normal is 10℃) during grinding, make sure the products’ natural character.



3. the equipment is made of stainless steel, surface smoothness can achieve Ra = 0.4 um, and easy to clean.



4. The outer face end seal technology(unique technology), ensures obtain the strict particle size distribution and the precision of classification.



5. Combined excellent dynamic balance and high quality imported bearing, ensures the stability of product under high speed operation.



6. Collector filter material is certificated , collecting efficiency can be up to 99.99%.



7.  Seal negative pressure operation without contamination.



8. PLC automatic control system can connect with DCS, easy operation.



9. Easy to dismantle and clean, disassembling part adopts quick bayonet connection, main parts have assisted opening device, and can customized design CIP/SIP online cleaning system.



10. Assistance for URS & 3Q certification.

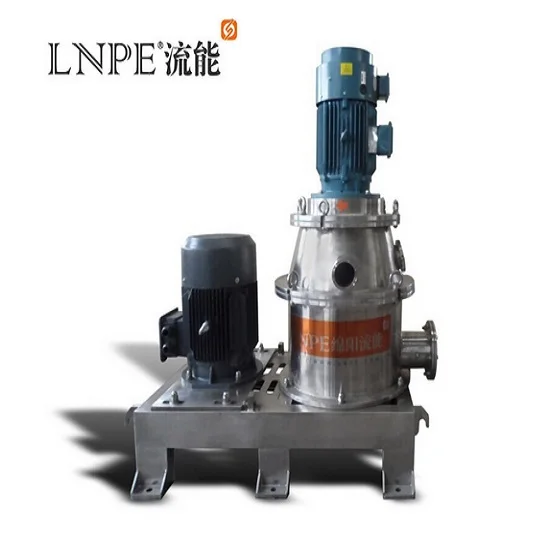

LNJM Pharmaceutical & Food Superfine Jet Mill



1. Unique multi force field crushing, crushing efficiency of soft and fibrous material with high strength , high crushing strength.



2.Reasonable cooling flow field.



3. No pollution, small area , low noise , no vibration, wide application scope.



4. Inner shell surface is smooth and easy to clean.



5.GMP standards.







Main  Technical  Parameter



Model	Air Flow	Max Feed Size	Product Size (d50)	Capacity	Powder
LNJM-6A	1m3/min	<3mm	2-75um	0.2-2kg/h	9.5kw
LNJM-18A	3m3/min	<3mm	1-75um	5-15kg/h	23.7kw
LNJM-36A	6m3/min	<3mm	1-75um	20-80kg/h	47.5kw
LNJM-60A	10m3/min	<3mm	1-75um	30-200kg/h	79kw
LNJM-120A	20m3/min	<3mm	1-75um	50-500kg/h	137kw
LNJM-240A	40m3/min	<3mm	2-75um	100-800kg/h	291kw
Note: the parameter above is for sigle-classification, multi-classification is customised design.







APPLICATION

1.Nonmetal ores:Coarse whiting, light calcium, calcium oxide, kaolin, barite, mica, quartz, talc, wollastonite, bentonite, potassium feldspar, andalusite, brucite, montmorillonite,etc



2.Chemical materials: alumina, aluminum hydroxide, magnesium oxide, magnesium hydroxide, zinc oxide, precipitated barium sulfate, flame retardants, fiber, etc



3.New materials: functional ceramic material, high purity silicon materials, fluorescent powder, glass beads reflective material, electric light powder, etc...



4.Pharmaceutical and food: traditional Chinese medicine (TCM) : angelica, green tea, and west shawl, salvia miltiorrhiza, ganoderma lucidum spore



5.Pesticides:herbicides, fungicides, pesticides and wettability powder, mildew antibacterial agent, pyrazole insect flies, organism amidine, carbendazim, clotrimazole, probenazole, etc



6.Battery material: cobalt acid lithium, manganese acid lithium, lithium iron phosphate, nickel and cobalt acid lithium cobalt, nickel manganese acid lithium,



7.Super hard material: silicon carbide (black, green), boron carbide, diamond, white corundum, zircon sand, zirconia, rare earth polishing materials, tungsten carbide,



8.Metal powder:aluminum powder, copper powder, zinc powder, iron powder, tin powder, cobalt powder, nickel powder, tantalum, niobium powder,



9.Ceramic building materials:Ultrafine cement, water, slag, fly ash, bituminous, gypsum, slag, quick lime, silica fume, glass powder, etc



10.Other materials: fluorescent pigments, iron oxide red, chrome oxide green, phthalocyanine cobalt blue, zinc oxide, lithopone, benzidine orange, toluidine red, vermilion, mica titanium pearl pigment, dyes, fluorescent whitening agent, wax coal, clay, electronic waste, fir skin, moss, garbage, soap, wax, etc

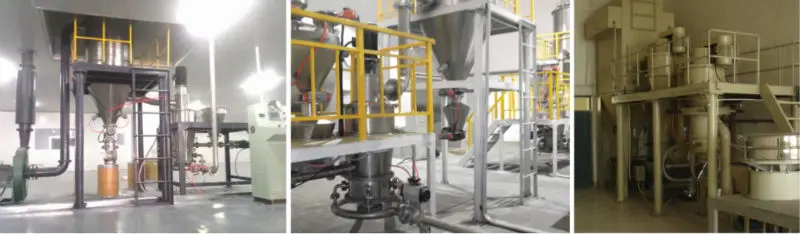

OFFICE & PLANT
