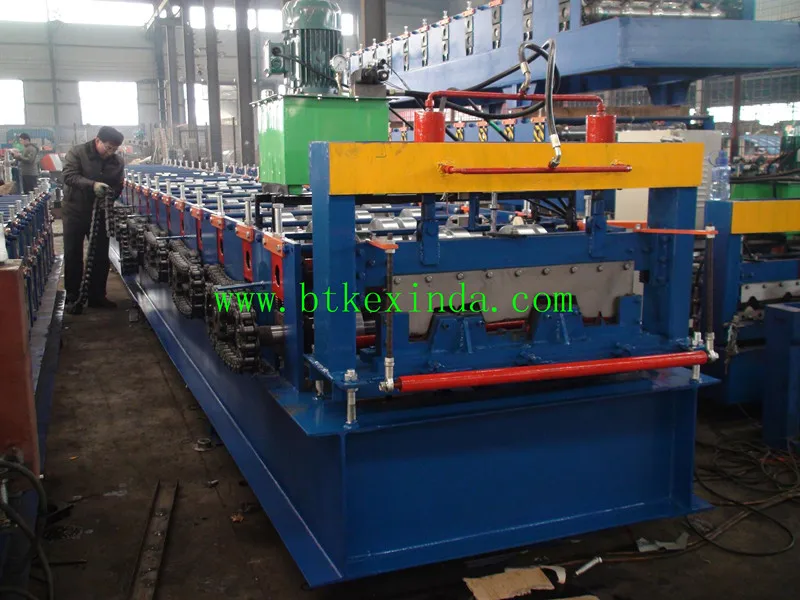

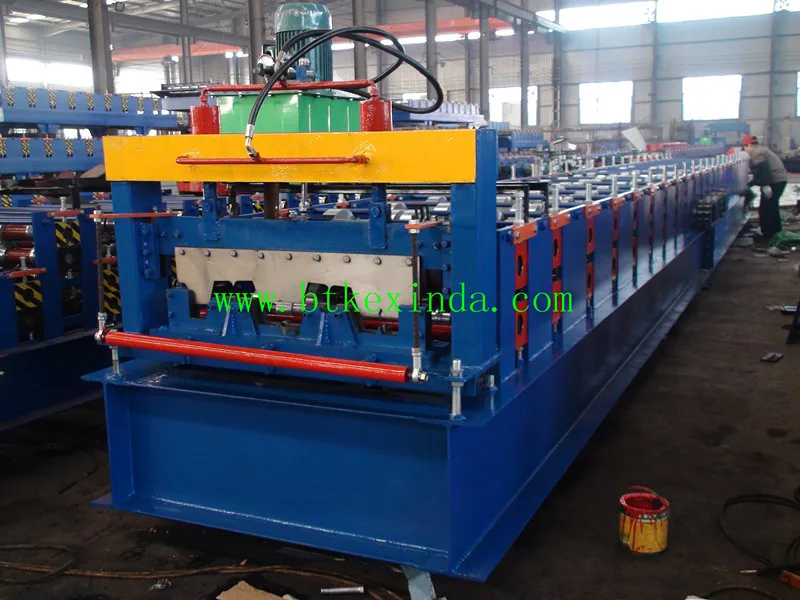

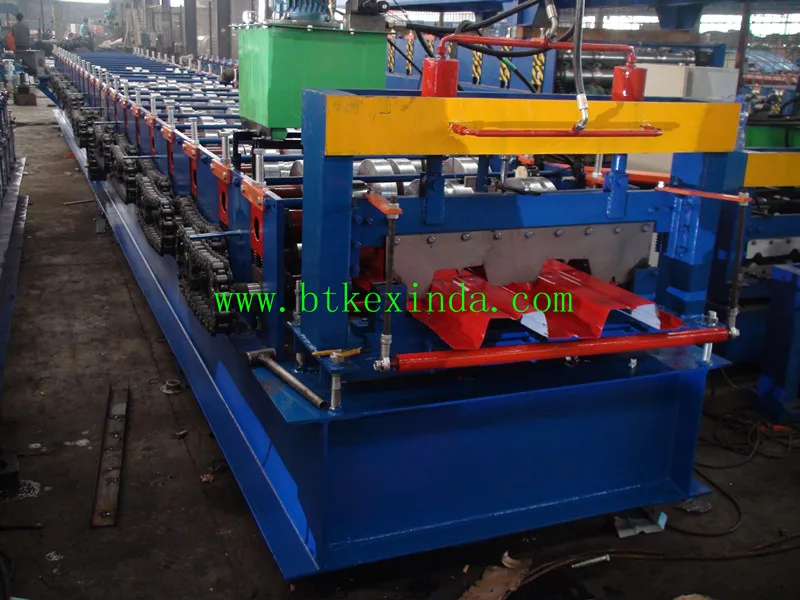

Galvanized Sheet Metal Roofing Used Steel Decking Floor Tile Making Machine Price
Product Description
Configurations
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System
PLC Panasonic Inverter
Main Frame
400mm H-Beam
Main Power
18.5 kw
Pump Power
7.5 kw
Power Supply
380V, 3-Phase,50Hz
Forming Speed
8-10m/min
Roll Station
24 stands

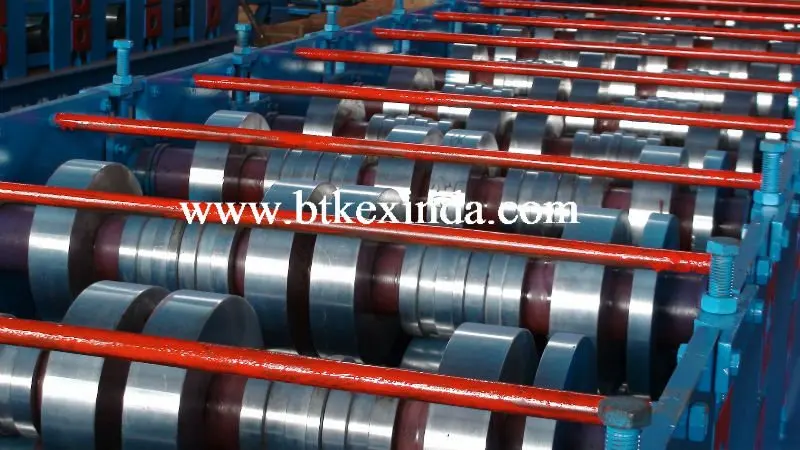

Roller Diameter
95mm
Hydraulic Pressure
18-20MPa
Forming Size
688mm
Feeding Thickness
0.3-0.8mm
Feeding Width
1000mm
Backboard Thickness
22mm
Chain Size
66mm
Cutter Standard
Cr12
Roller Standard
Cr12
Cr-Plating Size
0.05mm
Overall Size
15000×1200×1100mm
Total Weight
19T

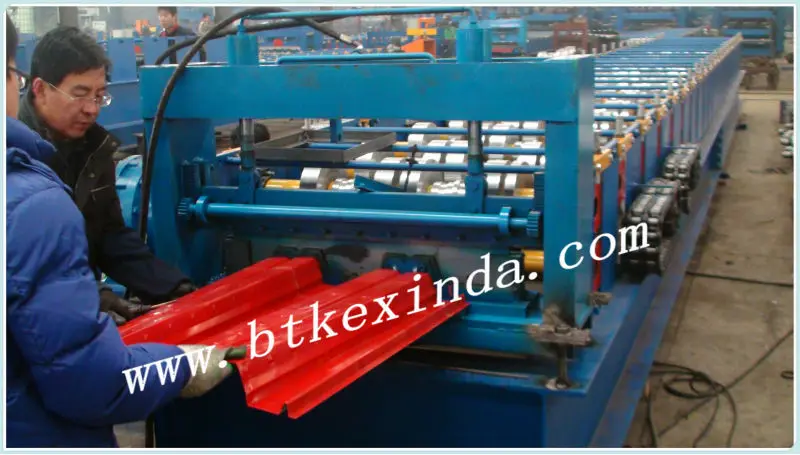

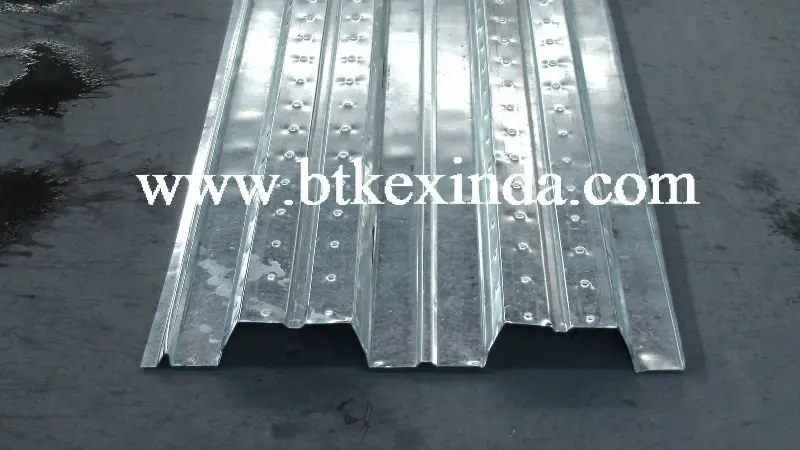

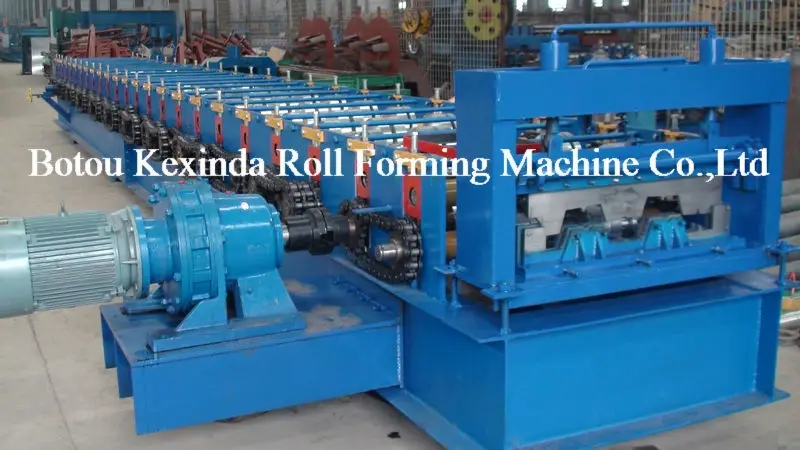

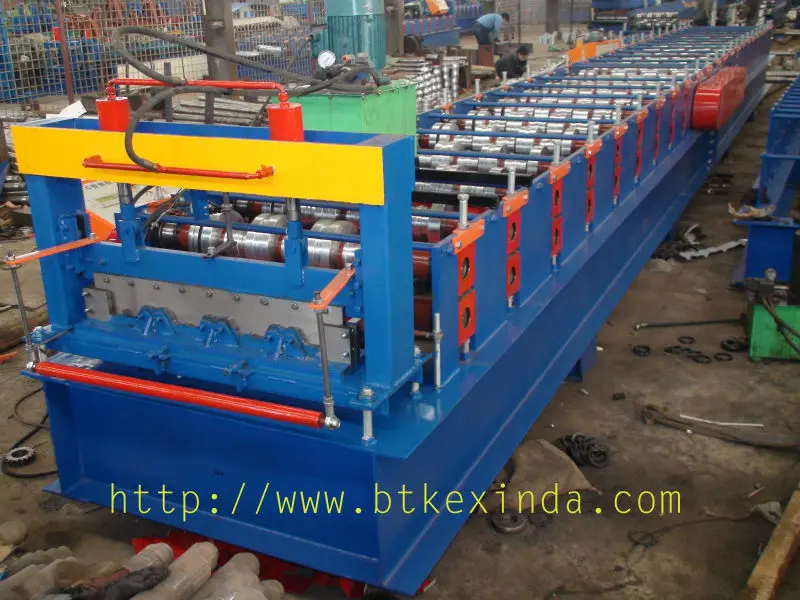

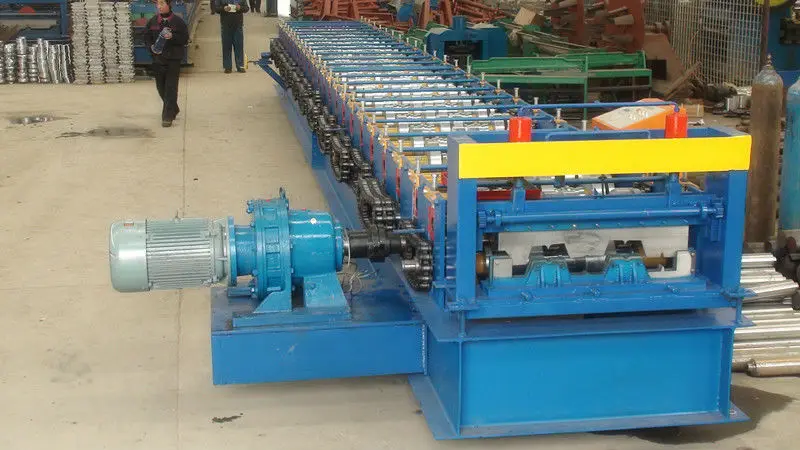

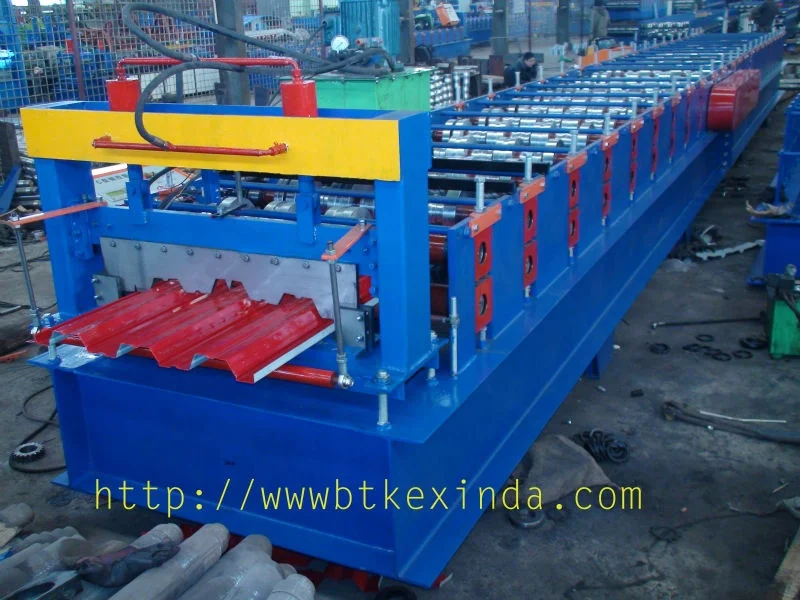

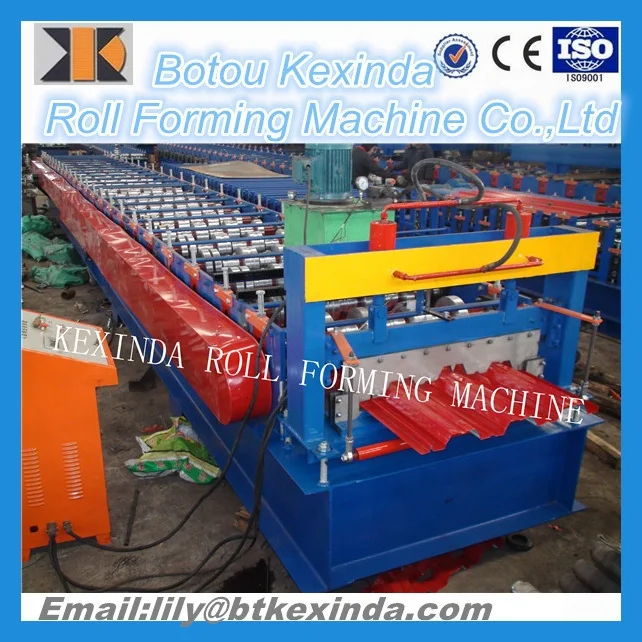

The samples picture of floor deck roll forming machine
Hot sales
Packaging & Shipping
Our Services
Guarantee:
12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.
After-sale service:
We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.
Company Information
Botou Kexinda Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
