Product Overview
Description

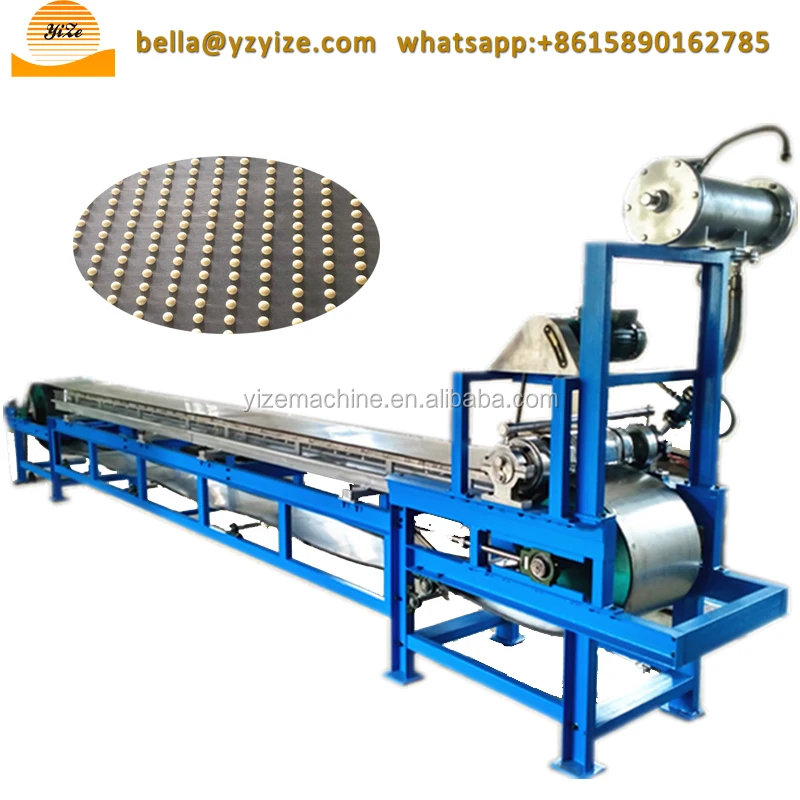

Paraffin wax granules machine paraffin wax pellets granulator making machine
Product Description
Paraffin Granulator Machine, Paraffin Wax Granulates Making Machine, Paraffin Granulating Machine Breif information
Rotary belt condensation granulator is using low melting point characteristic of the material (50 ℃ to 300 ℃)
Molten material through the special distributing device . Then distributing it on moving steel belt . Use the cooling device which at the bottom of steel belt . Then make the material condensation , solidification . granulation.
Feature:
1. Granulator size can be choose between 4mm -12mm . Shapes can make granule, strip and flake.
2.Equipment adopts frequency control, can choose a suitable speed according to the nature of the material.
3.Product uniform particles, and beautiful, forming rate above 95%.
4.Widely used van, melting point of material between 50 ℃ to 300 ℃, all can granulation forming, toxic materials can be closed.
Use scope:
Sulfur, paraffin wax, petroleum resin, alcali sulphide, C5, C9 resin, resin C5C9 polymer resin; Asphalt, maleic anhydride, stearic acid, hot melt adhesive, rubber and plastic additives, antioxidant, antiager, all kinds of additives, etc
Machine compose:
1.Paraffin granulate distributing device
2.Stainless steel cooling tanks system
3.Frequency conversion electric control cabinet
4.Reducer transmission system
5.Stainless steel ALU-IND
6.Stainless steel valve
7.Sprayer , temperature probe
8.Stainless steel Rotary Steel Belt
9.Glue carbon steel conveyor roller
10.Complete frames and accessory
Paraffin Granulator Machine, Paraffin Wax Granulates Making Machine, Paraffin Granulating Machine Technical parameters
Model | YZZL-40 | YZZL-60 | YZZL-120 |
Steel belt | Width:0.4m, Length 14m | Width:0.4m, Legnth 24mm | Width:0.6m,Length28m |
Machine width | 600mm | 600mm | 800mm |
Machine length | 7m | 12m | 14m |
Size of mold | 1.8-2.5 mm | 1.8-2.5 mm | 1.8-2.5 mm |
Size of products | 4-12mm (adjust) | 4-12mm (adjust) | 4-8mm (adjust) |
Product’s shape | hemispherical | hemispherical | hemispherical |
Capacity | 50-100kg/hour | 100-300kg/h | 400-600kg/h |
| Motor | 5kw+1.5kw | 5.5kw+1.5kw | 4kw+1.5kw |
Voltage | 110v/220v/380v | 110v/220v/380v | 110v/220v/380v |
Water pump | pressure: 0.3mpa water flow: 15-20 m3/h (equipped by user) | Flow quantity :20cbm/h | Flow quantity :35cbm/h |

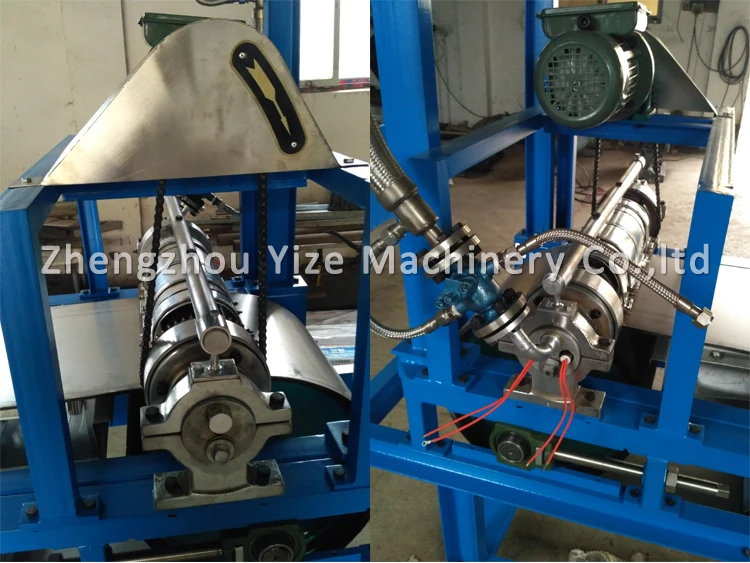

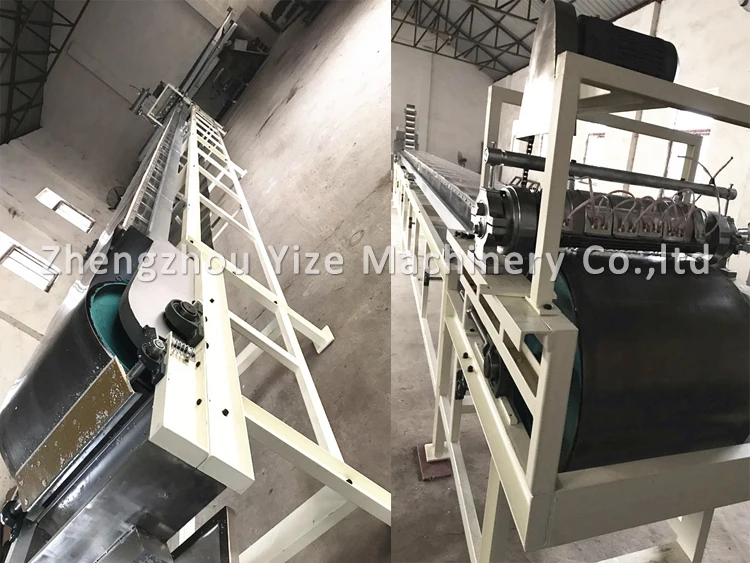

Detailed pictures
Paraffin Granulator Machine, Paraffin Wax Granulates Making Machine, Paraffin Granulating

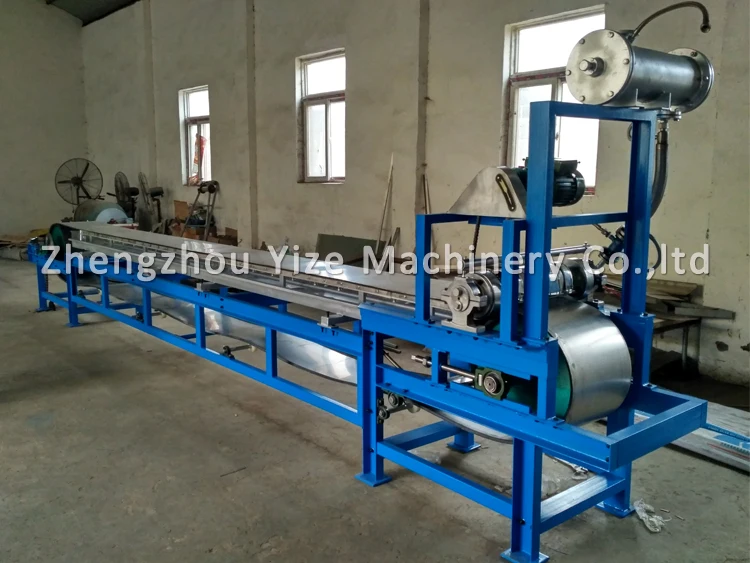

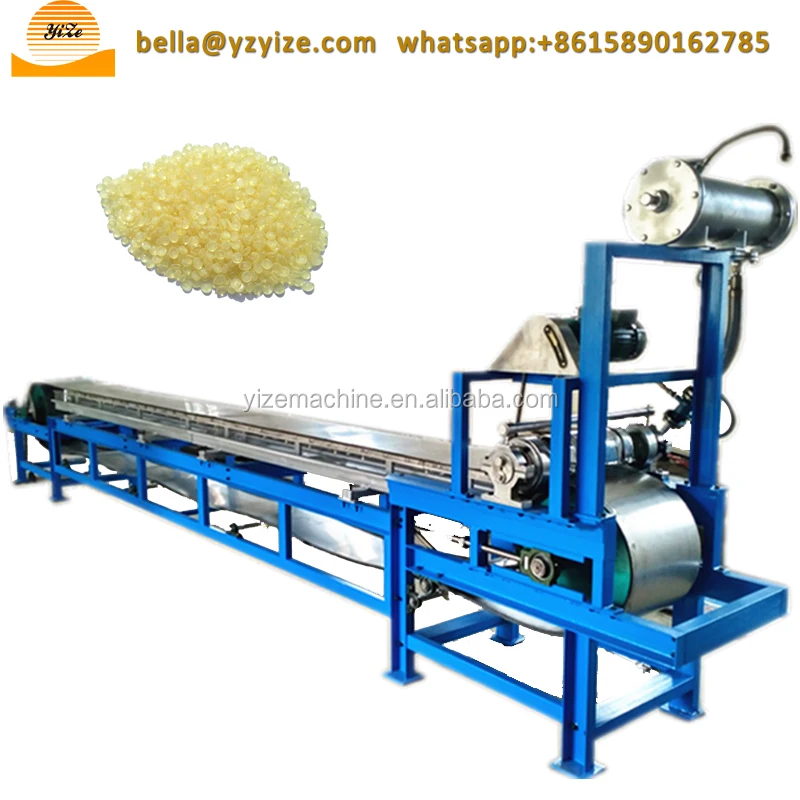

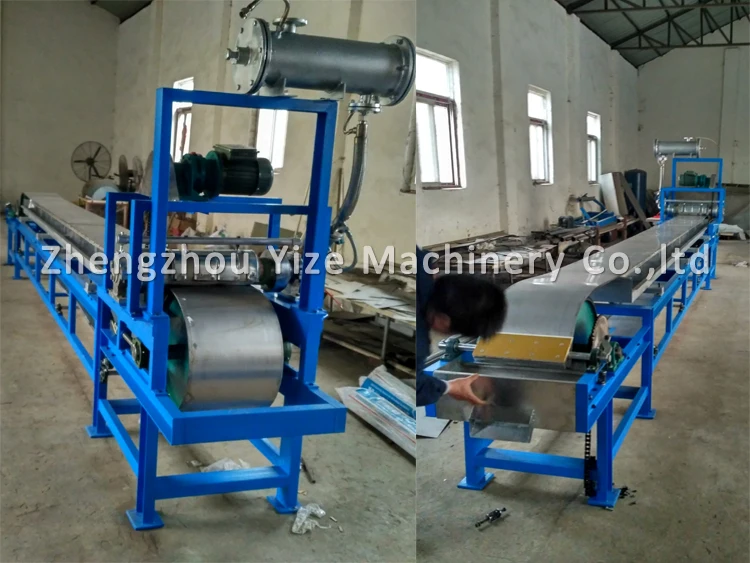

Customized small capacity YZZL-40 Model:

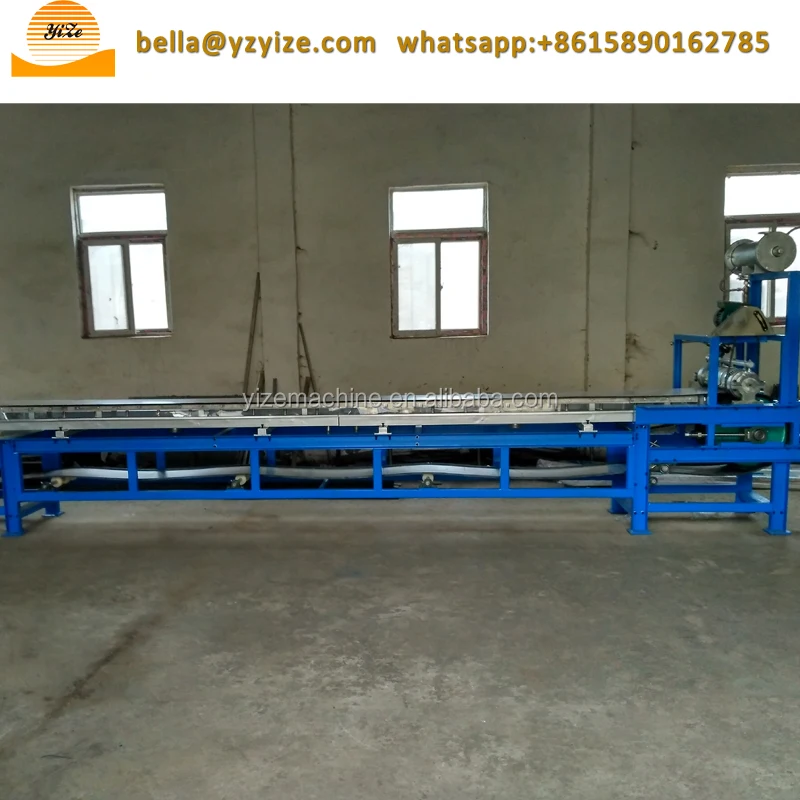

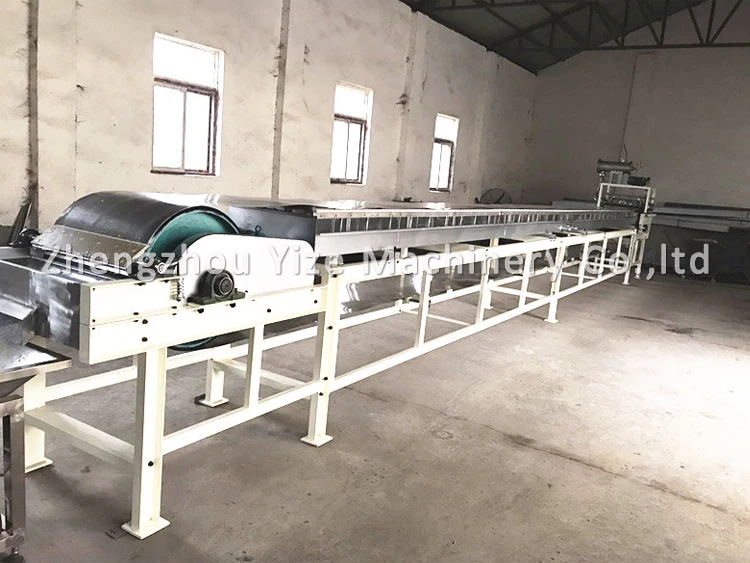

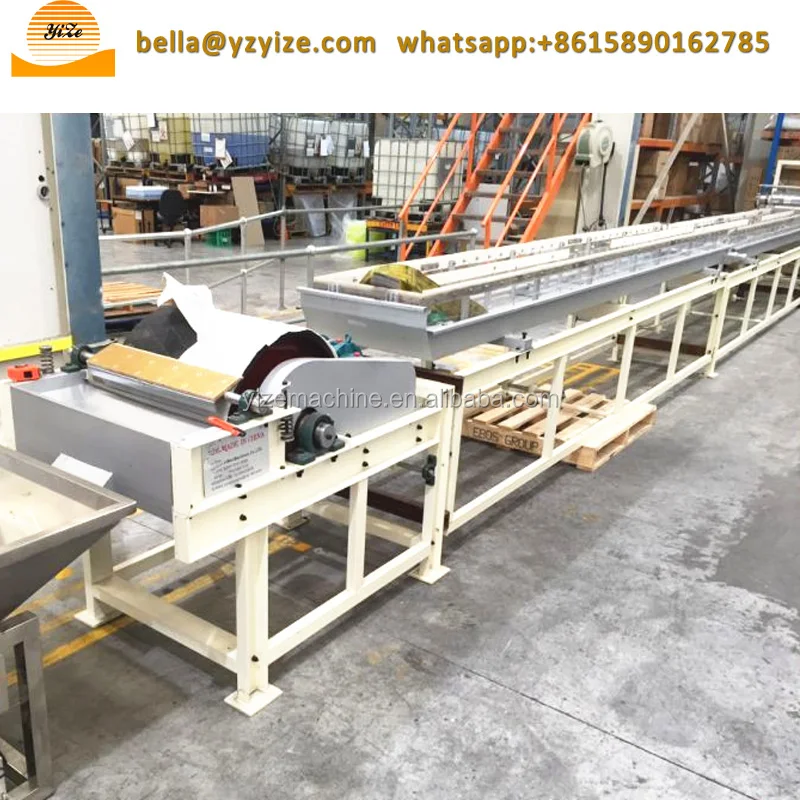

Bigger Capacity

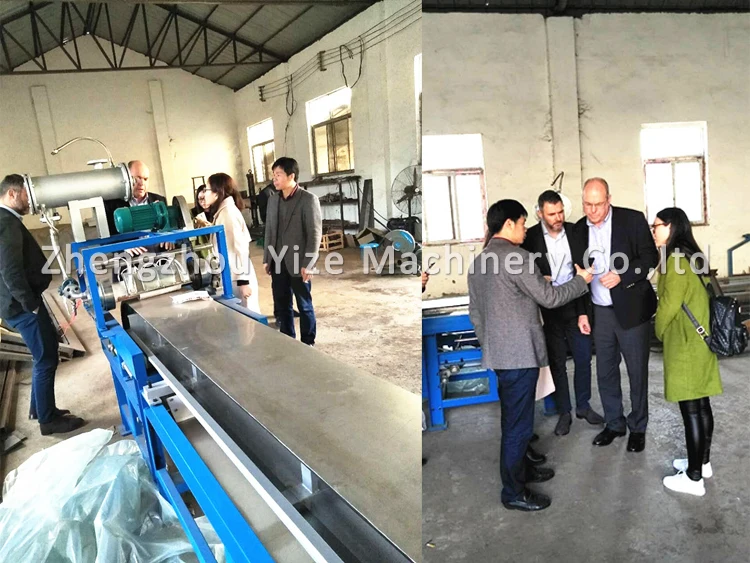

Clients visit our factory
Final product of the machine:
Related Machine
Please kindly click the machine picture you are interested in to get more details:

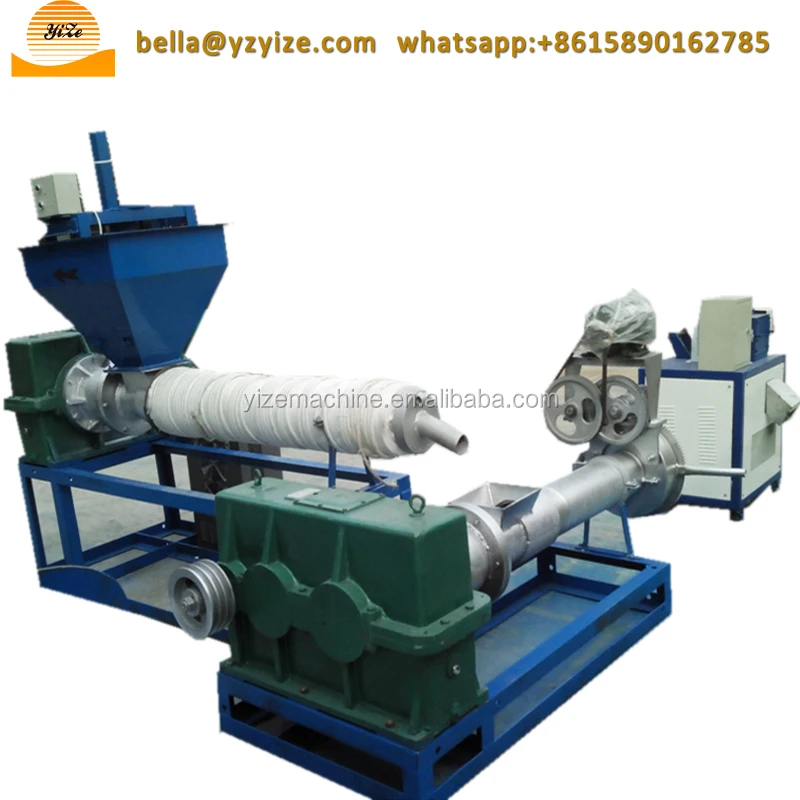

Plastic Products Recycle Granulator Machine

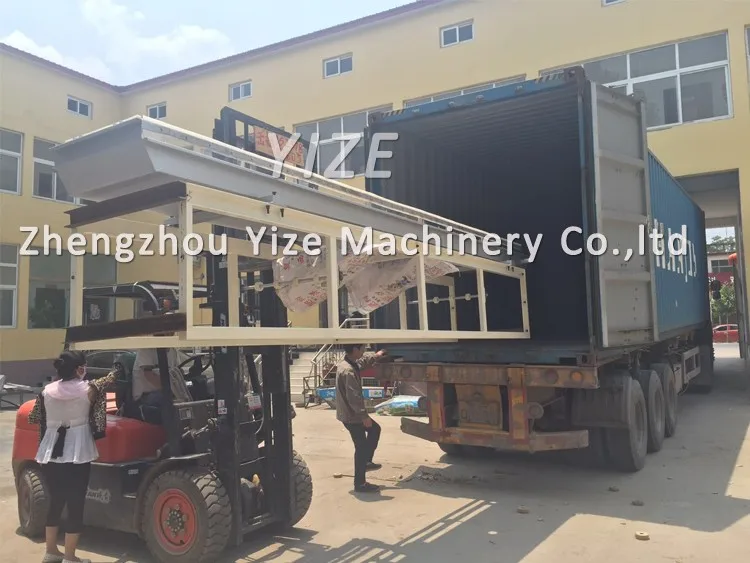

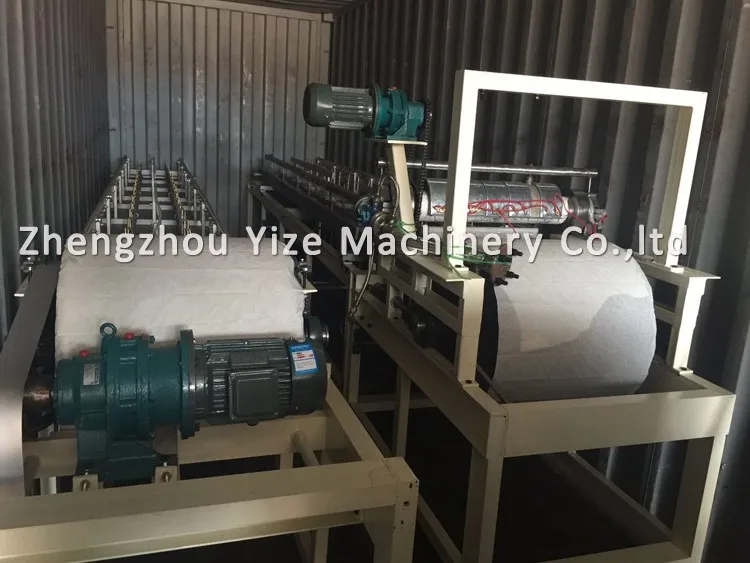

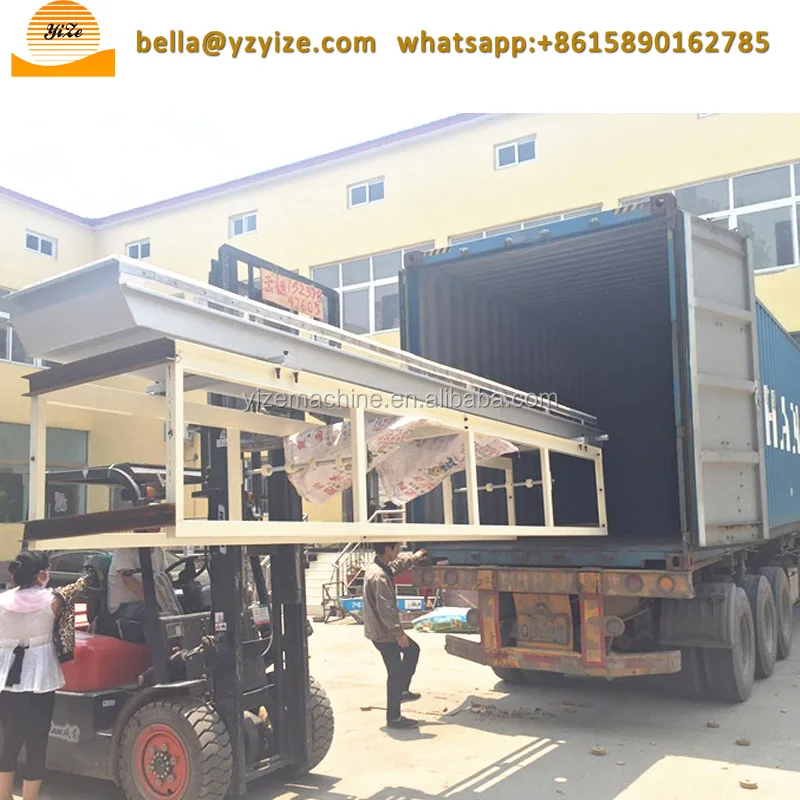

Packaging & Shipping
Packing :
We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .
Different machines package will different . we supply standard export wooden box ,carton box package . if big machine and production line machine it will be loaded in the container directly .
Delivery :
1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time . Finally , send all origin documents to you by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number
3.Delivery to the warehouse which you reques . Will tell you
logistic or express tracking number
Our Services
Service before sale
Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service on sale
We are confident that we sell our machines to customers at low prices and activated. Professionally
and patiently introduction
pictures and video to show machine
Service after sale
1, Free insurance for goods
2, 24 hours online to solve any
questions.Supply manual book
and technical support,maintain
video to help you.
FAQ
Questions/Answer |
1,What is the voltage/phase for this machine ? |
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as the clients’ need |
2,What is the Mode of transportation ? |
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air |
3,How long can we get the goods? |
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport. |
4,How long is the guarantee? |
we promise guarantee as one year for non-human damage factor. |
5,How should I do if meet some trouble while using? |
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory. |
6,What about Payment term? |
T/T(Telegraphic Transfer )-30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc. |
7,What’s your MOQ |
1 set |
8, How can i contact with you ? |
You can send inquiry to me . Aslo can contact with me by Cellphone/Wechat / Whatsapp /Viber: +86 15890162785 Skype: bella-yize,QQ: 3162296161 |
