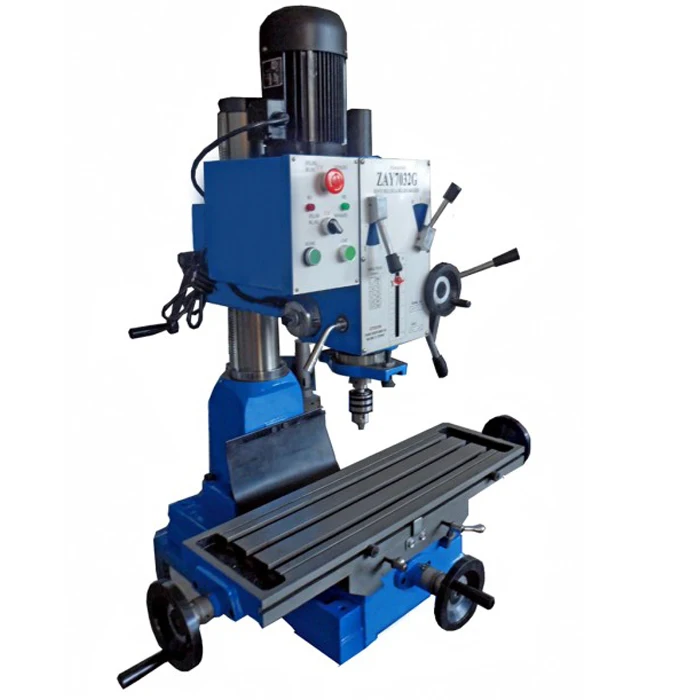

Gear driven round column drilling and milling machine ZAY 7032G
- Category: >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (60509673858):
Product Overview
Description
Gear-driven round column drilling and milling machine
Product Description
Main features:
1. Gear-driven and round column
2. Milling, drilling, tapping, boring and reaming
3. Adjustable gibs on table precision
4. Strong rigidity, powerful cutting and precise positioning
5. Reversible spindle direction
6. Dovetail ways
7. Head tilts up to 90° left or right and swivels up to 360° around the column
SPECIFICATION | ||||

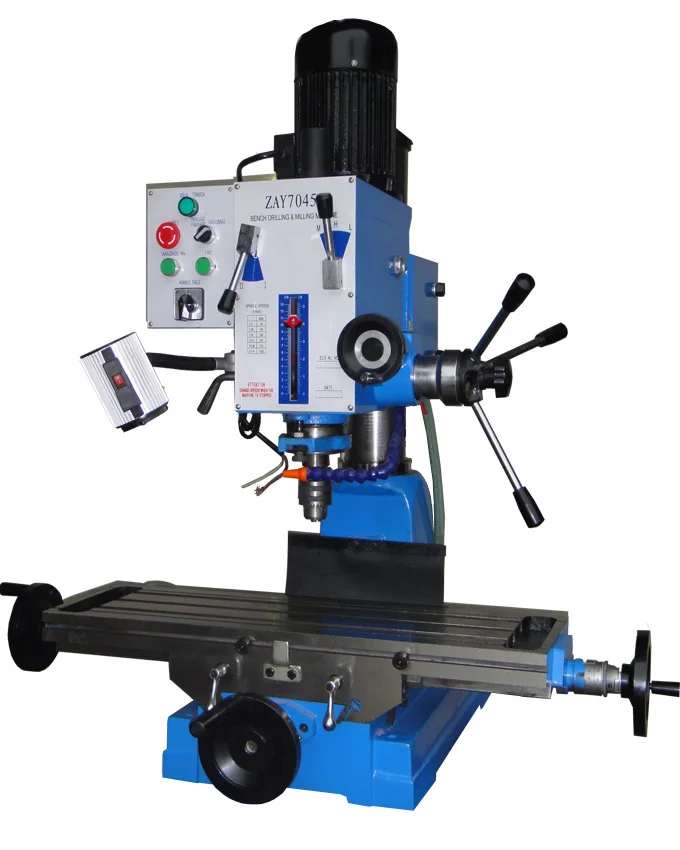

ITEM | ZAY7020G | ZAY7032G | ZAY7040G | ZAY7045G |
Drilling capacity | 20mm | 32mm | 40mm | 45mm |
Face milling capacity | 63mm | 63mm | 80mm | 80mm |
End milling capacity | 20mm | 20mm | 32mm | 32mm |
Distance from spindle nose to table | 439mm | 440mm | 440mm | 440mm |
Min.distance from spindle axis to column | 197.5mm | 272.5mm | 272.5mm | 272.5mm |
Spindle travel | 85mm | 130mm | 130mm | 130mm |
Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
Step of spindle speed | 6 | 6 | 6 | 6 |
Range of spindle speed 50Hz | 95-1420 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
60Hz | 115-1700 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
Swivel angle of headstock(horizontally/perpendicularly) | 360°/±90° | 360°/±90° | 360°/±90° | 360°/±90° |
Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
Motor power | 0.37KW | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
Voltage/frequency | As customer's requirement | As customer's requirement | As customer's requirement | As customer's requirement |
Net weight/gross weight | 130kg/190kg | 315kg/365kg | 318kg/368kg | 320kg/370kg |
Packing size | 680×750×1000mm | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
Loading amount | 48pcs/20'container | 36pcs/20'container | 36pcs/20'container | 36pcs/20'container |
Standard accessories:
Allen srench
Wedge
Tie rod
Optional accessories:
Drill chuck
Milling cutter holder
Mill chuck
Power feed attachment
Auto-tapping electrical
Paraller vise
Working lamp
Coolat system

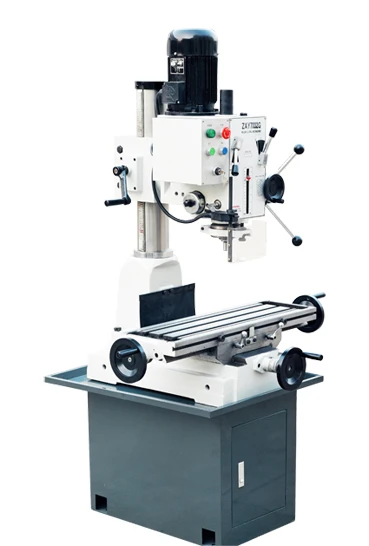

Machine stand and chip tray
Clamping kits
more pictures
Certifications
Our Services
Customized services
We accept customized services around the world
Afer-sale services
1.Technical support online service provided.
2.Technical files service provided.
3.Spare parts replacement and repair service provided.
4.Questions will be replied within 24 hours
