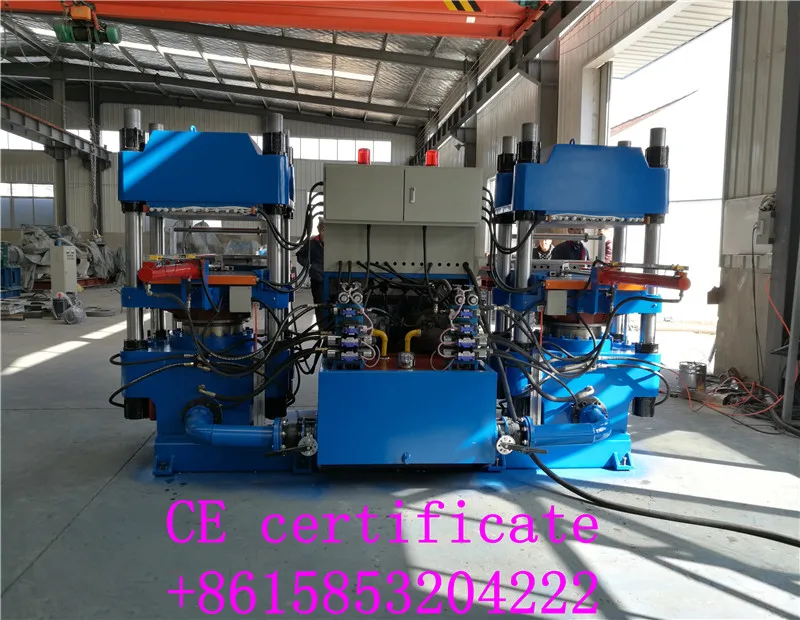

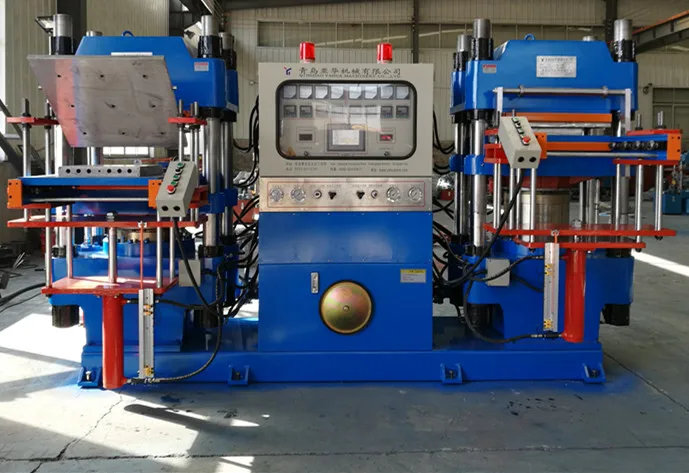

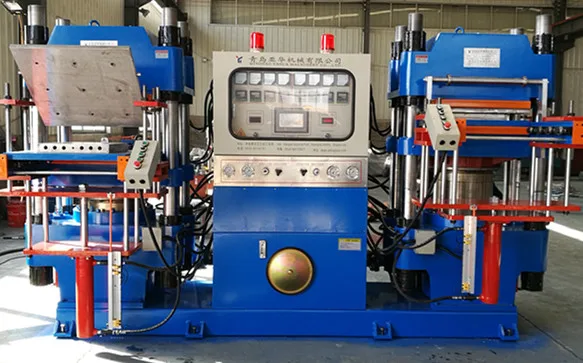

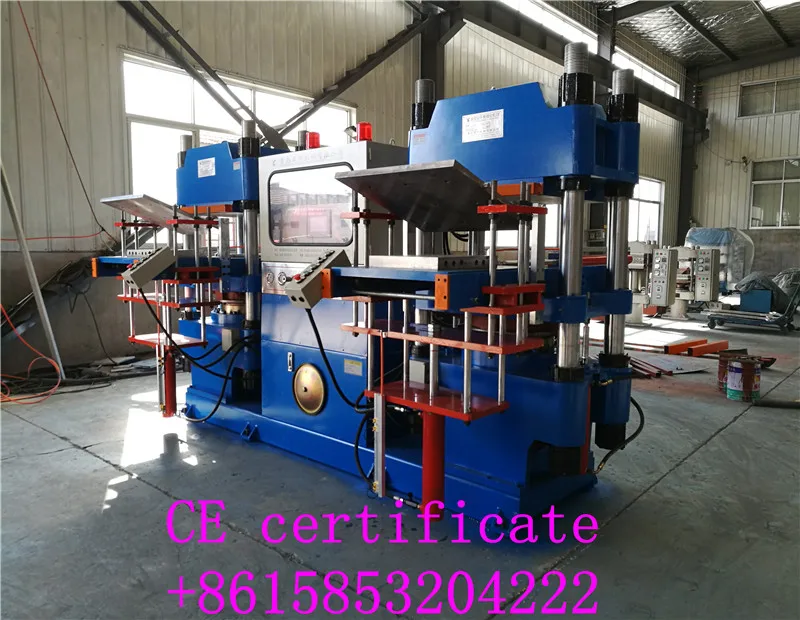

two station vulcanizing machine

Product Overview

Description

new design vulcanizing equipment



Type	XLB-DQ400X400X2	XLB-DQ400X400X2	XLB-DQ600X600X2	XLB-DQ750X850X2(4)
Total Pressure(mn)	0.25	0.50	1.00	1.60
Plate Size(mm)	400X400	400X400	600X600	750X850
Daylight(mm)	125	125	125	125
Daylight No	2	2	2	2(4)
Piston Stroke(mm)	250	250	250	250(500)
Unit Area Pressure(kg/cm2)	20	31	28	25
Main Motor Power(Kw)	3	2.2	2.2	3
Overall Dimension(mm)	1300X800X1500	2400X550X1500	1401X680X1750	1900X950X2028
Weight(Kg)	1150	1300	3500	6500(7500)







1 -   Material of steel :

Hight quality carbon steel,more thick than other supplier,after shot blasting ,smooth and strong enough,we usually use more thickness material than other supplier.



2- Weldment of frame : world technique



Welded together as a whole part,Stewing fire treatment after weldment.

(Carbon dioxide gas shielded welding,alloyed welding wire).

 submerged arc welding, VSR treatment after weldment.



3- Heating way&precision temperature control:



Steam ,oil or Electric

Plate temperature tolerance: ±0.5°C
