forged end forming mill, wrought iron fishtails making machine
- Category: >>>
- Supplier: Hebei Saibang Import & Export Trade Co. Ltd.
Share on (60509728840):
Product Overview
Description

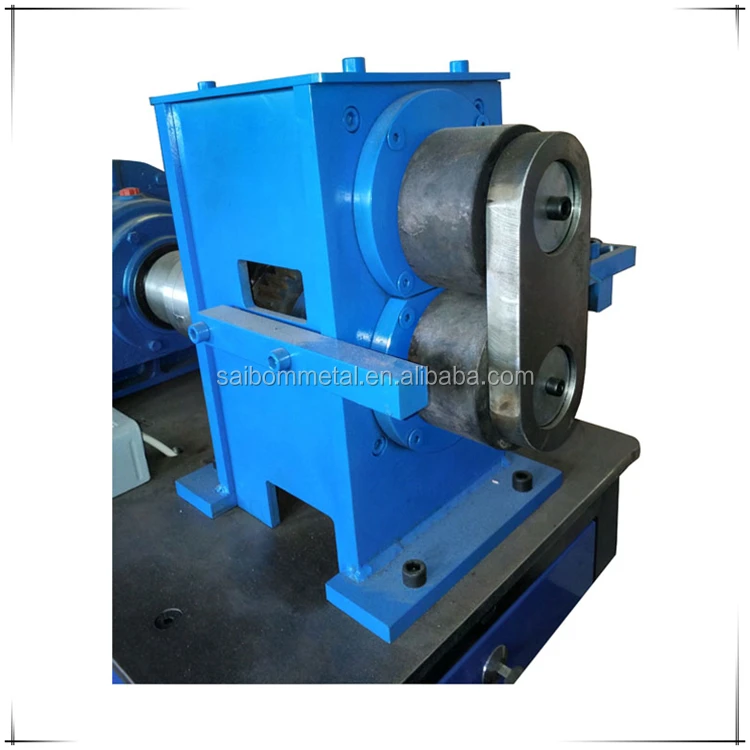

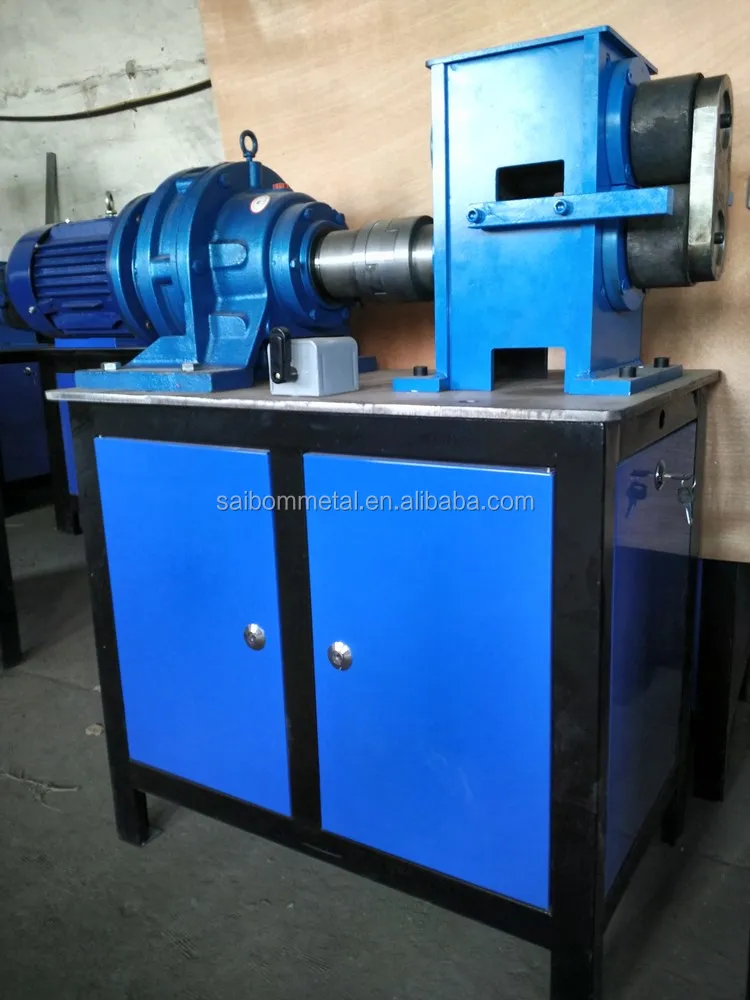

Wrought iron fishtails making machine
Product Description
SEB-YW16 Electric fishtails making machine is the newest type machine in the result of our R&D trial and experienced-test.It is based on the improvement in the part of rolling material of old type change ecentric roller into eccentric shaft,make the roll change into three groove form,to increase three working life than the others,the flat roller added in outer side can make the square bar and round bar be sharp points and pressed-flat.
This new machine can process the tail pipe,square pipe,square steel,flat iron,round steel and other materials.Precessed products only change the length of the width of the same,both beautiful and generous.
Technical Parameter:
|
SEB-YW16 wrought iron fishtails making machine | |
Max Working Ability | Square Steel | ≤16mm×16mm |
Round Steel | ≤Φ16mm | |
Flat Iron | ≤10mm×60mm | |
Motor Performance | Power:3KW Voltage: 380V Spindle speed:10r/min | |
Main Features |
1)It is not necessary to beat flat the bevel edge, and it can realize at one time molding. The molding material end becomes wider and thinner with the thickness no more than 2MM.
2)It used cyclonical two-speed reducer to large torque. It adopts special way for the torque transmission between the gear box and working case, ensuring smooth and reliable mechanical operation.
3)The material entrance clamp apparatus has the flowing advantages: being adjustable, flat and straight guide and the finished fishtail veining being straight.
4)On the back holdup plate of the machine, there is a rolling size localization device. We can accord the product requirement select the rolling length localization size and achieve the optimum result.
5)Making the fishtails shape,plain shape,once forming processing.
| |
Packing Dimension | 1000mm×600mm×1110mm | |
N.W. (kg) | 380 | |
G.W. (kg) | 400 | |

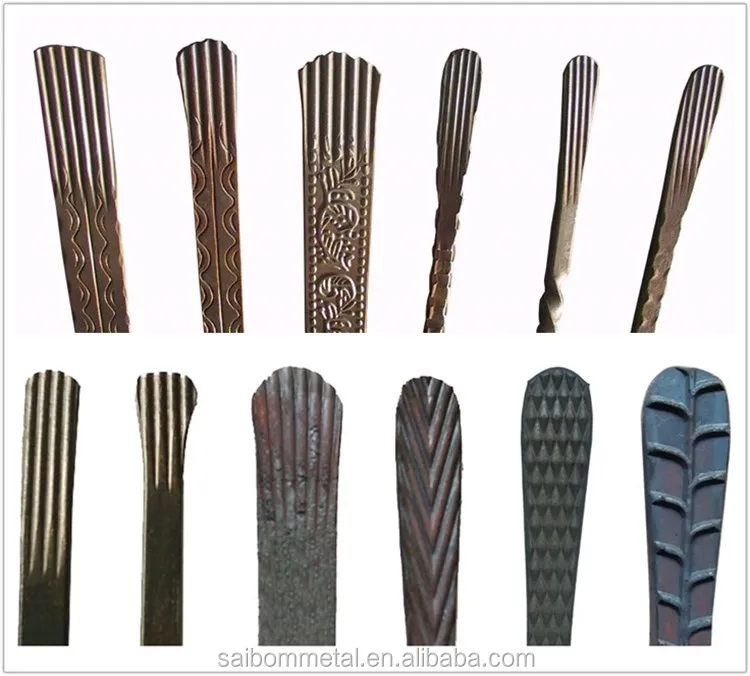

Product Show:
The flowing head of machine can beat square tube 12*12/14*14/16*16 into flat,and can make spearhead.

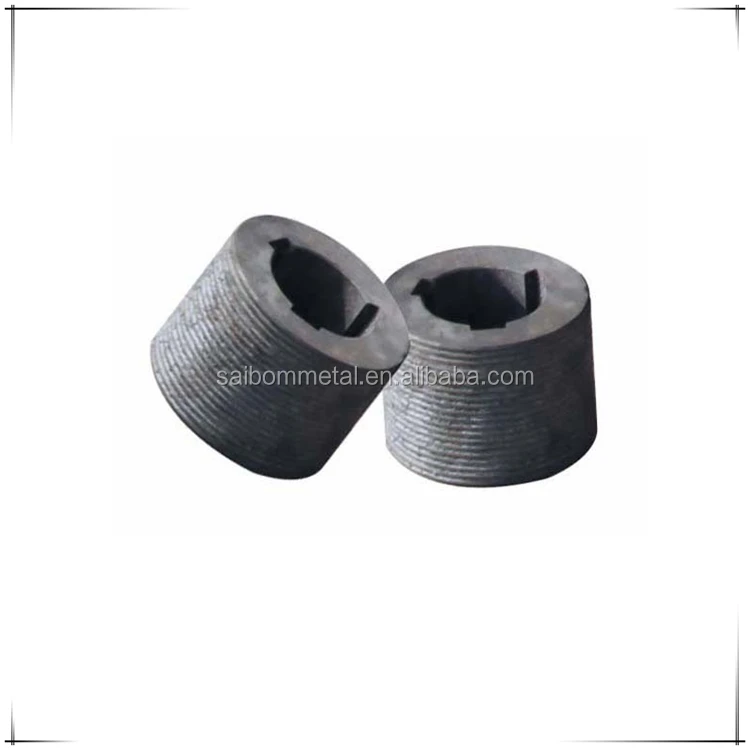

All kinds of different dies for your choice:
Packaging & Shipping
Company Information
HEIBEI SAIBOM IMP&EXP Co.,Ltd are manufacturer from shijiazhuang china , specialized in all kinds wrought iron machine and wrought iron products .
Our products mainly include as following:
Wrought iron machine, gates, fence , railings , staircase , furnitures, iron bed, chairs and tables. forged iron bars , components ,rosettes spearheads. Cast steel leaves &flowers. Iron crafts decorations, and so on.
Welcome to inquiry.
Our parter
FAQ
1. Are you a factory or trader?
We are manufacturer and exporter which founded in 1996.
2. What is the MOQ?
MOQ is 1 set.
3. Can you do OEM and ODM?
Yes. We accept OEM and ODM orders. You can customize brand name and motor. We will produce it as you required.
4.How to guarantee the quality of the machine?
1) Professional laboratory,100% product best before loading.
2) We offer a one-year of warranty time for machine.
