goat milk powder making processing baby milk powder yoghurt milk processing plant
- Category: >>>
- Supplier: Zhejiang Xuxiang Machinery Technology Co. Ltd.
Share on (60509756465):
Product Overview
Description
Milk Processing Plant
We are looking for the sole agent in each country ,please contact me if you're interested.
Products Description
A complete dairy milk yogurt production plant as below pictures
Complete milk processing equipment, the general process of pure milk processing is to first select the milk source
Raw milk inspection-clean milk-cooling storage-pasteurization-cooling storage-ingredients-homogenization-ultra-high temperature sterilization-aseptic filling-boxing-heat preservation test-delivery .
Complete milk production line, complete milk production line processing equipment including unloading tank, filter, homogenizer, four-stage plate sterilizer, ice water unit, CIP cleaning, bottle filling, cup filling, capping, coding, according to Choose the corresponding equipment for different needs. There are currently two sterilization methods: tank type and plate type.
Raw milk inspection-clean milk-cooling storage-pasteurization-cooling storage-ingredients-homogenization-ultra-high temperature sterilization-aseptic filling-boxing-heat preservation test-delivery .
Complete milk production line, complete milk production line processing equipment including unloading tank, filter, homogenizer, four-stage plate sterilizer, ice water unit, CIP cleaning, bottle filling, cup filling, capping, coding, according to Choose the corresponding equipment for different needs. There are currently two sterilization methods: tank type and plate type.
Welcome to consult and choose the right production line for you.
Technical parameters | ||||
1 | Raw material | Milk or milk powder | ||
2 | Product | UHT milk,dairy products，yogurt | ||
3 | Terminal package | Carton brick, plastic bag, tin,can,plastic bottle depends on your choice | ||
4 | We can design it according to your special requirements. | |||
Dairy Milk Processing Plant
Our company is looking for the sole agent in every country. Welcome to negotiate.
Products Description
Final powder milk products for reference only.
we can make the final milk powder product according to your demand.

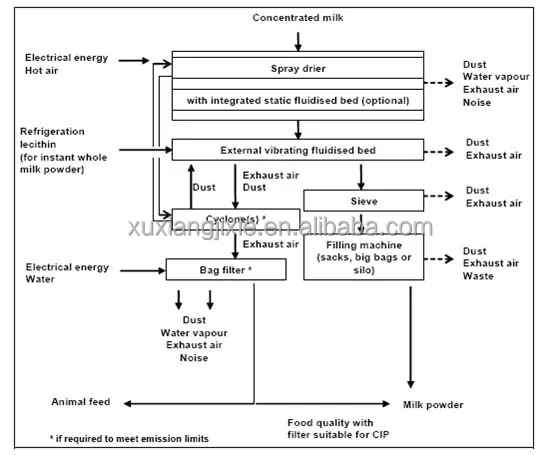

General Flowsheet of powdered milk products

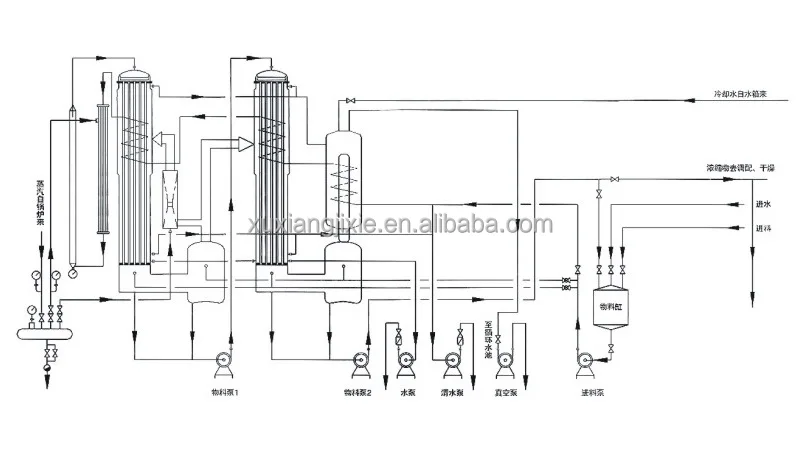

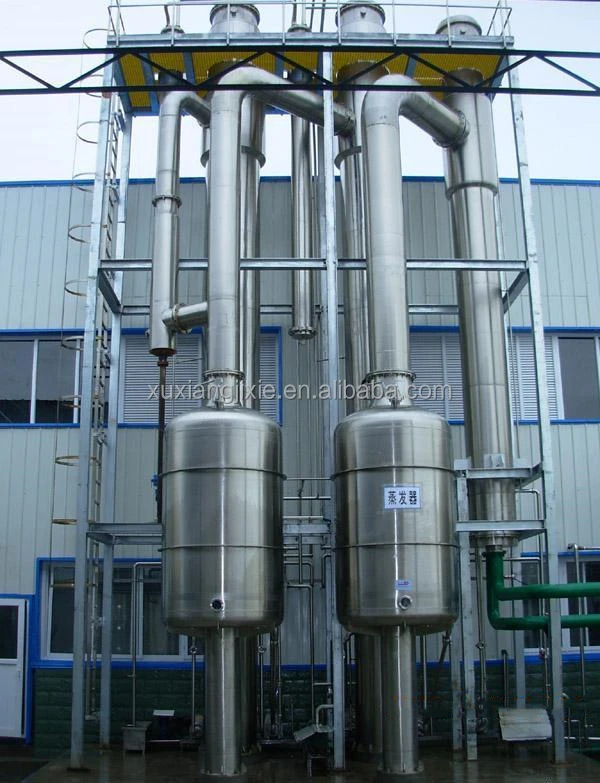

The first stage in the production of condensed or powdered milk is the concentration of the raw milk. Homogenized milk is usually
concentrated with evaporators. Falling film evaporators are generally used followed by a drying step using a spray dryer. Doubling
of the concentration of milk and whey is common. The powder is typically agglomerated to improve reconstitution. Dry whole milk is
susceptible to oxidative rancidity and may be packaged in a protective atmosphere to extend its shelf-life.
concentrated with evaporators. Falling film evaporators are generally used followed by a drying step using a spray dryer. Doubling
of the concentration of milk and whey is common. The powder is typically agglomerated to improve reconstitution. Dry whole milk is
susceptible to oxidative rancidity and may be packaged in a protective atmosphere to extend its shelf-life.
* Two-stage drying in milk powder production:
a) Description of the technology:After the milk has been thickened from 11% to 50-60% dry matter in an evaporator, the condensed
milk may further be dried to 95-97% dry matter content. Spray driers or roller driers are used in milk powder processing. Although
roller driers may be found in the dairy sector and are sometimes useful for specialized products, spray driers with downstream or
integrated FBD’s have become more common. This is due to their low energy usage, primarly dust-free product, and due to their
reduced thermal stress.A spray drying process using a FBD is also called two-stage drying. Figure 4 shows a two-stage drying
process carried out by using a spray drier with a rotary atomizer and a separate external FBD. The outlet air is filtered by a CIP
filter, which consists of a tubular filter without cyclone.When using two-stage drying, lower residual product moisture with less
harm to product quality as well as more efficient energy utilization can be achieved. The solids leave the spray with 3-5%
residual moisture. The final drying step takes place under mild conditions with low energy usage.
a) Description of the technology:After the milk has been thickened from 11% to 50-60% dry matter in an evaporator, the condensed
milk may further be dried to 95-97% dry matter content. Spray driers or roller driers are used in milk powder processing. Although
roller driers may be found in the dairy sector and are sometimes useful for specialized products, spray driers with downstream or
integrated FBD’s have become more common. This is due to their low energy usage, primarly dust-free product, and due to their
reduced thermal stress.A spray drying process using a FBD is also called two-stage drying. Figure 4 shows a two-stage drying
process carried out by using a spray drier with a rotary atomizer and a separate external FBD. The outlet air is filtered by a CIP
filter, which consists of a tubular filter without cyclone.When using two-stage drying, lower residual product moisture with less
harm to product quality as well as more efficient energy utilization can be achieved. The solids leave the spray with 3-5%
residual moisture. The final drying step takes place under mild conditions with low energy usage.

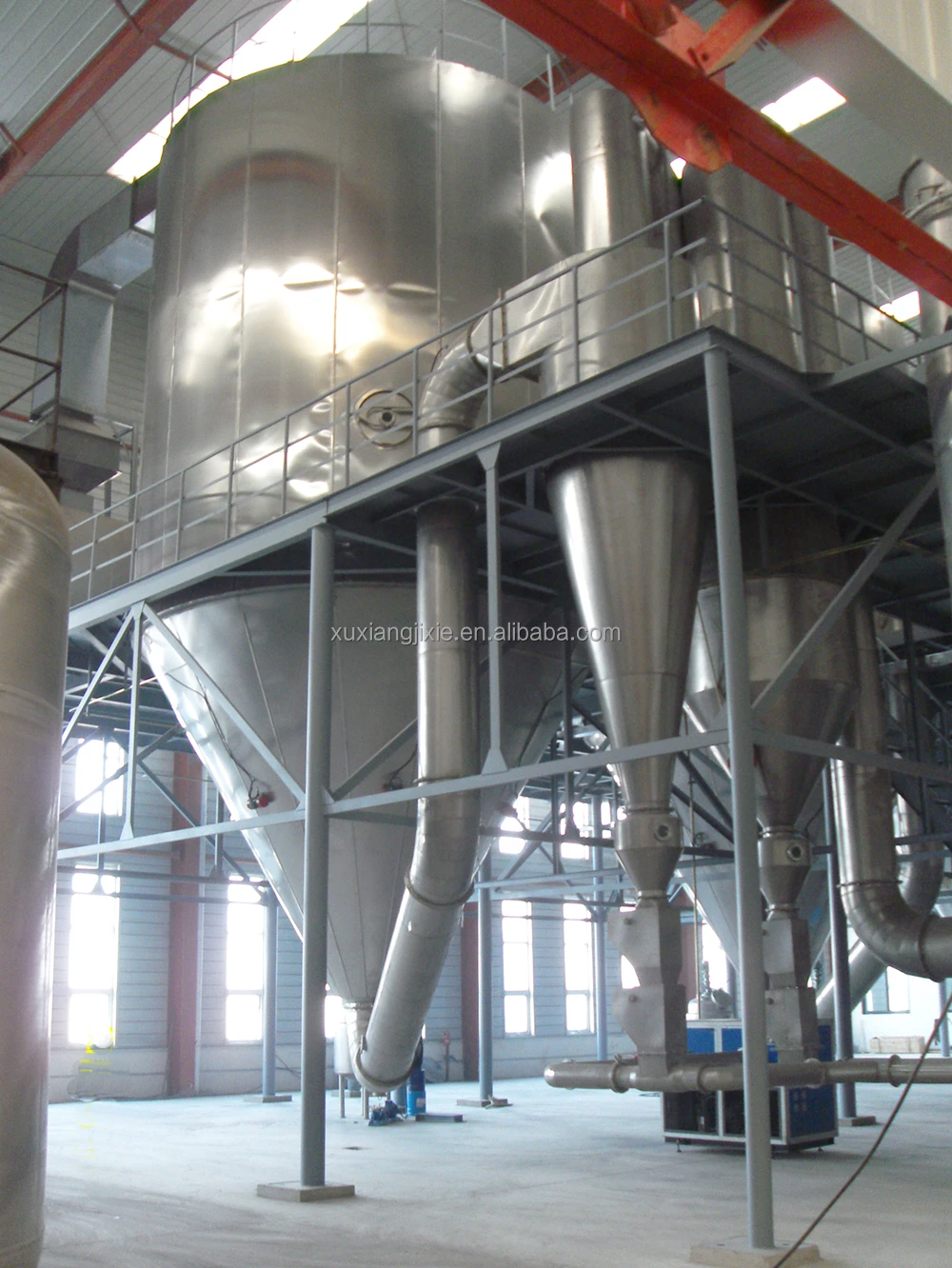

Two-stage powder drying tower:
powdered milk drying and spray tower
The last traces of moisture are the most difficult to remove, unless high outlet drying temperatures are used to provide a
sufficient driving force. As elevated outlet drying temperatures can have a detrimental effect on powder quality, it is essential
to operate at lower outlet temperatures with dairy products. If the moisture content of the resulting powder is still too high, an
after-drying stage is incorporated after the spray dryer in a two-stage process as illustrated in figure .
sufficient driving force. As elevated outlet drying temperatures can have a detrimental effect on powder quality, it is essential
to operate at lower outlet temperatures with dairy products. If the moisture content of the resulting powder is still too high, an
after-drying stage is incorporated after the spray dryer in a two-stage process as illustrated in figure .
Technical parameters | ||||
1 | Raw material | Milk or milk powder | ||
2 | Product | UHT milk,dairy products | ||
3 | Terminal package | Carton brick, plastic bag, tin,can | ||
4 | We can design it according to your special requirements. | |||
The Whole Producion Line Including Below Items:
1.Milk collection system
2.Ingredients sterilization system
3.Filling &Packing system
4.CIP cleaning system
5.Water treatment system
6.Water Supply system
7.Steam System
8.Air Compressed System
9.Refrigeration Systems
2.Ingredients sterilization system
3.Filling &Packing system
4.CIP cleaning system
5.Water treatment system
6.Water Supply system
7.Steam System
8.Air Compressed System
9.Refrigeration Systems
