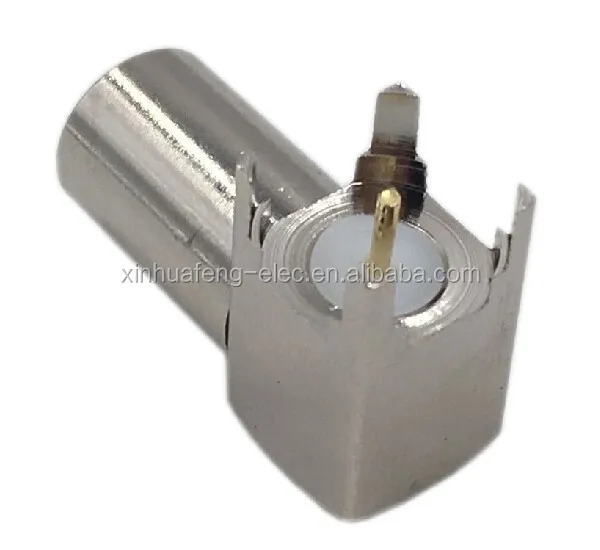

PCB mount FME right angle connector

The FME series products join whorl as M8 x 0.75 , also called SAP joining device , Suitable frequency does the signal and is transmitted and joins the coaxial cable of the radio frequency to use for the electron tube instrument, mobile communication , aerial system of 3GHz.

FME connector

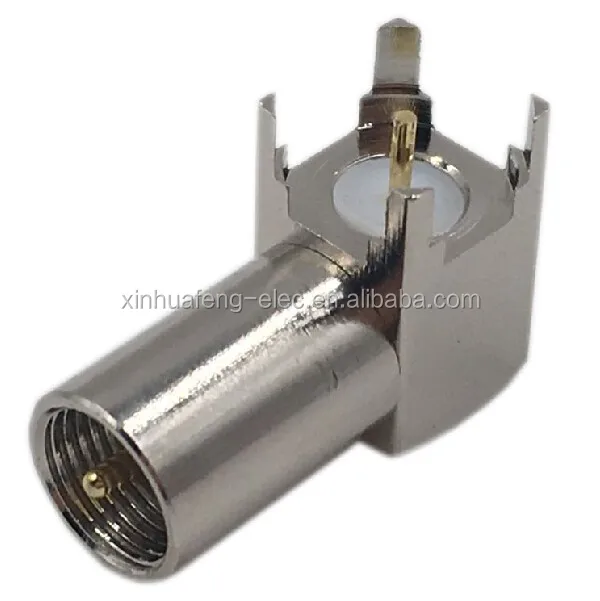

right angle FME connector PCB mount

TECHNICAL CHARACTERISTICS
Temp. range.................. ....-40~ +85 ℃
Impedance.................... ...50Ω
Frequency Range..............DC~3GHz
Working Voltage............. ...500V max
Withstand Voltage......... .....1000V rms

Contact resistance
Center Contact..............≤10mΩ
Outer Contact...............≤5mmΩ
Insulation resistance ......≥5000 mΩ
VSWR Straight...............≤1.20
Right angle?................≤1.250
Durability(mating)............500 (cycles)

MATERIAL & PLATING
Shell ..............Brass ................Nickel-plated
Contact pin ........brass.................gold -plated
Elastic contact.... beryllium ............gold or silver-plated
Insulator ..........PTFE or PE
Crimping suite..... copper alloy......... nickel-plated

ZHENJIANG XINHUAFENG ELECTRONICS CO., LTD  is a professional electronic products supplier have strong OEM&ODM ability, RF coaxial connector products is our mainly products, have high quality level, strong develop capacity to produce custom design product. RG58,RG59,RG6,RG7,RG11....F connector and BNC connector, verious kinds of RF coaxial connector product. Zinc material and Copper material are all can produce into same high quality level.
