YanLing Nano itx quad core J1900 pfsense firewall & vpn with 4*intel Lan

Share on (60509853521):


Price:

Quantity:


Product Overview

Description


YanLing Nano itx quad core J1900 pfsense firewall & vpn with 4*intel Lan





Product Feature





1) Bay Trail J1900 quad core 2.0GHz and intel chipset


2) 1*VGA+2*USB2.0+4*LAN+1*Power switch


3) AMI 64MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT


4) High-quality Fanless pure aluminum Case


5) 1*SATA,1*mini-PCIE, support wifi / 3G


6) 4*Intel WG82583 1000M lan card, support wake on lan


7) DC-IN 12V power supply and AC power adapter


8) Applied in Firewall, VPN , Network Server, Network Security, Router etc .










Product Display
















Specifications

























































































































Specification



Model



IBOX-501 N10a



Case Color



Black(color can be customized)



Material



High-quality pure aluminum



CPU



Baytrail J1900 quad core 2.0GHz



Chipset



Adopt Intel chipset



Mainboard



120*120mm Nano ITX mainboard



RAM



1*SO-DIMM DDR3, support max 8G



Storage



1*minisata, (16G/32G/64G/128G/256G is optional, N10b can support extra 1*SATA)



Audio



N/A



Display Interface



1*VGA



Display



Integrated Intel HD Graphic card, support 1*VGA

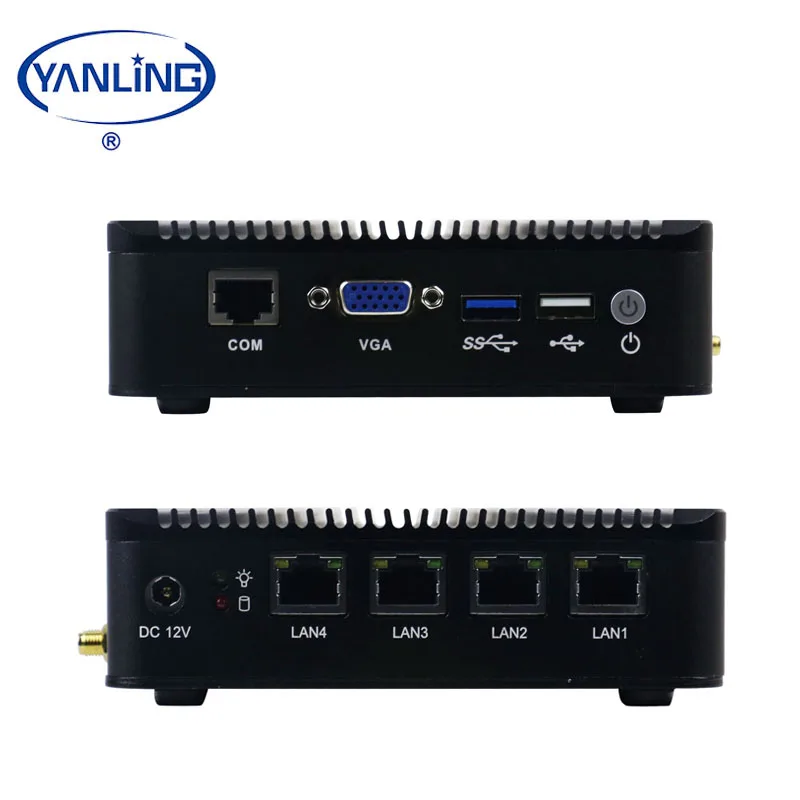

I/O



 2*USB2.0



1*VGA



1*HDD LED



4*RJ45 Lan



1*Power LED



1*Power Switch



1*DC-In 12V



2*WiFi Hole



Network Card



4*Intel WG82583 1000M lan, support wake on lan



Expansion



 1*mini-PCIE, support Wifi



Watch Dog Timer



Support



Power Supply



DC 12V-IN power supply and AC power adapter



Operating System



Windows 7/8/10, Linux, Pfsense



BIOS



AMI 64M DPI Flash ROM



Working Temperature



-10°- 60°C



Working Humidity



0% - 95% relative humidity, Non-condensing



Size



N10a:134*126*36 mm (L*W*H); N10b:134*126*46mm(L*W*H)



Weight



N10a:0.65kg; N10b:0.68kg






Packaging & Shipping





 1.Delivery      Time:  1 ~ 3 Days for one sample, 15 Working days for a large quantity.


 2.Packaging Ways:  Each pc for one neutral box, ten or sixteen box for one carton.


 3.Shipping    Ways:  For small amount, we advise our customer to take DHL, Fedex, UPS.


                                       For a large quantity, we can support to ship by air or by sea.













Company Information





    YanLing Industrial Computer Technology (ShenZhen) CO.,Ltd.established in 2000, is an officially registered and approved large-scale resource-based enterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.


 YanLing Industrial Computer Technology (ShenZhen) CO.,Ltd. has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc..jpg


     YanLing Industrial Computer Technology (ShenZhen) CO.,Ltd. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.


 portable computer





Exhibition


  portable computer











Certifications


  portable computer








Our Advantages





1. As a professional manufacturer and supplier of mini pc over 15 years,we win our customers with good quality,best service and competitive price.


2.Our products are 100% original and have strict QC inspection before shipment.


3.Professional and efficient sales team serve for you diligently


4.Sample order is welcomed and will be delivered within 3 days.


5.We are Alibaba assessed 11 years Gold Supplier and more than 15 years industrial experience.


6.We support Trade Assurance to ensure On-time shipment and product quality.


7.We provide OEM service according to your requirements.


8.We provide 12 months maintenance warranty for our products.
