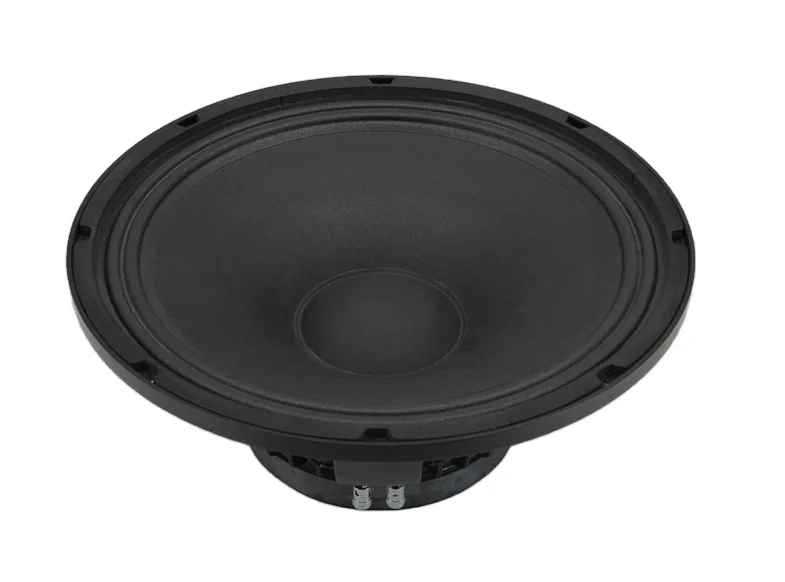

15 inch pa woofer speakers midbass speaker 15 inch speaker
15 inch pa woofer speakers midbass speaker 15 inch speaker
15 inch pa woofer speakers midbass speaker 15 inch speaker

15 inch pa woofer speakers midbass speaker 15 inch speaker

Share on (60509854288):


Price:

Quantity:


Product Overview

Description



Product Description



Features :


-  15 inch woofer speaker with lower cost
-  900W continuous program power capacity, 450W RMS
-  98dB sensitivity 1w/1m
-  30hz-4.5khz Frequency response
-  3" Voice coil
-  Low cost but ideal for 2-way or 3-way speakers system



Specification
Nominal diameter
360/15
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
30-4.5k
Hz
Magnet size
190x20
mm
Magnet material
Ferrite
Sensitivity (1w/1m)
98
dB
Nominal power handling
450
Watts
Continuous power handling
900
Watts
Voice coil diameter
75/3 "
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
T/S Parameter
Fs
34.1
Hz
Re
5.2
Ω
Qes
0.33
Qts
0.32
Qms
10.93
Vas
261.1
L
Rms
1.7
kg/s
Cms
0.25
mm/N
Mms
85.7
gr
BI
17.9
N/A
Rp
156.0
Ω
Lp
90.3
mH
Cp
484.1
uF
Le
0.9
mH
Xmax (one-way)
12
mm
Mounting information
Overall diameter
393/15.5
mm/inch
Bolt Circle diameter
375/14.77
mm/inch
Baffle Cutout diameter
355/13.98
mm/inch
Total Depth
160/6.3
mm/inch
Flange thickness
14/0.56
mm/inch
Shipping information
Net weight
7.14
KG
Shipping weight
8
KG
Shipping box
410x410x190
mm
