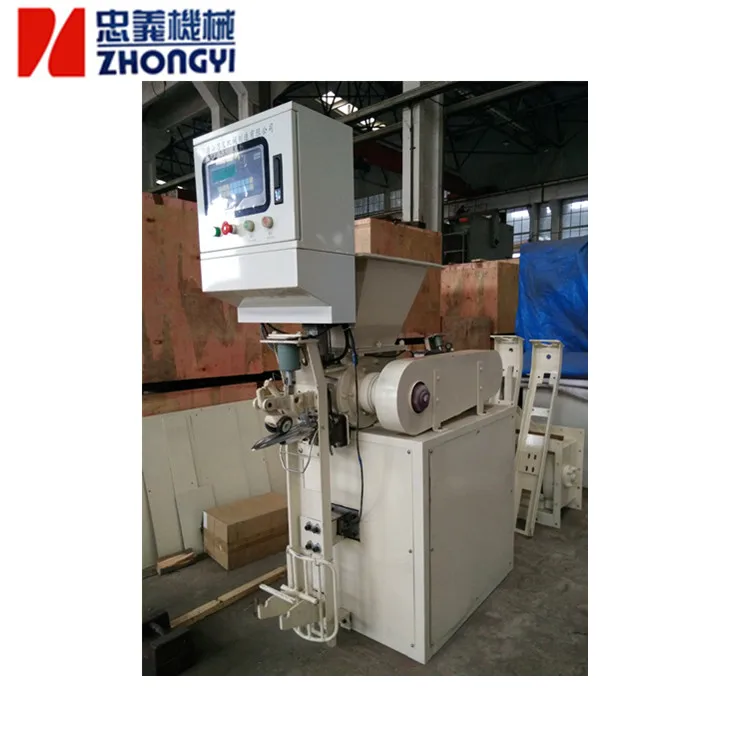

30t/h capacity 2 spouts small cement packing machine

Product Overview

Description

30t/h capacity 2 spouts small cement packing machine



About us

TangShan ZhongYi Machinery Co., LTD. was established in 1989, and has begun to design and produce the

cement packing equipments since then. Due to the strong quality and excellent performances, types of the packing machines and their accessories have reached to over 3000 cement plants around the country and also exported to

other countries, including Pakistan, Russia, Vietnam, Peru, Ethiopia, Kazakhstan, etc. They are not only enjoyed

the reputation, but also earned credits from the customers.

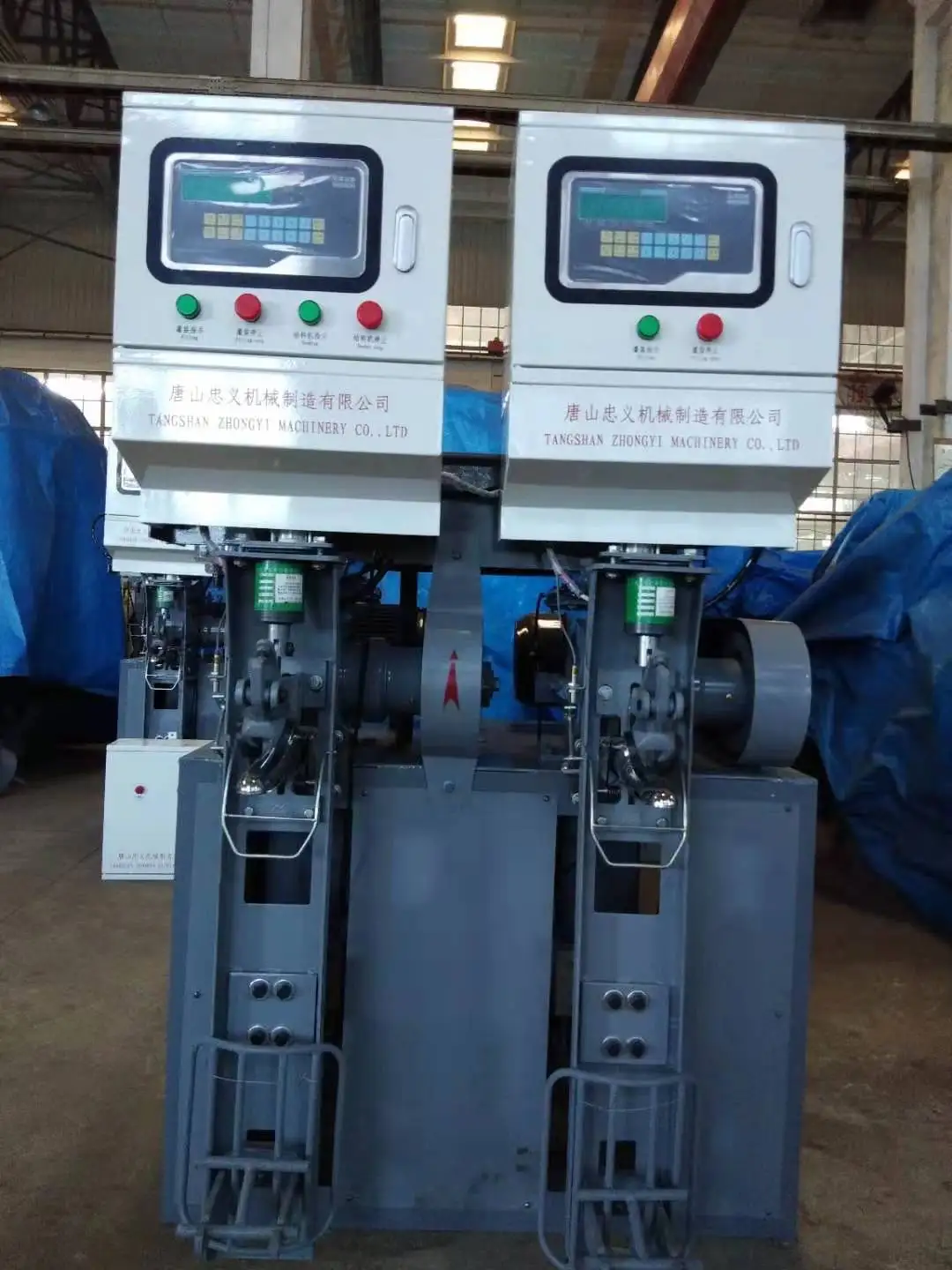

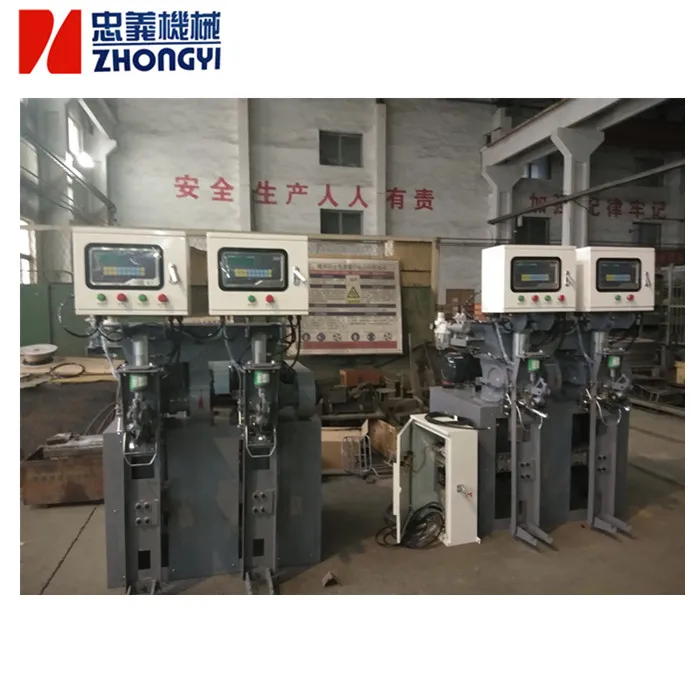

Automatic valve bag filling machine with 2 spouts

This series packing machine is mainly apply to cement filling in bag for cement factories, meanwhile, it could also apply to fill powder and granulate material with good flow ability.

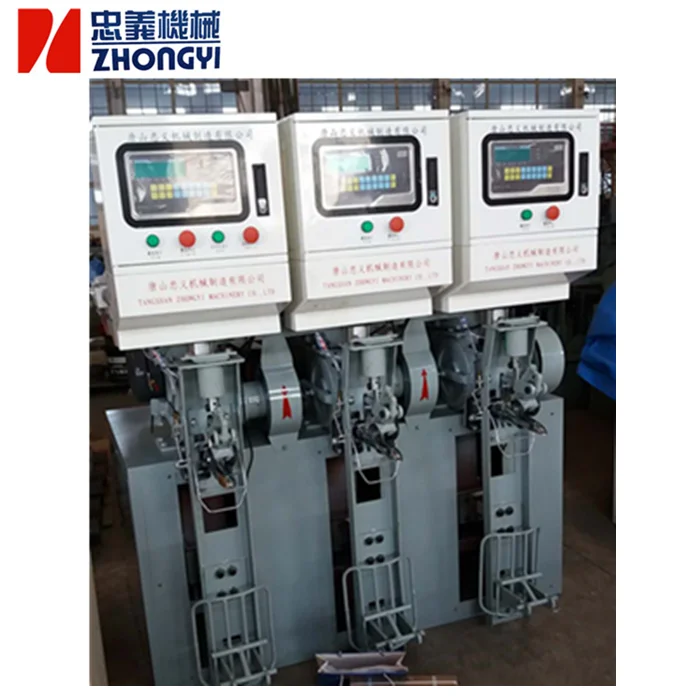

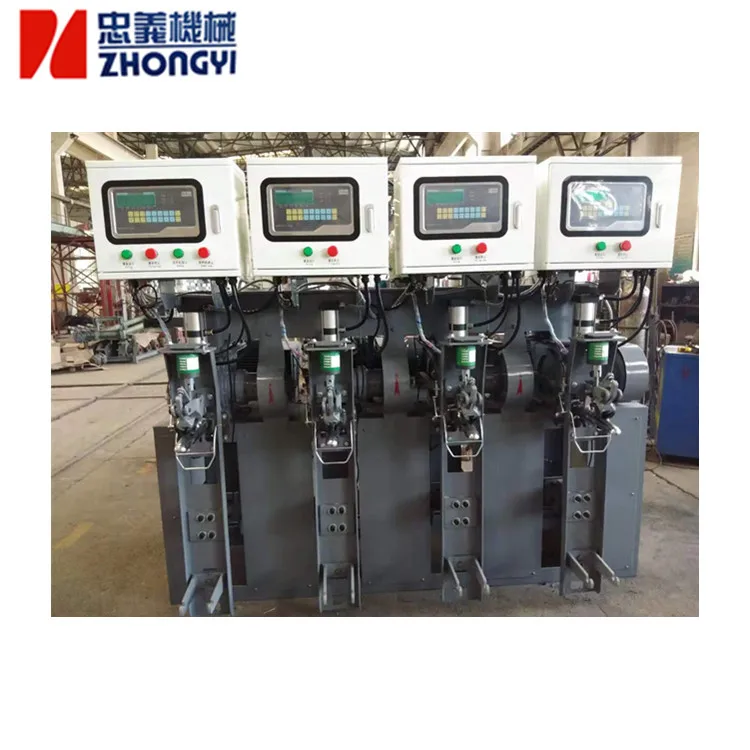

There are 4 models of fixed bagging machinery: BGYW-1D(with 1 spout, capacity 15t/h); BGYW-2D(with 2 spouts, capacity 30t/h);  BGYW-3D(with 3 spouts, capacity 45t/h); BGYW-4D(with 4 spout, capacity 60t/h).



Application scope

1. Power supply voltage: AC 380V±1510% 50HZ

2. Working condition:

a. Temperature: -10°C——40°C

b. Relative humidity: <90%

c. Altitude: <2000m

3. Cement material:

Granule of cement : following standard GB175-1999 silicate cement and ordinary Portland cement

Moisture content in cement : <1%

Cement packing temperature: <120°C



 Technical data



Name of parameter				Unit	Data
					Model
					BGYJ							BGYW
					-1	-2		-3		-4		-1	-2	-3	-4
Qty of spout				Pc	1	2		3		4		1	2	3	4
Capacity				t/h	15	30		45		60		15	30	45	60
Single bag weight				kg	50							50
Weighing precision	Tolerance of single bag			kg	+0.5 -0.3							±0.35
	Eligibility rate			%	95							95
	Total weight of 20 bags			kg	≥1000							≥1000
Operation power	Power unit of discharging motor		Type		Y112M-4							Y112M-4
			Power	kw	4		2×4		3×4		4×4	4	2×4	3×4	4×4
	Feeder	Motor	Type		Y90L-4		Y100L-4		Y112M-4			Y90L-4	Y100L-4	Y112M-4
			Power	kw	1.5		2.2		4			1.5	2.2	4
		Reducer	Type		XWD3 -23-1.5		XWD4 -23-2.2		XWD4-23-4			XWD3 -23-1.5	XWD4 -23-2.2	XWD4-23-4

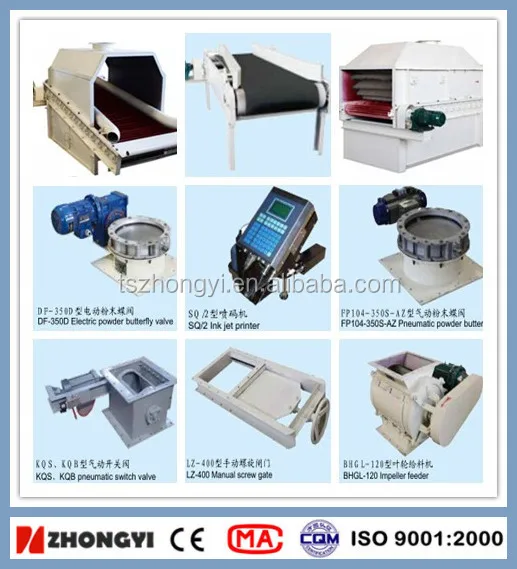

Auxiliary equipments of Packing machine









Truck loading machine

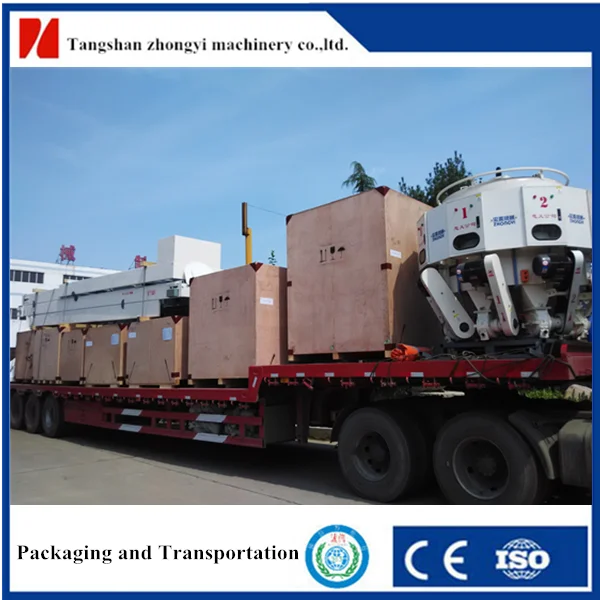

 Package and Transport





Business negotiation





Our Exhibition at " The China international cement industry exhibition"





Contact Information





Looking forward to the cooperation with you.

Together ,we make it better.
