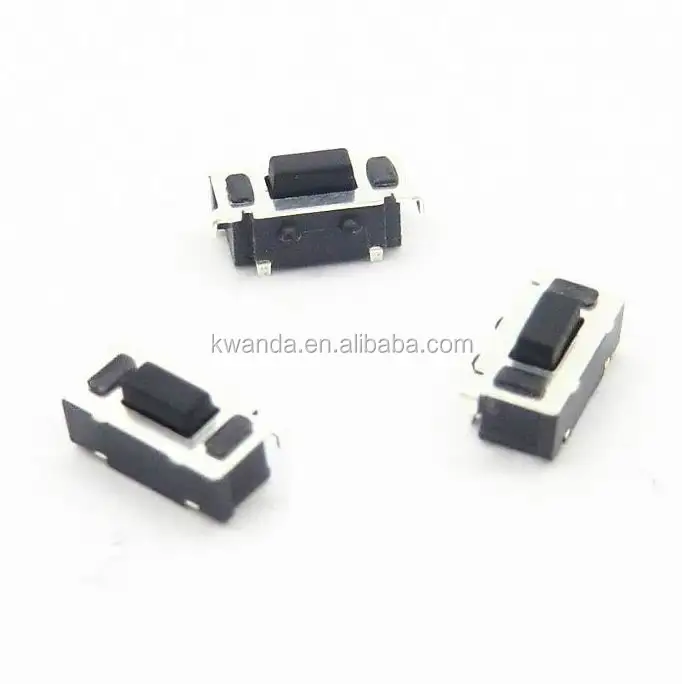

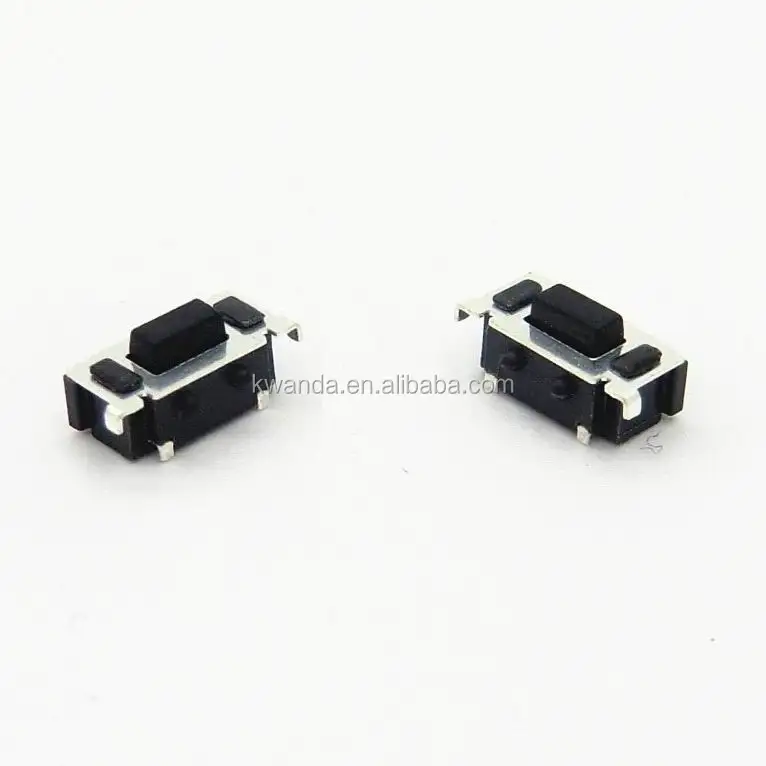

2 pin surface mount tact switch/Momentary Micro Tactile Tact Push Button Switch SMD SMT

Product Overview

Description

Tact Switch	Specification
Rating	50mA 12V DC
Contact resistance	100mΩ max
Insulation resistance	10MΩ min at 500V DC
Dielectric strength	AC 250V for 1 min
Lifespan	100,000 Cycles
Practical temperature range	-16 to 60 degrees Celsius
RoHS	Yes



Regarding to our products:



u       More than 2,000 models of switches and sockets.

u       Monthly production capacity: 30 million pieces.

u       MOQ: 5,000pcs, it’s negotiable.

u       Good quality with competitive price.

u       We can offer free samples with shipping and taxes pay by the buyer.

u       Various operation force, height, and color for your choice.

u       The discount depends on your order quantity.

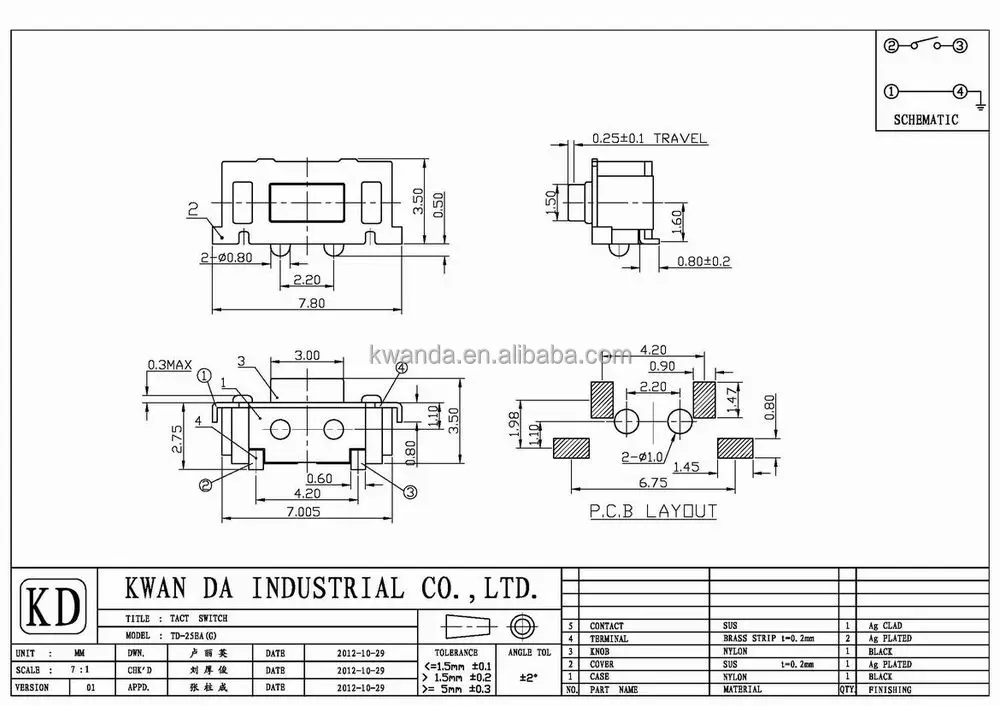

---Drawing---
