1.SS electric heater cylinders 2.The highest temperature 200C 3.PLC control panel
Controller machine:
Advantages:
1. The temperature control adopted Japanese. Germany,Taiwan.Precise and reliable,
2. Two sets of electric heater cylinder made from stainless steel.
3. Emplaying supeb imported components,with longer terms of service.
4. Rapid heating and cool off speeds,temp kept stable at times.
5. Complete with safety protection and indication system.

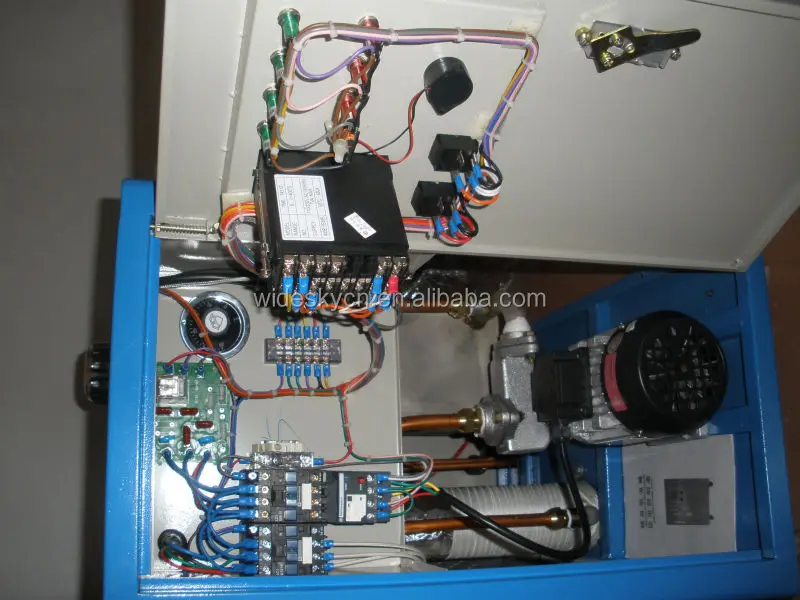

6. PLC control panel
Safety Protect System
1. Auto drain system
2. Main circult-breaker
3. Pump reverse protect and direct lamp
4. Alarm overheat thermostat
5. By-pass circuit
6. Overheat thermostat and direct lamp
7. Oil shortage protect and direct lamp

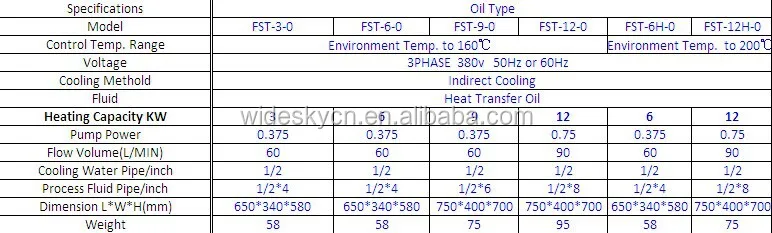

Specifications:
Specifications
Oil Type
Model
FST-3-0
FST-6-0
FST-9-0
FST-12-0
FST-6H-0
FST-12H-0
Control Temp. Range
Environment Temp. to 160°C
Environment Temp. to 200°C
Voltage
3PHASE 380v 50Hz or 60Hz
Cooling Methold
Indirect Cooling
Fluid
Heat Transfer Oil
Heating Capacity KW
3
6
9
12
6
12
Pump Power
0.375
0.375
0.375
0.75
0.375
0.75
Flow Volume(L/MIN)
60
60
60
90
60
90
Cooling Water Pipe/inch
1/2
1/2
1/2
1/2
1/2
1/2
Process Fluid Pipe/inch
1/2*4
1/2*4
1/2*6
1/2*8
1/2*4
1/2*8
Dimension L*W*H(mm)
650*340*580
650*340*580
750*400*700
750*400*700
650*340*580
750*400*700
Weight
58
58
75
95
58
75

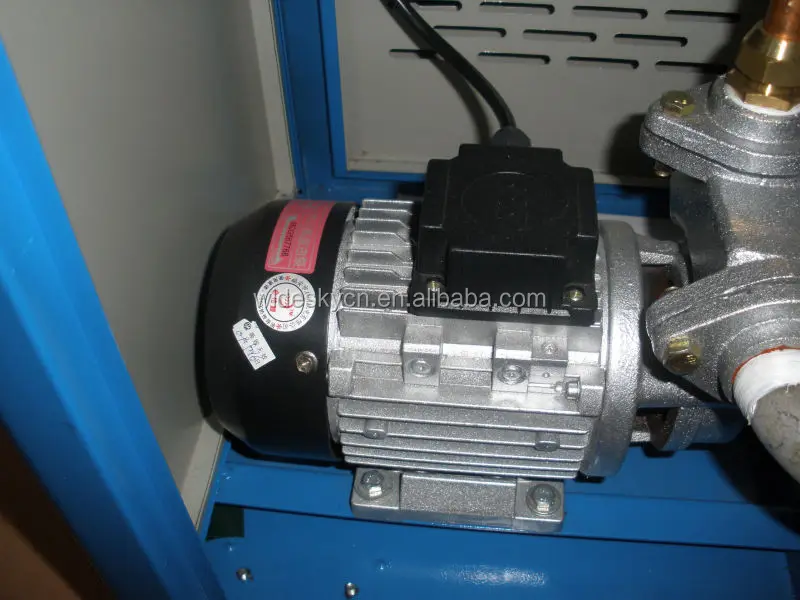

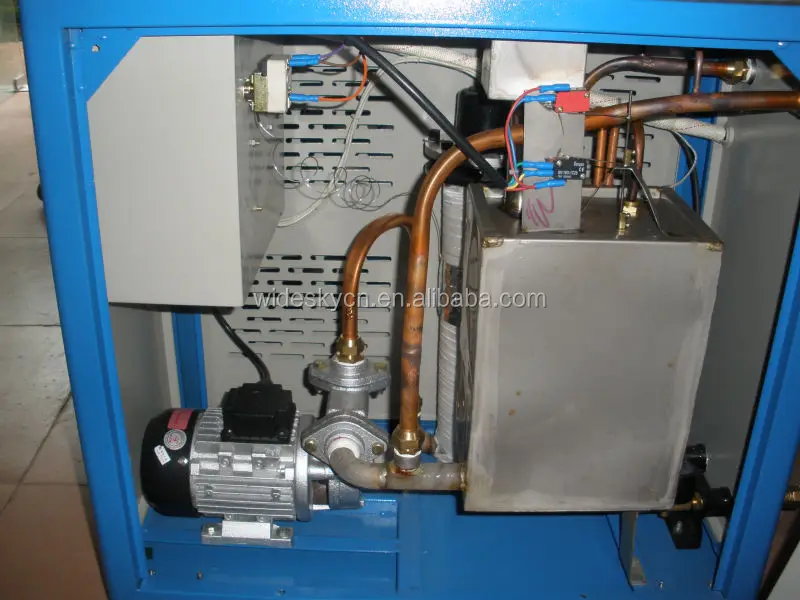

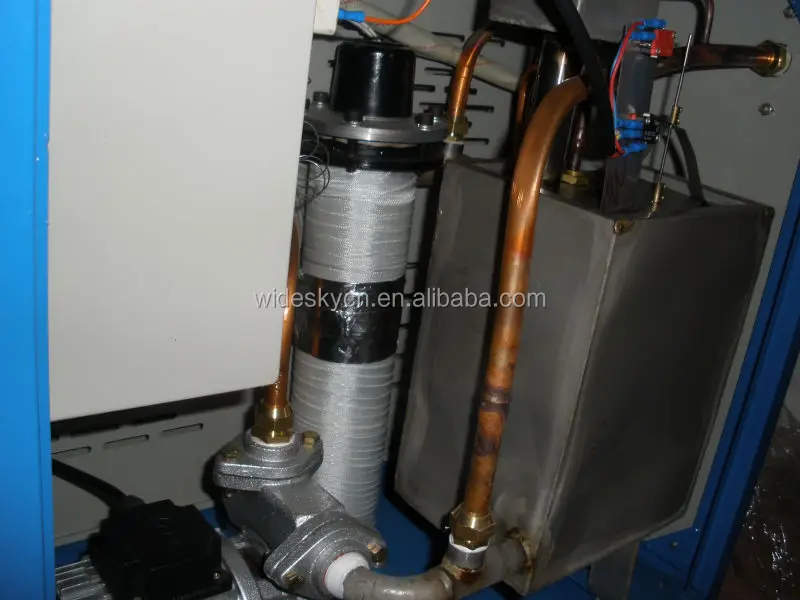

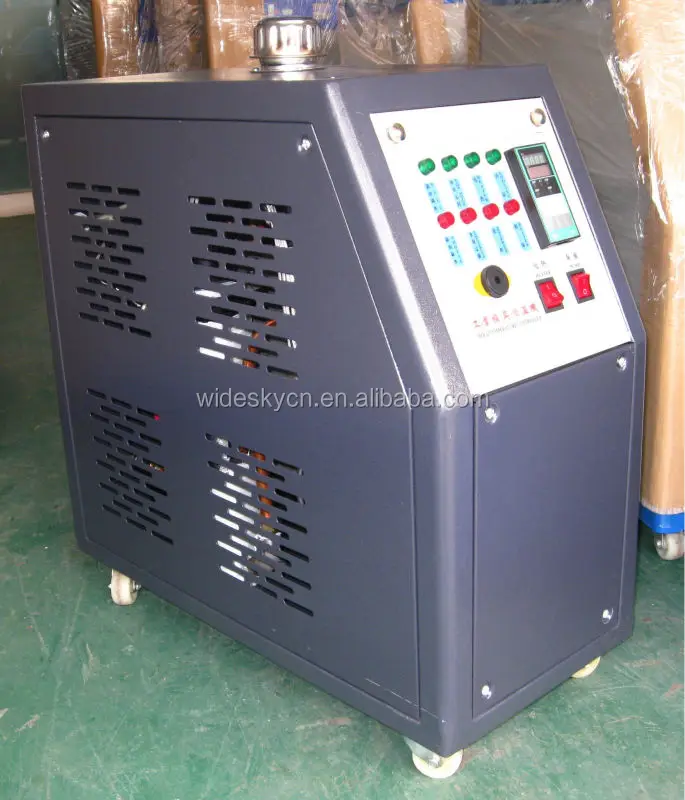

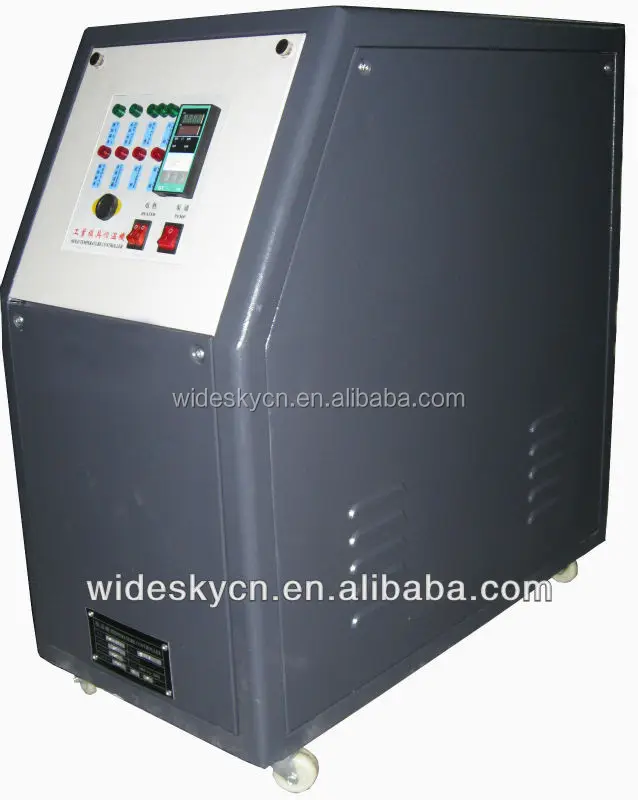

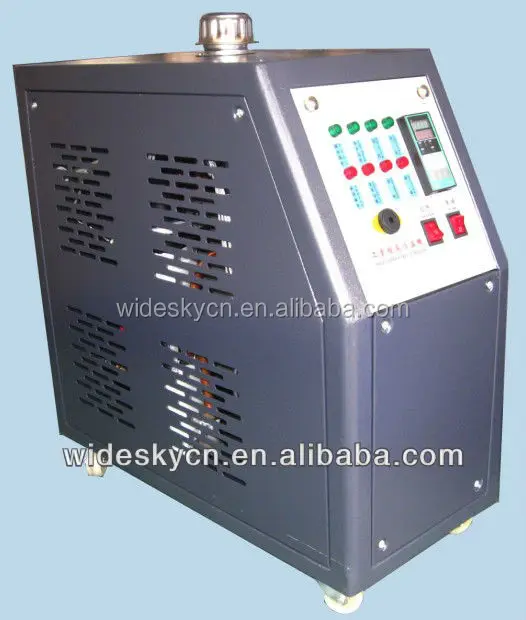

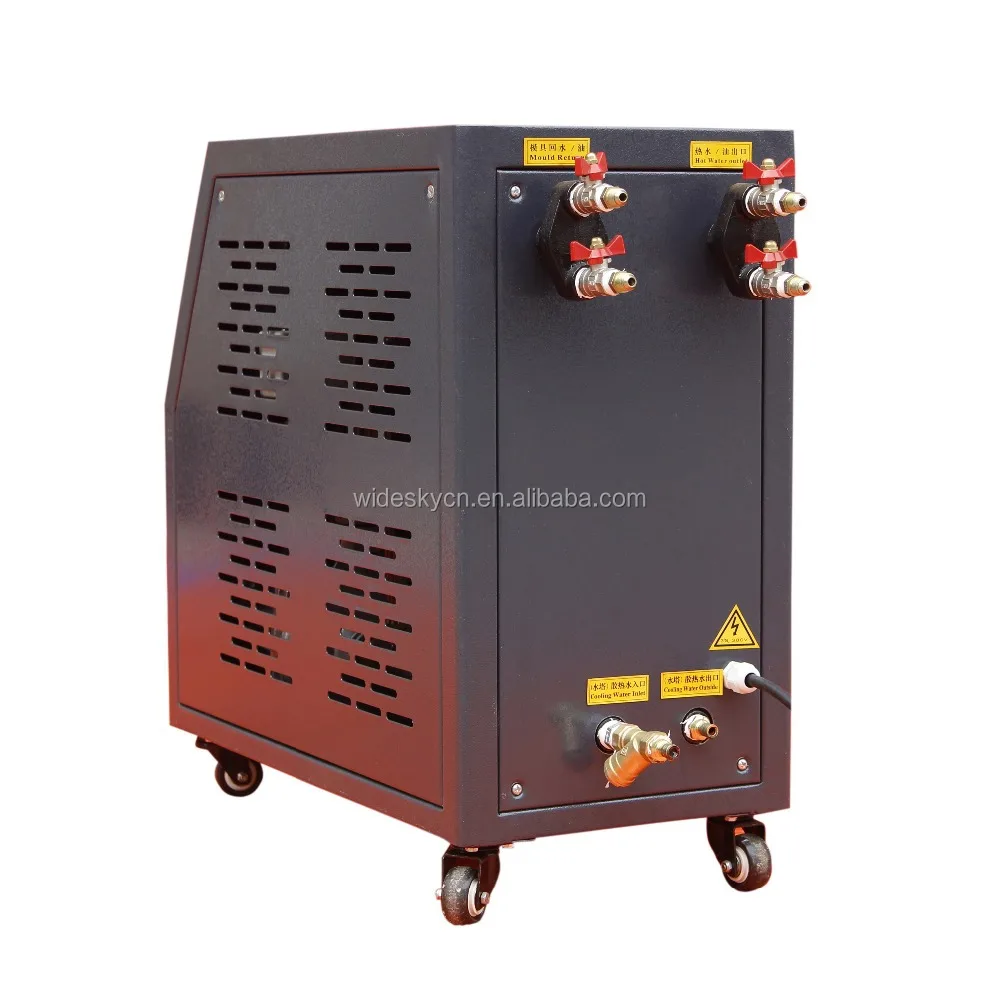

Machine Picture:
Packaging & Shipping
Wooden case or as your require
Our Services
1.15 moths warranty
2.24 hours online service
3.Oversea engineers team, can supply the professional technology support.
4.Delivery in time
