Ventilated facade structural clay tiles , Terracotta fasade decorative panels , lightweight curtain wall brick panels

Product Overview

Description

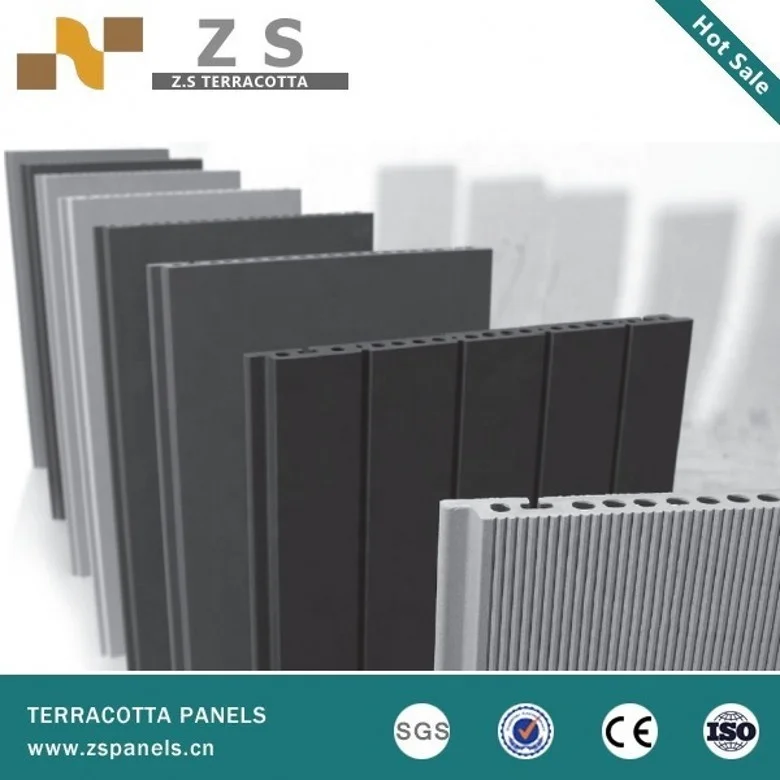

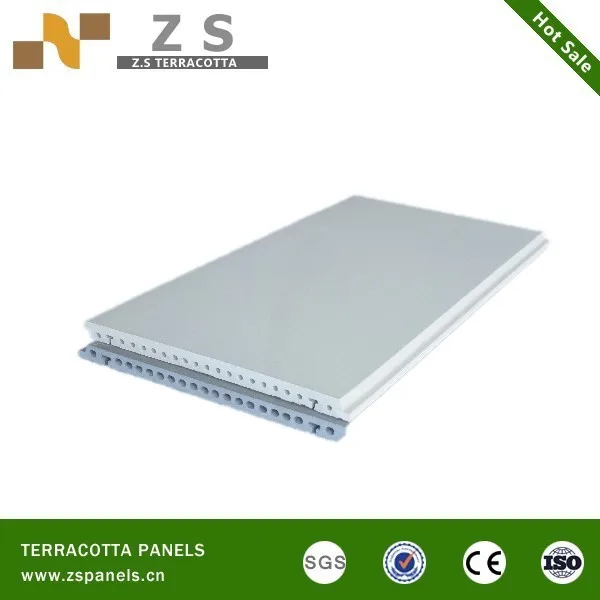

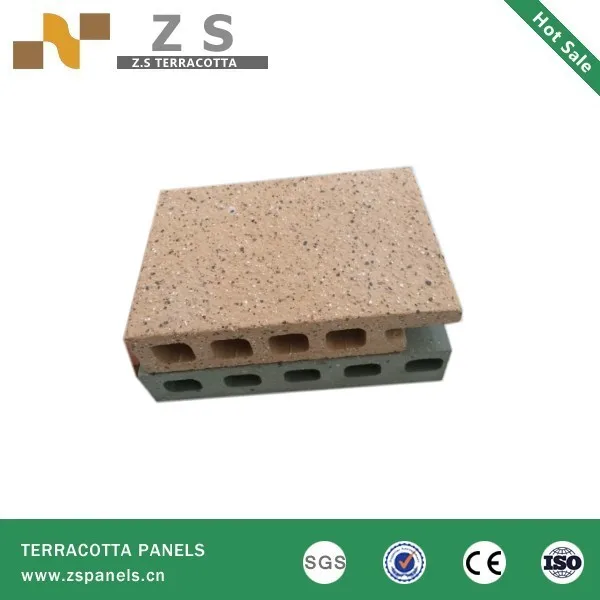

 ZS Terracotta Panels

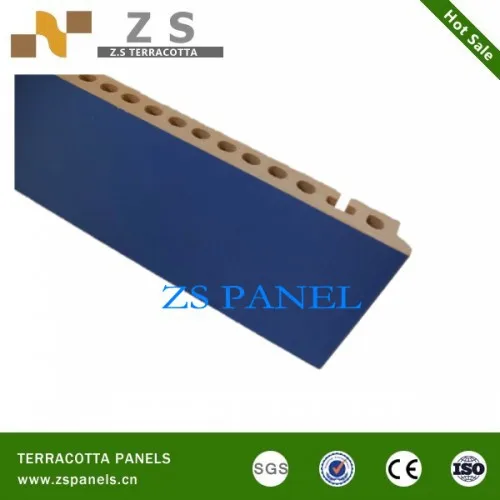

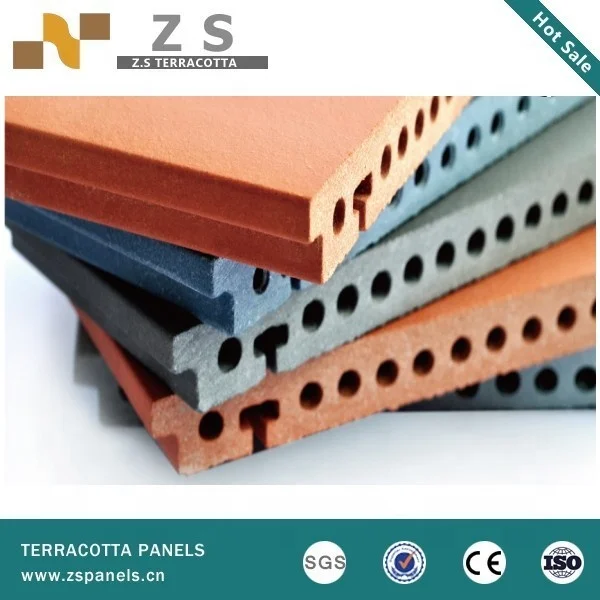

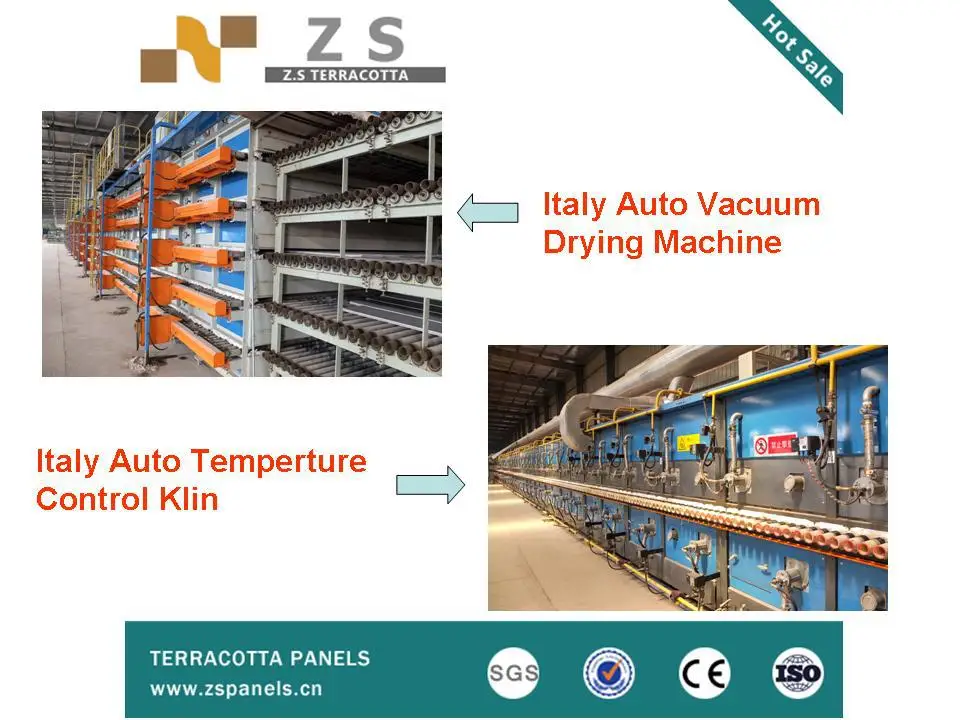

Terracotta panel is made by the natural clay material and fired with more than 1200 degree temperature with the advanced hollow structure and dry hanging system which it is widely used in curtain wall and interior wall

Ventilated facade structural clay tiles







1. Terracotta sunscreen products advantages

*Natural clay material -100% green material and hollow structure

*Heat preservation and sound insulation

*No-static and no-radiation product

*Rich color and surface available

*Easy dry hanging system

*Non of the light pollution

*Self-cleaning system

*Never color fading

*Light weight



2. Terracotta usage

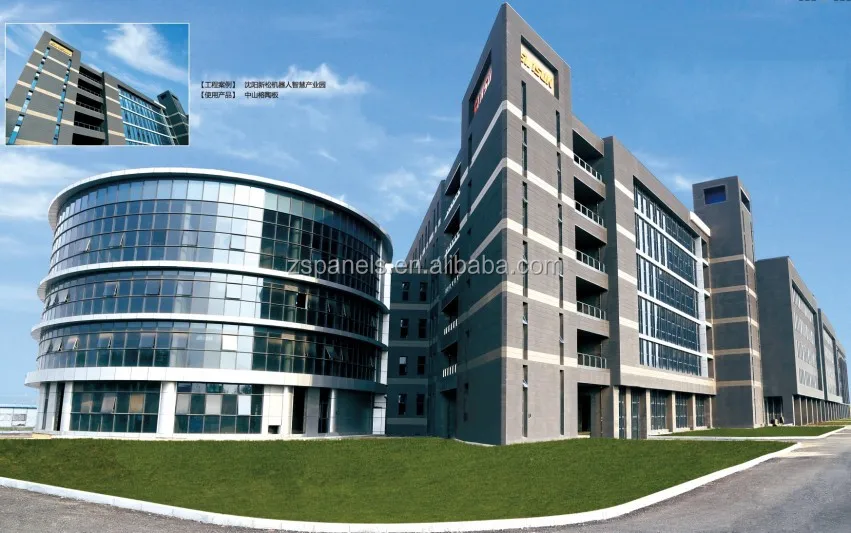

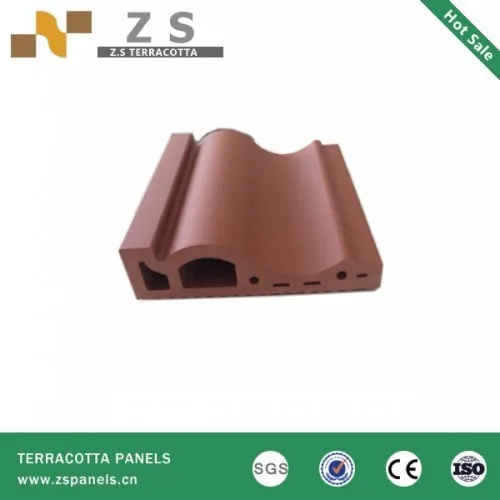

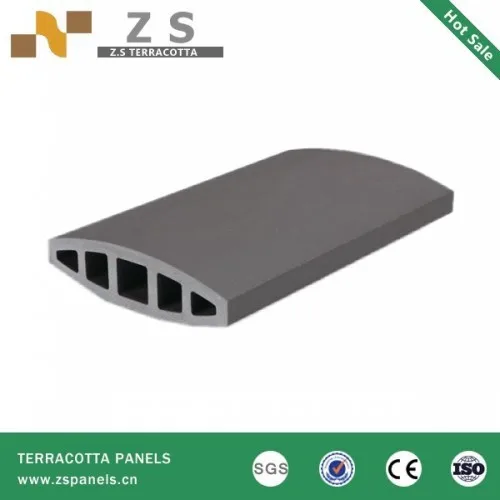

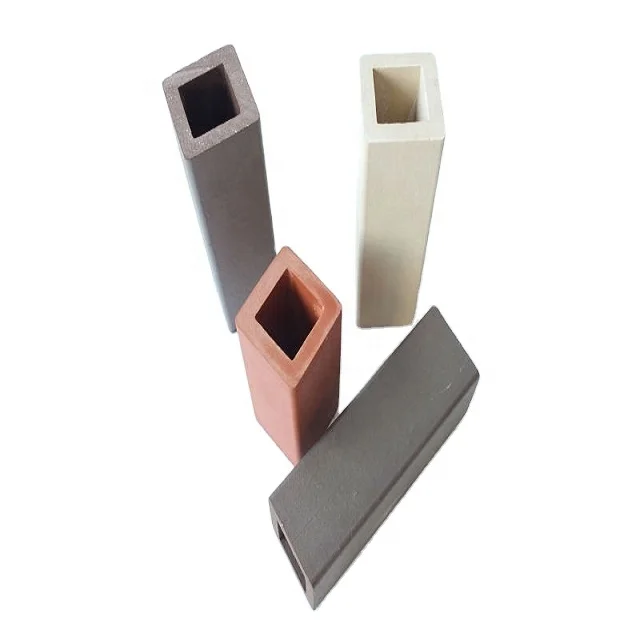

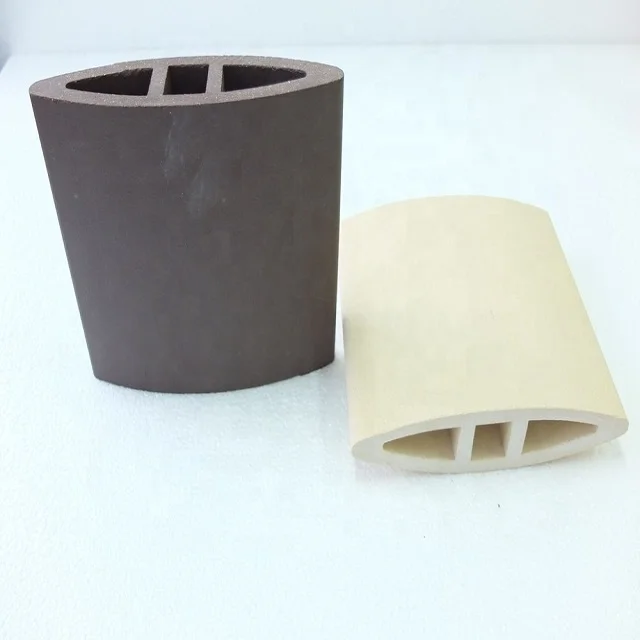

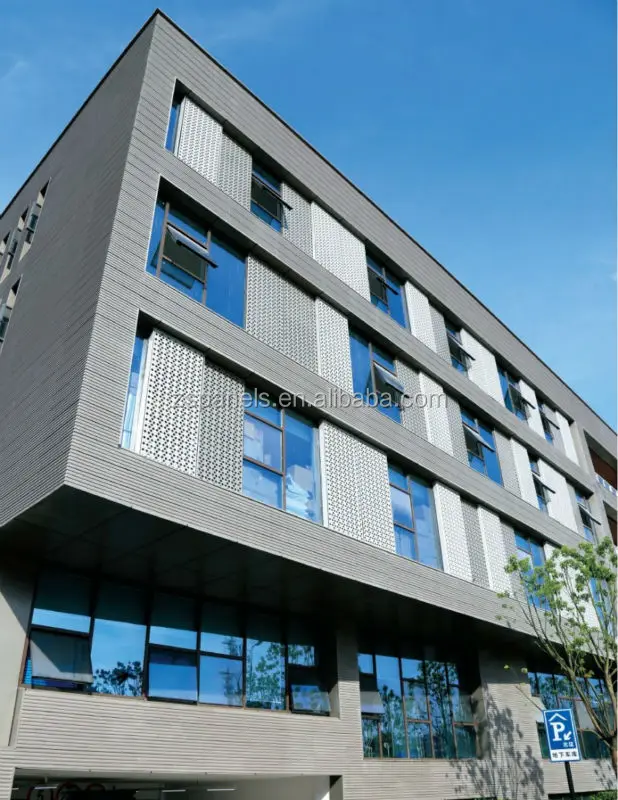

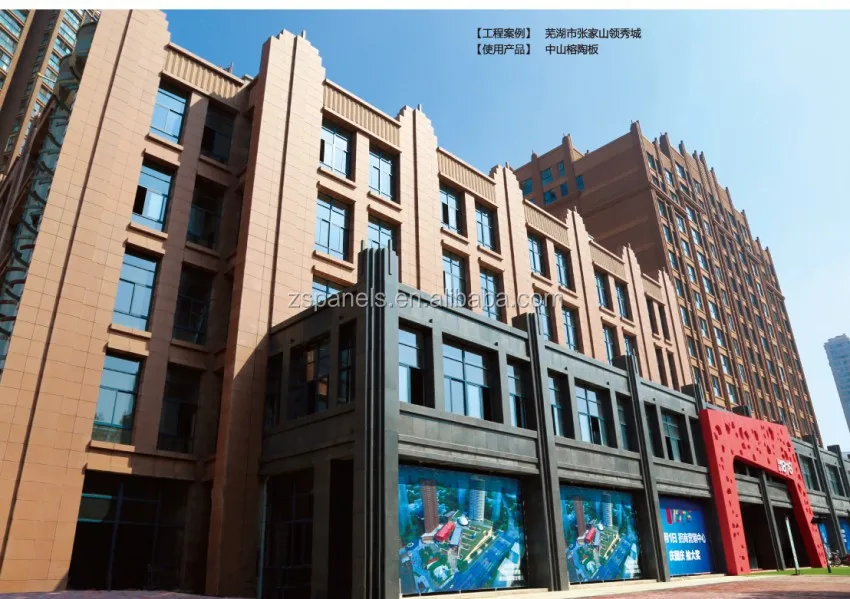

Terracotta panel have the dry hanging system which it is widely used in curtain wall, interior wall, floor and roof etc, it is the advanced and green building material, it normally called Terracotta panel for exterior wll, terracotta wall panel, Terracotta louver, Terracotta tube,   terracotta panel for curtain wall. etc

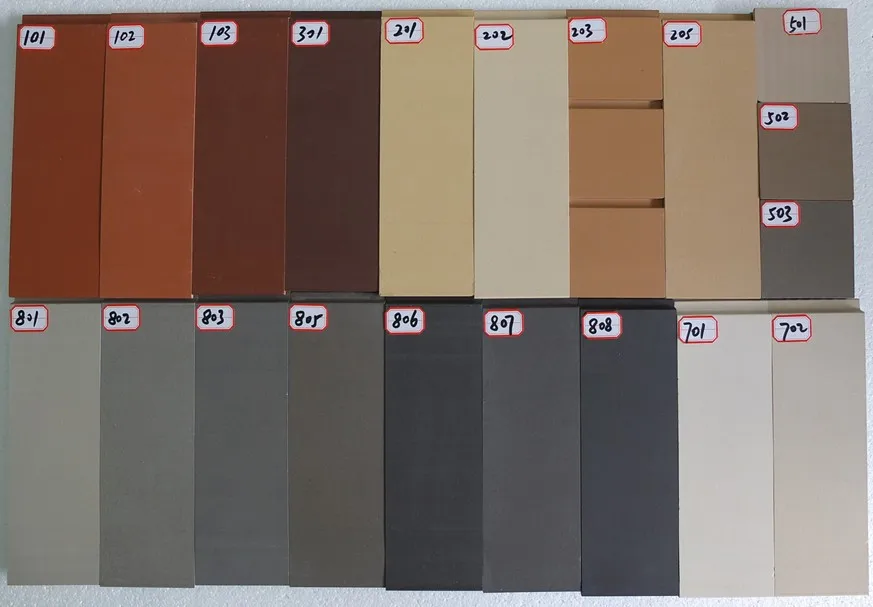

3. Normal colors

Red: Bright red, coral red, burgundy red, coffee

Yellow: Ivory, wheat yellow, maize yellow, orange yellow

Gray: Light gray, great wall gray, deep gray, dark gray

White, green ,blue



4. Normal size

*Available thickness 18mm, 30mm

*Available width: 300mm, 400mm 450mm 500mm 550mm 600mm 650mm

*Available length: 300mm 600mm 900mm 1200mm 1500mm

*OEM and ODM are available









5. Normal surface

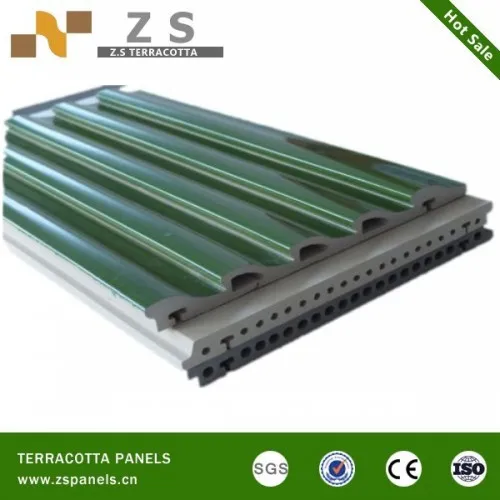

Natural /stripy/groove/glazed/wood grain/napping



6. Technical Data

A)Net weight: 31kgs/sqm for x18mm(thickness), 44kgs/sqm for x30mm(thickness)

B)Size error: within  +-1%, max is within +-2mm

C)Thickness error: within +-4.5%-8%

D)Center curvature: within +-1%

E)Side straight and right angle: within +-1%

F)Anti-pollution: Grade 3

G)Anti-corrasion: Grade UA

H)Wind pressure test  10 Kpa

I)Water absorption: 1%-7%

J)Frost resistence: No crack in -100 centigrade

K)Breaking strength: minium 3244N(300x600x18mm)

L)Fire-proofing Grade A1

M)Anti-impact:0.51-0.78

N)Anti-pollution: Grade 3

O)Noise-isolated 7-10DB

P) Rupture modulus are 16.2mpa



7. ZS panels advantage

Advantages of ZS Terracotta Panel , comparing with Stone and Glass
NO.	Contents	Terracotta Panel	Nature Stone	Glass
1	Material	Natural Clay, 100% green material	granite,marble, sandstone	quartz alkaline colloid
2	Dry Weight	hollow structurer, 30-32kg/m2, 70% weight of the Nature Stone	2.4-2.7kg/m³	2.5kg/m³
3	Dry-hanging System	with its own groove for dry-hanging, standard, safe and easy handle.	on-site processing, fragile,security risk	on-site fixing
4	Color	Never fading, color inherent,stable color for each production.	natural color, but it is greatly affected by mine or location	heavy-metal oxide
5	Durability	not new in ten years, not old in one hundred years.	easy to be second weathering	easy to be errosion
6	Acid and alkaline resistance	high	middle	low
7	Radiactivity	none	with radiactive elements	With radiactive elements for bright color glass
8	Low-carbon ability	hollow structure ,good heat and sound insulation, light-weight, greatly saving steel,half of stone's heat-conducting, recycling.	low heat and noise insulation, heavy, needing to be reinforced.	high light-transimission, no heat-insulation
9	environmental protection of the processing	using shale and terracotta, or coal waste, easy for exploration, no need to process too much, little waste	much wasting water, stone material is limited, causing great damage to environment.	limited good silicon
10	Light pollution	no, matte surface	no	high,dazzling
