Excellent oil Acid resistance building coating phenolic anticorrosive topcoat epoxy paint

Share on (60510132987):


Price:

Quantity:


Product Overview

Description


Excellent oil Acid resistance building coating phenolic anticorrosive topcoat epoxy paint





1



Product Description





































































































Product Description






Epoxy Phenolic Top Coat













Usage






Mainly use for oil hold of oil tanker and coating of organic solvent or brine cabin, also can use for storage tank inside anticorrosion which needs resistance of chemicla,brine,solvent.













Suitable Substrate






Painted epoxy phenol anticorrosive primer













Features










1. Excellent resistance of crude oil,oil,abrasion, attack,tolerance.


2. Resistance of aliphatic solvent,brine and many chemical medicine.
3. Thick coating property while construction.

















Color






Different colors













Substrate Treatment







Confirm the surface clean and dry before working.














Shelf Life








1 year















Drying Time







Temperature℃ -10 0 10 20 30


Dry to touch min 4 3 2.5 2 1.5
Dry semi-hard hrs 36 24 18 12 10















Mixing Ratio






Double components













Package






20Lper metal barrel




Detail Show





For Primer Usage: As First Layer

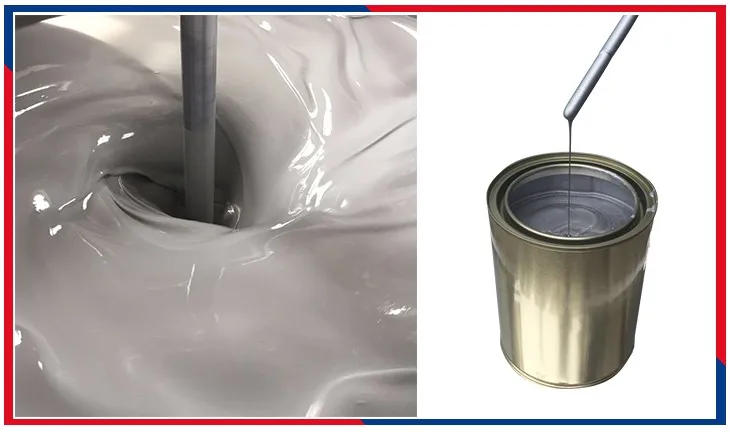

Epoxy Paint  ss.jpg





For Finish Usage: As Final Layer





Epoxy Paint  ss5665.jpg











Popular Types













High Build Epoxy Zinc-Rich Anticorrosive Primer


(Passed EU CE Certification)











♦ Good cathodic protection.





♦ Excellent anti-corrosion and abrasion resistance property, good high build applicability.





♦ Good weather resistance, dry quickly.





♦ Good gas cutting and welding property.





♦ Good matching property with many kinds of subsequent coat.





♦ Good adhesion to steel surface.





Usage:


Mainly be used as primer for the iron and steel structure surfaces of ships, bridges, petrochemical engineering infrastructure, container and steel structures.



































Suitable substrate



Bare steel



Color



Gray



Film thickness



50μm/layer



Theoretical coverage rate



0.18kg/m2/50μm



Drying time



Temperature:   5℃      10℃      20℃     30℃





Dry to touch:  20mins   20mins    10mins    5mins





Dry to handle:  36hrs    24hrs     18hrs      10hrs



Mixing ratio



Main agent : firming agent = 10:1 by weight



Package



2 component package, total 33 kg: part A 30 kg, part B 3 kg


















Epoxy Phenol Anticorrosive Finish


(Passed EU CE Certification)





♦ Good resistance to oil, petroleum, aliphatic hydrocarbon solvent properties and salt water, also have good tolerance  to a variety of chemicals .





♦ Excellent high build workability.





♦ Excellent resistance to abrasion and impact resistance.








Usage:


Mainly used for oil tanks and solvent tanks, sea cabin , can be used for resistance to chemicals, salt water, solvent tank walls required corrosion.



































Suitable substrate



Bare steel



Color



Gray



Film thickness



50μm/layer



Theoretical coverage rate



0.13kg/m2/50μm



Drying time



Temperature:   10℃      20℃     30℃





Dry to touch:    3hrs       2hrs      1hrs





Dry to handle:   18hrs      16hrs    12hrs



Mixing ratio



Main agent : firming agent = 5:1 by weight



Package



2 component package, total 24 kg: part A 20 kg, part B 4 kg


















Epoxy Mica Iron Intermediate Paint


(Passed EU CE Certification)





♦ It has a longer interval.





♦ Excellent water and salt water resistance.





♦ The film is tough, strong with good wear-resistance.





♦ It is high build and heavy-duty paint.





♦ Good matching with all kinds of finish.





Usage:


Mainly use for steel which sprayed zinc powder primers, excellent compatibility with zinc powder primers,polyurethane finish.



































Suitable substrate



Bare steel



Color



Gray



Film thickness



50μm/layer



Theoretical coverage rate



0.13kg/m2/50μm



Drying time



Temperature:   10℃      20℃     30℃





Dry to touch:    4hrs      3hrs     2hrs





Dry to handle:   10hrs      8hrs     6hrs



Mixing ratio



Main agent : firming agent = 8:1 by weight



Package



2 component package, total 27 kg: part A 24 kg, part B 3 kg







Color Choose


color choose.jpg





Application Show


Epoxy Paint application ss.jpg





Our Test Show






About Us




Epoxy Paint







Epoxy Paint

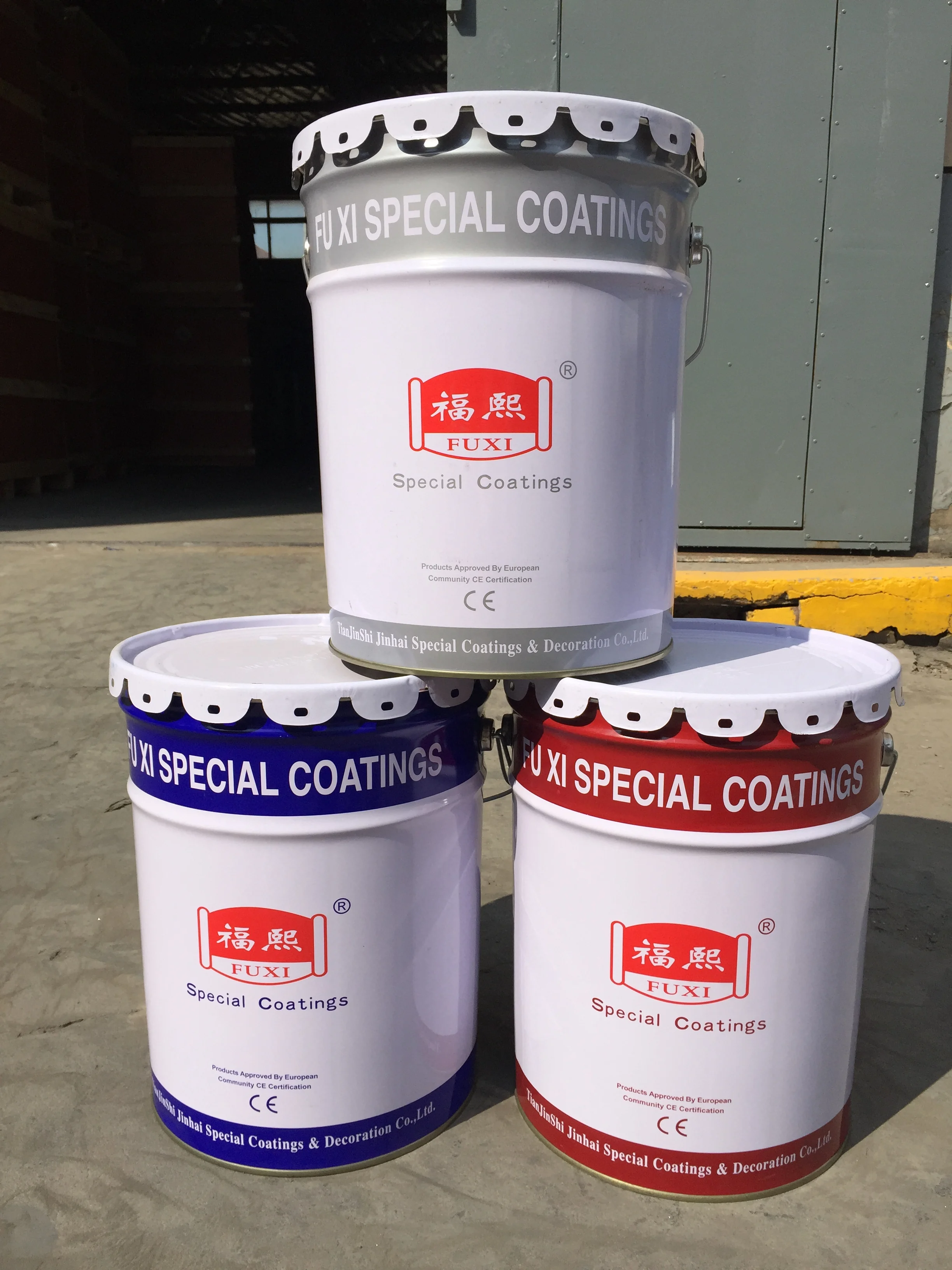

Epoxy PaintIMG_0213
