25t/h Spiral Cement Flexible Screw Conveyor for Cement Silos

Product Overview

Description



25t/h Spiral Cement Flexible Screw Conveyor for Cement Silos





Advantages of Focus Cement Screw Conveyor:
1.Feeding hole and discharging hole can be used universally, which makes installation more conveniently;
2.Good seal performance, good transportation efficiency, Compact structure, small cross section.

Parameters of FOCUS Cement Screw Conveyor:

Model	Metric dia. (mm)	Length(m)	Rotary speed of main axle(r/min)	Shell dia.(mm)	Working angle(°)	Conveying capacity(t/h)	Motor model	Motor power(kw)
LSY 160-2.5	160	2.5	112	Φ180	20	25	Y100L2-4	3
LSY 160-4.5	160	4.5	112	Φ180	20	25	Y112M-4	4
LSY 200-6	185	6	100	Φ219	45	35	Y132S-4	5.5
LSY 200-8(9)	185	8(9)	100	Φ219	45	35	Y132M-4	7.5
LSY 250-8(9)	237	9(9)	90	Φ273	45	45	Y160L-4	15
LSY 300-9(12.15)	305	9(12.15)	80	Φ325	45	75	Y180L-4	18.5



Why would our clients choose FOCUS Cement Screw Conveyor?

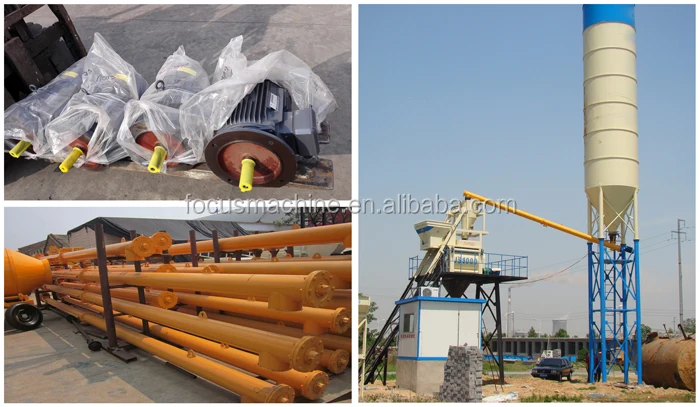

1. FOCUS Screw conveyor is a kind of equipment which conveys bulk cement from cement silo to mixer, or convey the bulk cement into concrete batching machine. Its characteristics are compact structure, small cross section area, light weight, good sealing performance, high conveying efficiency, flexible process layout, easy movement and operation security.

2. The cement conveyor can transport all kinds of powder, granular, small lump bulk materials, such as clay powder, coal powder, cement, gravel, grain, small block coal, pebbles and iron scrap. Such materials is not suitable for conveying, like big viscosity, easy-agglomerate, easy-deteriorated materials.

3. FOCUS Screw conveyor can be used together with others devices to finish working of collection, distribute mixing, mix, dehydration, customization batching, discharging and stacking.
