Product Overview

Description

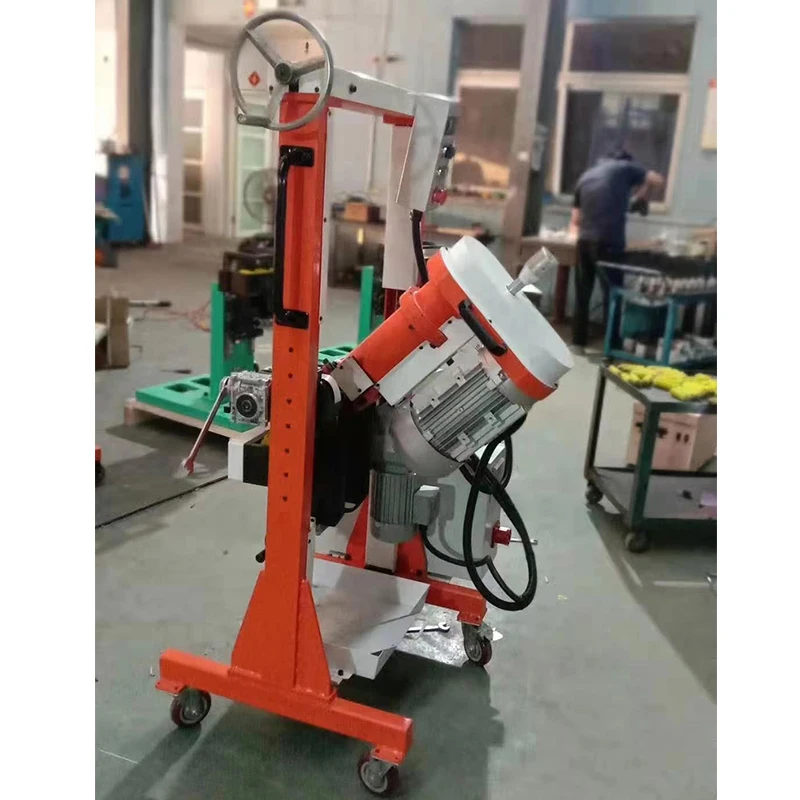

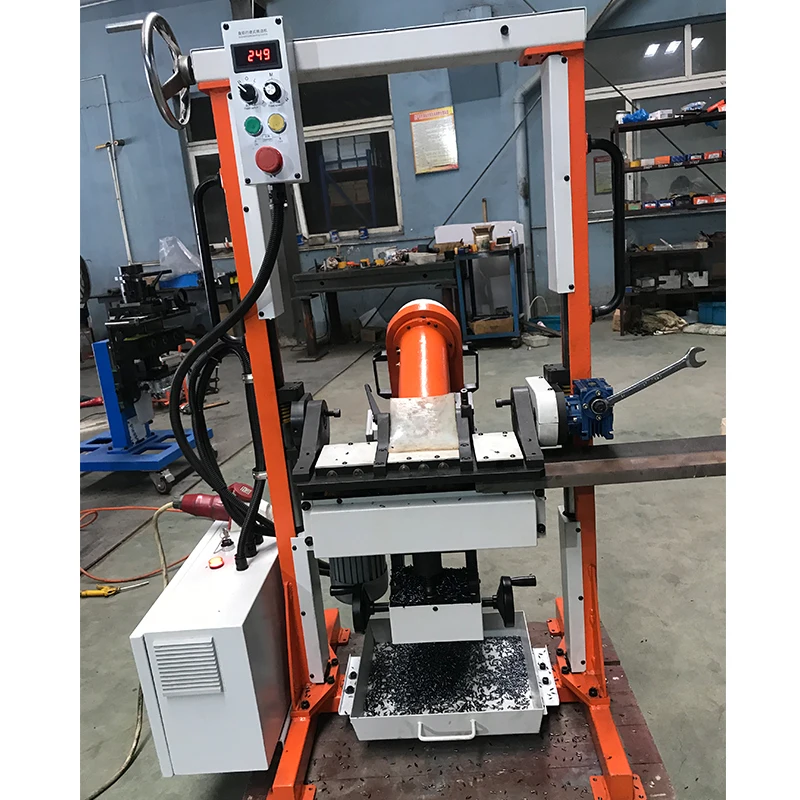

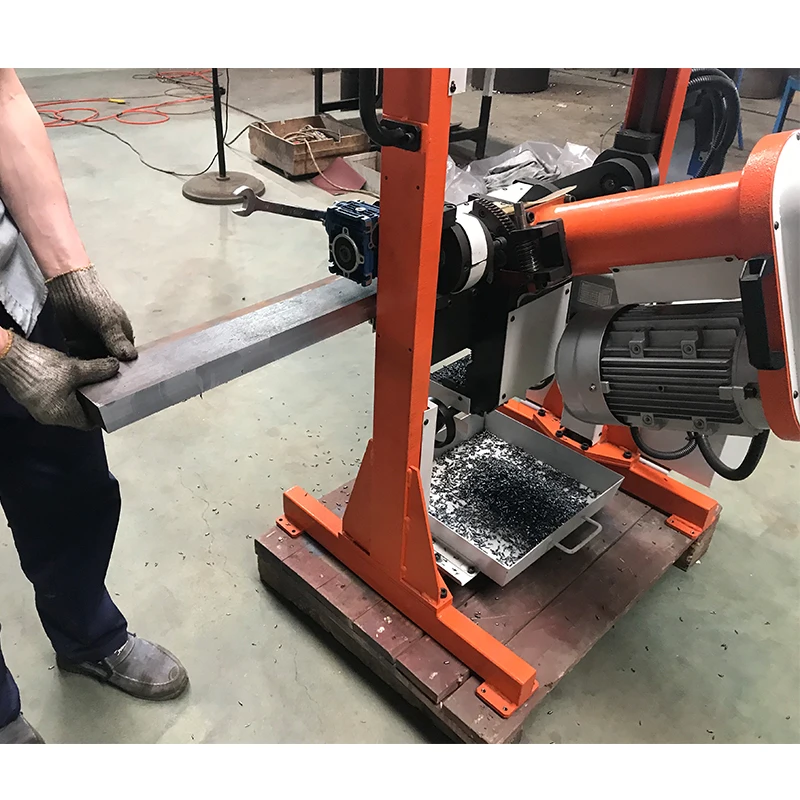

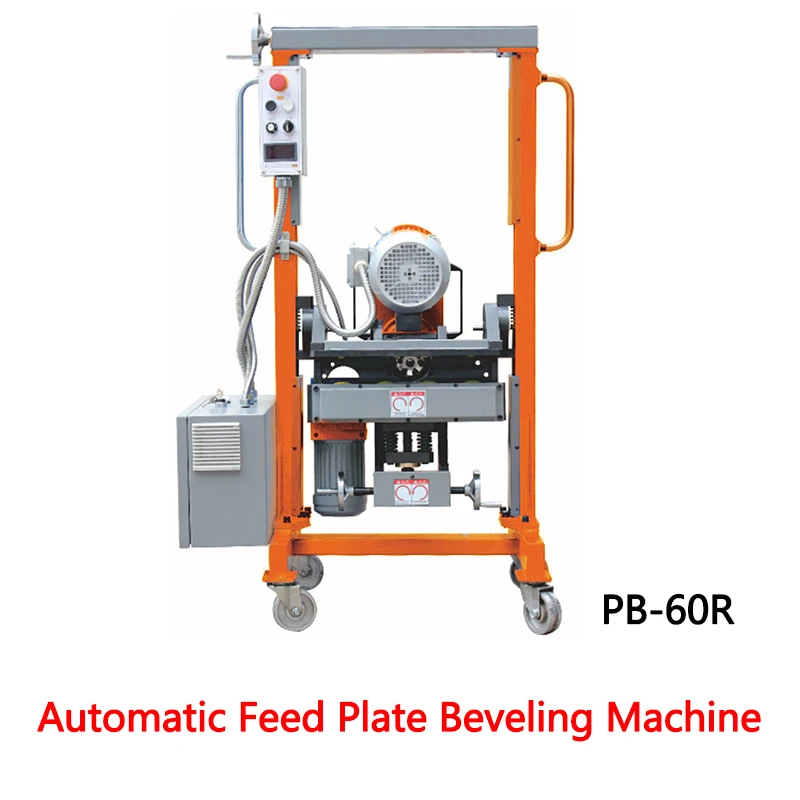

No Need Flip Plate Automatic Feed Plate Beveling Machine



Product Introduction

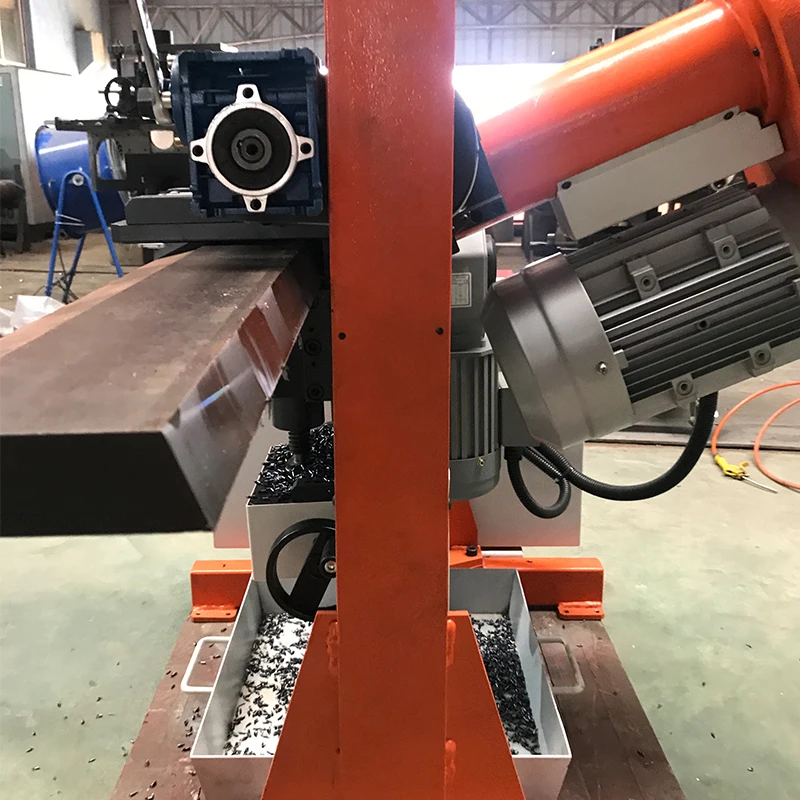

60R model machine can turn over,  when do X bevel type , no need flip steel plate, it save many labor and time. this model specially for heavy duty metal sheets for fabrication preperation. It is available for plate thickness 6-60mm for vary type of welding joint such as V/Y,U/J, 0/90 degree. Max bevel width could reach 55mm.



Feature



1. The beveling angle of machine can adjust from 10° to (+-60)°

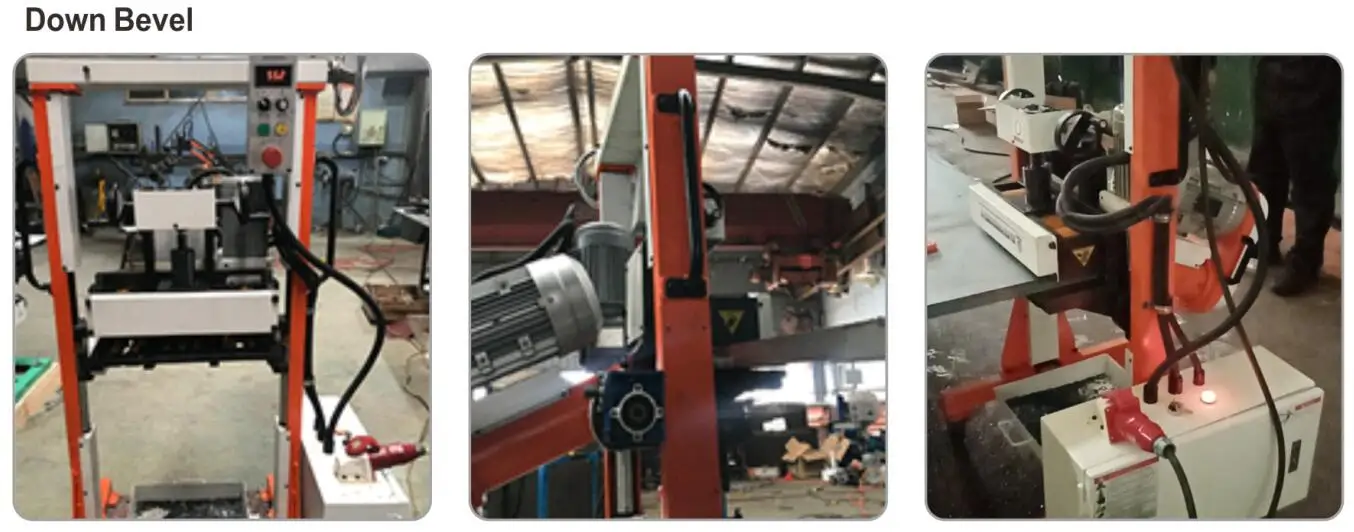

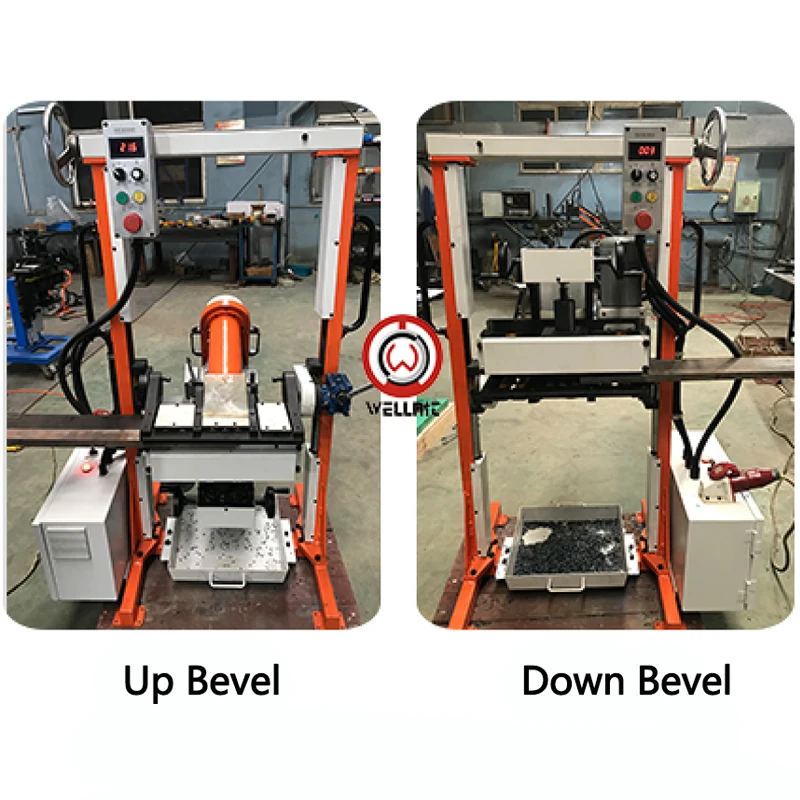

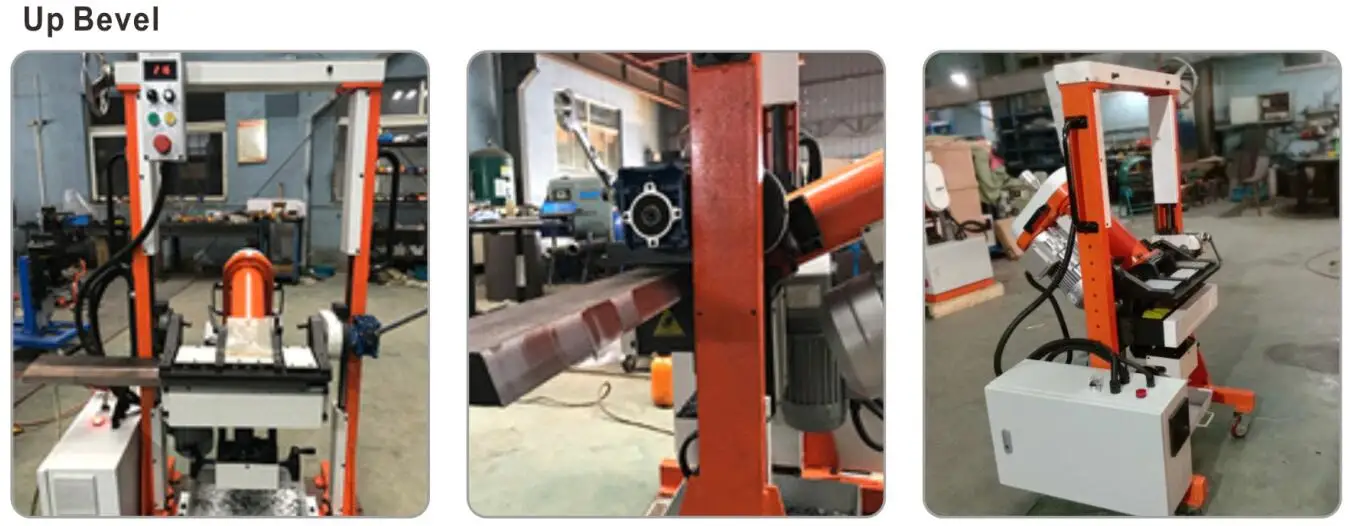

2. Do X bevel type , no need flip steel plate

3. Rear-mounted speed reducer is good for processing narrow plate, and it is safer

4. Special seperate design of Control Box and electrical carbinet make the operation safer

5. Adopt multiply-cutting blades head to process plate beveled edge, therefore the milling speed of each blade is faster and  esiser

6. The surface roughness of plate beveling face can reach to Ra3.2~6.3, it can complete meet the welding demand of pressure vessel

7. Small in Size, light in weight

8.Cold milling method does not affect the material property, no oxidation in beveled surface



 Machine Specification



Model	PB-60R
Voltage	3PH AC 380V 50Hz
Power	3400W
Spindle Speed	1050r/min
Feed Speed	0-1500r/min (can adjust)
Bevel Width	1-55mm
Single Bevel Width	1-15mm
Bevel Angle	10° - (+-60)°
Clamp Plate Thickness	6-60mm
Clamp Plate Width	Greater than 100mm
Clamp Plate Length	Greater than 300mm
Worktable Height	700-800mm
Net weight	250KG
processing plate material	Carbon steel , Stainless Steel , Aluminum   Alloy , Composite Plate , Titanium plate etc
Clamp plate way	Manual clamp

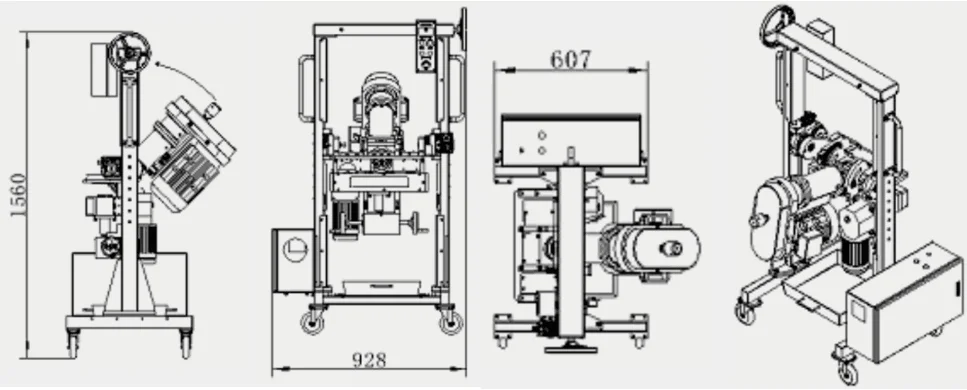

 Machine Dimensions

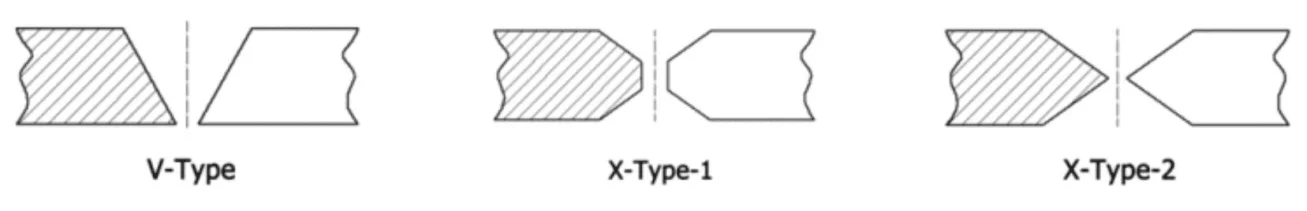

 Bevel Type

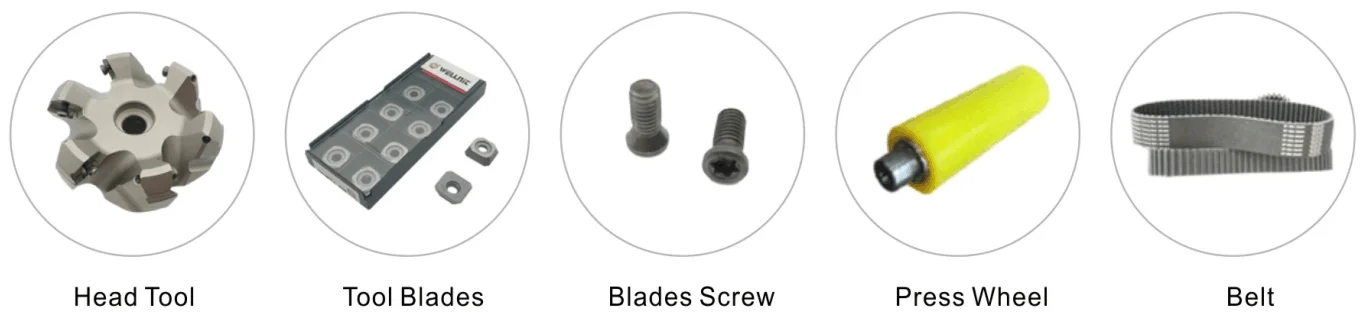

 Common wearing parts





 Order Guide

Thank you for your interested in our machine.



Please provide more details about your metal plate:
1. plate length
2. Plate width
3. Plate thickness
4. Plate material
5. Plate condition : Straight Plate or Curve Plate
6. Bevel angle
7. Bevel depth
8. Processing Drawing



I will recommend suitable machine to you.

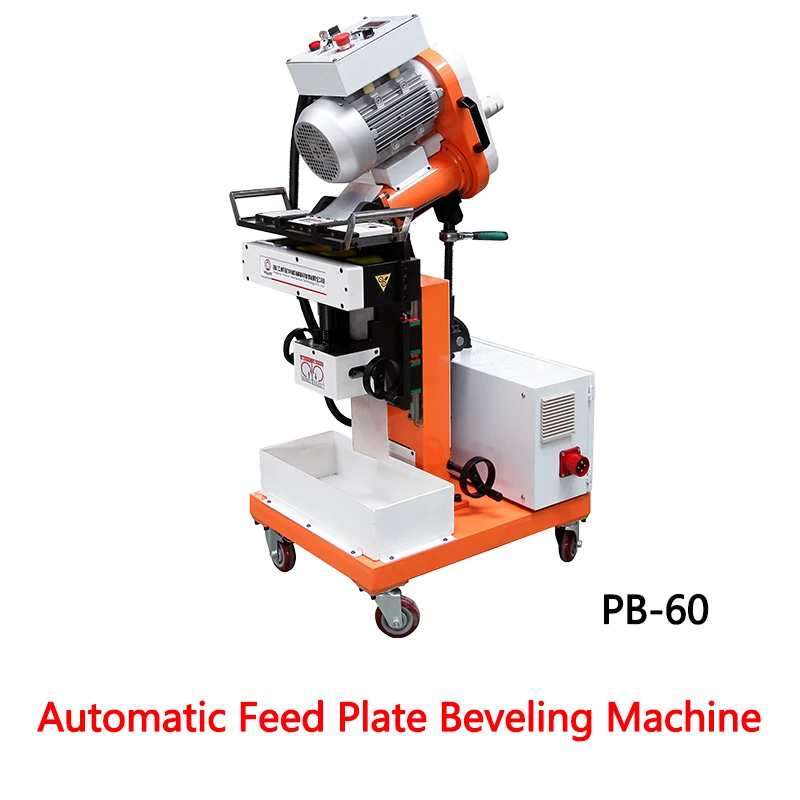

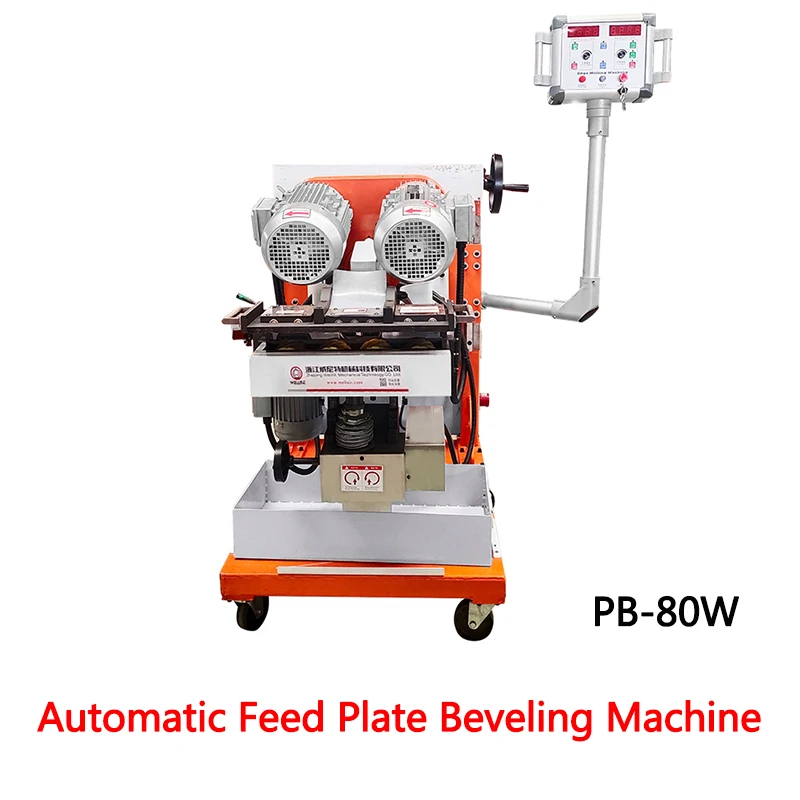

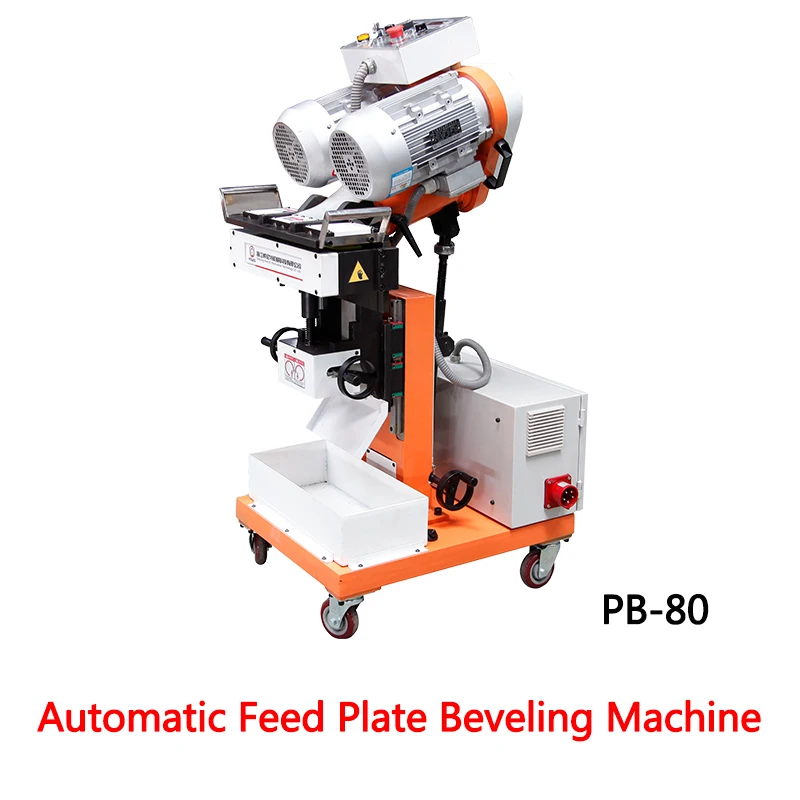

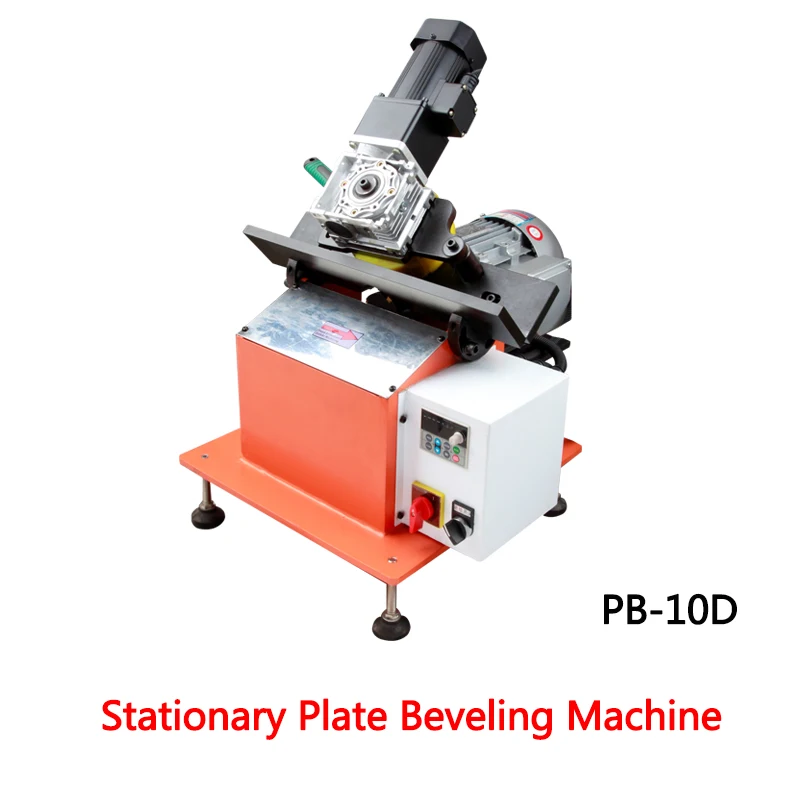

 Other Products





 Company Introduction

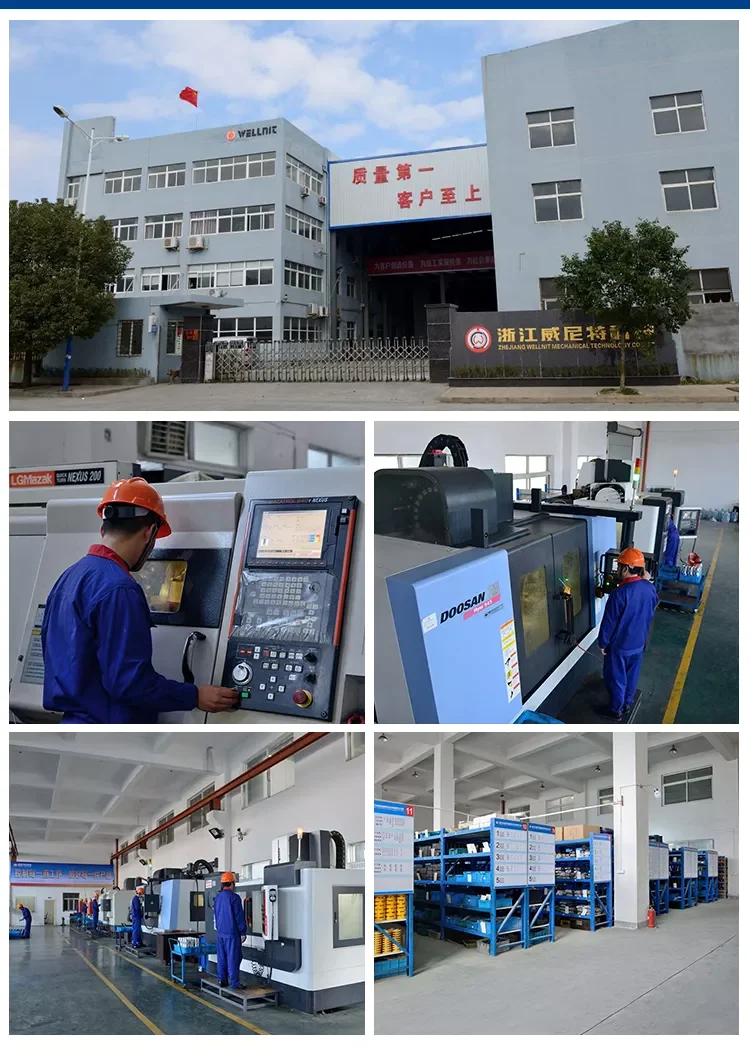

Zhejiang Wellnit Mechanical Technology Co.,Ltd is located in Binhai Economic and Technological Development Zone, Wenzhou City, Zhejiang Province. It is a modern high-tech enterprise integrating R&D, manufacturing, sales and service.
