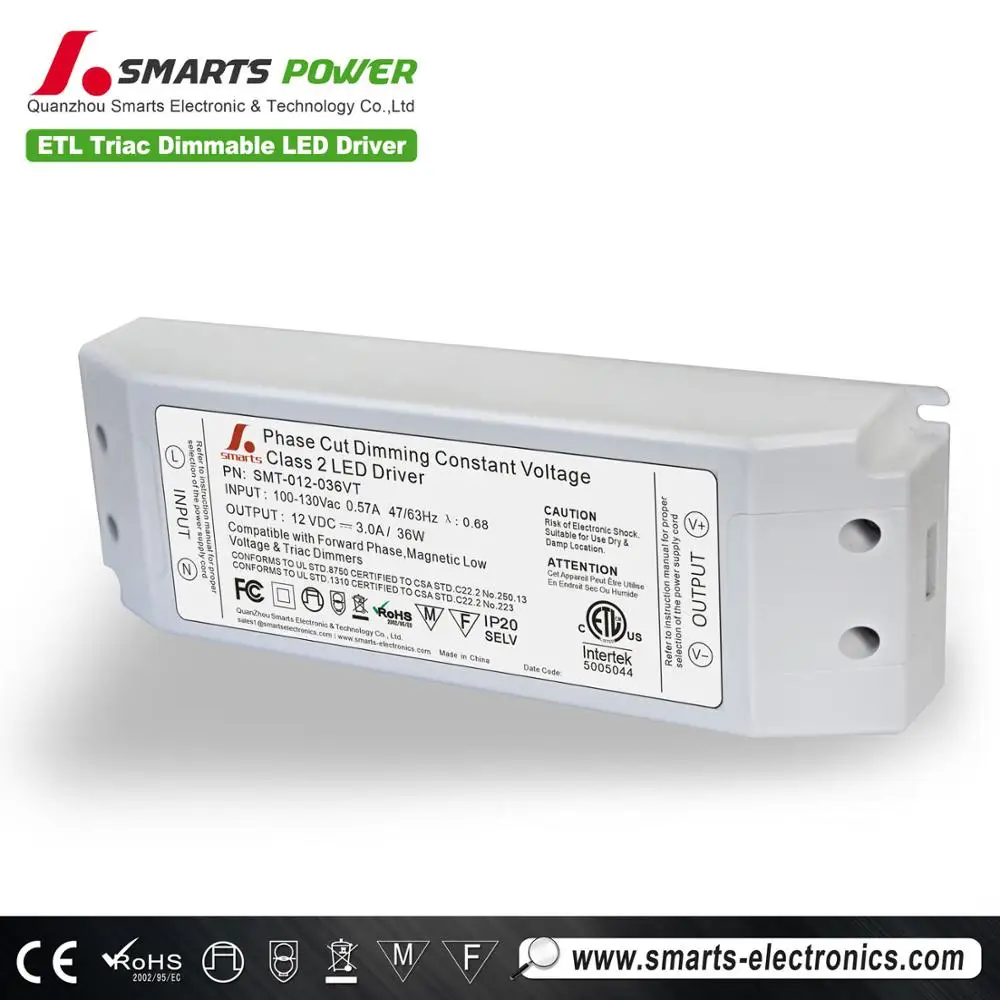

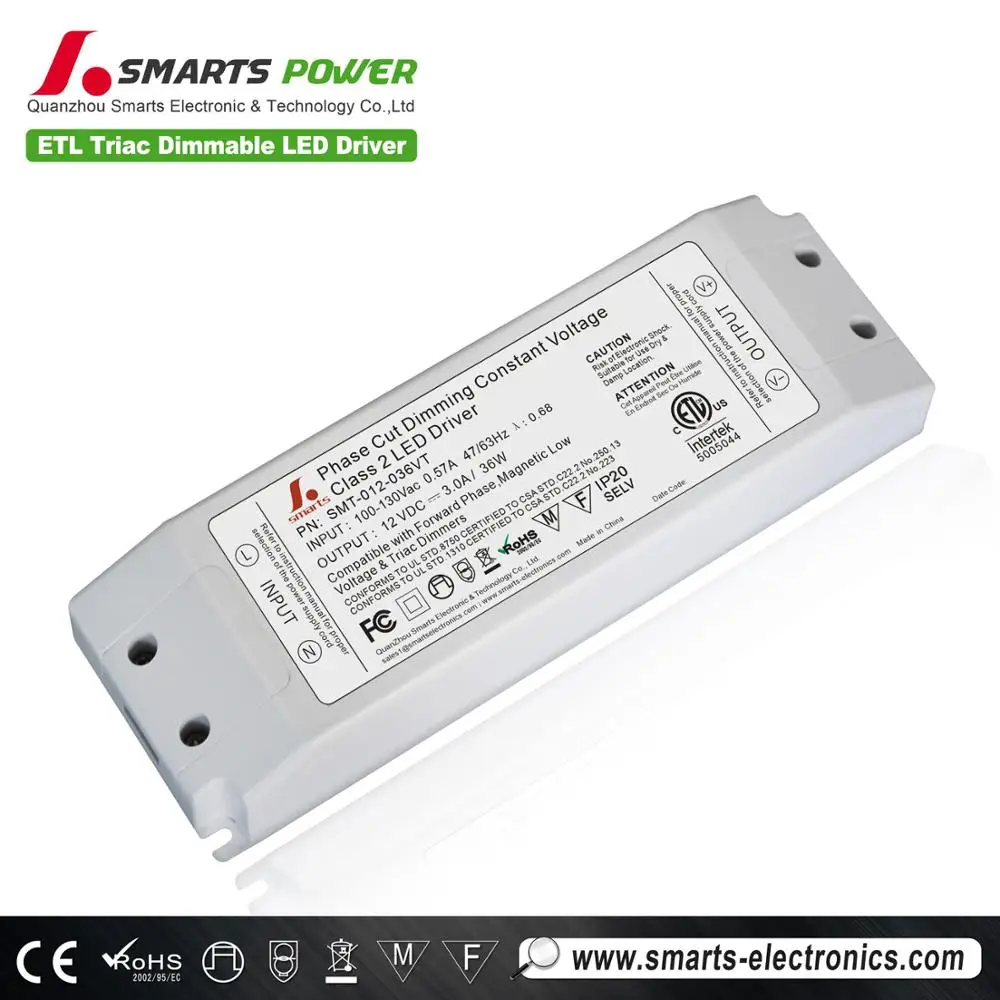

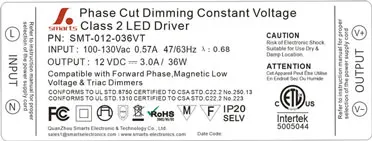

12v triac dimmable led trafo 32w 36w dimmable led driver
- Category: >>>
- Supplier: Quanzhou Smarts Electronic & Technology Co. Ltd.
Share on (60510464645):
Product Overview
Description
12v triac dimmable led trafo 32w 36w dimmable led driver
Product Description
Specification Model | SMT-012-036VT | SMT-024-036VT | |
Output | DC Voltage | 12VDC | 24VDC |
Voltage Accuracy | ±5% | ±5% | |
Rated current | 3.0A | 1.5A | |
Rated power | 12W | 24W | |
Input | Voltage Range | 100-130VAC / 170~250VAC | |
Frequency Range | 47~63HZ | ||
Full Load Efficiency(Typ.) | 86% | 86% | |
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over Current | 1.4 Times output current | ||
Environment | Working TEMP. | -40~+60℃ | |
Working Humidity | 20~90%RH,non-condensing | ||
Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety& EMC | Safety standards | EN-60950-1, EN-61347-1/-2/-13 | |
Withstand voltage | I/P-O/P:3.75KVAC | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | Compliance toEN55015,EN61000-3-2 (>50%load) | ||
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,11,EN61547,Alight industry level
| ||
Others | Weight | 0.32Kg | |
Size | 180*60*34mm(L*W*H) | ||
packing | 320*280*215mm | ||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2.Tolerance: includes set us tolerance,line regulation and load regulation . | ||
170-265VAC |
| ||
100-130Vac |
| ||
Features
·Output constant voltage type
·range 100~130Vac, 170-265VAC
·Built-in PFC function >0.9
·Efficiency> 85%
·Protections:short circuit/over current
·Fully isolated plastic case
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Easy installation
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting

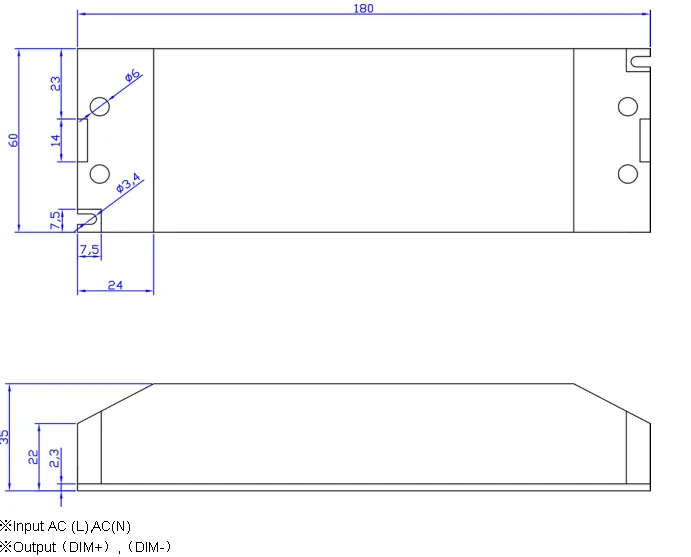

Mechanical Specification of led trafo 12v 36w
Dimming Operation
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

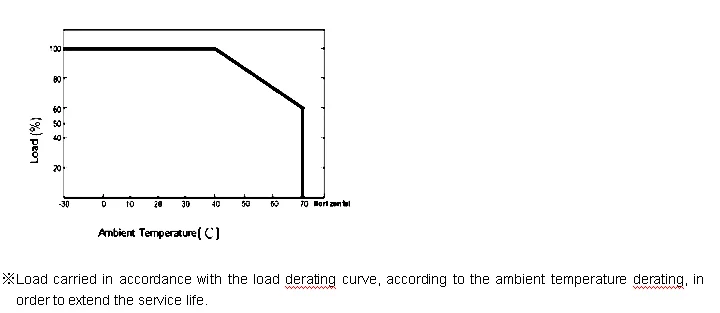

Derating Curve
