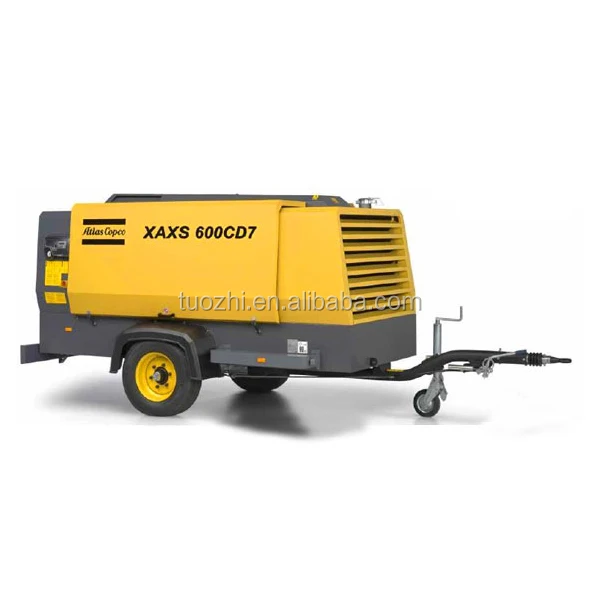

atlas copco 543cfm screw Portable Diesel Air Compressor for construction
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (60510486278):
Product Overview
Description
Atlas Copco is a leading manufacturer of portable compressed air machines in the world. Over the years, we have consistently listened to our customers and developed machines that exceed their expectations.
ATLAS COPCO portable air compressor technical dat
| Compressor Data | XAHS257Dd |
| Free Air Delivery @ Normal Working Pressure | 15.2 m³/min |
| Normal Working Pressure | 12 bar |
| Air Receiver Capacity | 91L |
| Fuel Tank Capacity | 290L |
| Sound Pressure Level (ISO2125) | 76+/-3 |
| Maximum Ambient Temperature at sea level | 50°C |
| Diesel Engine Data | DEUTZ BF6M2012 COM2 |
| Horsepower Developed @ Rated Speed | 140KW |
| Engine Oil Capacity | 13L |
| Unloaded Speed / Maximum Loaded Speed | 1300/2300RPM |
| Length | 5040 within towbar/3450 without towbar |
| Width | 2092mm |
| Height | 1988mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 2700N.W/3000G.W |
Working show:
