Product Overview

Description






Note


1, We supply Original  Pressure Transmitter, Flowmeter with very competitive price .


2, We well know the pressure transmitter is used for the very dangerous area, for the first coorperation , sample for testing is welcomed .


3, we have reliable forwarder who can deliver your goods safely and promise you low freight cost


4, We will help you to avoid expensive tax.


5, Should you have any questions, please feel free to ask us any time !





Product Description

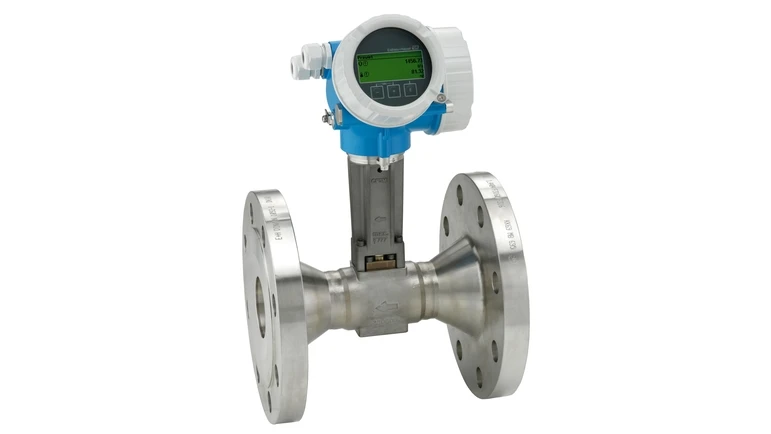

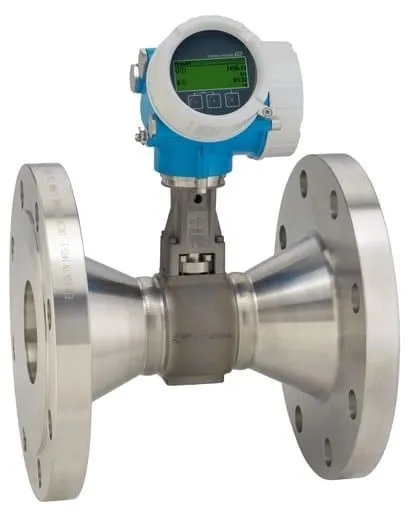

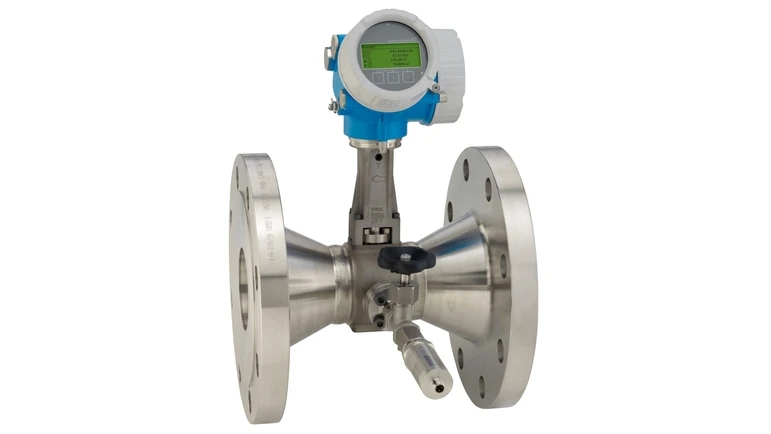

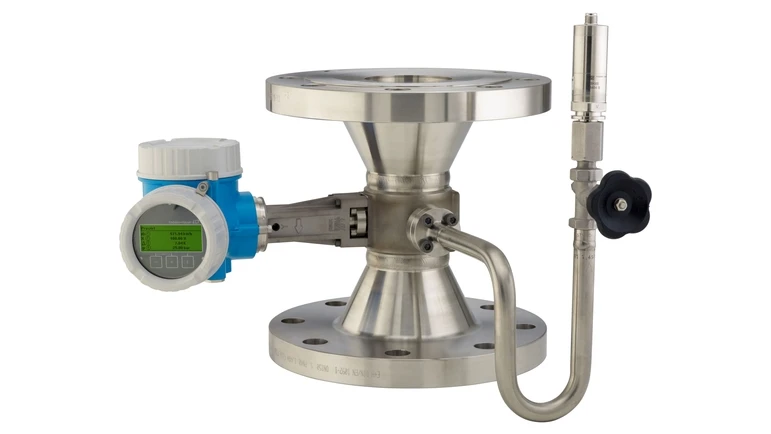

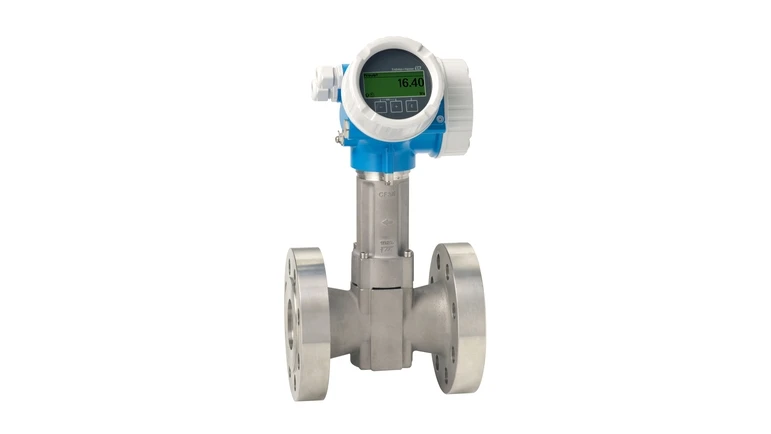

Proline Prowirl R 200 E+H Vortex flowmeter with best-in-class accuracy





Descriptions:





The reducer version Prowirl R provides an integrated reduction of the line size by 1 or 2 diameters and therefore offers an improved low flow performance. Prowirl R 200 offers industry-compliant two-wire technology for seamless integration into existing infrastructures and control systems. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design, and a familiar installation procedure.


Benefits:





























Integrated temp. measuring for mass/ energy flow of saturated steam (opt.)
Cost and time saving – no pipework modifications needed for line size reduction
High availability – proven robustness, resistance to vibration, temperature shocks and water hammer
No maintenance – lifetime calibration

Convenient device wiring – separate connection compartment


Safe operation – no need to open the device due to display with touch control, background lighting
Integrated verification – Heartbeat Technology™







Field of application:


Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic).


Device properties:


























Integrated diameter reduction by 1 or 2 line sizes
Nominal diameter (mating pipe) up to DN 250 (10")
Installation length according to industry standard
Display module with data transfer function
Robust two-chamber housing
Plant safety: worldwide approvals (SIL, Haz. area)







Specifications:

















































































































Measuring principleVortex
Product headlineFlowmeter with best in class accuracy despite pipe reduction.
Easy energy management integrated temperature and pressure measurement for steam and gases.
Dedicated to applications with very low flow or reduced flow.
Sensor featuresCost and time savings no pipework modifications needed for line size reduction. Same accuracy down to Re 10 000 most linear Vortex meter body. Long-term stability robust drift-free capacitive sensor. Integrated diameter reduction by 1 or 2 line sizes. Nominal diameter (mating pipe) up to DN 250 (10").
Transmitter featuresCost and time savings  no pipework modifications needed for line size reduction. Same accuracy down to Re 10 000 most linear Vortex meter body. Long-term stability robust drift-free capacitive sensor.
Integrated diameter reduction by 1 or 2 line sizes. Nominal diameter (mating pipe) up to DN 250 (10"). Flexible positioning of pressure cell.

Nominal diameter range		DN 25 to 250 (1 to 10")
Wetted materialsMeasuring tube: 1.4408 (CF3M)
DSC sensor: 1.4404/F316/F316L
Process connection: 1.4404/F316/F316L
Measured variablesVolume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature
Max. measurement errorVolume flow (liquid): ±0.75 %
Volume flow (steam, gas): ±1.00 %
Mass flow (saturated steam): ±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated)
Mass flow (superheated steam, gas): ±1.5 (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation)
Mass flow (liquid): ±0.85%
Measuring rangeLiquid: 0.1 to 540 m³/h (0.061 to 320 ft³/min)
depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, gas: 0.52 to 7300 m³/h (0.31 to 4300 ft³/min)
depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)
Max. process pressurePN 40, Class 300, 20K
Medium temperature rangeStandard: –40 to +260 °C (–40 to +500 °F)
High/low temperature (option): –200 to +400 °C (–328 to +752 °F)
High/low temperature (on request): –200 to +450 °C (–328 to +842 °F)
Ambient temperature rangeCompact version (standard): –40 to +80 °C (–40 to +176 °F)
Compact version (option): –50 to +80 °C (–58 to +176 °F)
Remote version (standard): –40 to +85 °C (–40 to +185 °F)
Remote version (option): –50 to +85 °C (–58 to +185 °F)
Sensor housing materialSensor connection housing: AlSi10Mg, coated; 1.4408 (CF3M)
Transmitter housing materialAlSi10Mg, coated; 1.4404 (316L)
Degree of protectionCompact version: IP66/67, type 4X enclosure
Sensor remote version: IP66/67, type 4X enclosure
Transmitter remote version: IP66/67, type 4X enclosure
Display/Operation4 line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available
Outputs4~20 mA HART (passive)
4~20 mA (passive)
Pulse/frequency/switch output (passive)
Inputs4~20 mA (passive)
Digital communicationHART, PROFIBUS PA, FOUNDATION Fieldbus
Power supplyDC 12 to 35 V (4~20 mA HART with/without pulse/frequency/switch output)
DC 12 to 30 V (4~20 mA HART, 4~20 mA)
DC 12 to 35 V (4~20 mA HART, pulse/frequency/switch output, 4~20 mA input)
DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch output)
Hazardous area approvalsATEX, IECEx, cCSAus, JPN, EAC, UK Ex
Product safetyCE, C-tick, EAC
Functional safetyFunctional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological approvals and certificatesCalibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine approvals and certificatesABS, LR, BV, DNV GL
Pressure approvals and certificatesPED, CRN, AD 2000
Material certificates3.1 material
NACE MR0175/MR0103, PMI (on request); welding test acc. to ISO 15614-1, similar to ASME IX (on request)
