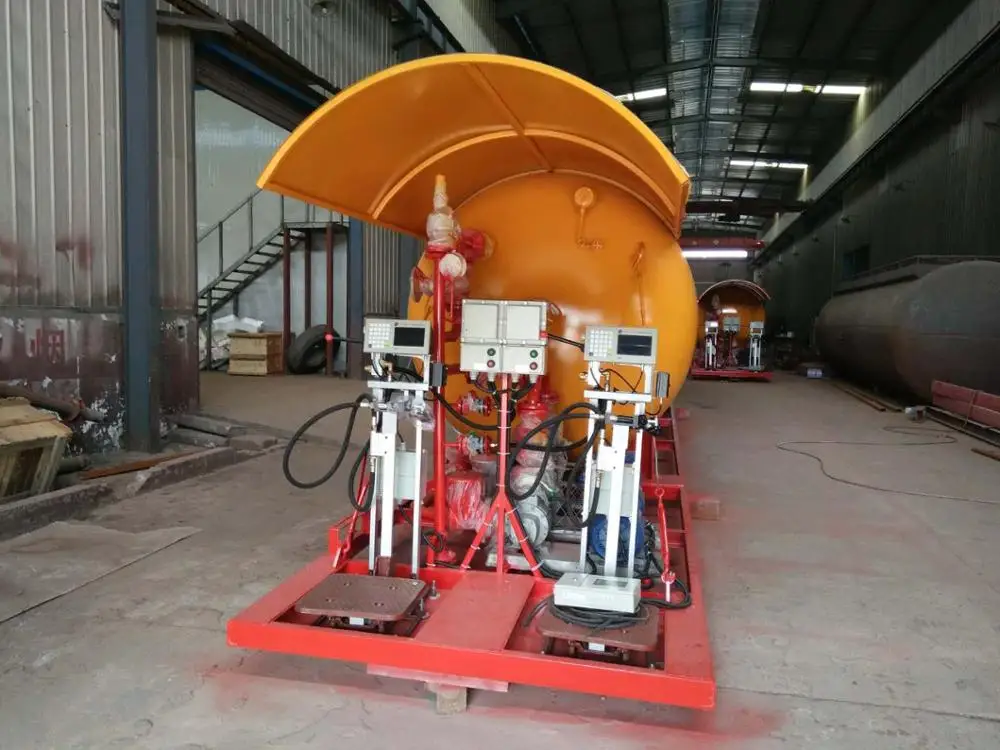

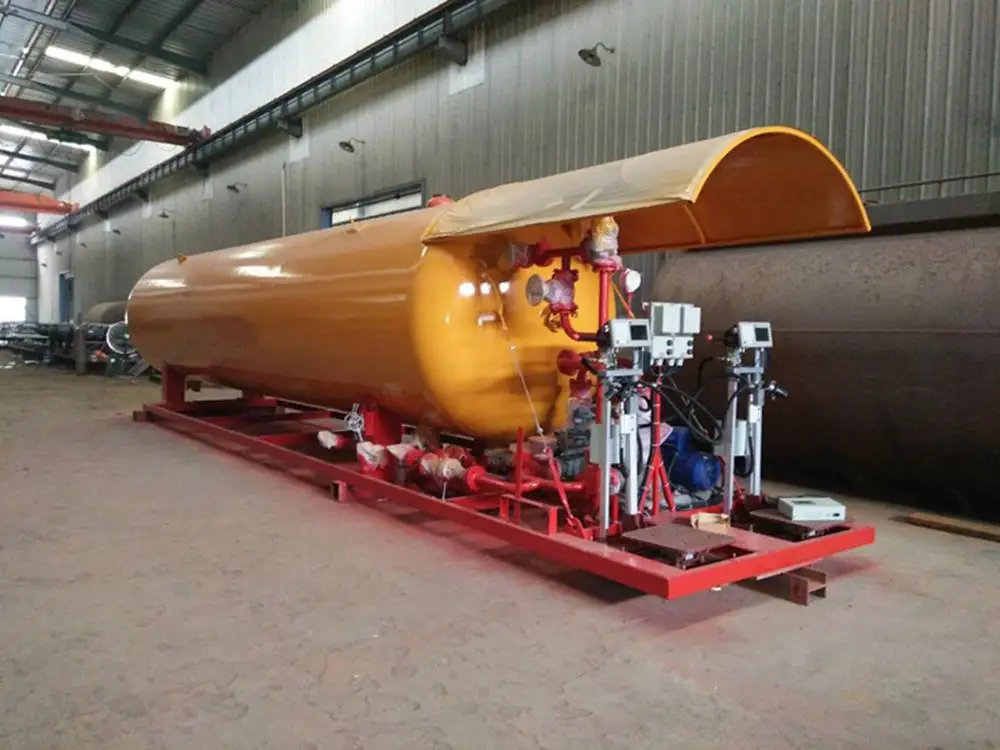

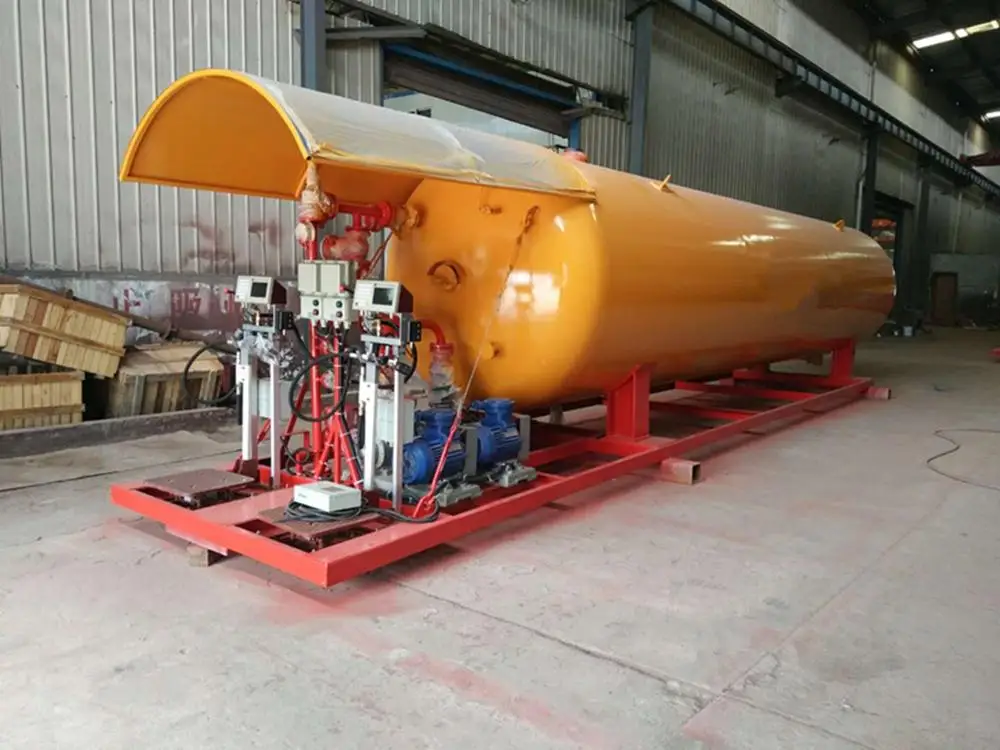

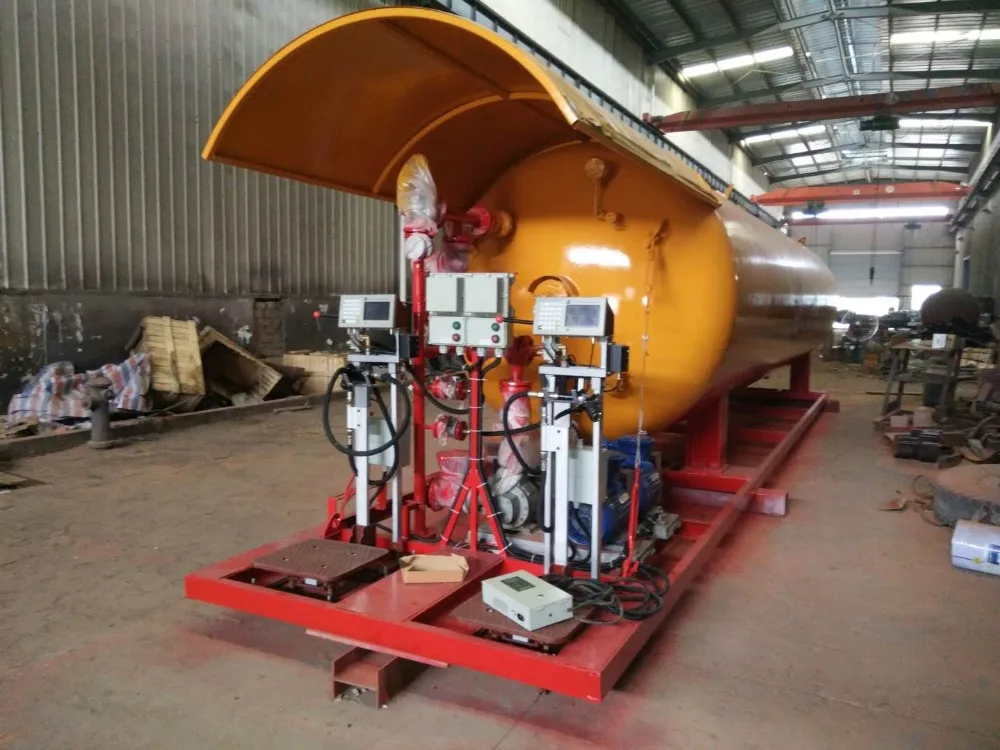

I .50,000 liter /25MT/13500 Gallon LPG SKID STATION
II . LPG SKID STATION SPECIFICATION
PARAMETER
Technical specification
parameters
Subject
parameters
tank
Item Number
20T LPG FILLING STATION
Liquid Indicator
Model
UZFAL-2.5RF2640-0.50
Overall dimensions
9912x2628x3218
Version
Magnetic
(mm)
Tank weight(Kg)
10910
Normal pressure
2.5Mpa
Vessel type
III
Scope of testing
50-2300mm
Designing pressure
1.77Mpa
Precision
2.5
Working pressure
1.61Mpa
Safety Valve
Model
A42F-2.5-80
Designing temperature
-19~50℃
Version
Built-in
Filling Medium
Propane
Normal pressure
2.5 Mpa
Corrosion margin
1.0mm
Normal diameter
DN80
Volume
50CBM(20ton)
Opening pressure
1.68-1.76 Mpa
Heat treatment
bulk
Re-seating pressure
≥80% of opening pressure
Filling factor
420kg/m3

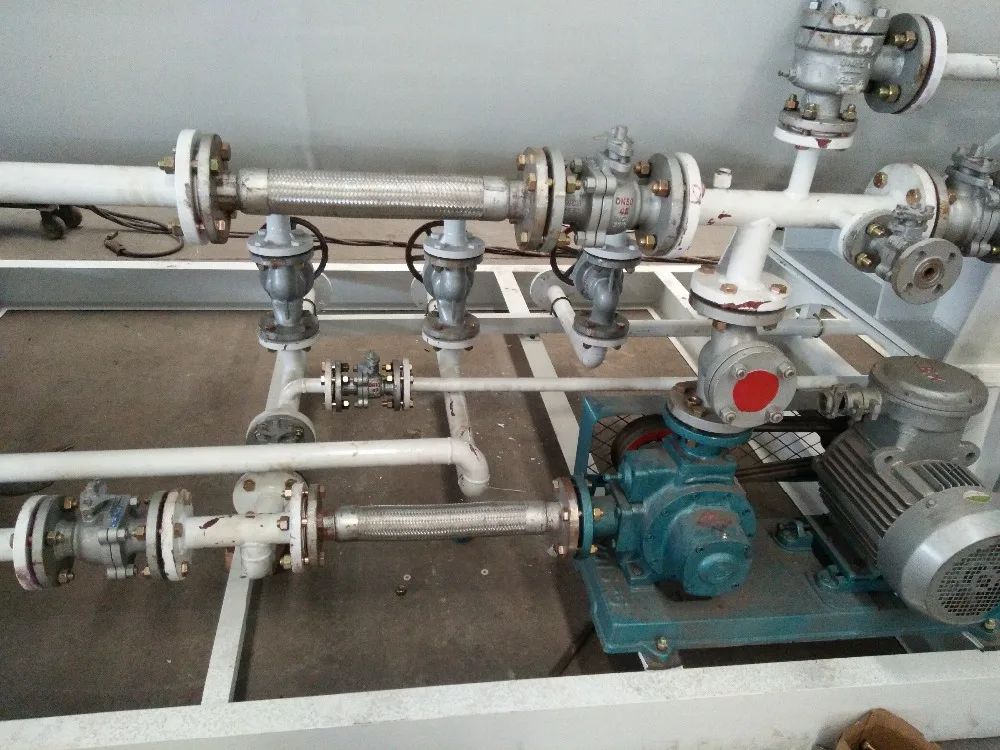

Handling System
Normal Diameter
Feed pip
DN80
Material
Q345R
Drain pip
DN80
Hydraulic test pressure
2.22 Mpa
Admission port
DN50
Gas tight test pressure
1.77 Mpa
Sewage outfall port
DN80
Thickness of Shell (mm)
14 mm
Vent nozzle port
DN80
Thickness of Endplate (mm)
16 mm
stand
GB150-1998<steel pressure vessels>
Service time
10 years
Safety regulation of pressure vessels
Accessory
Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.
Electronic LPG Filling Machine
Can fill 3kg to 150kg gas cylinder with receipt printing
III . PRODUCT DETAILS
Company Information
COMPANY INTRODUCE
HUBEI VELDLION MACHINERY CO., Ltd is an authorized special purpose vehciles manufacturer.We are specialized in the production of a variety of special-purpose vehicles.
Create value for our customersis our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
14. Van truck, insulated truck, Refrigeration Truck
Packaging & Shipping
PROFESSIONAL PACKING AND TRANSPORTATION
FAQ
FAQ
1.Q:How about the warranty?
A:One year
2.Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
3.Q:How about the delivery time?
A: It depends on the style of truck ,normally around 30 working days
4. Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
5. Q: How do you control the quality of product?
A:our workers are well trained. Our very product under goes a scrutinizing inspection process.
6. Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
7.Q: Do you accept Custom orders? What’s is your MOQ order?
