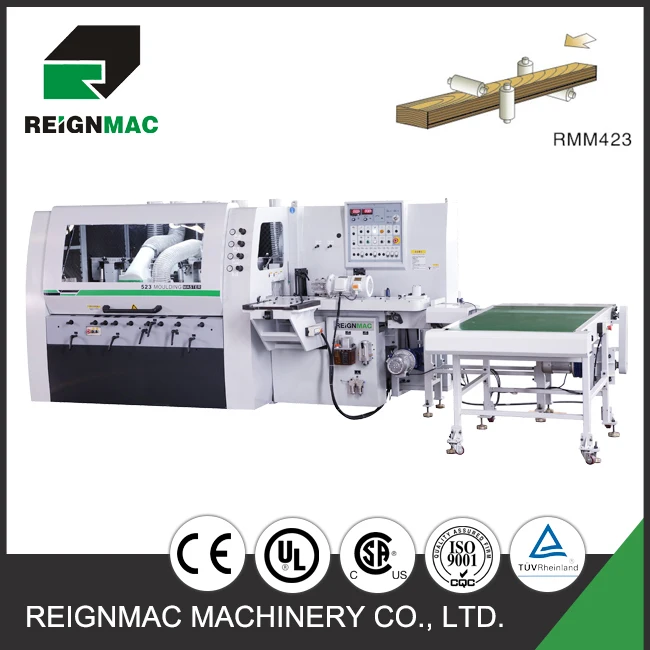

REIGNMAC woodworking planer machine Four side moulder for sale
- Category: Spindle Moulder >>>
- Supplier: Guangdong Reignmac Machinery Co. Ltd.
Share on (60510643336):
Product Overview
Description
Product Description
REIGNMAC woodworking planer machine Four side moulder for sale
M23 Series( Max width230mm) | ||
Specification & Type | RMM423 | |
Working Width (mm) | Min. | 20 |
| Max. (max. cutting circle of 130mm) | 230 |
Working Thickness (mm) | Min. | 8 |
| Max. (max. cutting circle of 160mm) | 160 |
Number of spindles | 4 | |
Speed of spindes(r/min) | 6000 | |
Cutting circles (min~max) (mm) | First Bottom Spindle | Ø108 ~ Ø145 |
| Right side Spindle | Ø108 ~ Ø200 |
| Left side Spindle | Ø108 ~ Ø200 |
| First Top Spindle | Ø108 ~ Ø200 |
| Second Top Spindle | ~~~~~ |
| Second Bottom Spindle | ~~~~~ |
| Universal spindle | ~~~~~ |
Max. OD for installing saw(mm) (.rotation speed up to 3500r/min.) | ~~~~~ | |
Max. Length for installing cutter block(mm) | ~~~~~ | |
Spindle diameter (mm) | Ø40 | |
Rotation angle for universal spindle | ~~~~~ | |
Basice motor powers (kW) | First Bottom Spindle | 5.5 kW/7.5HP |
| Right side Spindle | 5.5 kW/7.5HP |
| Left side Spindle | 5.5 kW/7.5HP |
| First Top Spindle | 7.5 kW/10HP |
| Second Top Spindle | ~~~~~ |
| Second Bottom Spindle | ~~~~~ |
| Universal spindle | ~~~~~ |
| Universal spindle rise & fall | ~~~~~ |
| Feed | 3kW/4HP |
| Feed beam rise & fall | 1.1kW /1.5HP |
Total motor power(KW) | 28.1kW /38HP | |
Feed speed (m/min) (Inverter ) | 6~30 | |
Dust pipe diameter (mm) | Ø150 | |
Overall machine dimensions (L×W×H) (mm) | 3540×1656× 1730 | |
Weight (tons approx) (T) | 3.4 | |

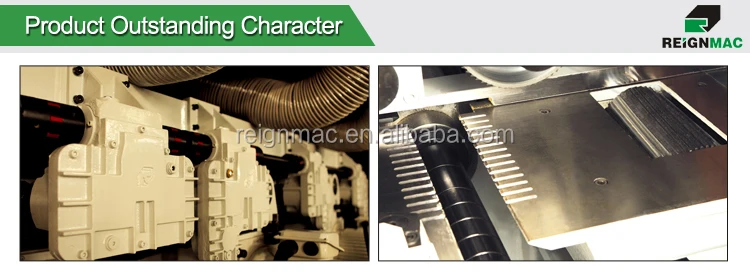

M23 Outstanding character
1.Inverter feed speed of 6~30m/min
2.Individual motor to each spindle to ensure maximum power transmission
3.High precision spindle units with two pairs of high precision bearings each end of the assembly
4.All main spindle adjustments are carried out from outside the enclosure
5.Hard chromed bed plates to minimise bed wear
6.Short piece driven top feed roller unit for greater feeding control around the right side spindle
7.A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.
8.As our standard, short pieces device with pneumatic double-direction( press and raise) , you can make the workpieces feeding or back in anytime.
9. Pneumatic in-feed bottom helical roller is more suitable for large deformation and high moisture of the wood to feed .
10. Multi-group bottom driving roller to improve the feed effect .
11.Pneumatic pressure loading to top feed rollers separately adjustable, for easy of feeding stock with variation in thickness
12. Adjustable out-feed side pressure plate can meet the different thickness of material output steadily.
13.Manual bed lubrication to reduce friction and improve feeding difficult timbers
14.Adopting electric component from international class with steady quality
15.Sealed safety enclose to reduce noise levels, improve extraction and operator safety
16. 45m/min feed speed (optional) , manual straight jointer device , hight effect and hight quality .
Hot products & video
Wood sample diagram
Company Information
Reignmac machine are welcomed by many companies over the world, we are not only your supplier, but also your partner. If you want more information, pls click here to send inquiry to us. Thank you.
Welcome to visit our factory! Our working hours: 8 am to 6 pm from Monday to Saturday. The contact information are as follows:
Export manger: Ms Landy Luo
Mobile/Whatsapp/Wechat/Veber: +86 13923251885
Click here to directly send email to us~
Packaging & Shipping
Most of the machine are fully assembled in Reignmac factory,so just open the package,remove the lubrication grease and get power connected. For other machines, the main parts are well assembled, you might need to install some parts which are easy to install and our engineer will contact with you to install.
FAQ
1. Can I visit you?
Sure, our factory is in Shunde, foshan, China. Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
2. Can I negotiate the prices for the machine?
Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request !
3. How many days do you need for delivery?
Some of our machines have stock, so if you order and make payment, we might deliver asap. If no stock, we might need 60-75 days for new production. But the delivery time is determined by the order you purchase. We will try our best to produce faster if your time is urgent.
4. What is your price term and payment term?
Price term: EXW,FOB, CNF, CIF, ect.
Payment term: T/T, L/C,ect.
You can choose the one which is the most convenient and cost effective for you.
5. How much will be the Shipping cost?
This is determined by the purchasing quantity of machines and your destination port. We will be grateful if you can tell us your destination and items you will order.
6. Can you give warranty of your products?
Yes,1 year warranty since we load the machine at the factory for the spare part which is broken cuased by the quality of part according to the serial no of machine you supply .After 1 year , the part is payable by the customer .
7.How to install and operate the machine?
For Moulder and Multi rip saw machines,most of the machine are fully assembled in our factory, so just open the package ,remove the lubrication grease and get power connected. For DET machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.If you need after service or installation and adjustment from Reignmac , all expenses are payable by your company , which are the ticket from China to your company,the hotel in your country , the food in your country and the Chinese translator for your language etc. all charges happen during the after service and installation & adjustment.
Sure, our factory is in Shunde, foshan, China. Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
2. Can I negotiate the prices for the machine?
Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request !
3. How many days do you need for delivery?
Some of our machines have stock, so if you order and make payment, we might deliver asap. If no stock, we might need 60-75 days for new production. But the delivery time is determined by the order you purchase. We will try our best to produce faster if your time is urgent.
4. What is your price term and payment term?
Price term: EXW,FOB, CNF, CIF, ect.
Payment term: T/T, L/C,ect.
You can choose the one which is the most convenient and cost effective for you.
5. How much will be the Shipping cost?
This is determined by the purchasing quantity of machines and your destination port. We will be grateful if you can tell us your destination and items you will order.
6. Can you give warranty of your products?
Yes,1 year warranty since we load the machine at the factory for the spare part which is broken cuased by the quality of part according to the serial no of machine you supply .After 1 year , the part is payable by the customer .
7.How to install and operate the machine?
For Moulder and Multi rip saw machines,most of the machine are fully assembled in our factory, so just open the package ,remove the lubrication grease and get power connected. For DET machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.If you need after service or installation and adjustment from Reignmac , all expenses are payable by your company , which are the ticket from China to your company,the hotel in your country , the food in your country and the Chinese translator for your language etc. all charges happen during the after service and installation & adjustment.
