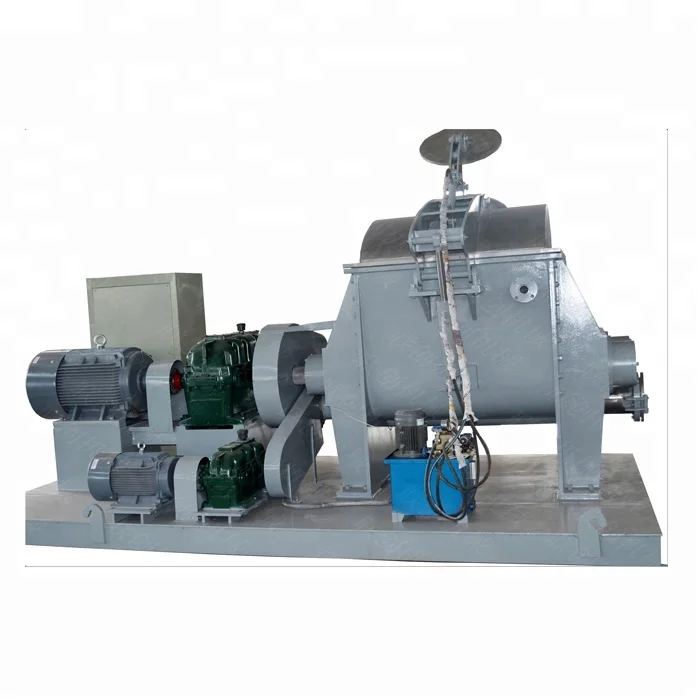

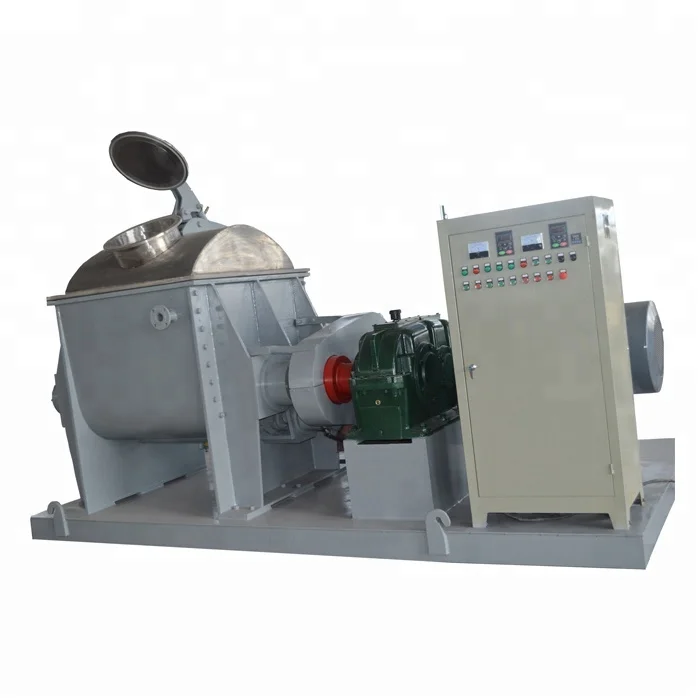

kneader machine for making the BMC/DMC/SMC material in moulding

Product Overview

Description

Intruductions:

1). Kneading machine is an ideal equipment, design for shearing, crushing,compressing, dispersing ,mixing or kneading the high viscosity materials, and has good performance in uniform mixing, no dead ends and high efficiency kneading. It is widely used in many industries: high viscosity sealant, silicone rubber, CMC, adhesive, also used in batteries canbon powder, ink, pigments, dyes, pharmaceuticals, resins, plastics masterbatch, rubber, cosmetics and BMC/DMC/SMC molding compound material ect.

 2). Kneading mechanism is classified into three types: vacuum, pressure and standard atmosphere.Heating/cooling system consists of heating/cooling jacket and outer coil, works by steam, thermal oil and hot water, water cooling, with hydraulic cylinder turn and cover.

3). Discharging can be hydraulic cylinders dumping, discharge valve or screw extrusion. A variety of equipments can be installed on for safety, measurement, control records, etc. Mixing cylinder and the material contact parts are made of stainless steel to ensure the purity of product. Shaft seal is vacuous structure.



Main Technical Data of Kneader Machine:



Type	Volume Capacity  (L)	Working Capacity(L)	Motor Power(KW)	Discharging methods	Heating method
NHJ-1L	1	0.6	0.75	Tank tilting,Screw  extruding	steam, eletric heating oil, hot water
NHJ-2L	2	1.2	0.75
NHJ-5L	5	3.0	1.5
NHJ-10L	10	6.0	2.2
NHJ-20L	20	12.0	3.0
NHJ-50L	50	30.0	3-5
NHJ-100L	100	60.0	5-7.5
NHJ-200L	200	120.0	7.5-11
NHJ-300L	300	180.0	11-15
NHJ-500L	500	300.0	15-22
NHJ-800L	800	480.0	22-40
NHJ-1000L	1000	600.0	40-45
NHJ-1500L	1500	900.0	30-55
NHJ-2000L	2200	1300.0	45-75
NHJ-3000L	3000	1800.0	55-90
NHJ-5000L	5000	3000.0	90-160
NHJ-8000L	8000	4800.0	110-200



Features of Kneader machine for BMC/DMC Products:

1) Available models normal pressure, high pressure and vacuum, with touch part melted by stainless steel.

2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.

3) The blades with fish-nail shape, whcich can cut the CMC chemicals products stirred and mixed fully.

4) Discharge method: tilt dump, bottom dump and screw discharge.

5) The seal of shaft agitator is adopted with unique balance construction of vacuum box.

6) The cover is controlled by hydraulic system.

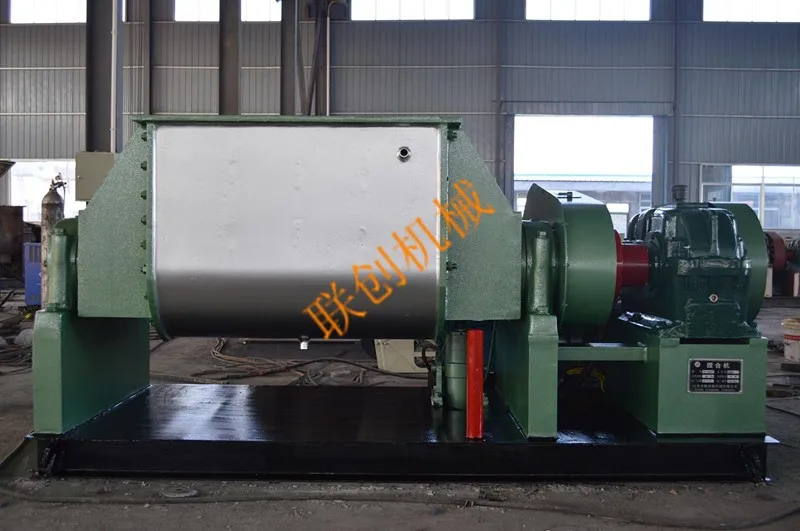

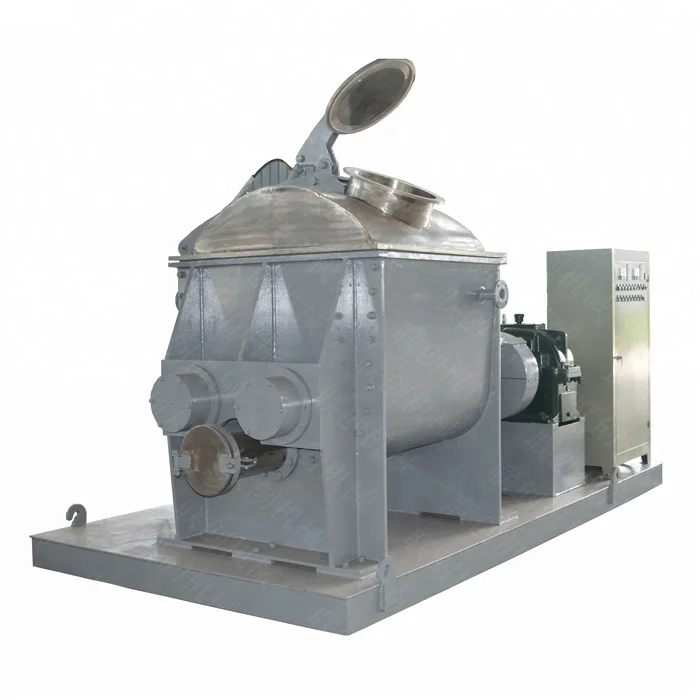

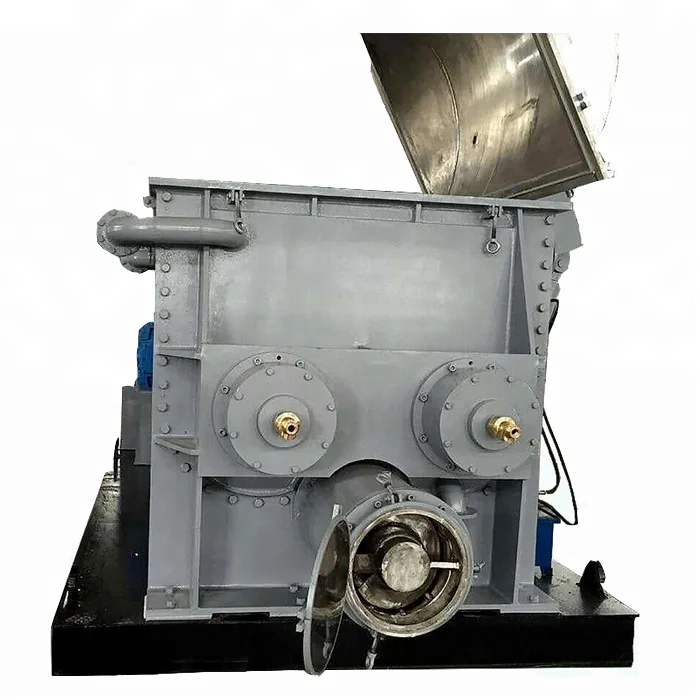

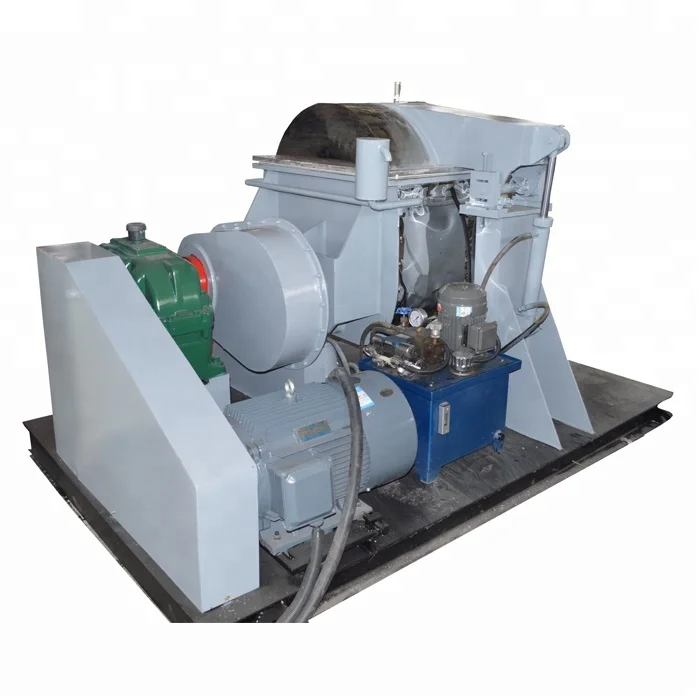

Detailed picture of Kneader machine for BMC/DMC/SMC material



Outside View of Factory
