Product Overview
Description
Product Description
Features:
- Three in three out / three in single out UPSThe series is a three-in and three-out UPS. The input current is three-phase balanced, which can equalize the load of the three-phase power grid; the output can be changed to single-phase output.
- Digital controlAll parts of the UPS are digitally controlled. The UPS has excellent performance indicators, high system stability, self-protection and fault diagnosis capabilities, and avoids the risk of analog device failure, making the control system more stable and reliable.
- The number of external batteries is optional (±16/18/20 sections are optional)The number of external batteries for this series of UPS can be selected according to the user’s needs: ±16/18/20 knots.
- Charging current can be setThis series of UPS automatically assigns a reasonable charge current by setting the user-configured battery capacity. Constant voltage charging mode, constant current charging mode and floating charging mode can automatically and smoothly switch.
- Intelligent monitoring functionThis series of UPS can realize remote monitoring of UPS when an optional SNMP card is selected.
- Smart charging methodThis series of UPS uses an advanced two-stage three-stage charging method.The first stage is high constant current charging, quickly recharge about 90% of the power; the second stage of constant voltage charging, can activate the battery characteristics and fully charge the battery; the third stage is floating charge mode.This can balance the goal of fast charging and extending battery life, saving users’ battery investment.

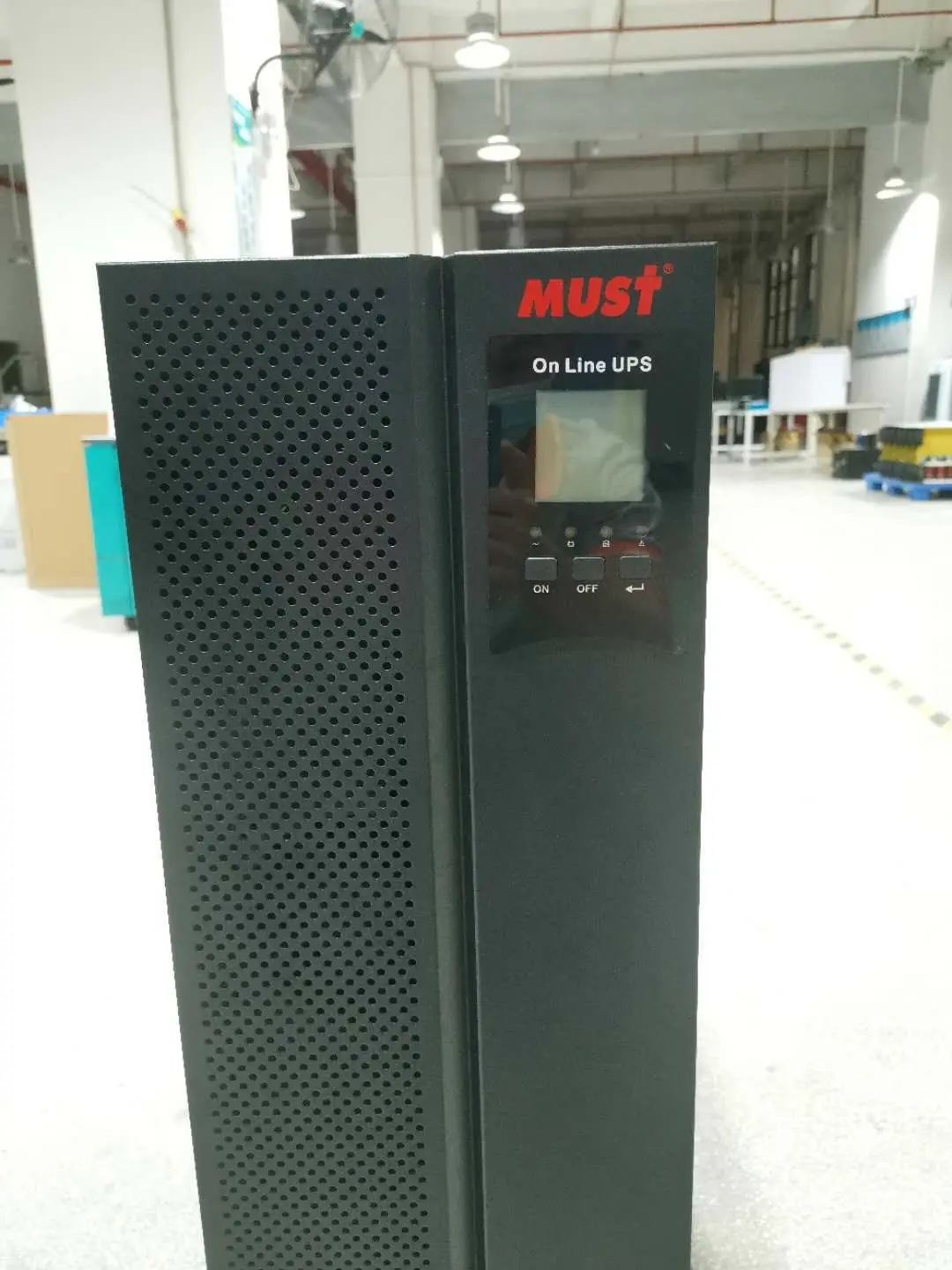

- LCD displayThis series of UPS uses LCD and LED dual display, which allows users to more intuitively understand the working status and operating parameters of the UPS such as input/output voltage and frequency load capacity, battery capacity and internal temperature, so that all operations can be seen at a glance
- EPO FunctionAn emergency shutdown (EPO) button is embedded on the UPS unit panel,user can externally connect the EPO button. Press the EPO button in an emergency to shut down urgently; and have a remote emergency shutdown (REPO) function.
Application field
widely used in the communication industry billing center,
communication base station, banking outlets, ATM
and network office environments of securities,
transportation, electric power, industry.
Product Parameters
Model | EH9335-10KS | EH9335-20KS | EH9335-30KS | EH9335-40KS | EH9335-60KS | EH9335-80KS | |
Power | 10KVA/9KW | 20KVA /18KW | 30KVA /27KW | 40KVA /36KW | 60KVA /54KW | 80KVA /72KW | |
Input | |||||||
Input | Three-phase four-line + ground | ||||||
Rated Power | 380/400/415Vac | ||||||
Voltage Range | 208~478Vac | ||||||
Frequency Range | 45-55Hz at 50Hz/54-66Hz at 60Hz (Auto sensing) | ||||||
Power Factor | ≥ 0.99 | ||||||
Input Current Harmonic | ≤ 3%(100% Nonlinear load ) | ||||||
Bypass Range | Bypass protection voltage upper limit:220V:+ 25%(Optional+ 10%,+ 15%,+ 20%); | ||||||
Bypass protection voltage lower limit:-45%(Optional -20%,-30%) | |||||||
Bypass frequency protection range:±10% | |||||||
Output | |||||||
Output | Three-phase four-line + ground or single phase+N | ||||||
Rated Voltage | 380/400/415Vac or 220/230/240Vac | ||||||
Power Factor | 0.9 | ||||||
Voltage accuracy | ±1% | ||||||
Output Frequency | Utility Mode | Synchronous with input; when the mains frequency exceeds ±10% maximum | |||||
Battery | (50/60±0.2%)Hz | ||||||
Load Peak Ratio | 3:1 | ||||||
Output Voltage Distortion | ≤ 2% Linear Load | ||||||
Battery | |||||||
Efficiency | Normal Mode≥ 94.5% | ||||||
Battery Voltage | Optional :±192V±216V±240V DC (±16/18/20 P CS) | ||||||
Charging Current | 10A max | ||||||
Transfer time | Utility mode to bypass mode: 0ms (tracking); utility mode to battery mode: 0ms | ||||||
Protection | |||||||
Overload Capability | Normal Mode | Load ≤ 110%, 60mins, ≤ 125%, maintain 10mins, ≤ 150% for 1min, | |||||
Over Temperature Protection | Normal mode : Switch to bypass mode; Battery mode : Turn off the output immediately. | ||||||
Emergency shutdown (EPO) | Turn off the output immediately | ||||||
Operating Environment | |||||||
Communication Connection | USB, RS485, dry contact, parallel (optional), SNMP card (optional), relay card (optional) | ||||||
Working Temperature | 0℃~ 40℃ | ||||||
Storage Temperature | -25℃~ 55℃ | ||||||
Relative Humidity | 0 ~ 95% No condensation | ||||||
Altitude | < 1500m, when above 1500m, derate according to GB/T 3859.2 | ||||||
Physical characteristics | |||||||
Size (D*W*H) | 680*250*540mm | 700*250*960mm | |||||
Net Weight(kg) | 45 | 45 | 46 | 48 | 80.5 | 82.5 | |
Executive standard | YD/T1095-2008 | ||||||
Our Services
Warranty: 1 Year for off grid solar inverter&UPS. 5 year/10 years for on grid solar inverter.
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship, but except any defects resulting from improper use of the products.
How To Ask for Support if products failure in warrenty?
1. email us about PI number, serial number,Product S/N number, PCB board number most importantly, is the description of failure products on the condition that it is operated correctly, to the best, show us more detailed pictures or video.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.
Lead time:
a) Sample orders (1-2 pcs) will be delivered from our factory within 10 working days
b) Bulk orders will be delivered from our factory within 35 working days
After-sale Service: 24-Hour Hot Line for Consultancy and Technical Support
Company Information
Do you know MUST POWER LIMITED?
- Established in 1998, Headquarter in HongKong
- 10-year Professional Factory Manufacturer in Foshan, China
- Product Range: Power Inverter, Solar Inverter, MPPT Solar Charge Controller, Solar Battery, UPS
- Main Market : Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya,etc.
- EIGHT FLOOR Factory Building, 20000 Square Meters, Two Manufacturing Centers, QA Office, Aging Test Area and Three Teams of R & D.
- Certificate: ISO 9001, SGS Certificate, CE, etc
- 10-Year Alibaba Gloden Supplier

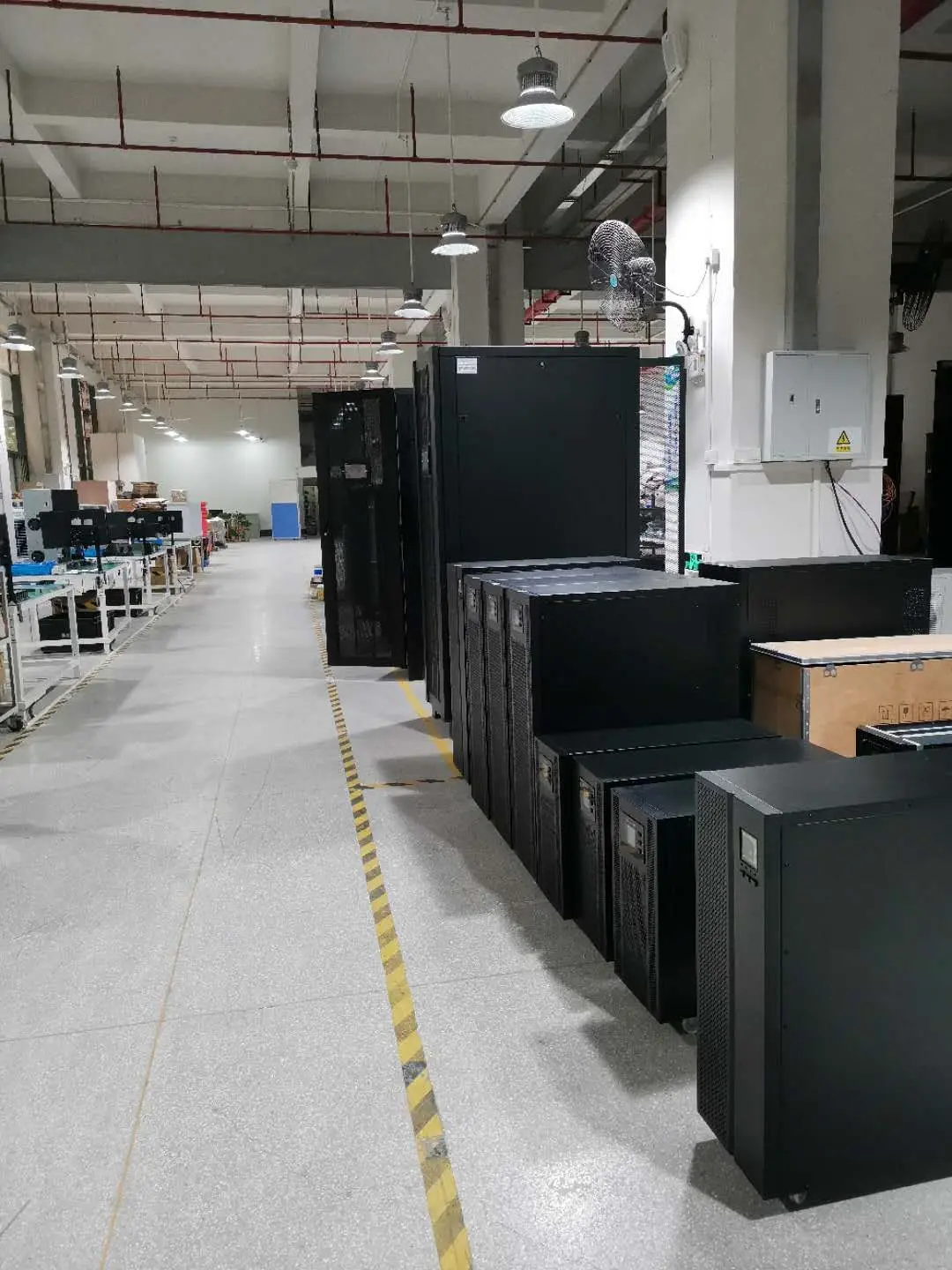

Production Process
