JIAKANG 865Mhz Ceramic Reader Long Range Small UHF RFID Antenna
- Category: >>>
- Supplier: Zhejiang Jiakang Electronics Co. Ltd.
Share on (60510868417):
Product Overview
Description
You are here:Home >> UHF RFID Antennas&Tags > UHF RFID Antenna>>

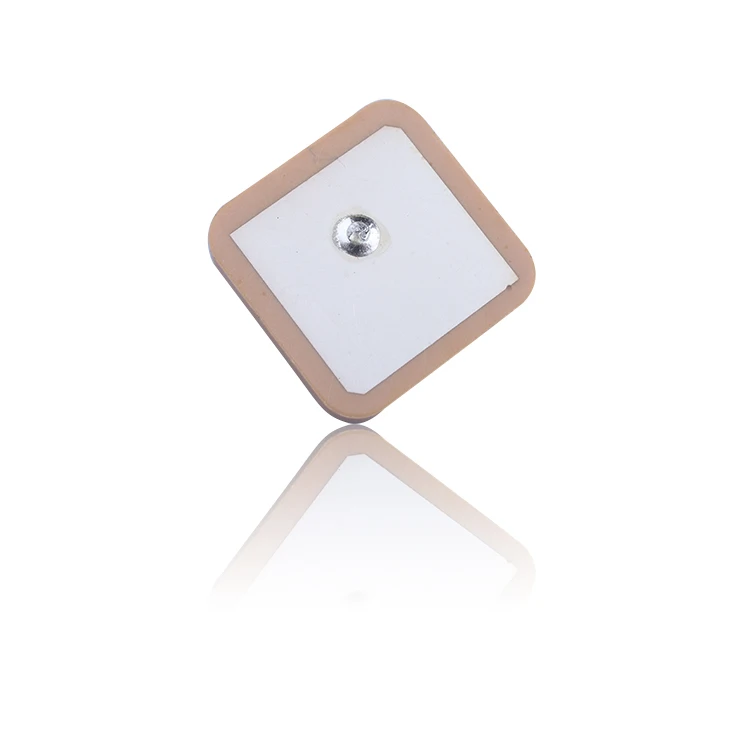

JIAKANG 865Mhz Ceramic Reader Long Range Small UHF RFID Antenna
Product Description

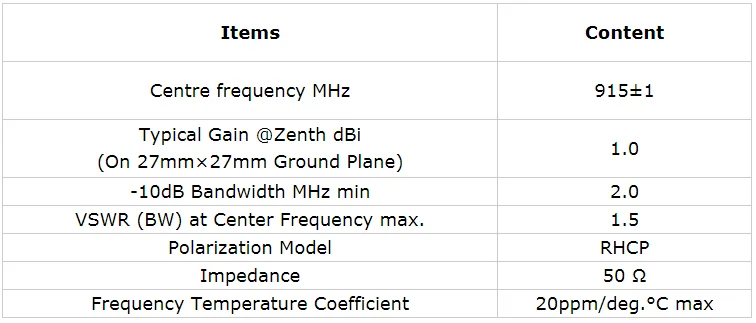

| Items | Content |
Centre frequency MHz | 915±1 |
Typical Gain @Zenth dBi (On 27mm×27mm Ground Plane) | 1.0 |
-10dB Bandwidth MHz min | 2.0 |
VSWR (BW) at Center Frequency max. | 1.5 |
Polarization Model | RHCP |
Impedance | 50 Ω |
Frequency Temperature Coefficient | 20ppm/deg.°C max |

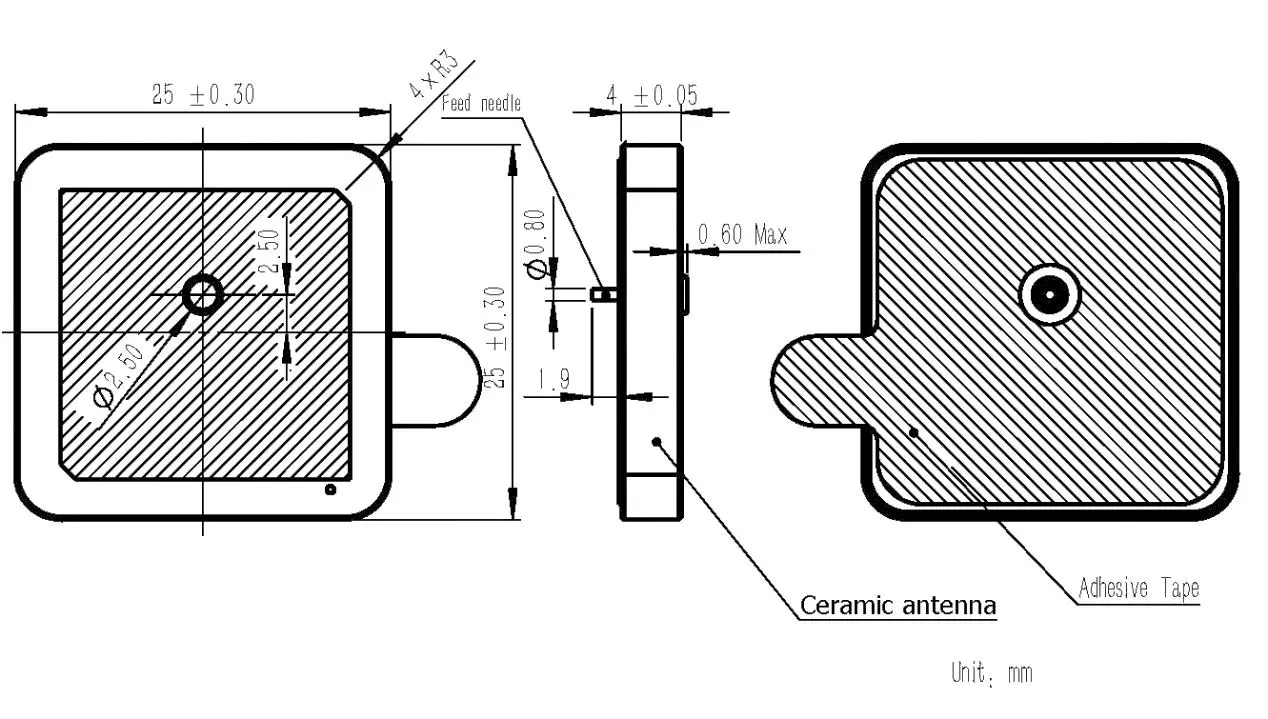

| Dimensions |
 |
 |

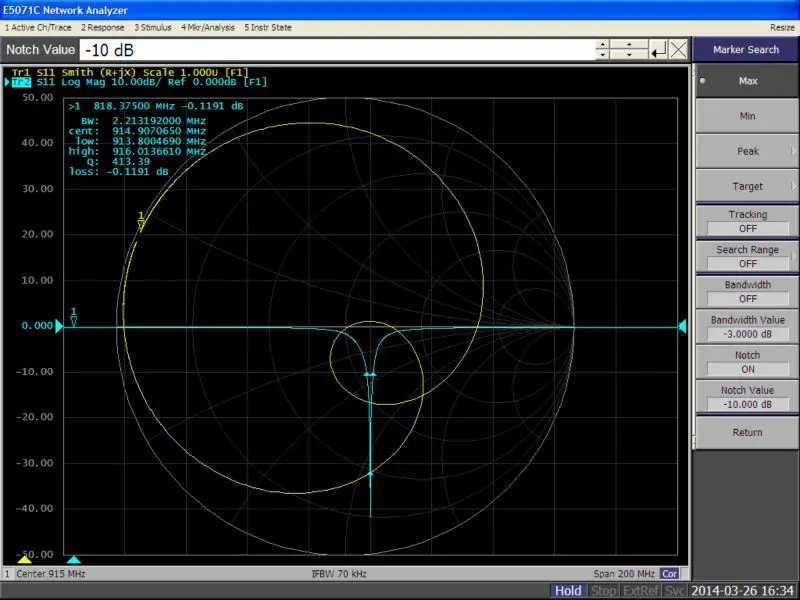

| Impedance Characteristic |
 |
More Products
Company Information
| Brief Introduction of JIAKANG Microwave Products |
Our microwave dielectric products mainly include dielectric patch antennas, filters, duplexers and GPS modules, which are widely used for positioning, satelliate broadcasting receiver system,RFID,ETC and so on. We are dedicated in the development of core technologies and have achieved the leading position in the ceramic powder formula,manufacturing processes and test technologies. Some products and processes are authorized national patents.Customized products are available.
Memo: Above specification subject to change without further notice.Please contact us for more details. |
